Infiniti G20 (P11). Manual - part 493





SMT839

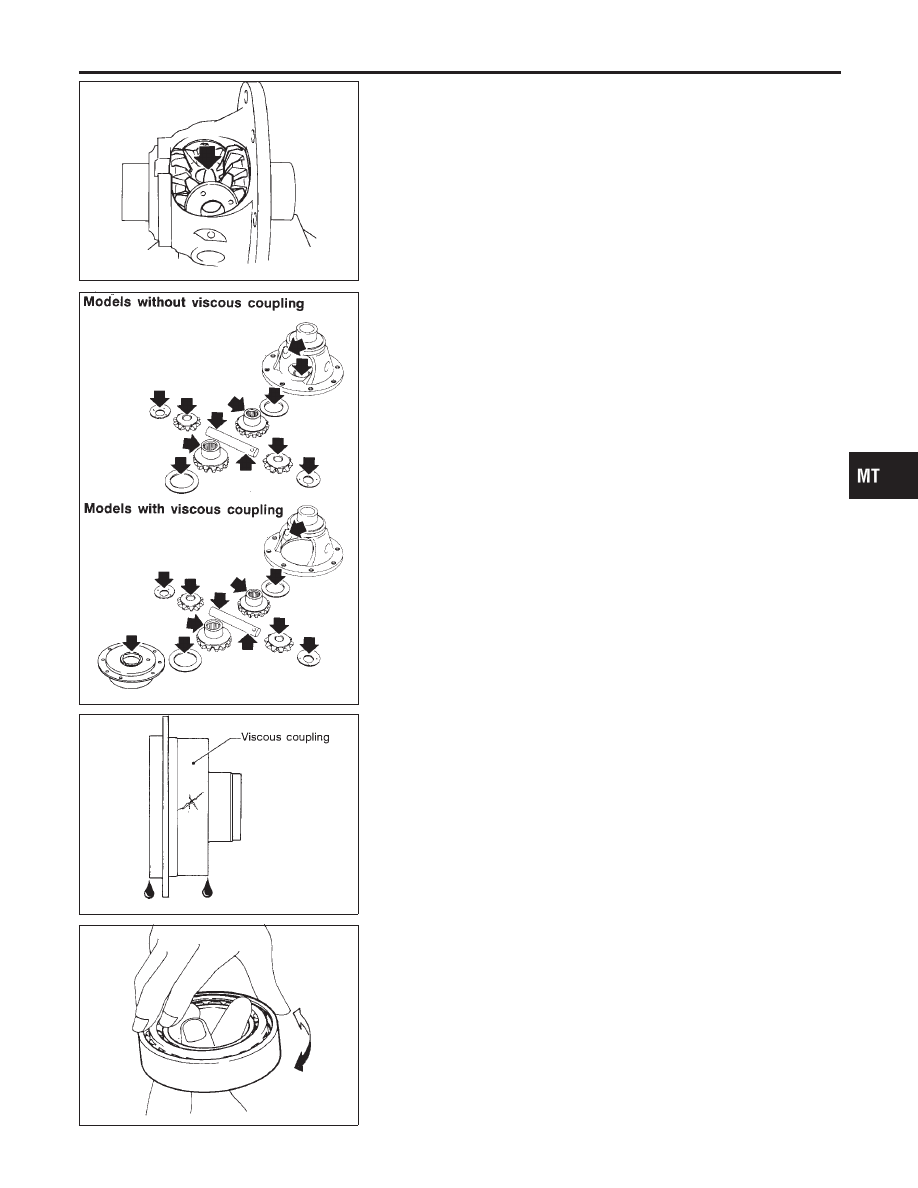

8.

Remove pinion mate shaft.

9.

Rotate pinion mate gear, and remove pinion mate gear, pinion
mate thrust washer, side gear, and side gear thrust washer
from differential case.

SMT991B

INSPECTION

NCMT0017

Gear, Washer, Shaft and Case

NCMT0017S01

I

Check mating surfaces of differential case, side gears and
pinion mate gears — RS5F70A and 70V.

I

Check viscous coupling — RS5F70V.

I

Check washers for wear.

SMT508B

Viscous Coupling — RS5F70V

NCMT0017S05

I

Check case for cracks.

I

Check silicone oil for leakage.

SPD715

Bearing

NCMT0017S02

I

Make sure bearings roll freely and are free from noise, cracks,
pitting or wear.

I

When replacing tapered roller bearing, replace outer and
inner race as a set.

GI

MA

EM

LC

EC

FE

CL

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

Final Drive (Cont’d)

MT-41

SMT062A

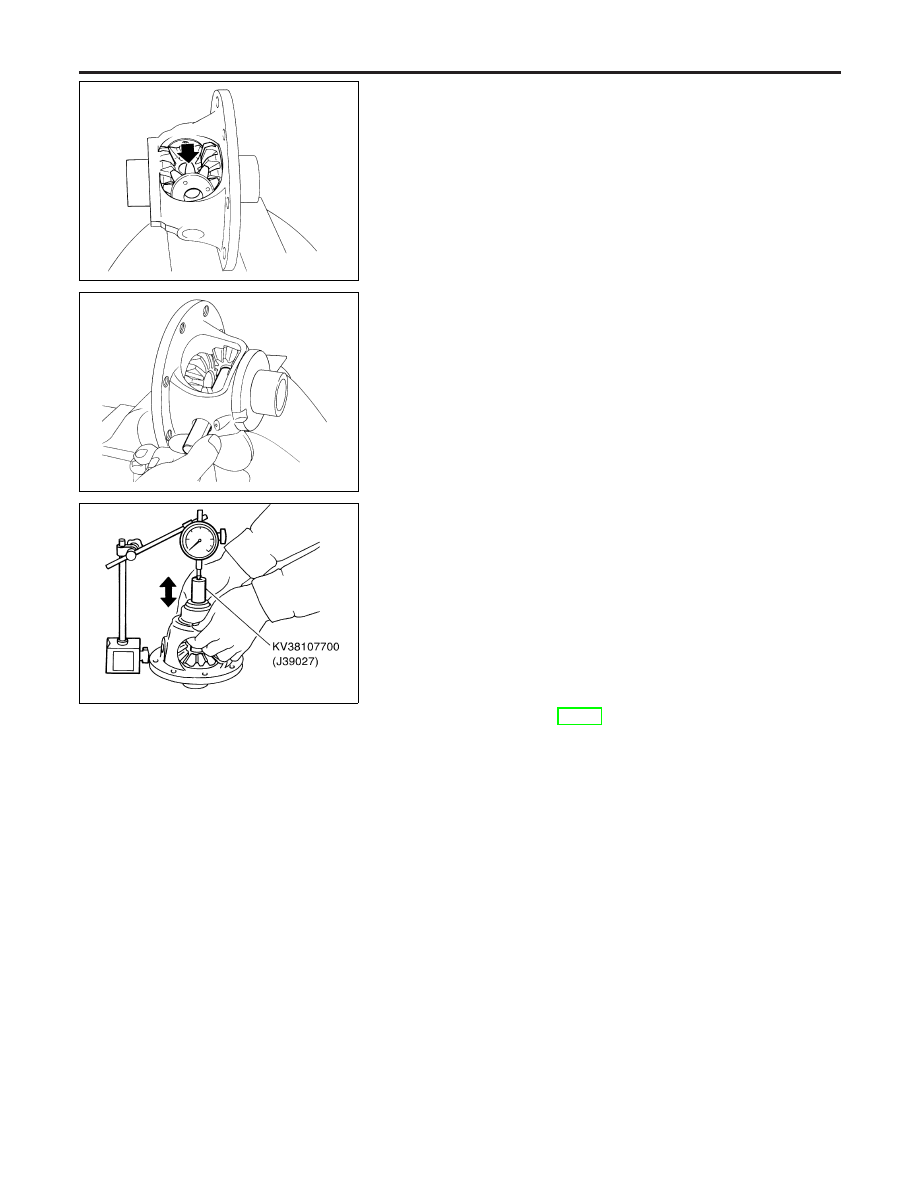

ASSEMBLY

NCMT0018

— RS5F70A & RS5F70V —

NCMT0018S03

1.

Apply gear oil to sliding area of differential case, each gear,
and thrust washer.

2.

Install side gear thrust washer and side gear into differential
case.

3.

Position pinion mate gear and pinion mate thrust washer
diagonally, and install them into differential case while rotating.

SMT087A

4.

Insert pinion mate shaft into differential case.

SMT685DA

— RS5F70A & RS5F70V (Differential case side) —

NCMT0018S04

1.

Upright the differential case so that its side gear to be mea-
sured faces upward.

2.

Place preload adapter and dial gauge onto side gear. Move
side gear up and down, and measure the clearance.

3.

Turn differential case upside down, and measure the clearance
between side gear and differential case on the other side in the
same way.

Clearance of side gear and differential case:

0.1 - 0.2 mm (0.004 - 0.008 in)

Differential side gear thrust washers:

Refer to SDS, MT-61.

REPAIR FOR COMPONENT PARTS

Final Drive (Cont’d)

MT-42

SMT753B

SMT771B

— RS5F70V (Viscous coupling side) —

NCMT0018S05

1.

Measure clearance between side gear and viscous coupling
with washers following the procedure belows.

a.

Set remaining side gear with washer on pinion mate gears.

b.

Measure distance “X”.

I

Measure in at least 4 places around the edge of the side
gear and take an average. At least 4 measurements are
needed because the side gear may be uneven.

c.

Measure dimension “Y”.
Clearance between side gear and viscous coupling with wash-
ers can be obtained by “X + Y − 2A”.

Clearance between side gear and viscous coupling:

0.1 - 0.2 mm (0.004 - 0.008 in)

d.

If not within specification, adjust clearance by changing thick-
ness of side gear thrust washer.

Differential side gear thrust washers:

Refer to SDS, MT-61.

SMT699B

— RS5F70A & RS5F70V —

NCMT0018S06

1.

Install retaining pin.

I

Make sure that retaining pin is flush with case.

GI

MA

EM

LC

EC

FE

CL

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

Final Drive (Cont’d)

MT-43

SMT711B

2.

Install viscous coupling — RS5F70V.

SMT842D

3.

Align and install speedometer drive gear into differential case.

4.

Install speedometer stopper.

SMT751DA

5.

Install differential side bearing.

6.

Turn differential case upside down, and install another differ-
ential side bearing on the other side in the same way.

SMT752D

7.

Install differential gear into differential case. Apply sealant onto
mounting bolts, and tighten them in order as shown in the fig-
ure with specified torque.

Tightening torque:

Refer to MT-19.

REPAIR FOR COMPONENT PARTS

Final Drive (Cont’d)

MT-44
