Infiniti G20 (P11). Manual - part 475





SLC343

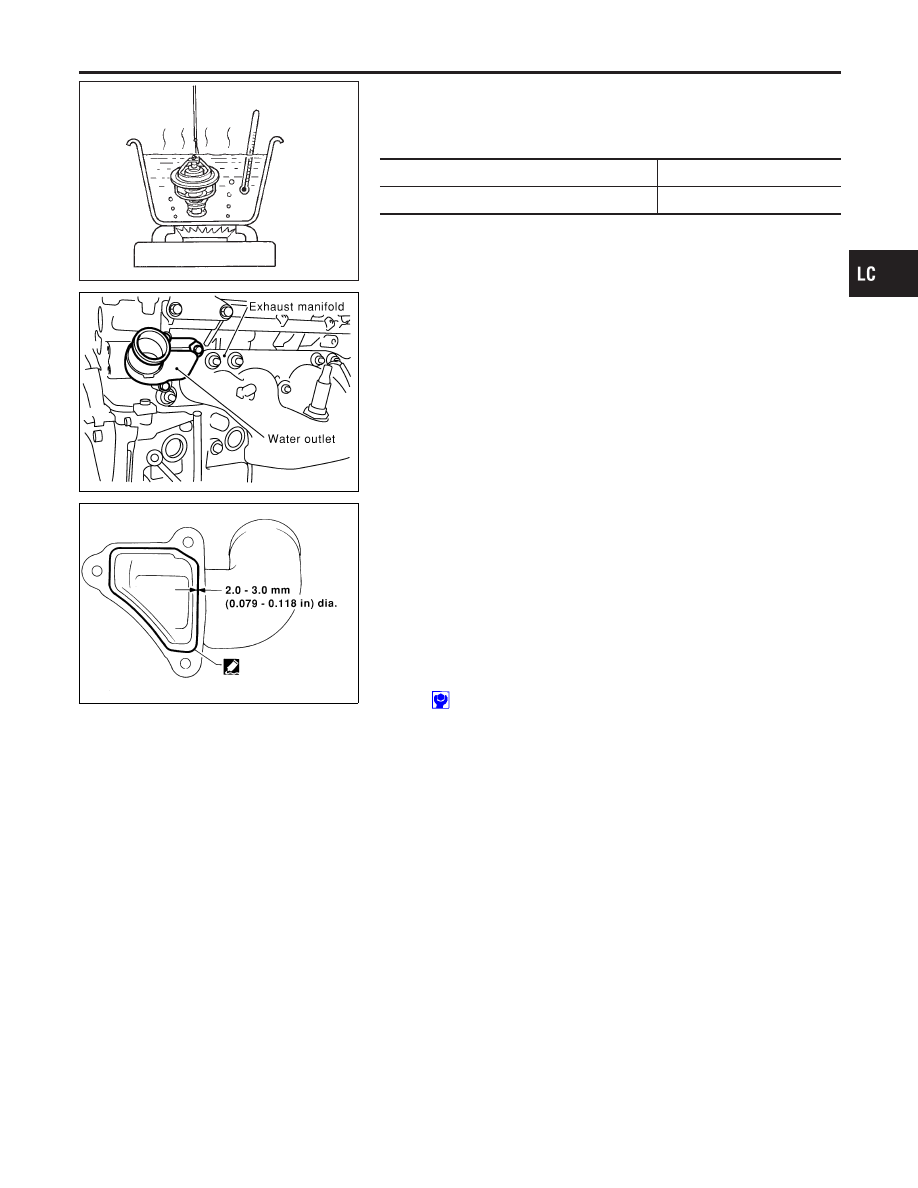

INSPECTION

NCLC0022

1.

Check for valve seating condition at normal room temperature.
It should seat tightly.

2.

Check valve opening temperature and valve lift.

Valve opening temperature

°C (°F)

82 (180)

Valve lift

mm/°C (in/°F)

More than 8/95 (0.31/203)

3.

Then check if valve closes at 5°C (9°F) below valve opening
temperature.

SLC268B

Water Outlet

INSPECTION

NCLC0023

Visually inspect for water leaks. If there is leakage, apply liquid
gasket.

BLC004

INSTALLATION

NCLC0024

1.

Use a scraper to remove old liquid gasket from water outlet.

I

Also remove traces of liquid gasket from mating surface
of cylinder head.

2.

Apply a continuous bead of liquid gasket to mating surface of
water outlet.

I

Use Genuine RTV silicone sealant part No. 999MP-A7007
or equivalent.

I

When installing, tighten water outlet bolts to the specified
torque.

: 6.3 - 8.3 N·m (0.64 - 0.85 kg-m, 55.6 - 73.8 in-lb)

GI

MA

EM

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ENGINE COOLING SYSTEM

Thermostat (Cont’d)

LC-13

Radiator

COMPONENTS

NCLC0025

SLC395B

1.

Reservoir tank

2.

Mounting bracket

3.

Mounting rubber

4.

Radiator

5.

Washer

6.

Oil cooler hose (A/T models)

7.

Lower hose

8.

Air guide plate

9.

Cooling fan assembly

10. Upper hose
11. Radiator cap

Cooling Fan Control System

NCLC0026

Cooling fans are controlled by the ECM. For details, refer to EC-420,
“Cooling Fan”.

ENGINE COOLING SYSTEM

Radiator

LC-14

Refilling Engine Coolant

NCLC0027

For details on refilling engine coolant, refer to MA-14, “Changing
Engine Coolant”.

Overheating Cause Analysis

NCLC0028

Symptom

Check items

Cooling sys-
tem parts
malfunction

Poor heat transfer

Water pump malfunction

Worn or loose drive belt

Thermostat stuck closed

Damaged fins

Dust contamination or
paper clogging

Mechanical damage

Clogged radiator cooling
tube

Excess foreign material
(rust, dirt, sand, etc.)

Reduced air flow

Cooling fan does not oper-
ate

High resistance to fan rota-
tion

Damaged fan blades

Damaged radiator shroud

Improper coolant mixture
ratio

Poor coolant quality

Insufficient coolant

Coolant leaks

Cooling hose

Loose clamp

Cracked hose

Water pump

Poor sealing

Radiator cap

Loose

Poor sealing

Radiator

O-ring for damage, deterio-
ration or improper fitting

Cracked radiator tank

Cracked radiator core

Reservoir tank

Cracked reservoir tank

Overflowing reservoir tank

Exhaust gas leaks into
cooling system

Cylinder head deterioration

Cylinder head gasket dete-
rioration

GI

MA

EM

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ENGINE COOLING SYSTEM

Refilling Engine Coolant

LC-15

Symptom

Check items

Except cool-
ing system
parts mal-
function

Overload on engine

Abusive driving

High engine rpm under no
load

Driving in low gear for
extended time

Driving at extremely high
speed

Powertrain system mal-
function

Installed improper size
wheels and tires

Dragging brakes

Improper ignition timing

Blocked or restricted air
flow

Blocked bumper

Blocked radiator grille

Installed car brassiere

Mud contamination or
paper clogging

Blocked radiator

Blocked condenser

Installed large fog lamp

Service Data and Specifications (SDS)

THERMOSTAT

NCLC0029

Valve opening temperature

°C (°F)

82 (180)

Valve lift

mm/°C (in/°F)

More than 8/95 (0.31/203)

RADIATOR

NCLC0030

Unit: kPa (kg/cm

2

, psi)

Cap reliefpressure

Standard

78 - 98 (0.8 - 1.0, 11 - 14)

Limit

59 - 98 (0.6 - 1.0, 9 - 14)

Leakage test pressure

157 (1.6, 23)

ENGINE COOLING SYSTEM

Overheating Cause Analysis (Cont’d)

LC-16
