Infiniti G20 (P11). Manual - part 422

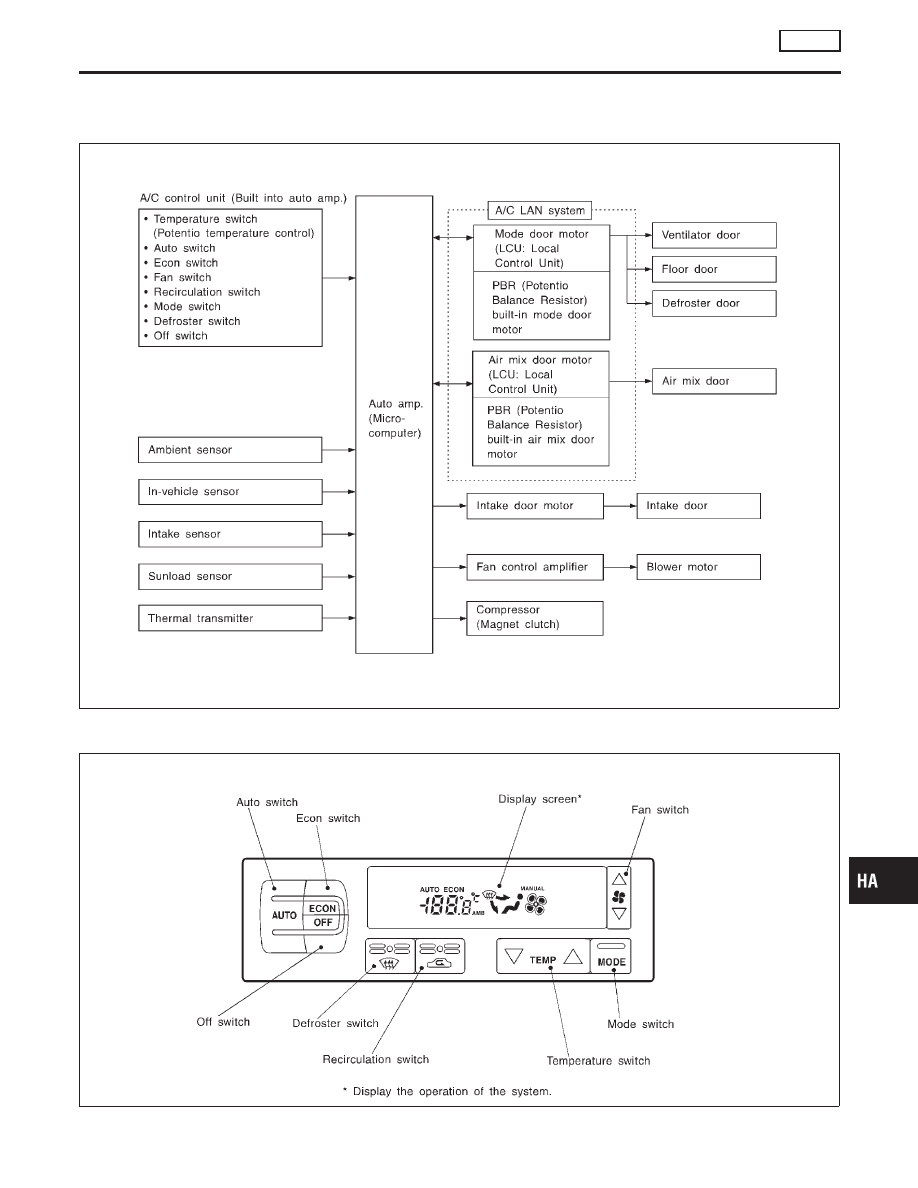

Overview of Control System

=NCHA0015

The control system consists of input sensors, switches, the automatic amplifier (microcomputer) and outputs.
The relationship of these components is shown in the diagram below:

SHA170F

Control Operation

NCHA0016

RHA452G

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

SC

EL

IDX

DESCRIPTION

AUTO

Overview of Control System

HA-19

DISPLAY SCREEN

NCHA0016S01

Displays the operational status of the system.

AUTO SWITCH

NCHA0016S02

The compressor, intake doors, air mix door, outlet doors, and blower speed are automatically controlled so
that the in-vehicle temperature will reach, and be maintained at the set temperature selected by the operator.

ECON SWITCH

NCHA0016S03

By pressing the ECON switch, the display should indicate ECON and the compressor always turns OFF. With
the compressor OFF, the system will not remove heat (cool) or de-humidify. The system will maintain the in-
vehicle temperature at the set temperature when the set temperature is above the ambient (outside) tempera-
ture. The system will set the intake doors to the outside air position.

TEMPERATURE SWITCH (POTENTIO TEMPERATURE CONTROL)

NCHA0016S04

Increases or decreases the set temperature.

OFF SWITCH

NCHA0016S05

The compressor and blower are OFF, the intake doors are set to the outside air position, and the air outlet
doors are set to the foot (80% foot and 20% defrost) position.

FAN SWITCH

NCHA0016S06

Manual control of the blower speed. Four speeds are available for manual control (as shown on the display
screen):
low

, medium low

, medium high

, high

RECIRCULATION (REC) SWITCH

NCHA0016S07

OFF position: Outside air is drawn into the passenger compartment.
ON position: Interior air is recirculated inside the vehicle.

DEFROSTER (DEF) SWITCH

NCHA0016S08

Positions the air outlet doors to the defrost position. Also positions the intake doors to the outside air position.

MODE SWITCH

NCHA0016S09

Controls the air discharge outlets.

DESCRIPTION

AUTO

Control Operation (Cont’d)

HA-20

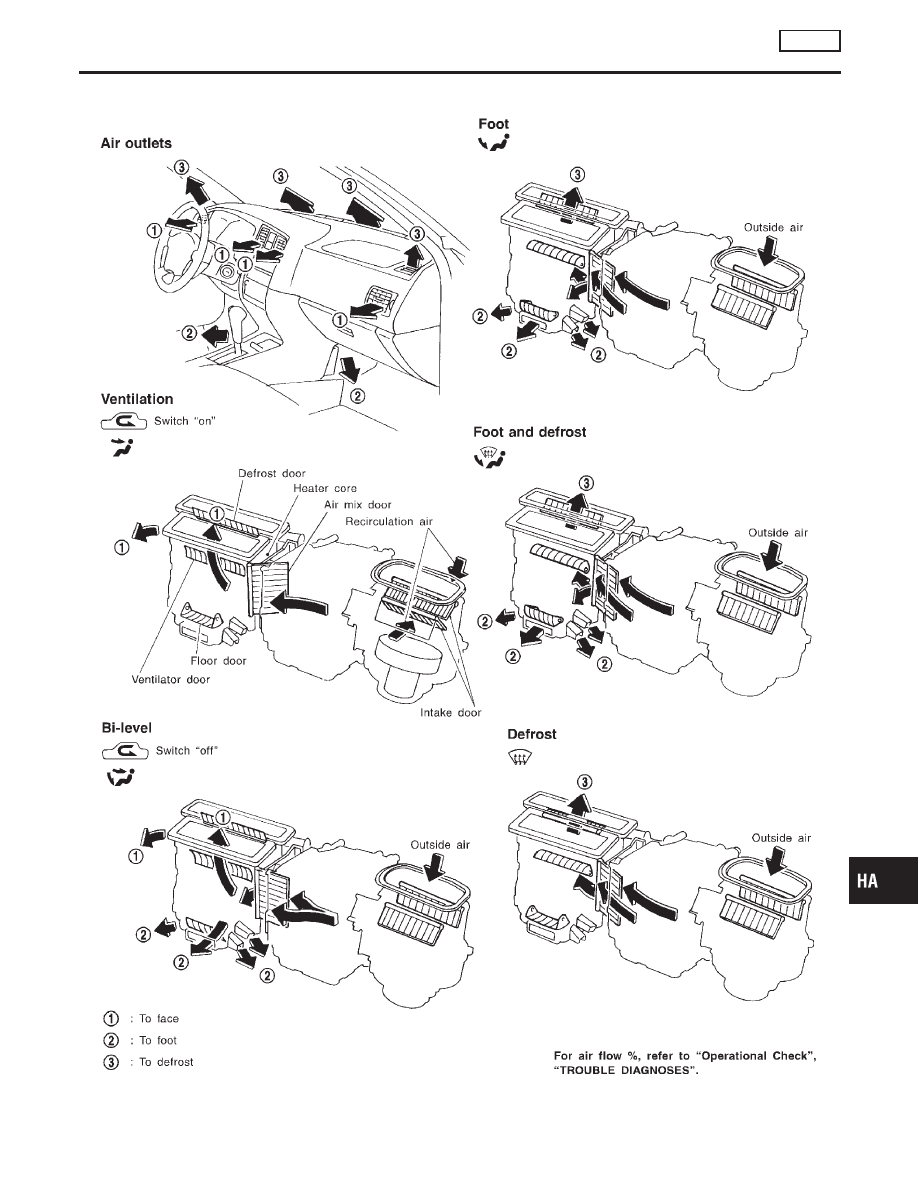

Discharge Air Flow

NCHA0017

RHA042H

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

SC

EL

IDX

DESCRIPTION

AUTO

Discharge Air Flow

HA-21

RHA044G

Position or
switch

MODE SW

DEF SW

AUTO

SW

ECON

SW

REC SW

Temperature SW

VENT

B/L

FOOT

D/F

ON

OFF

ON

OFF

Door

18.0°C

(65°F)

32.0°C

(85°F)

Ventilator
door

A

B

C

C

C

AUTO

AUTO

Foot door

A

B

D

C

A

Defroster
door

A

A

B

C

D

Air mix
door

A

AUTO

B

Intake door

C

A

AUTO*1

*1: Automatically controlled when REC switch is OFF.

DESCRIPTION

AUTO

Discharge Air Flow (Cont’d)

HA-22
