GENERAL INFORMATION

SECTION

GI

CONTENTS

PRECAUTIONS ...............................................................3

Precautions ..................................................................3

PRECAUTIONS FOR SUPPLEMENTAL
RESTRAINT SYSTEM (SRS)

AIR BAG

AND

SEAT BELT PRE-TENSIONER

.................................3

PRECAUTIONS FOR IVIS (INFINITI VEHICLE
IMMOBILIZER SYSTEM - NATS)

.................................3

GENERAL PRECAUTIONS

.........................................4

PRECAUTIONS FOR MULTIPORT FUEL
INJECTION SYSTEM OR ENGINE CONTROL
SYSTEM

...................................................................6

PRECAUTIONS FOR THREE WAY CATALYST

...........6

PRECAUTIONS FOR HOSES

.....................................6

PRECAUTIONS FOR ENGINE OILS

...........................7

PRECAUTIONS FOR FUEL

........................................8

PRECAUTIONS FOR AIR CONDITIONING

..................8

HOW TO USE THIS MANUAL........................................9
HOW TO READ WIRING DIAGRAMS.......................... 11

Sample/Wiring Diagram - EXAMPL - ........................ 11

OPTIONAL SPLICE

..................................................12

CONTROL UNIT TERMINALS AND REFERENCE
VALUE CHART

........................................................13

Description .................................................................14

CONNECTOR SYMBOLS

.........................................16

SWITCH POSITIONS

...............................................17

DETECTABLE LINES AND NON-DETECTABLE
LINES

.....................................................................17

MULTIPLE SWITCH

.................................................18

REFERENCE AREA

.................................................19

HOW TO CHECK TERMINAL .......................................21

Connector and Terminal Pin Kit.................................21
How to Probe Connectors .........................................21

PROBING FROM HARNESS SIDE

............................21

PROBING FROM TERMINAL SIDE

...........................21

How to Check Enlarged Contact Spring of
Terminal
.....................................................................22
Waterproof Connector Inspection ..............................23

RUBBER SEAL INSPECTION

...................................23

WIRE SEAL INSPECTION

........................................23

Terminal Lock Inspection ...........................................23

HOW TO PERFORM EFFICIENT DIAGNOSIS
FOR AN ELECTRICAL INCIDENT
...............................24

Work Flow..................................................................24
Incident Simulation Tests...........................................25

INTRODUCTION

......................................................25

VEHICLE VIBRATION

..............................................25

HEAT SENSITIVE

....................................................26

FREEZING

..............................................................26

WATER INTRUSION

................................................27

ELECTRICAL LOAD

.................................................27

COLD OR HOT START UP

.......................................27

Circuit Inspection .......................................................27

INTRODUCTION

......................................................27

TESTING FOR

OPENS

IN THE CIRCUIT

................28

TESTING FOR

SHORTS

IN THE CIRCUIT

..............29

GROUND INSPECTION

...........................................30

VOLTAGE DROP TESTS

..........................................30

CONTROL UNIT CIRCUIT TEST

...............................32

HOW TO FOLLOW TROUBLE DIAGNOSES...............34

How to Follow Test Groups in Trouble Diagnoses....35
Harness Wire Color and Connector Number
Indication
....................................................................36

TYPE 1: HARNESS WIRE COLOR AND
CONNECTOR NUMBER ARE SHOWN IN
ILLUSTRATION

.......................................................36

TYPE 2: HARNESS WIRE COLOR AND
CONNECTOR NUMBER ARE SHOWN IN TEXT

........36

Key to Symbols Signifying Measurements or
Procedures
.................................................................37

CONSULT-II CHECKING SYSTEM ...............................39

Function and System Application ..............................39
Nickel Metal Hydride Battery Replacement...............39
Checking Equipment..................................................40
CONSULT-II Data Link Connector (DLC) Circuit ......40

INSPECTION PROCEDURE

.....................................40

IDENTIFICATION INFORMATION ................................41

Model Variation ..........................................................41
Identification Number.................................................42

VEHICLE IDENTIFICATION NUMBER
ARRANGEMENT

.....................................................42

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

IDENTIFICATION PLATE

..........................................43

ENGINE SERIAL NUMBER

.......................................43

AUTOMATIC TRANSAXLE NUMBER

........................43

MANUAL TRANSAXLE NUMBER

..............................43

Dimensions ................................................................44
Wheels & Tires ..........................................................44

LIFTING POINTS AND TOW TRUCK TOWING ...........45

Preparation ................................................................45

SPECIAL SERVICE TOOLS

......................................45

Board-on Lift ..............................................................45

Garage Jack and Safety Stand .................................46
2-pole Lift ...................................................................47
Tow Truck Towing ......................................................48

VEHICLE RECOVERY (FREEING A STUCK
VEHICLE)

................................................................49

TIGHTENING TORQUE OF STANDARD BOLTS ........50
SAE J1930 TERMINOLOGY LIST ................................51

SAE J1930 Terminology List .....................................51

CONTENTS

(Cont’d)

GI-2

Precautions

NCGI0001

Observe the following precautions to ensure safe and proper
servicing. These precautions are not described in each indi-
vidual section.

SGI646

PRECAUTIONS FOR SUPPLEMENTAL RESTRAINT
SYSTEM (SRS) “AIR BAG” AND “SEAT BELT
PRE-TENSIONER”

NCGI0001S01

The Supplemental Restraint System such as “AIR BAG” and “SEAT
BELT PRE-TENSIONER” used along with a seat belt, helps to
reduce the risk or severity of injury to the driver and front passen-
ger for certain types of collision. The SRS system composition
which is available to INFINITI G20 is as follows:

I

For a frontal collision
The Supplemental Restraint System consists of driver air bag
module (located in the center of the steering wheel), front pas-
senger air bag module (located on the instrument panel on
passenger side), seat belt pre-tensioners, a diagnosis sensor
unit, warning lamp, wiring harness and spiral cable.

I

For a side collision
The Supplemental Restraint System consists of front side air
bag module (located in the outer side of front seat), satellite
sensor, diagnosis sensor unit (one of components of air bags
for a frontal collision), wiring harness, warning lamp (one of
components of air bags for a frontal collision).

Information necessary to service the system safely is included in
the RS section of this Service Manual.

WARNING:

I

To avoid rendering the SRS inoperative, which could
increase the risk of personal injury or death in the event
of a collision which would result in air bag inflation, all
maintenance should be performed by an authorized
INFINITI dealer.

I

Improper maintenance, including incorrect removal and
installation of the SRS, can lead to personal injury caused
by unintentional activation of the system. For removal of
Spiral Cable and Air Bag Module, see the RS section.

I

Do not use electrical test equipment on any circuit related
to the SRS unless instructed to in this Service Manual.
SRS wiring harnesses (except “SEAT BELT PRE-TEN-
SIONER” connector) can be identified by yellow harness
connector.

PRECAUTIONS FOR IVIS (INFINITI VEHICLE
IMMOBILIZER SYSTEM — NATS)

NCGI0001S02

IVIS (NATS) will immobilize the engine if someone tries to start it
without the registered key of IVIS (NATS).
Both of the originally supplied ignition key IDs have been IVIS
(NATS) registered.

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

PRECAUTIONS

Precautions

GI-3

The security indicator is located on the instrument panel. The indi-
cator blinks when the ignition switch is in “OFF” or “ACC” position.
Therefore, IVIS (NATS) warns outsiders that the vehicle is
equipped with the anti-theft system.

I

When IVIS (NATS) detects trouble, the security indicator lamp
lights up while ignition switch is in “ON” position.
This lighting up indicates that the anti-theft is not functioning,
so prompt service is required.

I

When servicing IVIS (NATS) (trouble diagnoses, system initial-
ization and additional registration of other IVIS (NATS) ignition
key IDs), CONSULT-II hardware and CONSULT-II IVIS (NATS)
software is necessary.
Regarding the procedures of IVIS (NATS) initialization and
IVIS (NATS) ignition key ID registration, refer to CONSULT-II
operation manual, IVIS (NATS).

Therefore, CONSULT-II IVIS (NATS) software (program card
and operation manual) must be kept strictly confidential to
maintain the integrity of the anti-theft function.

I

When servicing IVIS (NATS) (trouble diagnoses, system initial-
ization and additional registration of other IVIS (NATS) ignition
key IDs), it may be necessary to re-register original key iden-
tification. Therefore, be sure to receive all keys from vehicle
owner. A maximum of five key IDs can be registered into IVIS
(NATS).

I

When failing to start the engine first time using the key of IVIS
(NATS), start as follows.

a)

Leave the ignition key in “ON” position for approximately 5
seconds.

b)

Turn ignition key to “OFF” or “LOCK” position and wait approxi-
mately 5 seconds.

c)

Repeat steps 1 and 2.

d)

Restart the engine while keeping the key separate from any
others on key-chain.

SGI285

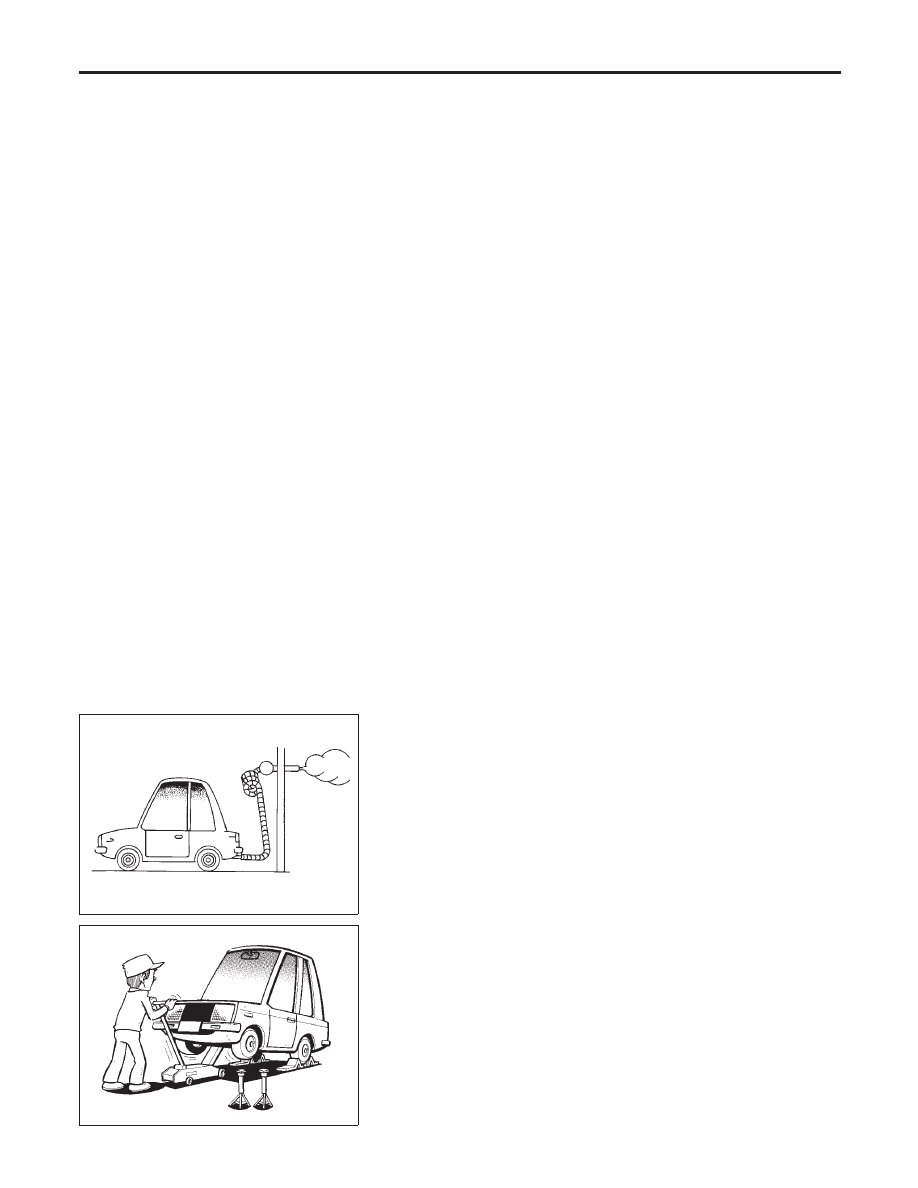

GENERAL PRECAUTIONS

NCGI0001S03

I

Do not operate the engine for an extended period of time
without proper exhaust ventilation.
Keep the work area well ventilated and free of any inflammable
materials. Special care should be taken when handling any
inflammable or poisonous materials, such as gasoline, refrig-
erant gas, etc. When working in a pit or other enclosed area,
be sure to properly ventilate the area before working with haz-
ardous materials.
Do not smoke while working on the vehicle.

SGI231

I

Before jacking up the vehicle, apply wheel chocks or other tire
blocks to the wheels to prevent the vehicle from moving. After
jacking up the vehicle, support the vehicle weight with safety
stands at the points designated for proper lifting before work-
ing on the vehicle.
These operations should be done on a level surface.

I

When removing a heavy component such as the engine or
transaxle, be careful not to lose your balance and drop them.
Also, do not allow them to strike adjacent parts, especially the
brake tubes and master cylinder.

PRECAUTIONS

Precautions (Cont’d)

GI-4















Content   ..  402  403  404  405   ..
