Infiniti G20 (P11). Manual - part 335





SEL543TA

Removal and Installation

NCEL0060

WIPER ARMS

NCEL0060S01

1.

Prior to wiper arm installation, turn on wiper switch to operate
wiper motor and then turn it “OFF” (Auto Stop).

2.

Lift the blade up and then set it down onto glass surface to set
the blade center to clearance “L

1

” & “L

2

” immediately before

tightening nut.

3.

Eject washer fluid. Turn on wiper switch to operate wiper motor
and then turn it “OFF”.

4.

Ensure that wiper blades stop within clearance “L

1

” & “L

2

”.

Clearance “L

1

”: 18.5 - 33.5 mm (0.728 - 1.319 in)

Clearance “L

2

”: 19.5 - 34.5 mm (0.768 - 1.358 in)

I

Tighten wiper arm nuts to specified torque.

Front wiper: 17 - 23 N·m (1.7 - 2.3 kg-m, 12 - 17 ft-lb)

SEL024J

I

Before reinstalling wiper arm, clean up the pivot area as
illustrated. This will reduce possibility of wiper arm loose-
ness.

WIPER LINKAGE

NCEL0060S02

MEL289H

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

FRONT WIPER AND WASHER

Removal and Installation

EL-117

Removal

NCEL0060S0201

1.

Remove 4 bolts that secure wiper motor.

2.

Detach wiper motor from wiper linkage at ball joint.

3.

Remove wiper linkage.

Be careful not to break ball joint rubber boot.

Installation

NCEL0060S0202

I

Grease ball joint portion before installation.

1.

Installation is the reverse order of removal.

SEL241P

Washer Nozzle Adjustment

NCEL0061

I

Adjust washer nozzle with suitable tool as shown in the figure
at left.

Adjustable range:

±

10°

SEL544T

Unit: mm (in)

*1

330 (12.99)

*5

115 (4.53)

*2

185 (7.28)

*6

175 (6.89)

*3

320 (12.60)

*7

370 (14.57)

*4

175 (6.89)

*8

440 (17.32)

*: The diameters of these circles are less than 80 mm (3.15 in).

CEL947

Washer Tube Layout

NCEL0062

FRONT WIPER AND WASHER

Removal and Installation (Cont’d)

EL-118

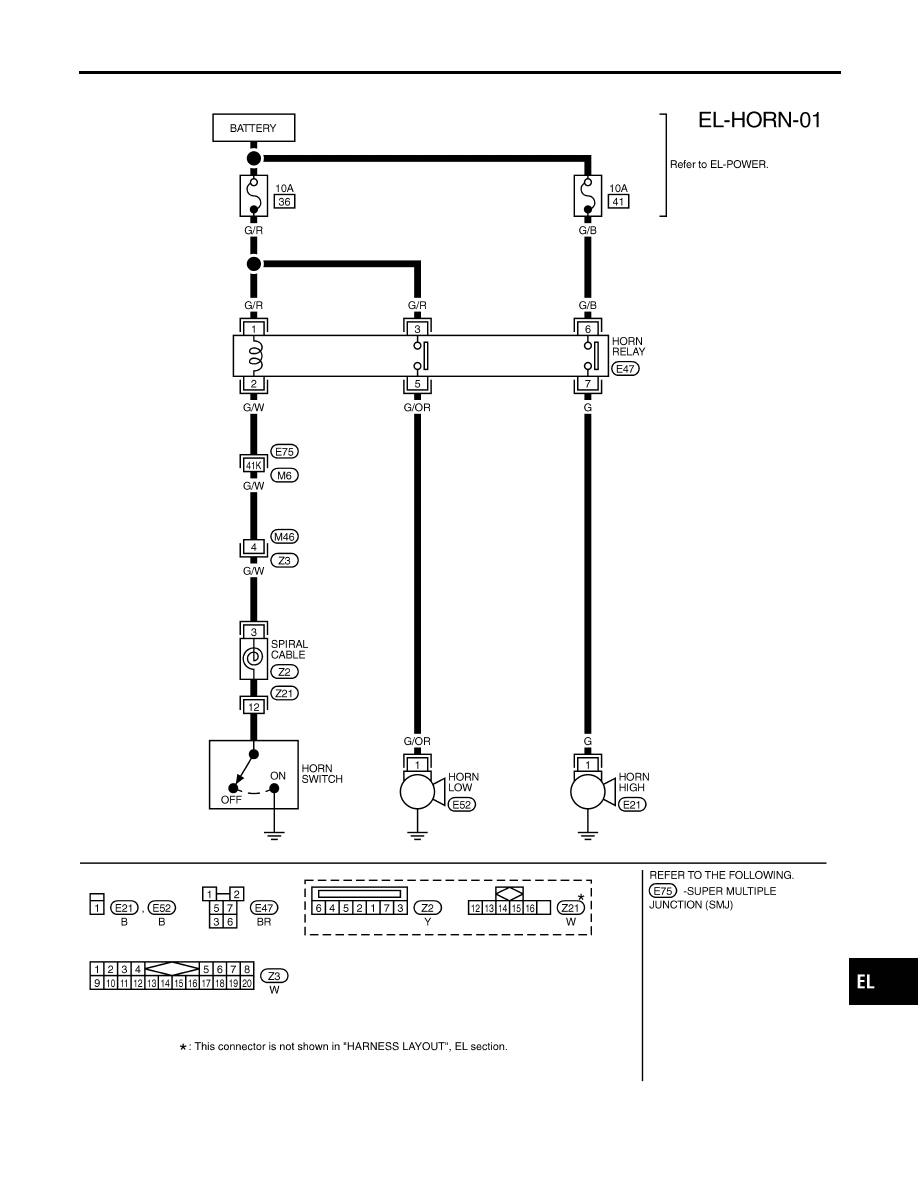

Wiring Diagram — HORN —

NCEL0071

TEL509B

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

HORN

Wiring Diagram — HORN —

EL-119

Wiring Diagram — CIGAR —

NCEL0156

TEL510B

CIGARETTE LIGHTER

Wiring Diagram — CIGAR —

EL-120
