CEL944-B
Electrical Components Inspection
=NCEL0047

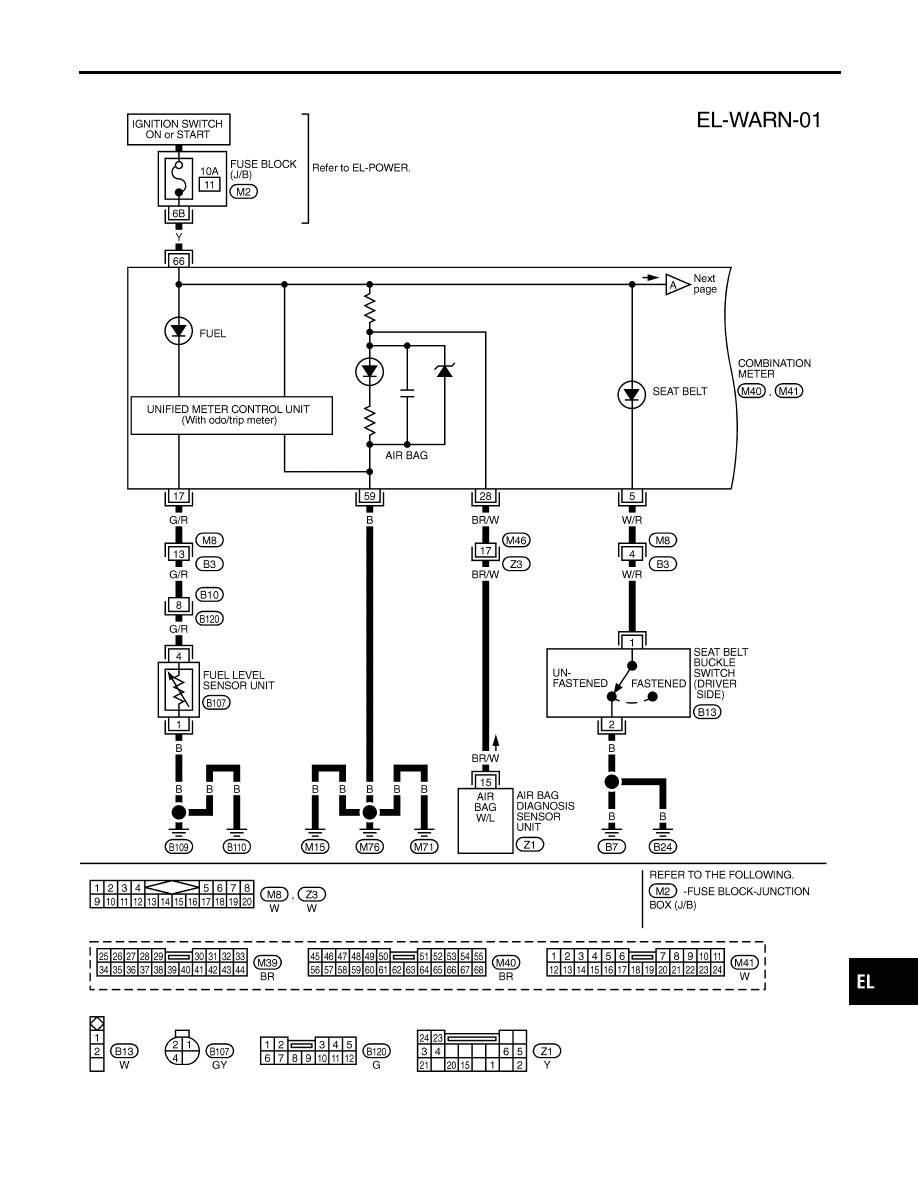

FUEL LEVEL SENSOR UNIT CHECK
NCEL0047S01
I
For removal, refer to FE section.
Check the resistance between terminals 4 and 1.
Ohmmeter
Float position
mm (in)
Resistance
value
Ω
(+)
(−)
4
1
*1
Full
45 (1.77)
Approx. 4 - 6
*2
1/2
101 (3.98)
30 - 34
*3
Empty
160 (6.30)
80 - 83
*1 and *3: When float rod is in contact with stopper.
MEL424F
THERMAL TRANSMITTER CHECK
NCEL0047S02
Check the resistance between the terminals of thermal transmitter
and body ground.
Water temperature
Resistance
60°C (140°F)
Approx. 170 - 210
Ω
100°C (212°F)
Approx. 47 - 53
Ω
CEL219
VEHICLE SPEED SENSOR SIGNAL CHECK
NCEL0047S03
1.
Remove vehicle speed sensor from transmission.
2.
Turn vehicle speed sensor pinion quickly and measure voltage
across 1 and 2.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
METERS AND GAUGES
Electrical Components Inspection
EL-97
