CEL083

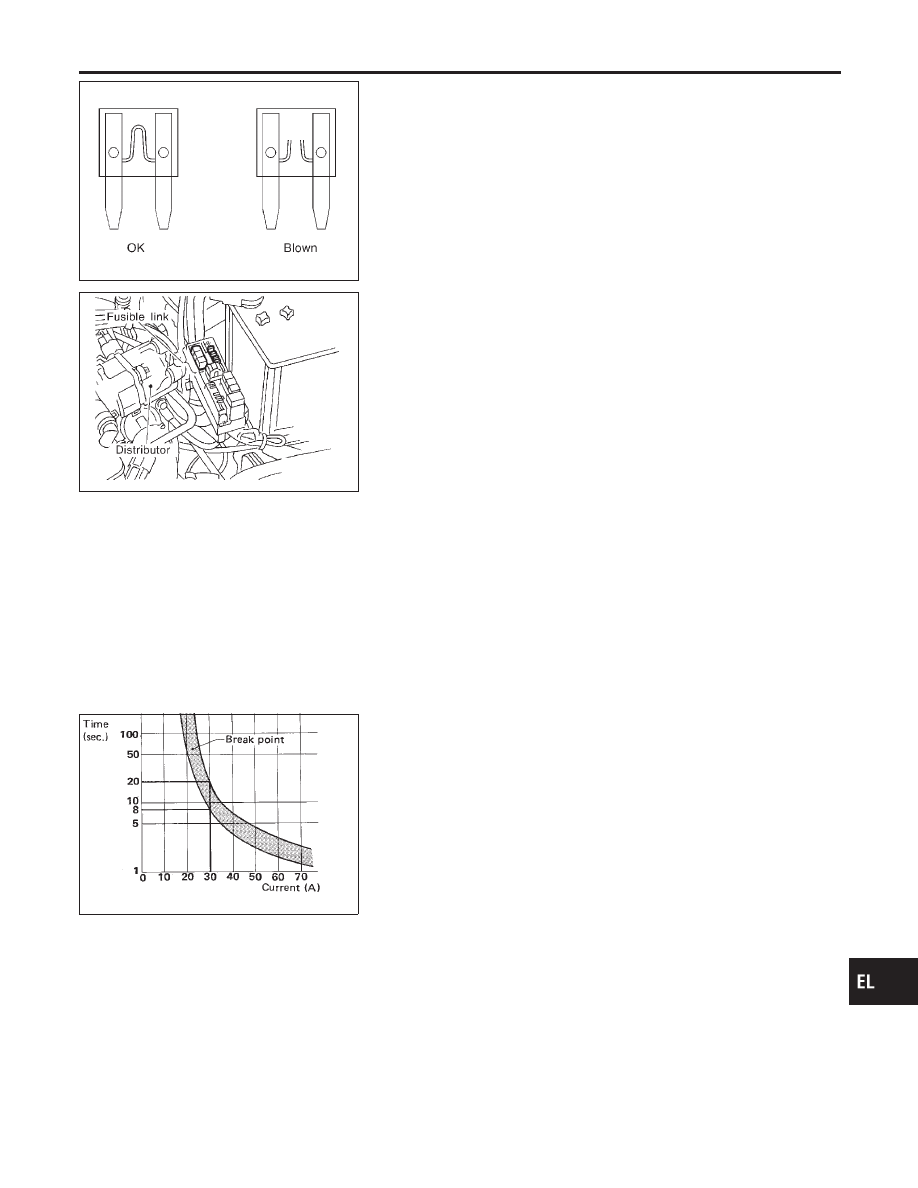

Inspection
NCEL0007
FUSE
NCEL0007S01
I
If fuse is blown, be sure to eliminate cause of problem
before installing new fuse.
I
Use fuse of specified rating. Never use fuse of more than
specified rating.
I
Do not partially install fuse; always insert it into fuse
holder properly.
I
Remove fuse for “ELECTRICAL PARTS (BAT)” if vehicle is
not used for a long period of time.
SEL831V
FUSIBLE LINK
NCEL0007S02
A melted fusible link can be detected either by visual inspection or
by feeling with finger tip. If its condition is questionable, use circuit
tester or test lamp.
CAUTION:
I
If fusible link should melt, it is possible that critical circuit
(power supply or large current carrying circuit) is shorted.
In such a case, carefully check and eliminate cause of
problem.
I
Never wrap outside of fusible link with vinyl tape. Impor-
tant: Never let fusible link touch any other wiring harness,
vinyl or rubber parts.
SBF284E
CIRCUIT BREAKER
NCEL0007S03
For example, when current is 30A, the circuit is broken within 8 to
20 seconds.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
POWER SUPPLY ROUTING
Inspection
EL-17
