Infiniti G20 (P11). Manual - part 291





8

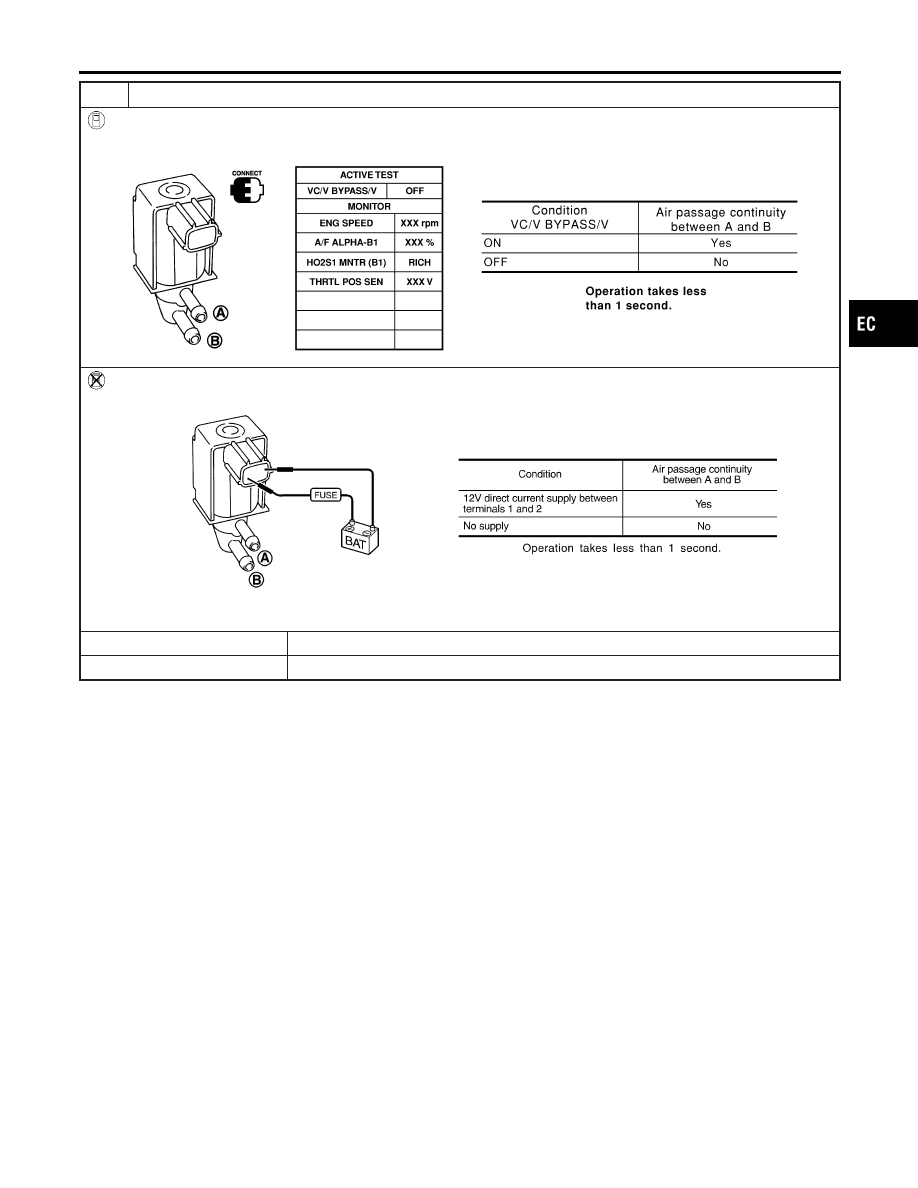

CHECK VACUUM CUT VALVE BYPASS VALVE

With CONSULT-II

1. Perform “VC/V BYPASS/V” in “ACTIVE TEST” mode.
2. Check air passage continuity and operation delay time under the following conditions.

SEF807Y

Without CONSULT-II

Check air passage continuity and operation delay time under the following conditions.

SEF557Y

OK or NG

OK

©

GO TO 9.

NG

©

Replace vacuum cut valve bypass valve.

GI

MA

EM

LC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P1491 VACUUM CUT VALVE BYPASS VALVE

Diagnostic Procedure (Cont’d)

EC-575

9

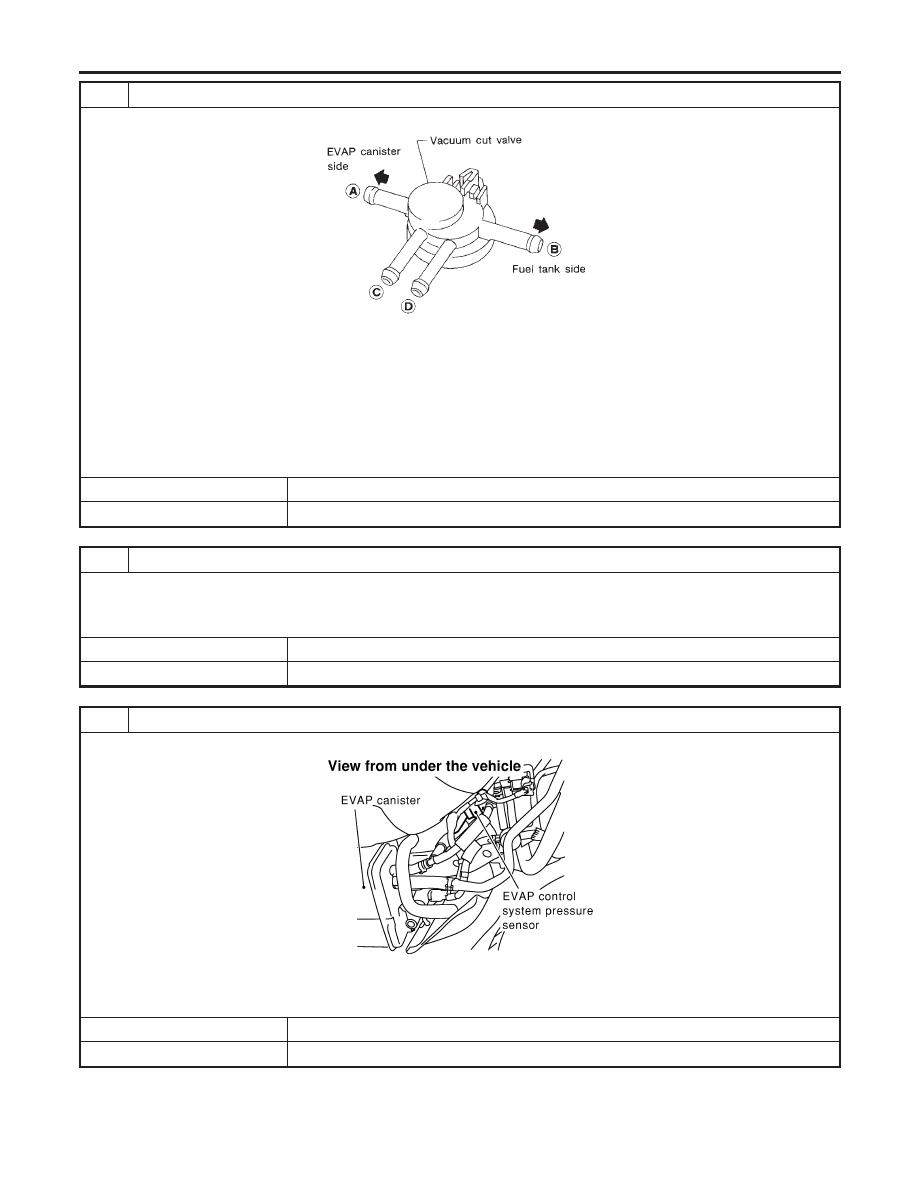

CHECK VACUUM CUT VALVE

Check vacuum cut valve as follows:

SEF379Q

a. Plug port and with fingers.
b. Apply vacuum to port and check that there is no suction from port B.
c. Apply vacuum to port and check that there is suction from port A.
d. Blow air in port and check that there is a resistance to flow out of port A.
e. Open port and D.
f. Blow air in port check that air flows freely out of port C.
g. Blow air in port check that air flows freely out of port D.

OK or NG

OK

©

GO TO 10.

NG

©

Replace vacuum cut valve.

10

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR HOSE

1. Turn ignition switch “OFF”.
2. Check disconnection or improper connection of hose connected to EVAP control system pressure sensor.

OK or NG

OK

©

GO TO 11.

NG

©

Repair or replace.

11

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR

1. Disconnect EVAP control system pressure sensor harness connector.

SEF860X

2. Check connectors for water.

Water should not exist.

OK or NG

OK

©

GO TO 12.

NG

©

Replace EVAP control system pressure sensor.

DTC P1491 VACUUM CUT VALVE BYPASS VALVE

Diagnostic Procedure (Cont’d)

EC-576

12

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

1. Remove EVAP control system pressure sensor with its harness connector connected.

CAUTION:

I

Never apply force to the air hole protector of the sensor if equipped.

SEF799W

2. Remove hose from EVAP control system pressure sensor.
3. Turn ignition switch “ON”.
4. Use pump to apply vacuum and pressure to EVAP control system pressure sensor as shown in figure.

CAUTION:

I

Always calibrate the vacuum pump gauge when using it.

I

Do not apply below −20 kPa (−150 mmHg, −5.91 inHg) or over 20 kPa (150 mmHg, 5.91 inHg) of pressure.

5. Check input voltage between ECM terminal 84 and ground.

SEF342X

CAUTION:

I

Discard and EVAP control system pressure sensor which has been dropped from a height of more than 0.5 m
(19.7 in) onto a hard surface such as a concrete floor; use a new one.

OK or NG

OK

©

GO TO 13.

NG

©

Replace EVAP control system pressure sensor.

13

CHECK RUBBER TUBE FOR CLOGGING

1. Disconnect rubber tube connected to EVAP canister vent control valve.
2. Check the rubber tube for clogging.

OK or NG

OK

©

GO TO 14.

NG

©

Clean the rubber tube using an air blower.

GI

MA

EM

LC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P1491 VACUUM CUT VALVE BYPASS VALVE

Diagnostic Procedure (Cont’d)

EC-577

14

CHECK EVAP CANISTER VENT CONTROL VALVE-I

1. Remove EVAP canister vent control valve from EVAP canister.
2. Check portion of EVAP canister vent control valve for being rusted.

SEF337X

OK or NG

OK

©

GO TO 15.

NG

©

Replace EVAP canister vent control valve.

15

CHECK EVAP CANISTER VENT CONTROL VALVE-II

With CONSULT-II

1. Reconnect harness disconnected connectors.
2. Turn ignition switch ON.
3. Perform “VENT CONTROL/V” in “ACTIVE TEST” mode.
4. Check air passage continuity and operation delay time.

SEF803Y

Without CONSULT-II

Check air passage continuity and operation delay time under the following conditions.

SEF339X

Make sure new O-ring is installed properly.

OK or NG

OK

©

GO TO 17.

NG

©

GO TO 16.

DTC P1491 VACUUM CUT VALVE BYPASS VALVE

Diagnostic Procedure (Cont’d)

EC-578
