Infiniti G20 (P11). Manual - part 254





AEC801

Component Description

NCEC0562

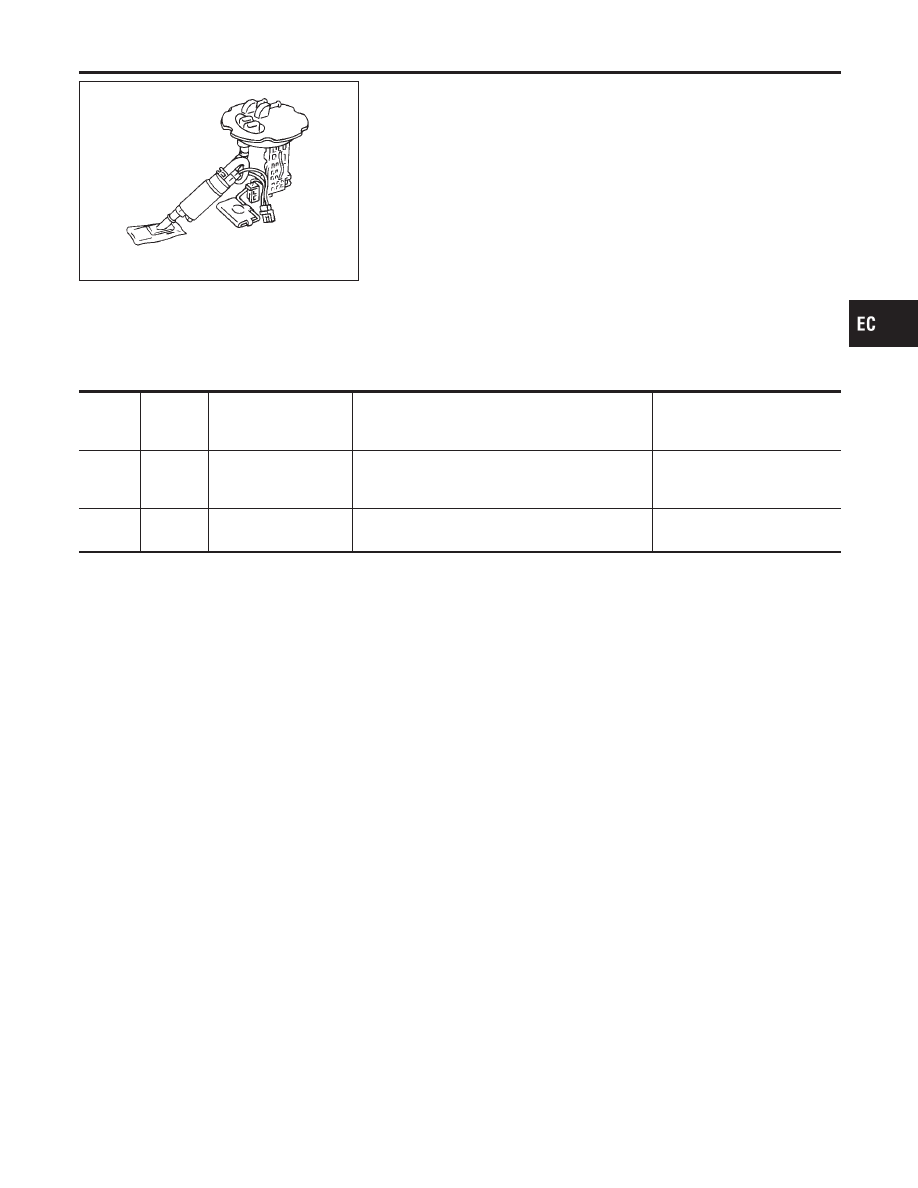

The fuel level sensor is mounted in the fuel level sensor unit. The
sensor detects a fuel level in the fuel tank and transmits a signal
to the ECM.
It consists of two parts, one is mechanical float and the other side
is variable resistor. Fuel level sensor output voltage changes
depending on the movement of the fuel mechanical float.

ECM Terminals and Reference Value

NCEC0654

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM’s transistor. Use a ground other than ECM terminals, such as the ground.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

83

G/R

Fuel level sensor

[Ignition switch “ON”]

Approximately 0 - 4.8V
Output voltage varies with fuel
level.

90

B

Fuel level sensor
ground

[Engine is running]

I

Idle speed

Approximately 0V

On Board Diagnostic Logic

NCEC0563

ECM receives two signals from the fuel level sensor circuit.
One is fuel level sensor power supply circuit, and the other is fuel
level sensor ground circuit.
This diagnosis indicates the former, to detect open or short circuit
malfunction.
Malfunction is detected when an excessively low or high voltage is
sent from the sensor is sent to ECM.

Possible Cause

NCEC0564

I

Fuel level sensor circuit
(The fuel level sensor circuit is open or shorted.)

I

Fuel level sensor

GI

MA

EM

LC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0464 FUEL LEVEL SENSOR CIRCUIT

Component Description

EC-427

DTC Confirmation Procedure

NCEC0565

NOTE:
If “DTC Confirmation Procedure” has been previously conducted,
always turn ignition switch “OFF” and wait at least 10 seconds
before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that bat-
tery voltage is more than 11V at ignition switch “ON”.

SEF195Y

WITH CONSULT-II

NCEC0565S01

1)

Turn ignition switch “ON”.

2)

Select “DATA MONITOR” mode with CONSULT-II.

3)

Wait at least 5 seconds.

4)

If 1st trip DTC is detected, go to “Diagnostic Procedure”,
EC-430.

WITH GST

NCEC0565S02

Follow the procedure “WITH CONSULT-II” above.

DTC P0464 FUEL LEVEL SENSOR CIRCUIT

DTC Confirmation Procedure

EC-428

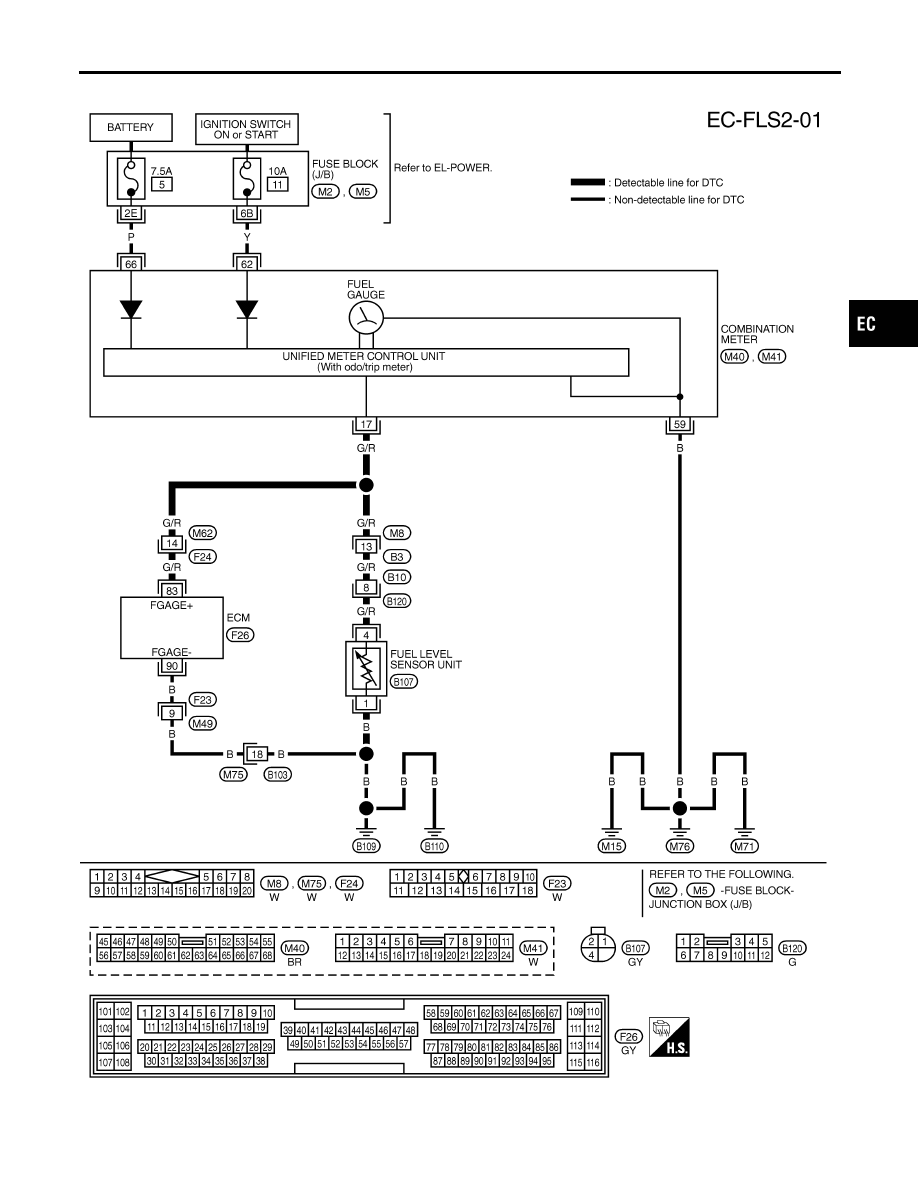

Wiring Diagram

NCEC0566

TEC830

GI

MA

EM

LC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0464 FUEL LEVEL SENSOR CIRCUIT

Wiring Diagram

EC-429

Diagnostic Procedure

=NCEC0567

1

CHECK FUEL LEVEL SENSOR POWER SUPPLY CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect fuel level sensor until and fuel pump harness connector.
3. Turn ignition switch “ON”.
4. Check voltage between fuel level sensor unit terminal 4 and ground with CONSULT-II or tester.

SEF939XA

OK or NG

OK

©

GO TO 3.

NG

©

GO TO 2.

2

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors M8, B3

I

Harness connectors B10, B120

I

Harness for open or short between combination meter and fuel level sensor unit

©

Repair or replace harness or connectors.

3

CHECK FUEL LEVEL SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch “OFF”.
2. Check harness continuity between fuel level sensor unit terminal 1 and body ground. Refer to Wiring Diagram.

Continuity should exist.

3. Also check harness for short to power.

OK or NG

OK

©

GO TO 4.

NG

©

Repair open circuit or short to power in harness or connectors.

4

CHECK FUEL LEVEL SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 83 and fuel level sensor unit terminal 4. Refer to Wiring Diagram.

Continuity should exist.

3. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 6.

NG

©

GO TO 5.

DTC P0464 FUEL LEVEL SENSOR CIRCUIT

Diagnostic Procedure

EC-430
