Possible Cause

NCEC0523

I

Harness or connectors
(EGR volume control valve circuit is open or shorted.)

I

EGR volume control valve

SEF174Y

DTC Confirmation Procedure

NCEC0524

NOTE:
If “DTC Confirmation Procedure” has been previously conducted,
always turn ignition switch “OFF” and wait at least 10 seconds
before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that bat-
tery voltage is more than 10V at idle.

WITH CONSULT-II

NCEC0524S01

1)

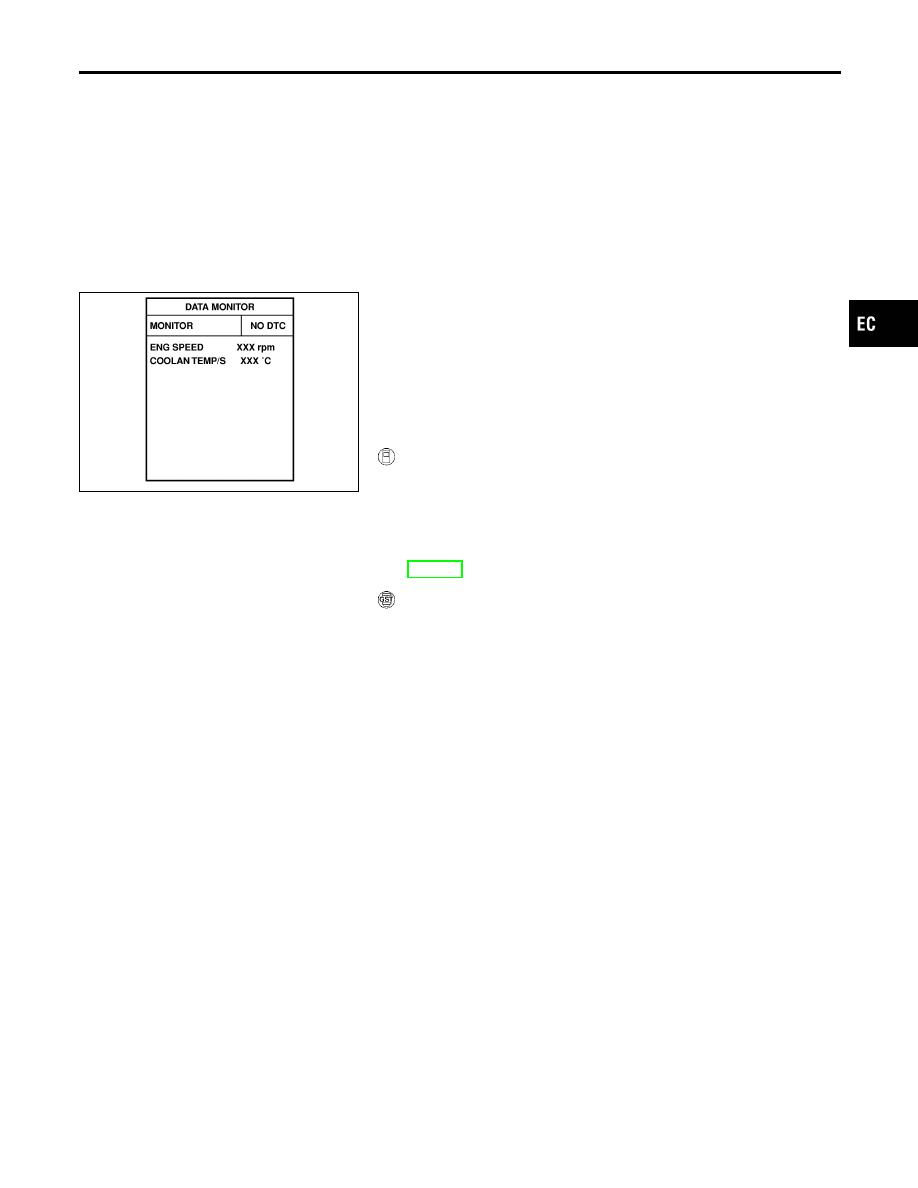

Turn ignition switch “ON” and select “DATA MONITOR” mode
with CONSULT-II.

2)

Start engine and warm it up to normal operating temperature.

3)

Rev engine from idle to 2,000 rpm 10 times.

4)

If 1st trip DTC is detected, go to “Diagnostic Procedure”,
EC-361.

WITH GST

NCEC0524S02

Follow the procedure “With CONSULT-II” above.

GI

MA

EM

LC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0403 EGR VOLUME CONTROL VALVE (CIRCUIT)

Possible Cause

EC-359

Wiring Diagram

=NCEC0525

TEC835

DTC P0403 EGR VOLUME CONTROL VALVE (CIRCUIT)

Wiring Diagram

EC-360

Diagnostic Procedure

NCEC0526

1

CHECK EGR VOLUME CONTROL VALVE POWER SUPPLY CIRCUIT

1. Disconnect EGR volume control valve harness connector.

SEF849X

2. Turn ignition switch “ON”.
3. Check voltage between EGR volume control valve terminals 2, 5 and ground with CONSULT-II or tester.

SEF327X

OK or NG

OK

©

GO TO 3.

NG

©

GO TO 2.

2

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors F23, M49

I

Harness for open or short between ECM relay and EGR volume control valve

©

Repair harness or connectors.

GI

MA

EM

LC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0403 EGR VOLUME CONTROL VALVE (CIRCUIT)

Diagnostic Procedure

EC-361

3

CHECK EGR VOLUME CONTROL VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch “OFF”.
2. disconnect ECM harness connector.

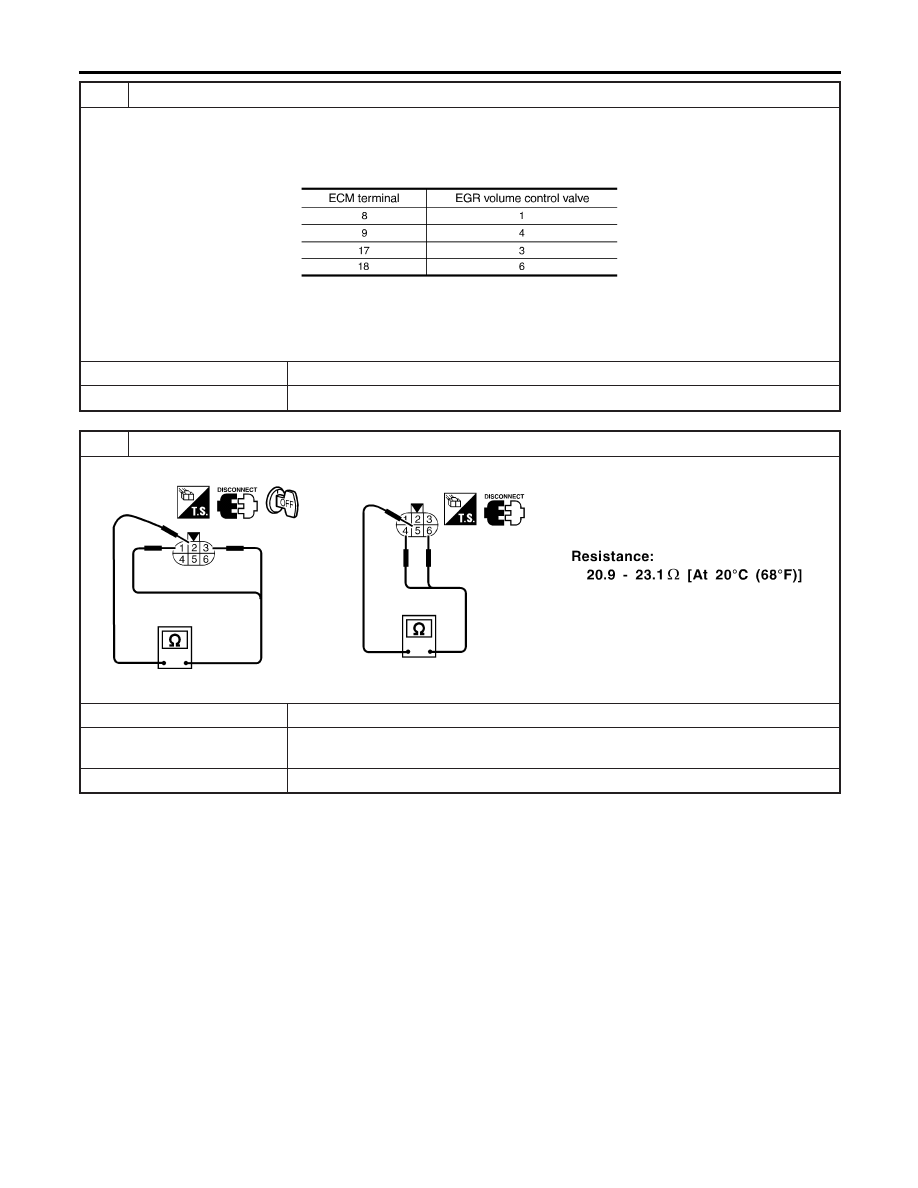

3. Check harness continuity between ECM terminals and EGR volume control valve terminals as follows.

Refer to Wiring Diagram.

MTBL0389

Continuity should exist.

4. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 4.

NG

©

Repair open circuit or short to ground or short to power in harness or connectors.

4

CHECK EGR VOLUME CONTROL VALVE-I

Check resistance between EGR volume control valve terminal 2 and terminals 1, 3, terminal 5 and terminals 4, 6.

SEF588X

OK or NG

OK (With CONSULT-II)

©

GO TO 5.

OK (Without CONSULT-
II)

©

GO TO 6.

NG

©

Replace EGR volume control valve.

DTC P0403 EGR VOLUME CONTROL VALVE (CIRCUIT)

Diagnostic Procedure (Cont’d)

EC-362
