Infiniti G20 (P11). Manual - part 232





SEF998R

SEF853B

Component Description

NCEC0220

The camshaft position sensor is a basic component of the engine
control system. It monitors engine speed and piston position.
These input signals to the engine control system are used to con-
trol fuel injection, ignition timing and other functions.
The camshaft position sensor has a rotor plate and a wave-form-
ing circuit. The rotor plate has 360 slits for a 1° (POS) signal and
4 slits for a 180° (REF) signal. The wave-forming circuit consists
of Light Emitting Diodes (LED) and photo diodes.
The rotor plate is positioned between the LED and the photo diode.
The LED transmits light to the photo diode. As the rotor plate turns,
the slits cut the light to generate rough-shaped pulses. These
pulses are converted into on-off signals by the wave-forming circuit
and sent to the ECM.
The distributor is not repairable and must be replaced as an
assembly except distributor cap and rotor head.

ECM Terminals and Reference Value

NCEC0221

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM’s transistor. Use a ground other than ECM terminals, such as the ground.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

75

L

Camshaft position sen-
sor (Reference signal)

[Engine is running]

I

Warm-up condition

I

Idle speed

0.1 - 0.4V

SEF006W

[Engine is running]

I

Engine speed is 2,000 rpm

0.1 - 0.4V

SEF007W

GI

MA

EM

LC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0340 CAMSHAFT POSITION SENSOR (CMPS)

Component Description

EC-339

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

85

B/W

Camshaft position sen-
sor (Position signal)

[Engine is running]

I

Warm-up condition

I

Idle speed

Approximately 2.6V

SEF004W

[Engine is running]

I

Engine speed is 2,000 rpm

Approximately 2.5V

SEF005W

On Board Diagnosis Logic

NCEC0222

DTC No.

Malfunction is detected when ...

Check Items (Possible Cause)

P0340

A)

Either 1° or 180° signal is not sent to ECM for the
first few seconds during engine cranking.

I

Harness or connectors
(The camshaft position sensor circuit is open or
shorted.)

I

Camshaft position sensor

I

Starter motor (Refer to SC-10, “STARTING SYS-
TEM”.)

I

Starting system circuit (Refer to SC-10, “START-
ING SYSTEM”.)

I

Dead (Weak) battery

B)

Either 1° or 180° signal is not sent to ECM often
enough while the engine speed is higher than the
specified engine speed.

C)

The relation between 1° and 180° signal is not in
the normal range during the specified engine
speed.

DTC Confirmation Procedure

NCEC0223

Perform “Procedure for malfunction A” first. If DTC cannot be
confirmed, perform “Procedure for malfunction B and C”.
NOTE:
If “DTC Confirmation Procedure” has been previously conducted,
always turn ignition switch “OFF” and wait at least 10 seconds
before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that bat-
tery voltage is more than 10.5V.

SEF058Y

PROCEDURE FOR MALFUNCTION A

NCEC0223S01

With CONSULT-II

1)

Turn ignition switch “ON”.

2)

Select “DATA MONITOR” mode with CONSULT-II.

3)

Crank engine for at least 2 seconds.

4)

If 1st trip DTC is detected, go to “Diagnostic Procedure”,
EC-343.

With GST

Follow the procedure “With CONSULT-II” above.

DTC P0340 CAMSHAFT POSITION SENSOR (CMPS)

ECM Terminals and Reference Value (Cont’d)

EC-340

SEF058Y

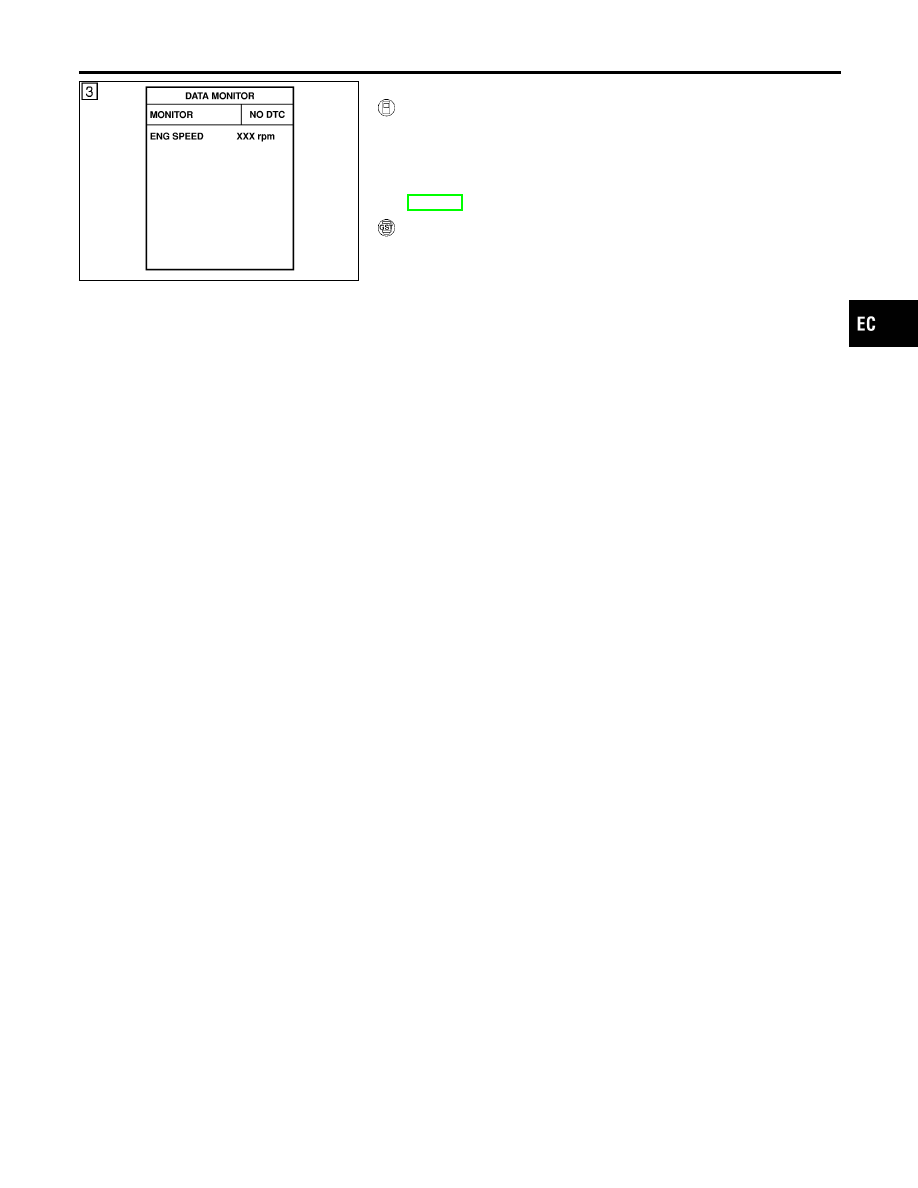

PROCEDURE FOR MALFUNCTION B AND C

NCEC0223S02

With CONSULT-II

1)

Turn ignition switch “ON”.

2)

Select “DATA MONITOR” mode with CONSULT-II.

3)

Start engine and run it for at least 2 seconds at idle speed.

4)

If 1st trip DTC is detected, go to “Diagnostic Procedure”,
EC-343.

With GST

Follow the procedure “With CONSULT-II” above.

GI

MA

EM

LC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0340 CAMSHAFT POSITION SENSOR (CMPS)

DTC Confirmation Procedure (Cont’d)

EC-341

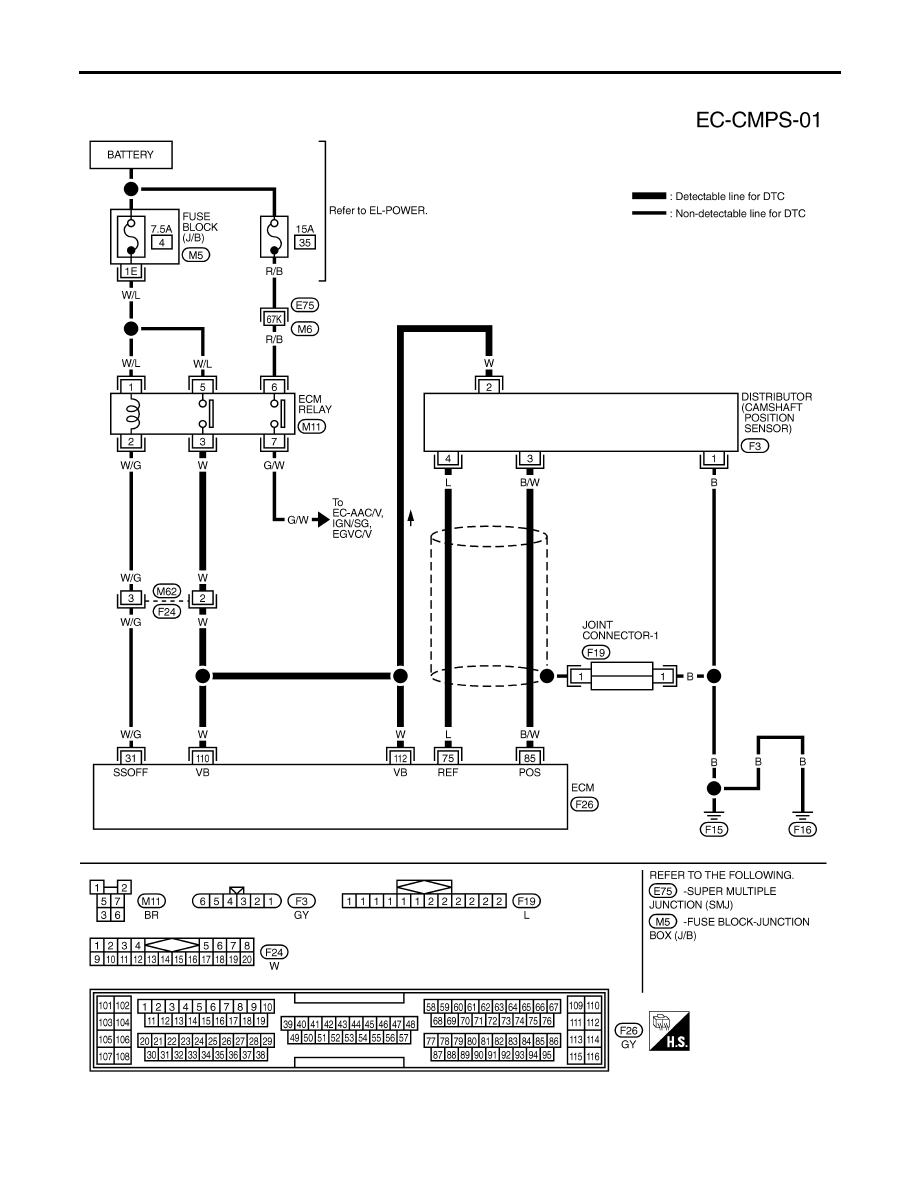

Wiring Diagram

NCEC0224

TEC828

DTC P0340 CAMSHAFT POSITION SENSOR (CMPS)

Wiring Diagram

EC-342
