Infiniti G20 (P11). Manual - part 226





PROCEDURE A

=NCEC0672S01

1

CHECK COOLING FAN POWER SUPPLY CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect cooling fan relay-1.
3. Turn ignition switch “ON”.
4. Check voltage between cooling fan relay-1 terminals 1, 3, 7 and ground with CONSULT-II or tester.

SEF727W

Voltage: Battery voltage

OK or NG

OK

©

GO TO 3.

NG

©

GO TO 2.

2

DETECT MALFUNCTIONING PART

Check the following.

I

10A fuse

I

40A fusible link

I

30A fusible link

I

Harness for open or short between cooling fan relay-1 and fuse

I

Harness for open or short between cooling fan relay-1 and battery

©

Repair open circuit or short to ground or short to power in harness or connectors.

GI

MA

EM

LC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0217 COOLANT OVERTEMPERATURE ENRICHMENT PROTECTION

Diagnostic Procedure (M/T Models) (Cont’d)

EC-315

3

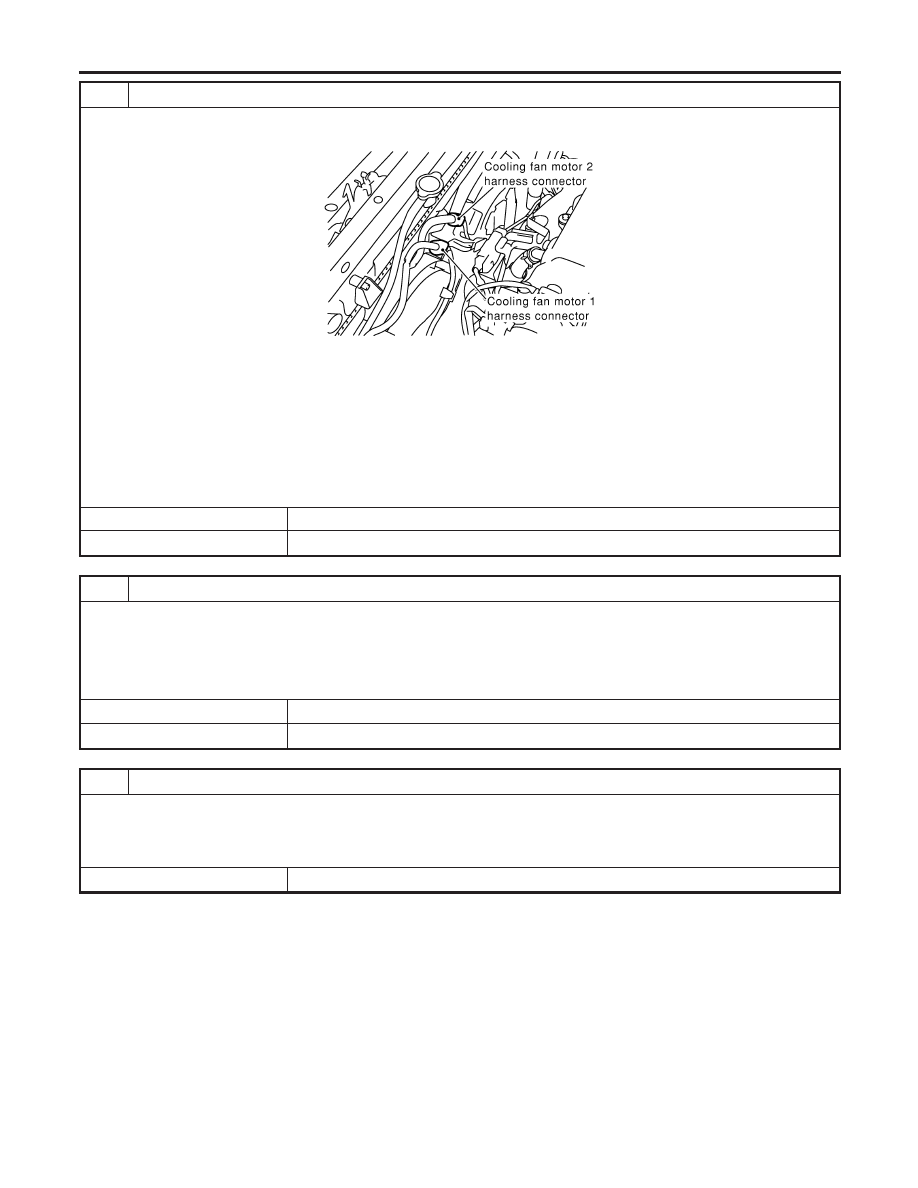

CHECK COOLING FAN MOTOR CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch “OFF”.
2. Disconnect cooling fan motor-1 harness connector and cooling fan motor-2 harness connector.

SEF854X

3. Check harness continuity between cooling fan relay-1 terminal 5 and cooling fan motor-1 terminal 1, cooling fan

motor-1 terminal 4 and body ground. Refer to Wiring Diagram.

Continuity should exist.

4. Also check harness for short to ground and short to power.
5. Check harness continuity between cooling fan relay-1 terminal 6 and cooling fan motor-2 terminal 2, cooling fan

motor-2 terminal 1 and body ground. Refer to Wiring Diagram.

Continuity should exist.

6. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 4.

NG

©

Repair open circuit or short to ground or short to power in harness or connectors.

4

CHECK COOLING FAN OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 13 and cooling fan relay-1 terminal 2. Refer to Wiring Diagram.

Continuity should exist.

3. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 6.

NG

©

GO TO 5.

5

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors E75, M6

I

Harness connectors M49, F23

I

Harness for open or short between cooling fan relay-1 and ECM

©

Repair open circuit or short to ground or short to power in harness or connectors.

DTC P0217 COOLANT OVERTEMPERATURE ENRICHMENT PROTECTION

Diagnostic Procedure (M/T Models) (Cont’d)

EC-316

6

CHECK COOLING FAN RELAY-1

Check continuity between cooling fan relay-1 terminals 3 and 5, 6 and 7 under the following conditions.

SEF591X

OK or NG

OK

©

GO TO 7.

NG

©

Replace cooling fan relay.

7

CHECK COOLING FAN MOTOR-1

Supply battery voltage between the following terminals and check operation.

SEF937XA

OK or NG

OK

©

GO TO 8.

NG

©

Replace cooling fan motor-1.

8

CHECK COOLING FAN MOTOR-2

Supply battery voltage between the following terminals and check operation.

SEC574C

OK or NG

OK

©

GO TO 9.

NG

©

Replace cooling fan motor-2.

GI

MA

EM

LC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0217 COOLANT OVERTEMPERATURE ENRICHMENT PROTECTION

Diagnostic Procedure (M/T Models) (Cont’d)

EC-317

9

CHECK INTERMITTENT INCIDENT

Perform “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-146.

©

INSPECTION END

DTC P0217 COOLANT OVERTEMPERATURE ENRICHMENT PROTECTION

Diagnostic Procedure (M/T Models) (Cont’d)

EC-318
