Infiniti G20 (P11). Manual - part 156





SEF462UC

EVAP Service Port

NCEC0019S09

Positive pressure is delivered to the EVAP system through the
EVAP service port. If fuel vapor leakage in the EVAP system
occurs, use a leak detector to locate the leak.

GI

MA

EM

LC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ENGINE AND EMISSION BASIC CONTROL SYSTEM DESCRIPTION

Evaporative Emission System (Cont’d)

EC-35

PEF838U

PEF917U

SEF200U

SEF323Z

SEF931X

How to Detect Fuel Vapor Leakage

NCEC0019S10

CAUTION:

I

Never use compressed air or a high pressure pump.

I

Do not start engine.

I

Do not exceed 4.12 kPa (0.042 kg/cm

2

, 0.6 psi) of pressure

in EVAP system.

NOTE:
Improper installation of adapter to the service port may cause
a leak.

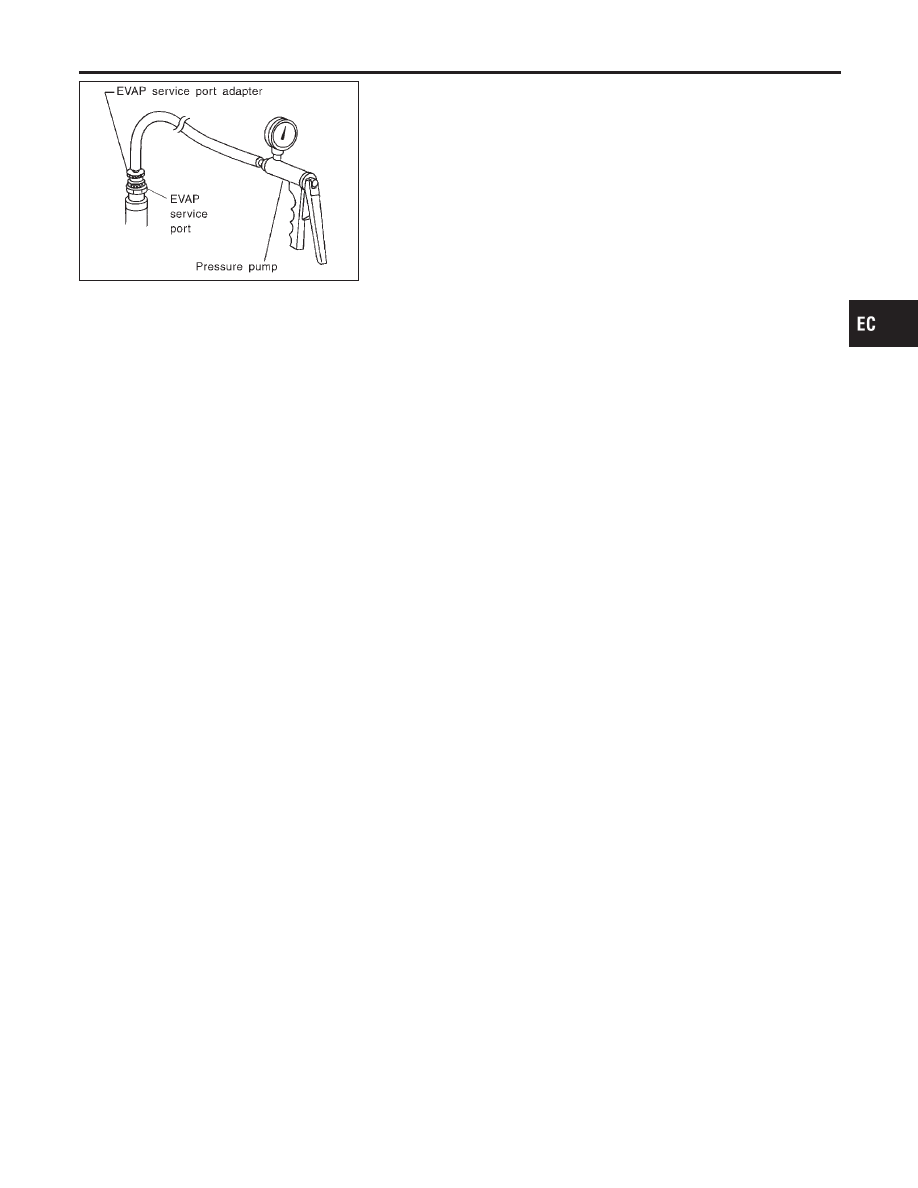

With CONSULT-II

1)

Attach the EVAP service port adapter securely to the EVAP
service port.

2)

Also attach the pressure pump and hose.

3)

Turn ignition switch “ON”.

4)

Select the “EVAP SYSTEM CLOSE” of “WORK SUPPORT
MODE” with CONSULT-II.

5)

Touch “START”. A bar graph (Pressure indicating display) will
appear on the screen.

6)

Apply positive pressure to the EVAP system until the pressure
indicator reaches the middle of the bar graph.

7)

Remove the EVAP service port adapter and hose with pres-
sure pump.

8)

Locate the leak using a leak detector. Refer to “EVAPORATIVE
EMISSION LINE DRAWING”, EC-37.

Without CONSULT-II

1)

Attach the EVAP service port adapter securely to the EVAP
service port and pressure pump with pressure gauge to the
EVAP service port.

2)

Apply battery voltage to between the terminals of both EVAP
canister vent control valve and vacuum cut valve bypass valve
to make a closed EVAP system.

3)

To locate the leak, deliver positive pressure to the EVAP sys-
tem until pressure gauge points reach 1.38 to 2.76 kPa (0.014
to 0.028 kg/cm

2

, 0.2 to 0.4 psi).

4)

Remove the EVAP service port adapter and hose with pres-
sure pump.

5)

Locate the leak using a leak detector. Refer to “EVAPORATIVE
EMISSION LINE DRAWING”, EC-37.

ENGINE AND EMISSION BASIC CONTROL SYSTEM DESCRIPTION

Evaporative Emission System (Cont’d)

EC-36

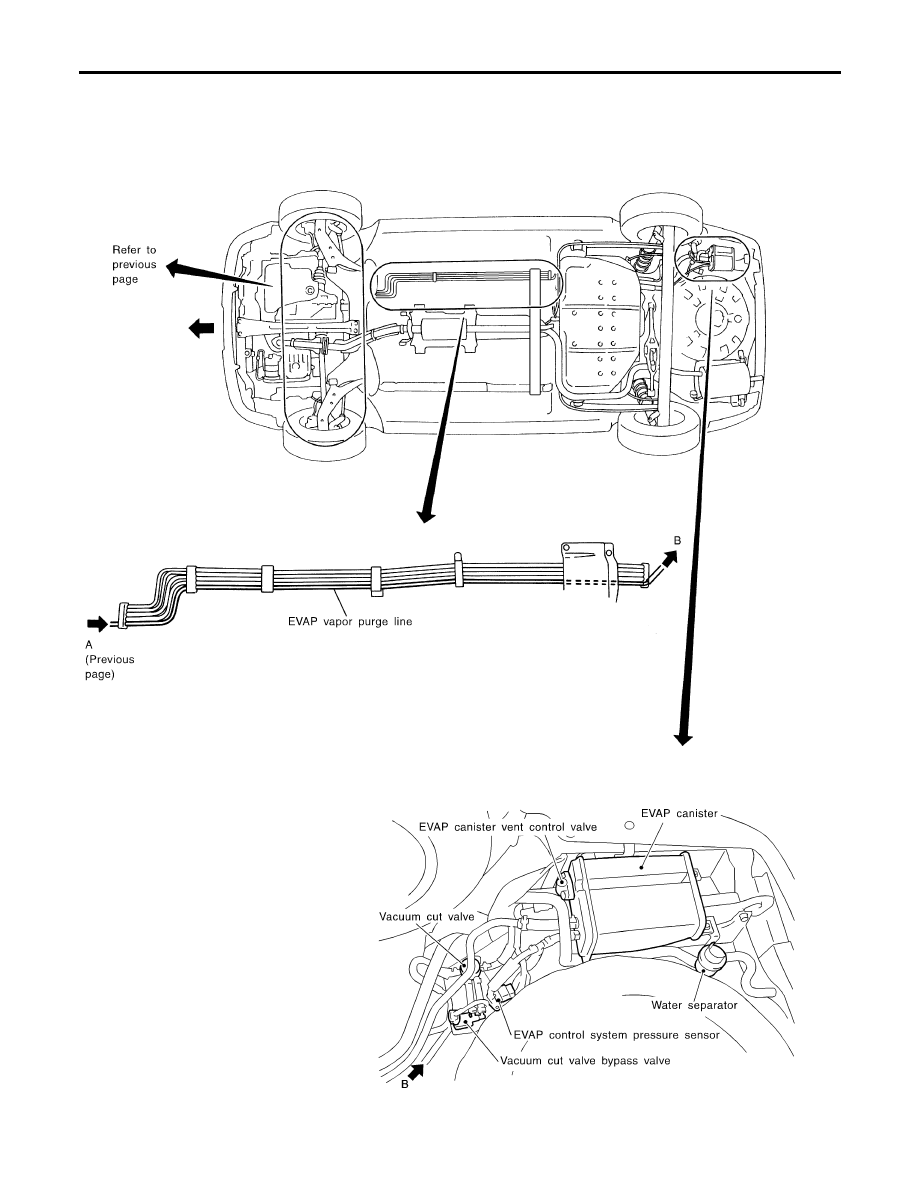

EVAPORATIVE EMISSION LINE DRAWING

NCEC0020

SEF915Z

GI

MA

EM

LC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ENGINE AND EMISSION BASIC CONTROL SYSTEM DESCRIPTION

Evaporative Emission System (Cont’d)

EC-37

NOTE:
Do not use soapy water or any type of solvent while installing vacuum hoses or purge hoses.

SEF832X

ENGINE AND EMISSION BASIC CONTROL SYSTEM DESCRIPTION

Evaporative Emission System (Cont’d)

EC-38
