Tool name

Description

Hose clipper

NT720

Clamping the EVAP purge hose between the fuel
tank and EVAP canister applied to DTC P1440
[EVAP control system (Small leak — Positive pres-
sure)]

Oxygen sensor thread
cleaner
(J-43897-18)
(J-43897-12)

NT778

Reconditioning the exhaust system threads before
installing a new oxygen sensor. Use with anti-seize
lubricant shown below.
a: J-43897-18 (18 mm diameter with pitch 1.5
mm) for Zirconia Oxygen Sensor
b: J-43897-12 (12 mm diameter with pitch 1.25
mm) for Titania Oxygen Sensor

Anti-seize lubricant
(Permatex

TM

133AR or

equivalent meeting MIL
specification MIL-A-907)

NT779

Lubricating oxygen sensor thread cleaning tool
when reconditioning exhaust system threads.

GI

MA

EM

LC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

PREPARATION

Commercial Service Tools (Cont’d)

EC-19

Engine Control Component Parts Location

NCEC0009

SEF912Z

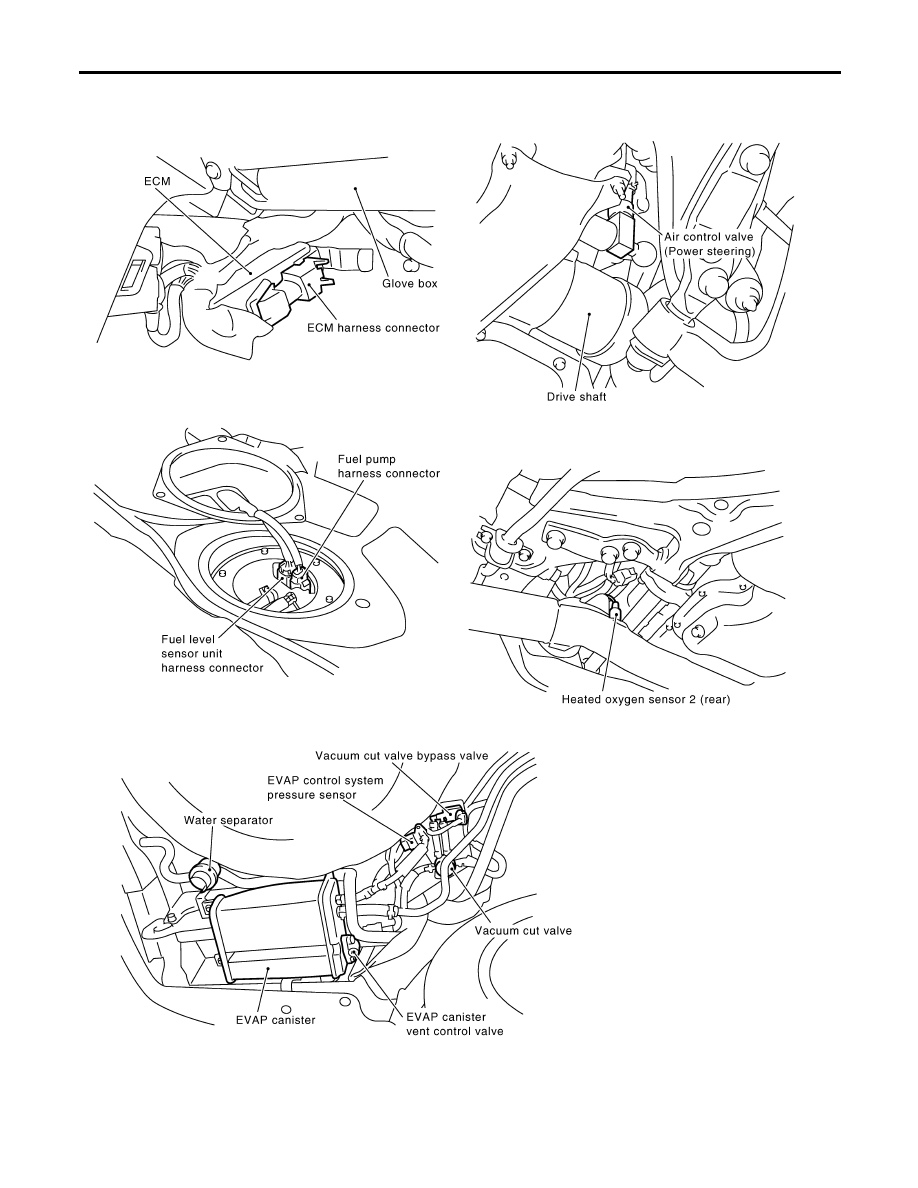

ENGINE AND EMISSION CONTROL OVERALL SYSTEM

Engine Control Component Parts Location

EC-20

SEF835X

GI

MA

EM

LC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ENGINE AND EMISSION CONTROL OVERALL SYSTEM

Engine Control Component Parts Location (Cont’d)

EC-21

SEF913Z

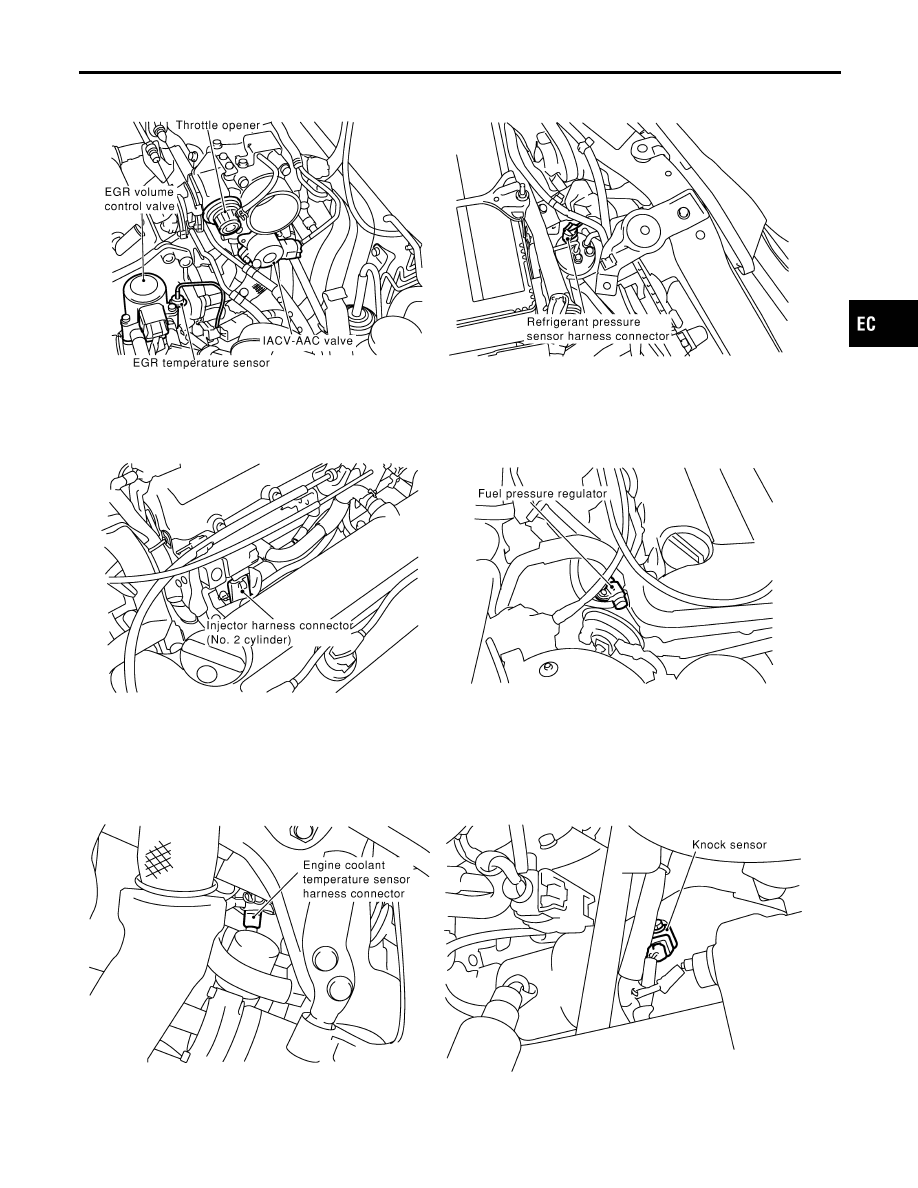

ENGINE AND EMISSION CONTROL OVERALL SYSTEM

Engine Control Component Parts Location (Cont’d)

EC-22
