SUNROOF

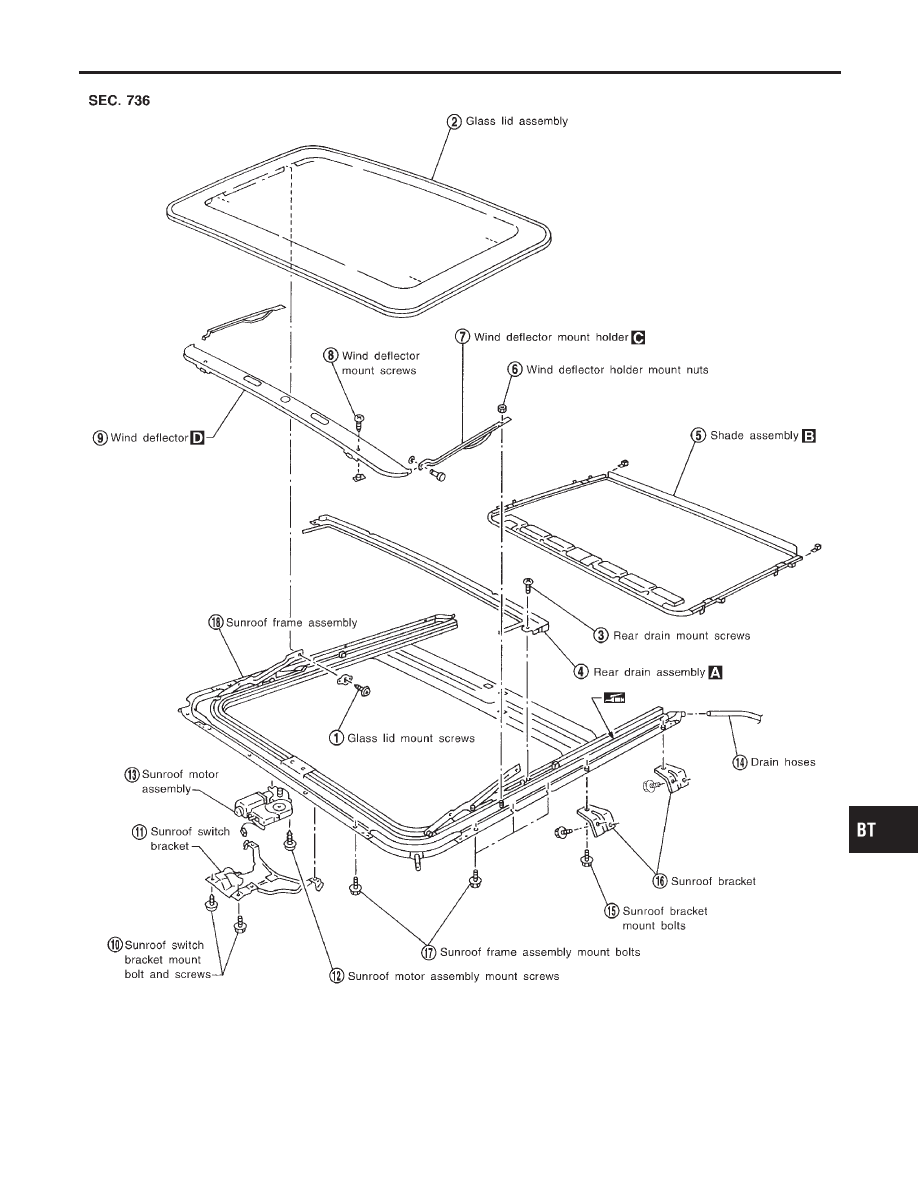

Removal and Installation (Cont’d)

BT-47

SBT411

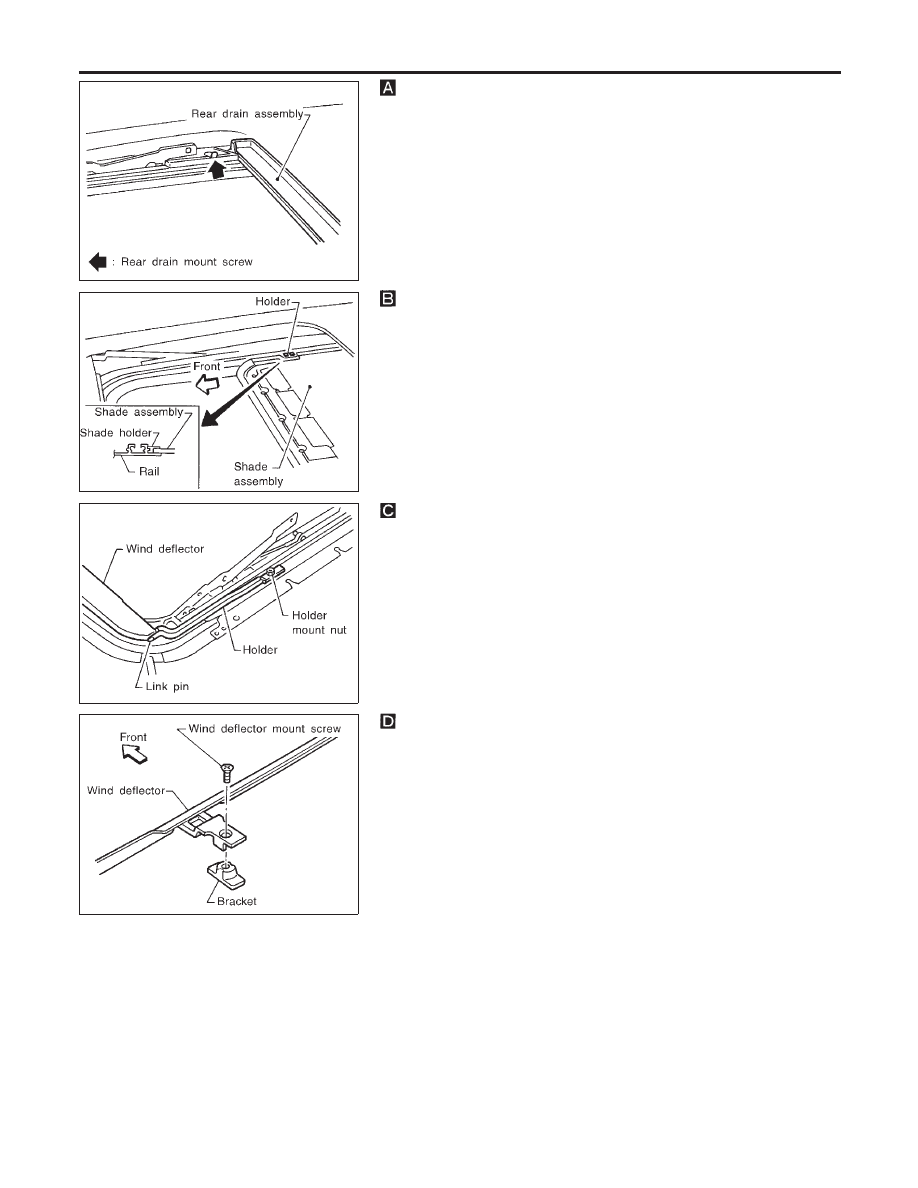

Remove rear drain mount screws. Disengage rear drain assem-

bly by moving it forward. Remove rear drain assembly.

SBT412

Using flat-bladed screwdriver, pry shade assembly holder from

rail. Remove shade assembly by slowly moving it forward.

SBT413

Remove wind deflector mount screws. Pry off pawls with flat-

bladed screwdriver inserted through rail hole. Remove wind deflec-
tor holder.

SBT414

Remove wind deflector mount screws from front end of sunroof

unit. Remove wind deflector assembly from sunroof frame
assembly.

SUNROOF

Removal and Installation (Cont’d)

BT-48

Trouble Diagnoses

=NCBT0018

DIAGNOSTIC TABLE

NCBT0018S01

NOTE:
For diagnosing electric symptom, refer to EL-140, “POWER SUN-
ROOF”.

Check items (Components)

Wind deflector

Adjustment

Drain hoses

Weatherstrip

Link and wire

assembly

Reference page

BT-49

BT-50

BT-51

BT-51

BT-52

Symptom

Excessive wind
noise

1

2

3

Water leaks

1

2

3

Sunroof rattles

1

4

2

3

Excessive opera-
tion noise

1

2

3

The numbers in this table mean order of inspection.

SBT331

WIND DEFLECTOR

NCBT0018S02

1.

Open glass lid.

2.

Check visually for proper installation.

3.

Check to ensure a proper amount of petroleum jelly has been
applied to wind deflector connection points; apply if necessary.

SBT332

4.

Check that wind deflector is properly retracted by hand. If it is
not, remove and visually check condition. (Refer to removal
procedures, BT-45.) If wind deflector is damaged, replace with
new one. If wind deflector is not damaged, re-install properly.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

SUNROOF

Trouble Diagnoses

BT-49

ADJUSTMENT

NCBT0018S03

SBT415

If any gap or height difference between lid and roof is found, check
lid fit and adjust as follows:

Gap Adjustment

NCBT0018S0301

1.

Open shade assembly.

2.

Tilt glass lid up then remove side trim.

3.

Loosen glass lid securing nuts (3 each on left and right sides),
then tilt glass lid down.

4.

Adjust glass lid from outside of vehicle so it resembles “A-A”
as shown in the figure above.

5.

Tilt glass lid up and down until it is adjusted to “B-B” as shown
in the figure above.

6.

After adjusting glass lid, tilt glass lid up and tighten nuts.

7.

Tilt glass lid up and down several times to check that it moves
smoothly.

Height Difference Adjustment

NCBT0018S0302

1.

Tilt glass lid up and down.

2.

Check height difference between roof panel and glass lid to
see if it is as “A-A” as shown in the figure above.

3.

If necessary, adjust it by using one of following procedures.

I

Adjust by adding or removing adjustment shim(s) between
glass lid and link assembly.

I

If glass lid protrudes above roof panel, add shim(s) or plain
washer(s) at sunroof mounting bracket or stud bolt locations to
adjust sunroof installation as required.

SUNROOF

Trouble Diagnoses (Cont’d)

BT-50
