Infiniti G20 (P11). Manual - part 134





Removal and Installation

NCBT0011

CAUTION:

I

When removing or installing body side welts, do not allow butyl seal to come in contact with pil-
lar garnish and headlining.

I

Wrap the tip of a flat-bladed screwdriver with a cloth when removing metal clips and lenses.

1. Remove rear seats. Refer to “REAR SEAT” for details, BT-43.
2. Remove shoulder anchor bolts. Refer to RS-4, “Front Seat Belt” for details.
3. Remove front pillar garnishes, center pillar upper garnishes and rear pillar garnishes. Refer to “SIDE AND

FLOOR TRIM” for details, BT-33.

4. Remove steering wheel. Refer to RS-19, “Driver Air Bag Module and Spiral Cable” for details.
5. Remove push back the front seat back.
6. Remove sunroof switch or spot lamp switch and IVCS switch.
7. Remove sunroof welt.
8. Remove sun visors.
9. Remove interior lamp.
10. Remove assist grips.
11. Remove clips securing headlining.
12. Remove headlining.

SBT854

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

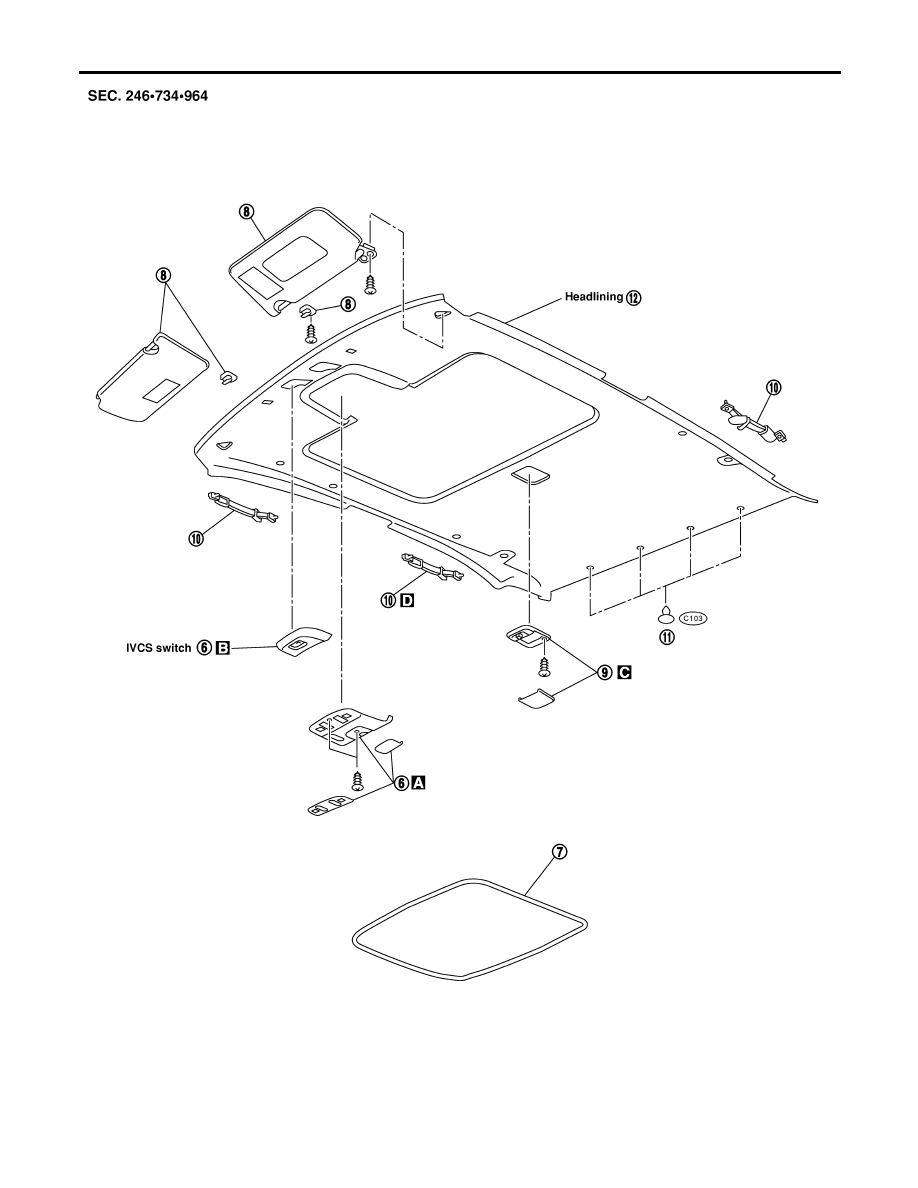

ROOF TRIM

Removal and Installation

BT-31

SBT855

ROOF TRIM

Removal and Installation (Cont’d)

BT-32

Removal and Installation

NCBT0012

SBT396

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

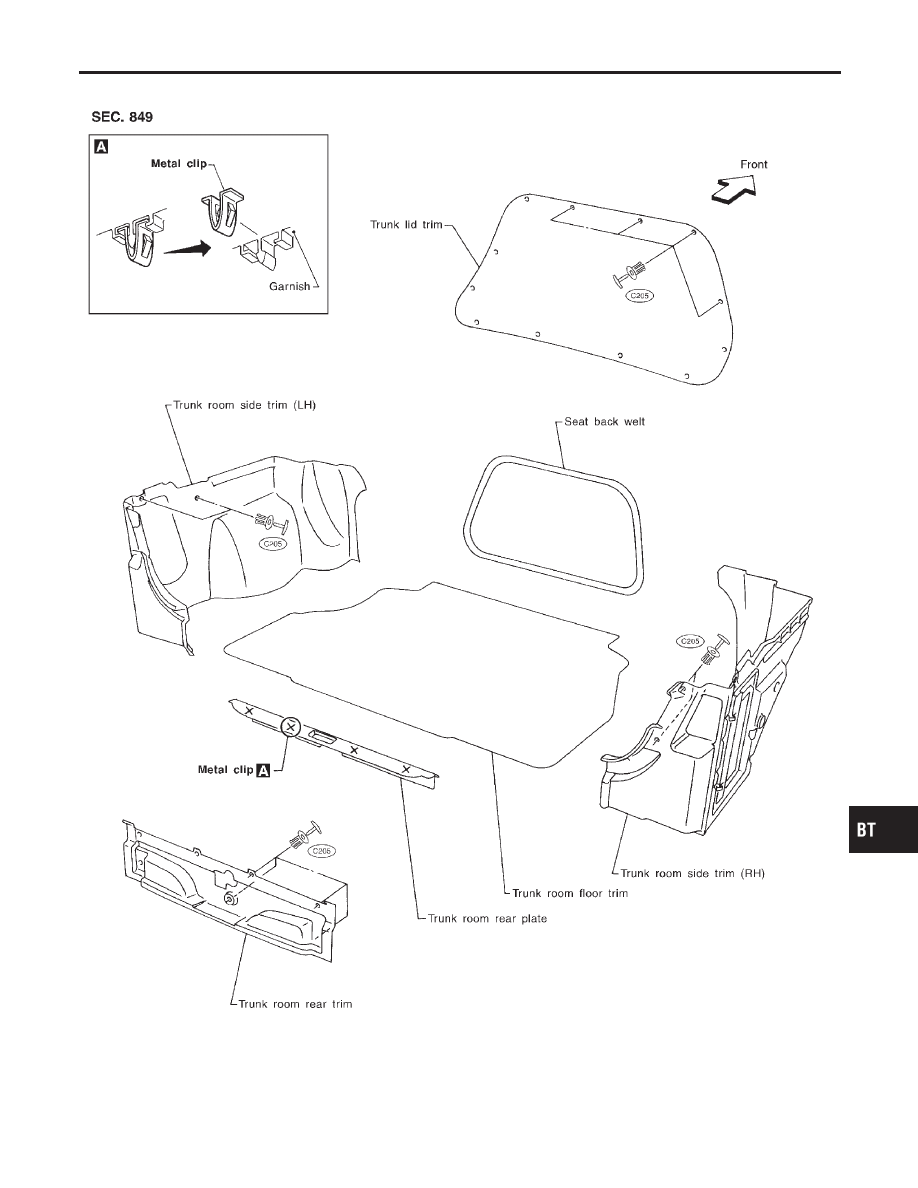

TRUNK ROOM TRIM
