Infiniti G20 (P11). Manual - part 110





SBR231C

2.

Remove valve stopper while piston is pushed into cylinder.

3.

Remove piston assemblies.
If it is difficult to remove secondary piston assembly,
gradually apply compressed air through fluid outlet.

4.

Draw out reservoir tank.

Inspection

NCBR0020

Check for the following items.
Replace any part if damaged.
Master cylinder:

I

Pin holes or scratches on inner wall.

Piston:

I

Deformation of or scratches on piston cups.

SBR354C

Assembly

NCBR0021

1.

Insert secondary piston assembly. Then insert primary piston
assembly.

I

Pay attention to alignment of secondary piston slit with valve
stopper mounting hole of cylinder body.

SBR940A

2.

Install stopper cap.
Before installing stopper cap, ensure that claws are bent
inward.

3.

Push reservoir tank seals into cylinder body.

4.

Push reservoir tank into cylinder body.

SBR435B

5.

Install valve stopper while piston is pushed into cylinder.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

MASTER CYLINDER

Disassembly (Cont’d)

BR-15

SBR453C

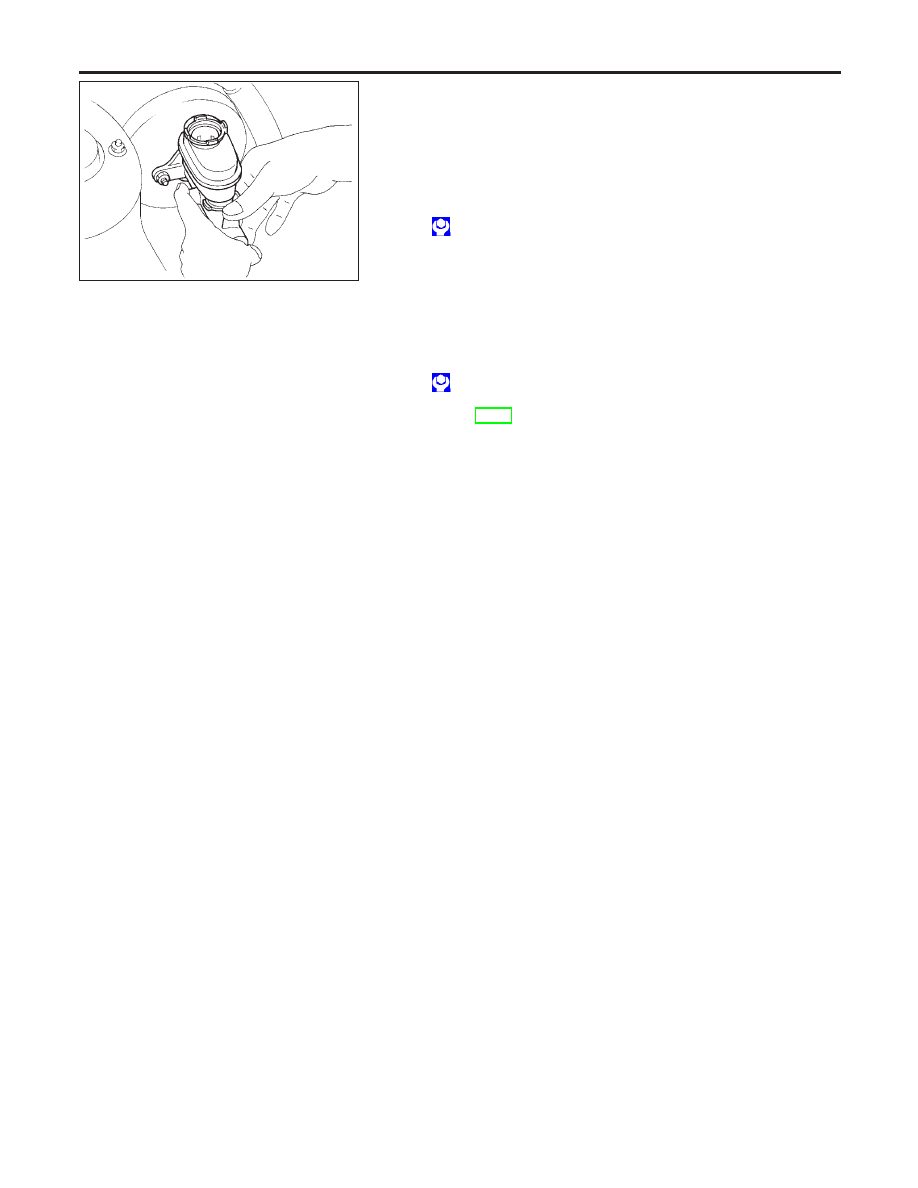

Installation

NCBR0022

CAUTION:

I

Refill with new brake fluid “DOT 3”.

I

Never reuse drained brake fluid.

1.

Place master cylinder onto brake booster and secure mount-
ing nuts lightly.

2.

Torque mounting nuts.

: 12 - 15 N·m (1.2 - 1.5 kg-m, 9 - 11 ft-lb)

3.

Fill up reservoir tank with new brake fluid.

4.

Plug all ports on master cylinder with fingers to prevent air
suction while releasing brake pedal.

5.

Have driver depress brake pedal slowly several times until no
air comes out of master cylinder.

6.

Fit brake lines to master cylinder.

7.

Tighten flare nuts.

: 15 - 18 N·m (1.5 - 1.8 kg-m, 11 - 13 ft-lb)

8.

Bleed air from brake system. Refer to “Bleeding Brake
System”, BR-8.

MASTER CYLINDER

Installation

BR-16

SBR002A

SBR365AA

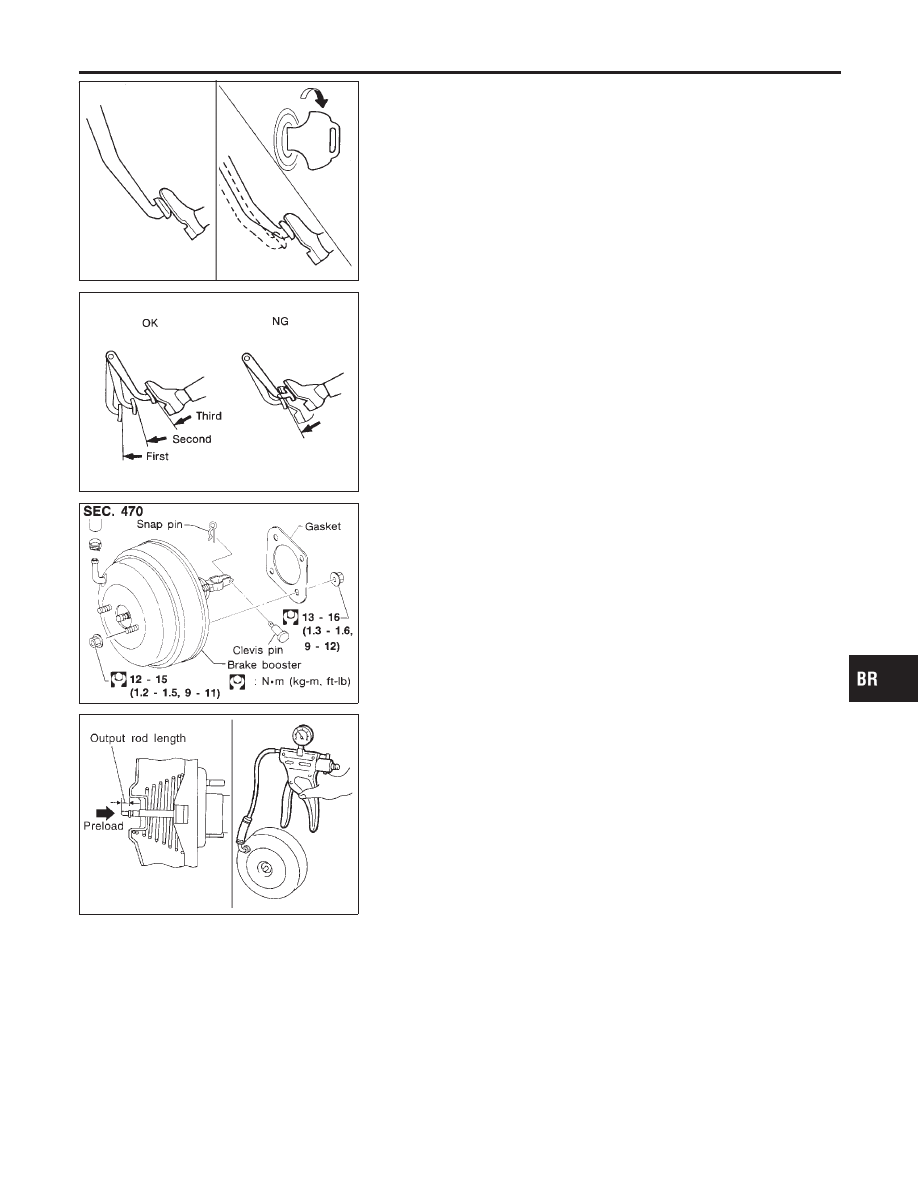

On-vehicle Service

NCBR0023

OPERATING CHECK

NCBR0023S01

1.

Stop engine and depress brake pedal several times. Check
that pedal stroke does not change.

2.

Depress brake pedal, then start engine. If pedal goes down
slightly, operation is normal.

AIRTIGHT CHECK

NCBR0023S02

1.

Start engine, and stop it after one or two minutes. Depress
brake pedal several times slowly. The pedal should go further
down the first time, and then it should gradually rise thereaf-
ter.

2.

Depress brake pedal while engine is running, and stop engine
with pedal depressed. The pedal stroke should not change
after holding pedal down for 30 seconds.

SBR232CB

Removal

NCBR0024

CAUTION:

I

Be careful not to splash brake fluid on painted areas; it
may cause paint damage. If brake fluid is splashed on
painted areas, wash it away with water immediately.

I

Be careful not to deform or bend brake pipes, during
removal of booster.

SBR208E

Inspection

NCBR0025

OUTPUT ROD LENGTH CHECK

NCBR0025S01

1.

Apply vacuum of −66.7 kPa (−500 mmHg, −19.69 inHg) to
brake booster with a handy vacuum pump.

2.

Add preload of 19.6 N (2 kg, 4.4 lb) to output rod.

3.

Check output rod length.

Specified length:

10.275 - 10.525 mm (0.4045 - 0.4144 in)

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

BRAKE BOOSTER

On-vehicle Service

BR-17

Installation

NCBR0026

CAUTION:

I

Be careful not to deform or bend brake pipes, during
installation of booster.

I

Replace clevis pin if damaged.

I

Refill with new brake fluid “DOT 3”.

I

Never reuse drained brake fluid.

I

Take care not to damage brake booster mounting bolt
thread when installing. Due to the acute angle of
installation, the threads can be damaged with the dash
panel.

SBR237EA

1.

Before fitting booster, temporarily adjust clevis to dimension
shown.

2.

Fit booster, then secure mounting nuts (brake pedal bracket to
master cylinder) lightly.

3.

Connect brake pedal and booster input rod with clevis pin.

4.

Secure mounting nuts.

Specification:

13 - 16 N·m (1.3 - 1.6 kg-m, 9 - 12 ft-lb)

5.

Install master cylinder. Refer to “Installation” in “MASTER
CYLINDER”, BR-16.

6.

Bleed air. Refer to “Bleeding Brake System”, BR-8.

BRAKE BOOSTER

Installation

BR-18
