Infiniti G20 (P11). Manual - part 90

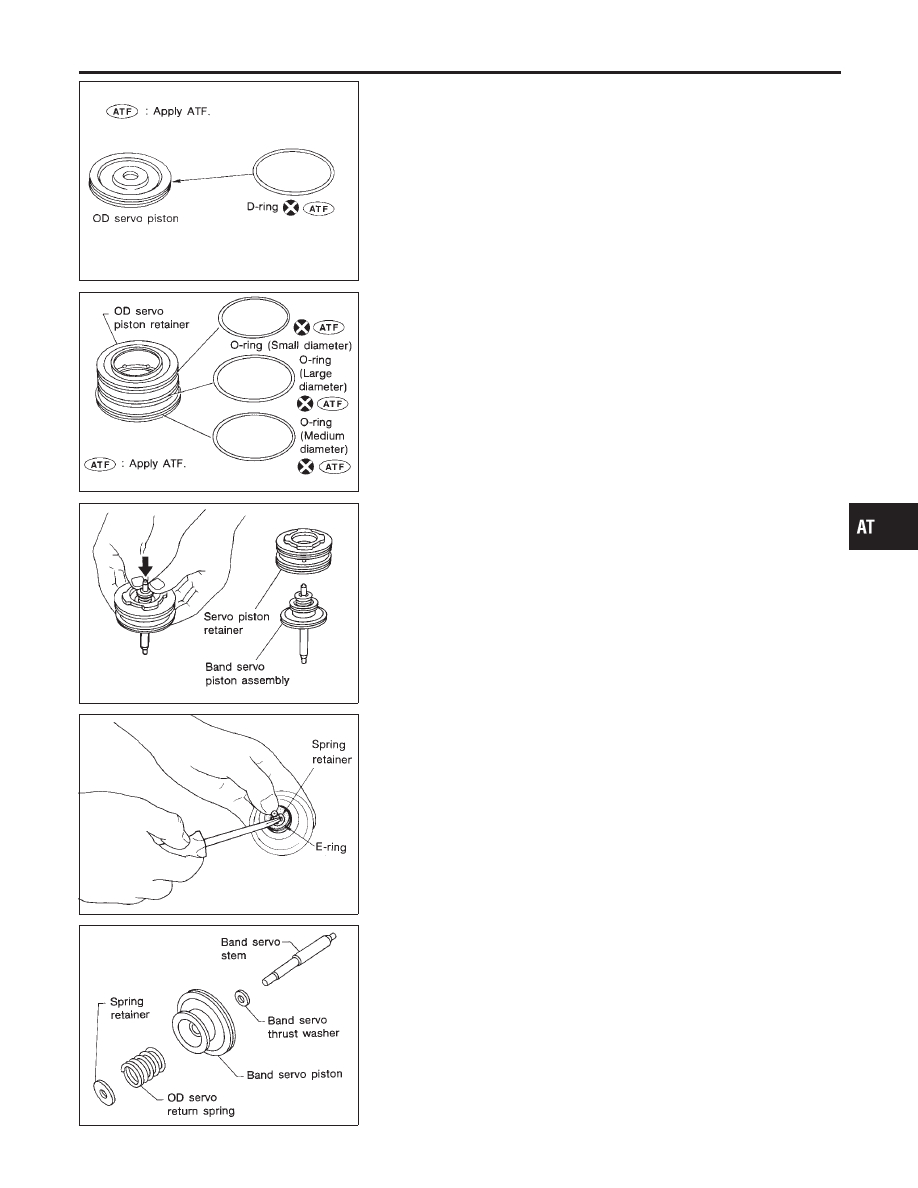

SAT593GB

4.

Remove D-ring from OD servo piston.

SAT292DA

5.

Remove O-rings from OD servo piston retainer.

SAT293D

6.

Remove band servo piston assembly from servo piston
retainer by pushing it forward.

SAT294D

7.

Place piston stem end on a wooden block. While pushing
servo piston spring retainer down, remove E-ring.

SAT295DA

8.

Remove OD servo return spring, band servo thrust washer and
band servo piston stem from band servo piston.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

Band Servo Piston Assembly (Cont’d)

AT-357

SAT296DA

9.

Remove O-rings from servo piston retainer.

SAT594GA

10. Remove D-rings from band servo piston.

SAT298DA

INSPECTION

NCAT0167

Pistons, Retainers and Piston Stem

NCAT0167S01

I

Check frictional surfaces for abnormal wear or damage.

SAT138D

Return Springs

NCAT0167S02

I

Check for deformation or damage.

I

Measure free length and outer diameter.

Band servo inspection standard:

Refer to SDS, AT-399.

SAT595GA

ASSEMBLY

NCAT0168

1.

Install D-rings to servo piston retainer.

I

Apply ATF to O-rings.

I

Pay attention to position of each O-ring.

REPAIR FOR COMPONENT PARTS

Band Servo Piston Assembly (Cont’d)

AT-358

SAT295DA

2.

Install band servo piston stem, band servo thrust washer, OD
servo return spring and spring retainer to band servo piston.

SAT301D

3.

Place piston stem end on a wooden block. While pushing
servo piston spring retainer down, install E-ring.

SAT296DA

4.

Install O-rings to servo piston retainer.

I

Apply ATF to O-rings.

I

Pay attention to the positions of the O-rings.

SAT303D

5.

Install band servo piston assembly to servo piston retainer by
pushing it inward.

SAT596GB

6.

Install D-ring to OD servo piston.

I

Apply ATF to D-ring.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

Band Servo Piston Assembly (Cont’d)

AT-359

SAT292DA

7.

Install O-rings to OD servo piston retainer.

I

Apply ATF to O-rings.

I

Pay attention to the positions of the O-rings.

SAT306DA

8.

Install OD servo piston to OD servo piston retainer.

SAT307DA

9.

Install band servo piston assembly and 2nd servo return spring
to transmission case.

I

Apply ATF to O-ring of band servo piston and transmis-
sion case.

AAT692

10. Install OD servo piston assembly to transmission case.

I

Apply ATF to O-ring of band servo piston and transmis-
sion case.

SAT288D

11. Install band servo piston snap ring to transmission case.

REPAIR FOR COMPONENT PARTS

Band Servo Piston Assembly (Cont’d)

AT-360
