Infiniti G20 (P11). Manual - part 88





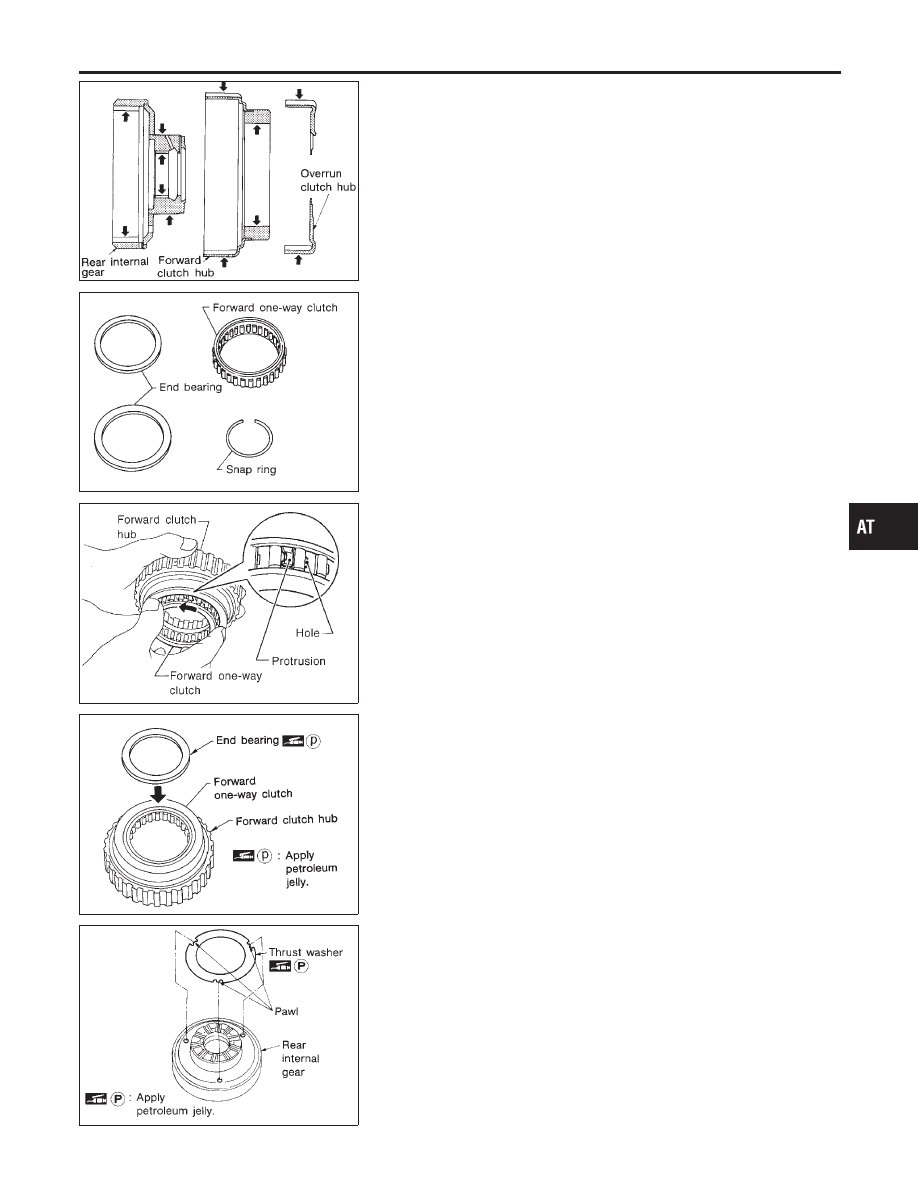

SAT256D

INSPECTION

NCAT0159

Rear Internal Gear, Forward Clutch Hub and Overrun
Clutch Hub

NCAT0159S01

I

Check rubbing surfaces for wear or damage.

SAT257D

Snap Ring, End Bearings and Forward One-way Clutch

NCAT0159S02

I

Check snap ring and end bearings for deformation and dam-
age.

I

Check forward one-way clutch for wear and damage.

SAT976H

ASSEMBLY

NCAT0160

1.

Install forward one-way clutch on forward clutch.

I

Take care with the direction of forward one-way clutch.

SAT259D

2.

Install end bearing on forward one-way clutch.

I

Apply petroleum jelly to end bearing.

SAT260D

3.

Install thrust washer on rear internal gear.

I

Apply petroleum jelly to thrust washer.

I

Align pawls of thrust washer with holes of rear internal
gear.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

Rear Internal Gear, Forward Clutch Hub and Overrun Clutch Hub (Cont’d)

AT-349

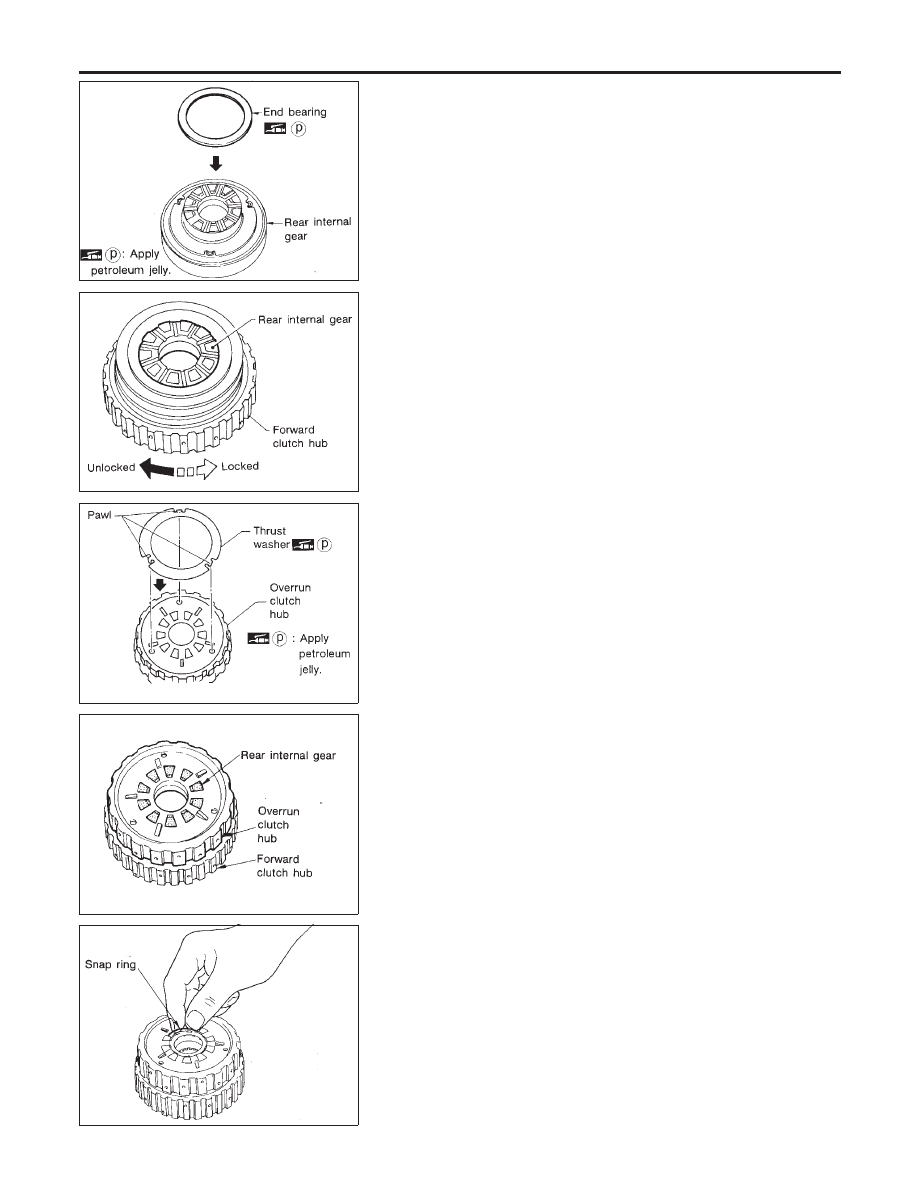

SAT261D

4.

Install end bearing on rear internal gear.

I

Apply petroleum jelly to end bearing.

SAT713H

5.

Install forward clutch hub on rear internal gear.

I

Check operation of forward one-way clutch.
Hold rear internal gear and turn forward clutch hub. Check
forward clutch hub for correct locking and unlocking
directions.

I

If not as shown in illustration, check installation direction
of forward one-way clutch.

SAT263D

6.

Install thrust washer and overrun clutch hub.

I

Apply petroleum jelly to thrust washer.

I

Align pawls of thrust washer with holes of overrun clutch
hub.

SAT264D

7.

Install overrun clutch hub on rear internal gear.

I

Align projections of rear internal gear with holes of over-
run clutch hub.

SAT248D

8.

Install snap ring to groove of rear internal gear.

REPAIR FOR COMPONENT PARTS

Rear Internal Gear, Forward Clutch Hub and Overrun Clutch Hub (Cont’d)

AT-350

Output Shaft, Idler Gear, Reduction Pinion Gear
and Bearing Retainer

COMPONENTS

NCAT0161

SAT487JA

SAT644D

DISASSEMBLY

NCAT0162

1.

Remove seal rings from output shaft and bearing retainer.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

Output Shaft, Idler Gear, Reduction Pinion Gear and Bearing Retainer

AT-351

SAT645D

2.

Remove output shaft bearing with screwdrivers.

I

Always replace bearing with a new one when removed.

I

Do not damage output shaft.

SAT646D

3.

Remove snap ring from bearing retainer.

AAT539

4.

Remove needle bearing from bearing retainer.

SAT648D

5.

Remove idler gear bearing inner race from idler gear.

AAT495

6.

Remove idler gear bearing outer race from transmission case.

REPAIR FOR COMPONENT PARTS

Output Shaft, Idler Gear, Reduction Pinion Gear and Bearing Retainer (Cont’d)

AT-352
