Infiniti G20 (P11). Manual - part 83





SAT163D

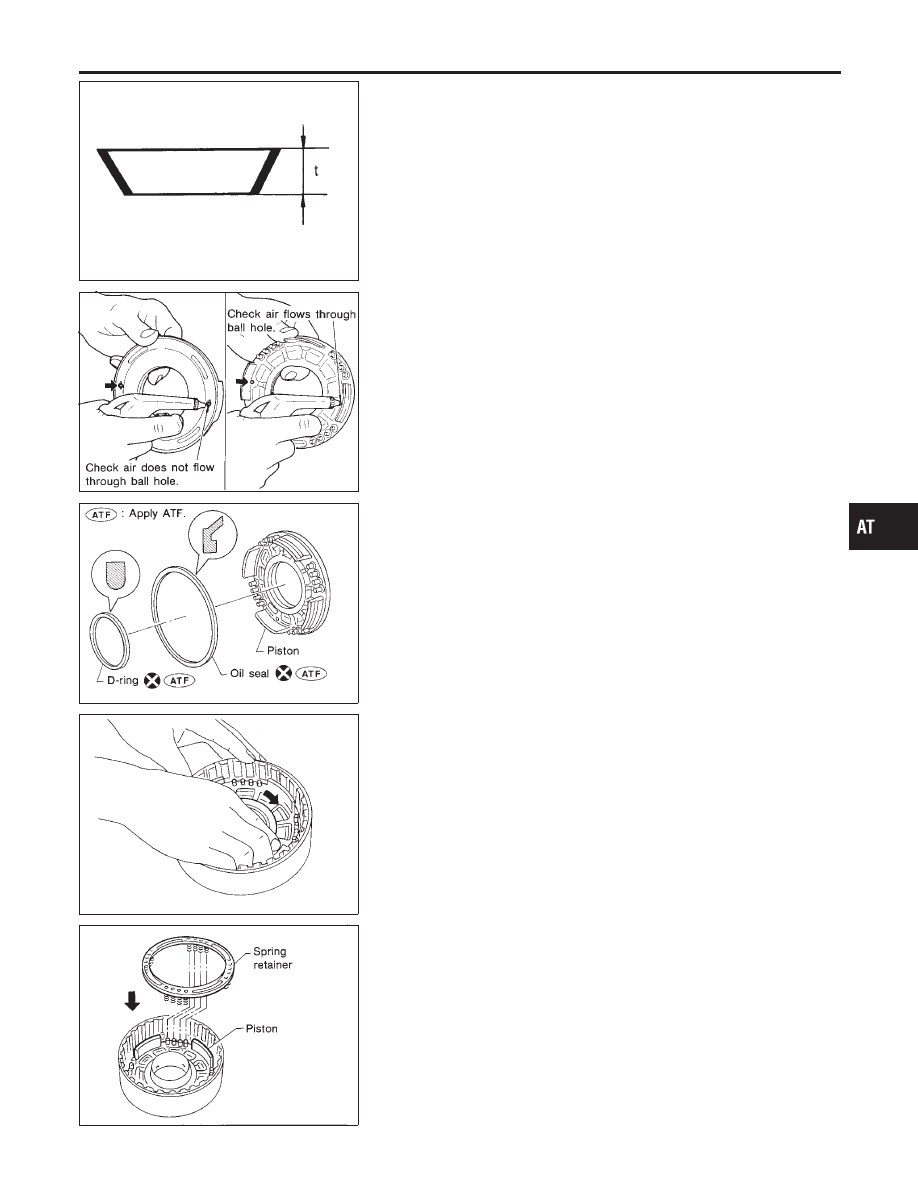

Reverse Clutch Dish Plates

NCAT0143S03

I

Check for deformation or damage.

I

Measure thickness of dish plate.

Thickness of dish plate “t”: 2.8 mm (0.110 in)

I

If deformed or fatigued, replace.

SAT164D

Reverse Clutch Piston

NCAT0143S04

I

Make sure check balls are not fixed.

I

Apply compressed air to check ball oil hole opposite the return
spring. Make sure that there is no air leakage.

I

Apply compressed air to oil hole on return spring side to make
sure air leaks past ball.

SAT160DA

ASSEMBLY

NCAT0144

1.

Install D-ring and oil seal on piston.

I

Take care with the direction of the oil seal.

I

Apply ATF to both parts.

SAT159D

2.

Install piston assembly by turning it slowly.

I

Apply ATF to inner surface of drum.

SAT168D

3.

Install return springs and spring retainer on piston.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

Reverse Clutch (Cont’d)

AT-329

AAT489

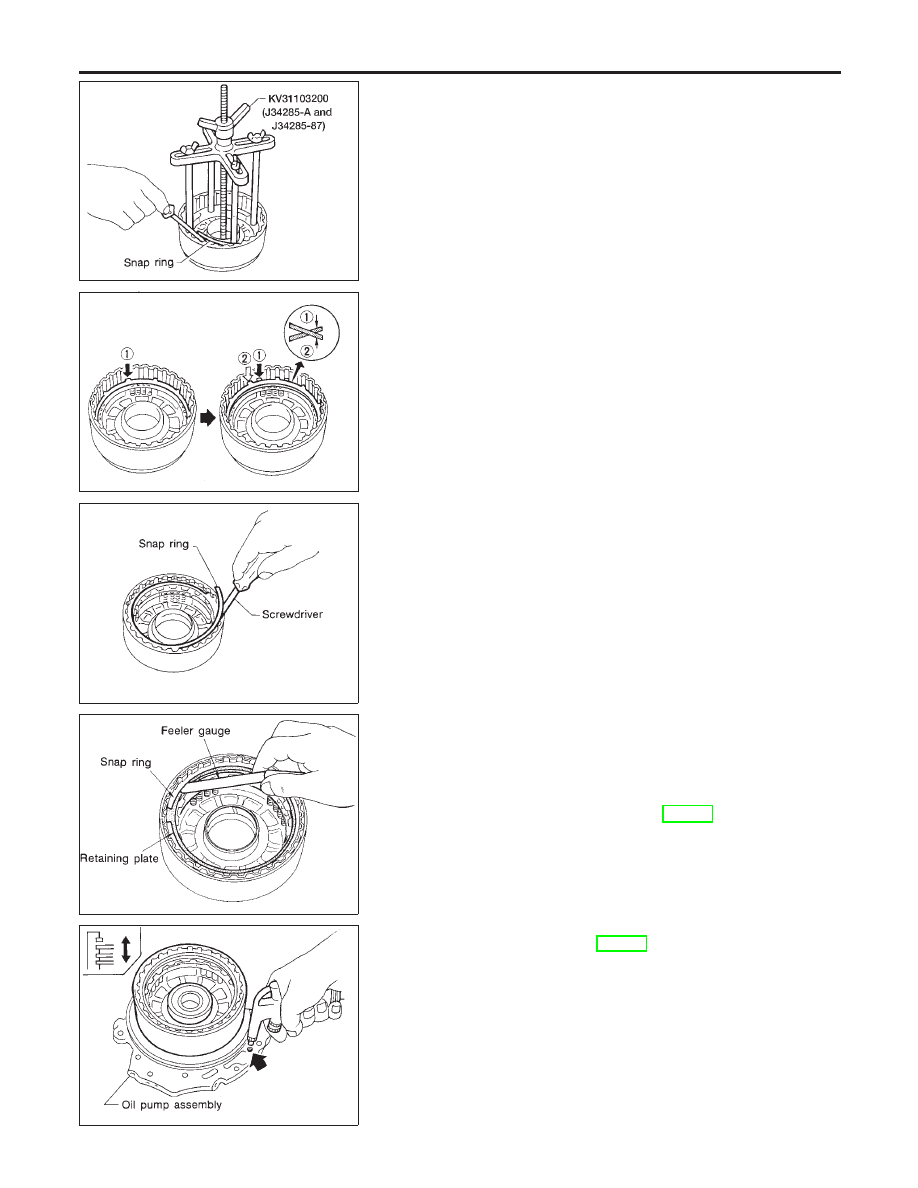

4.

Set Tool on spring retainer and install snap ring while com-
pressing return springs.

I

Set Tool directly above return springs.

SAT170D

5.

Install drive plates, driven plates, retaining plate and dish
plates.

I

Do not align the projections of any two dish plates.

I

Take care with the order and direction of plates.

SAT156D

6.

Install snap ring.

SAT174D

7.

Measure clearance between retaining plate and snap ring. If
not within allowable limit, select proper retaining plate.

Specified clearance:

Standard: 0.5 - 0.8 mm (0.020 - 0.031 in)
Allowable limit: 1.2 mm (0.047 in)

Retaining plate: Refer to SDS, AT-390.

SAT173D

8.

Check operation of reverse clutch.
Refer to “Reverse Clutch”, AT-327.

REPAIR FOR COMPONENT PARTS

Reverse Clutch (Cont’d)

AT-330

High Clutch

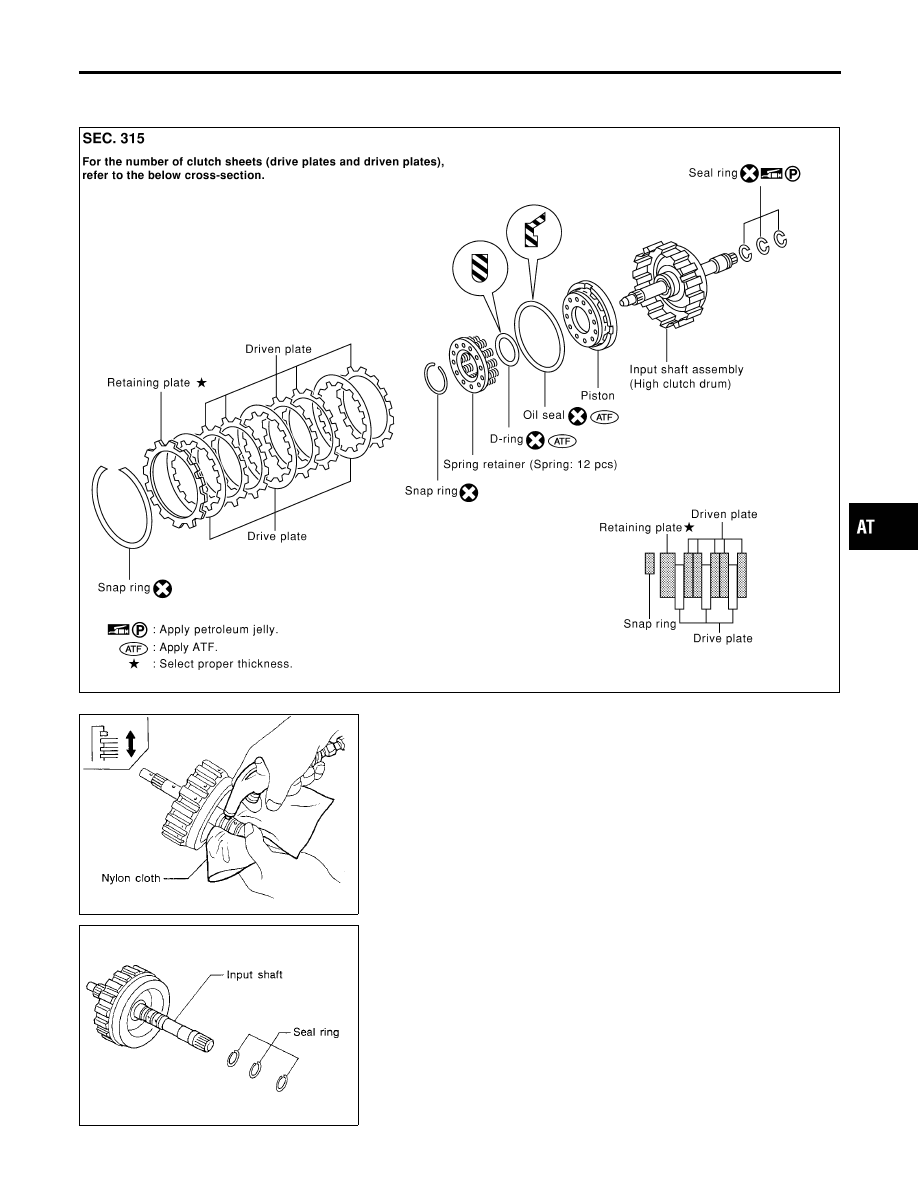

COMPONENTS

=NCAT0145

SAT874J

SAT176D

DISASSEMBLY

NCAT0146

1.

Check operation of high clutch.

a.

Apply compressed air to oil hole of input shaft.

I

Stop up a hole on opposite side of input shaft.

b.

Check to see that retaining plate moves to snap ring.

c.

If retaining plate does not contact snap ring:

I

D-ring might be damaged.

I

Oil seal might be damaged.

I

Fluid might be leaking past piston check ball.

SAT177D

2.

Remove seal rings from input shaft.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

High Clutch

AT-331

SAT178D

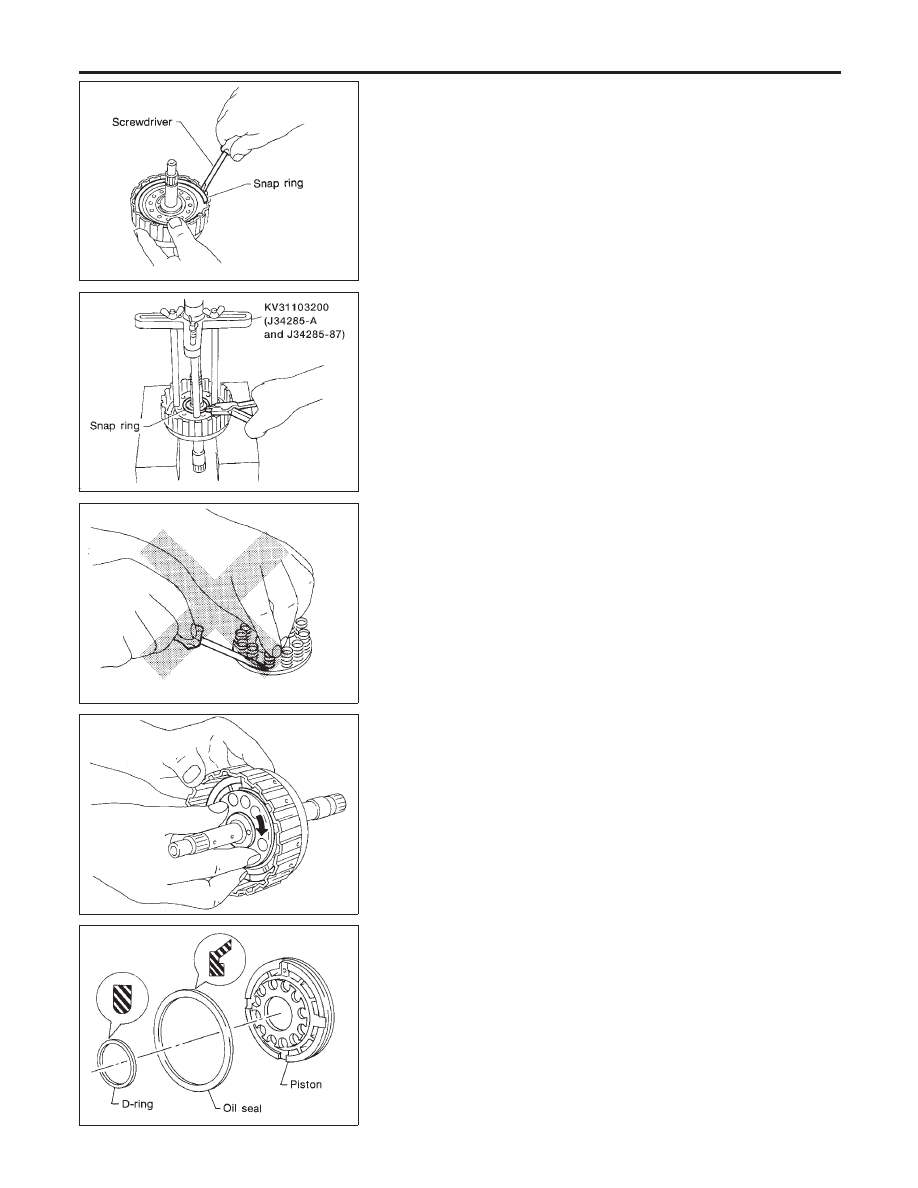

3.

Remove snap ring.

4.

Remove drive plates, driven plates and retaining plate.

AAT683

5.

Set Tool on spring retainer and remove snap ring from high
clutch drum while compressing return springs.

I

Set Tool directly above springs.

I

Do not expand snap ring excessively.

6.

Remove spring retainer and return springs.

SAT302E

I

Do not remove return spring from spring retainer.

SAT189D

7.

Remove piston from high clutch drum by turning it.

SAT139E

8.

Remove D-ring and oil seal from piston.

REPAIR FOR COMPONENT PARTS

High Clutch (Cont’d)

AT-332
