Infiniti G20 (P11). Manual - part 76





SAT272E

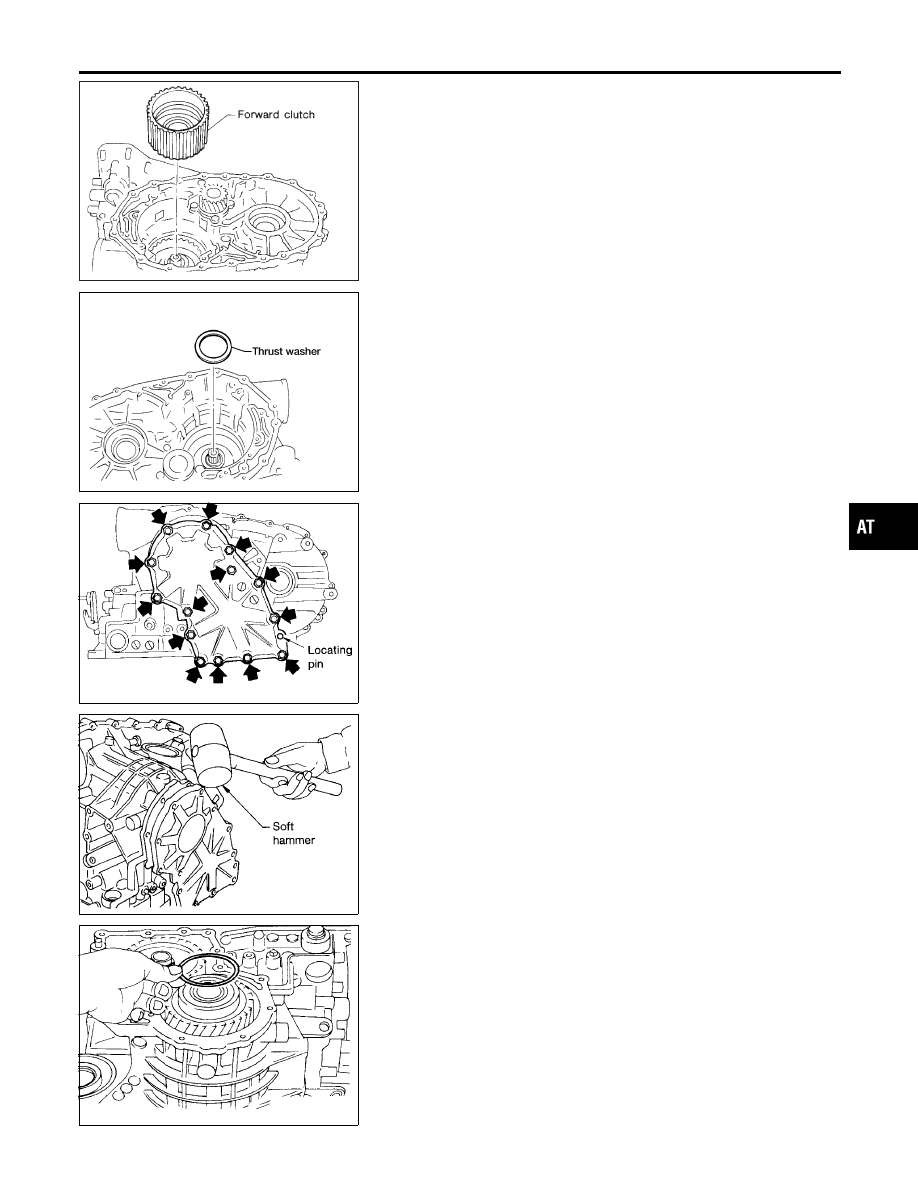

38. Remove forward clutch assembly from transmission case.

AAT215A

39. Remove thrust washer from transmission case.

SAT059D

40. Remove output shaft assembly according to the following pro-

cedures.

a.

Remove side cover bolts.

SAT434D

b.

Remove side cover by lightly tapping it with a soft hammer.

I

Be careful not to drop output shaft assembly. It might
come out when removing side cover.

SAT440D

c.

Remove adjusting shim.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DISASSEMBLY

AT-301

SAT439D

d.

Remove output shaft assembly.

SAT435D

I

If output shaft assembly came off with side cover, tap cover
with a soft hammer to separate.

SAT453D

e.

Remove needle bearing.

SAT060D

41. Disassemble reduction pinion gear according to the following

procedures.

a.

Set manual shaft to position “P” to fix idler gear.

b.

Unlock idler gear lock nut using a pin punch.

SAT061D

c.

Remove idler gear lock nut.

I

Do not reuse idler gear lock nut.

DISASSEMBLY

AT-302

AAT480

d.

Remove idler gear with puller.

SAT310G

e.

Remove reduction pinion gear.

f.

Remove adjusting shim from reduction pinion gear.

SAT064D

42. Remove return spring from parking shaft using a screwdriver.

SAT065D

43. Draw out parking shaft and remove parking pole from trans-

mission case.

44. Check parking pole and shaft for damage or wear.

SAT066D

45. Remove parking actuator support from transmission case.

I

Check parking actuator support for damage or wear.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DISASSEMBLY

AT-303

SAT311G

46. Remove revolution sensor from transmission case.

DISASSEMBLY

AT-304
