Infiniti G20 (P11). Manual - part 71





SAT935J

8.

Remove servo release and N-D accumulators by applying
compressed air if necessary.

I

Hold each piston with a rag.

SAT497H

INSTALLATION

NCAT0110S02

I

Tighten fixing bolts to specification.

: 7 - 9 N·m (0.7 - 0.9 kg-m, 61 - 78 in-lb)

I

Set manual shaft in Neutral position, then align manual
plate with groove in manual valve.

I

After installing control valve assembly to transmission
case, make sure that selector lever can be moved to all
positions.

AAT980

Control Cable Adjustment

NCAT0111

Move selector lever from the “P” position to the “1” position. You
should be able to feel the detents in each position. If the detents
cannot be felt or if the pointer indicating the position is improperly
aligned, the control cable needs adjustment.
1.

Place selector lever in “P” position.

2.

Loosen control cable lock nut and place manual shaft in “P”
position.

3.

Pull control cable, by specified force, in the direction of the
arrow shown in the illustration.

Specified force: 6.9 N (0.7 kg, 1.5 lb)

4.

Return control cable in the opposite direction of the arrow for
1.0 mm (0.039 in).

5.

Tighten control cable lock nut.

6.

Move selector lever from “P” to “1” position again. Make sure
that selector lever moves smoothly.

7.

Apply grease to contacting areas of selector lever and control
cable. Install any part removed.

SAT479J

Park/Neutral Position (PNP) Switch Adjustment

NCAT0112

1.

Remove control cable end from manual shaft.

2.

Set manual shaft in “N” position.

3.

Loosen PNP switch fixing bolts.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ON-VEHICLE SERVICE

Control Valve Assembly and Accumulators (Cont’d)

AT-281

SAT480J

4.

Use a 4 mm (0.157 in) pin for this adjustment.

a.

Insert the pin straight into the manual shaft adjustment hole.

b.

Rotate PNP switch until the pin can also be inserted straight
into hole in PNP switch.

5.

Tighten PNP switch fixing bolts.

6.

Remove pin from adjustment hole after adjusting PNP switch.

7.

Reinstall any part removed.

8.

Adjust control cable. Refer to “Control Cable Adjustment”.

9.

Check continuity of PNP switch. Refer to AT-112.

SAT905D

Differential Side Oil Seal Replacement

NCAT0113

1.

Remove drive shaft assemblies. Refer to AX-10, “Drive Shaft”.

2.

Remove oil seals.

AAT976

3.

Install oil seals.

I

Apply ATF to oil seal surface before installing.

SAT489JD

I

Install oil seals so that dimensions “A” and “B” are within
specifications.

Unit: mm (in)

A

B

5.5 - 6.5 (0.217 - 0.256)

−0.5 to 0.5 (−0.020 to 0.020)

4.

Reinstall any part removed.

SAT303G

Revolution Sensor Replacement

NCAT0114

1.

Disconnect revolution sensor harness connector.

2.

Remove harness bracket from A/T.

3.

Remove revolution sensor from A/T.

4.

Reinstall any part removed.

Always use new sealing parts.

ON-VEHICLE SERVICE

Park/Neutral Position (PNP) Switch Adjustment (Cont’d)

AT-282

SAT501HA

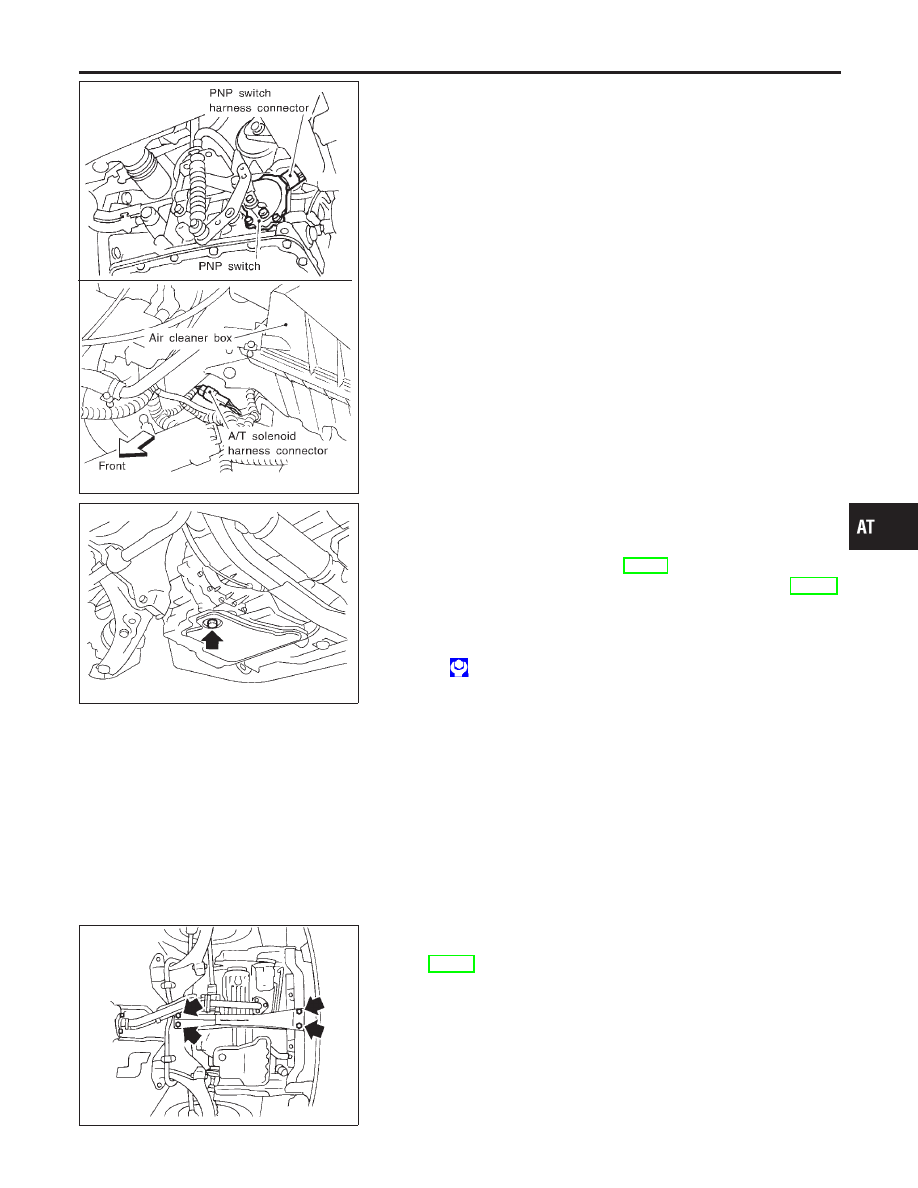

Removal

NCAT0115

CAUTION:

Before separating transaxle from engine, remove the crank-
shaft position sensor (OBD) from transaxle. Be careful not to
damage sensor.
1.

Remove battery and bracket.

2.

Remove air duct between throttle body and air cleaner.

3.

Disconnect A/T solenoid harness connector, PNP switch har-
ness connector and revolution sensor harness connector.

4.

Remove crankshaft position sensor (OBD) from transaxle.

SAT304G

5.

Drain ATF from transaxle.

6.

Disconnect control cable from transaxle.

7.

Disconnect oil cooler hoses.

8.

Remove drive shafts. Refer to AX-10, “Drive Shaft”.

9.

Remove the intake manifold support bracket. Refer to EM-10,
“OUTER COMPONENT PARTS”.

10. Remove starter motor from transaxle.

Tighten bolts to specified torque.

: 41 - 52 N·m (4.2 - 5.3 kg-m, 30 - 38 ft-lb)

11. Remove upper bolts fixing transaxle to engine.
12. Support transaxle with a jack.

AAT469

13. Remove center member.

I

Tighten center member fixing bolts to specified torque, Refer
to EM-52, “REMOVAL AND INSTALLATION”.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REMOVAL AND INSTALLATION

Removal

AT-283

AAT259A

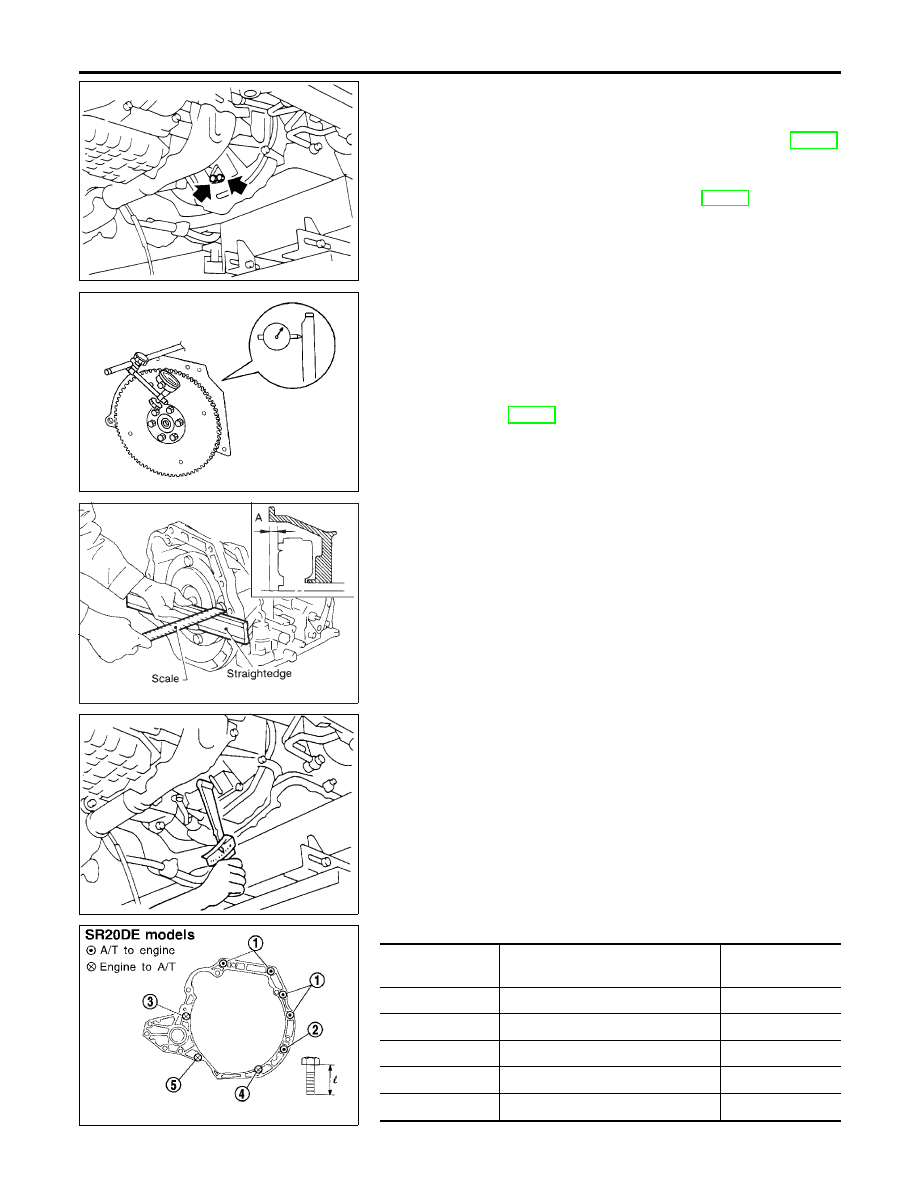

14. Remove rear plate cover.
15. Remove torque converter bolts.

Rotate crankshaft to gain access to securing bolts.

16. Remove rear transaxle to engine bracket. Refer to EM-52,

“REMOVAL AND INSTALLATION”.

17. Support engine with a jack.
18. Remove rear transaxle mount. Refer to EM-52, “REMOVAL

AND INSTALLATION”.

19. Remove lower bolts fixing transaxle to engine.
20. Lower transaxle while supporting it with a jack.

SAT977H

Installation

NCAT0116

1.

Check drive plate runout.

CAUTION:

Do not allow any magnetic materials to contact the ring gear
teeth.

Maximum allowable runout:

Refer to EM-64, “FLYWHEEL/DRIVE PLATE RUNOUT”.

I

If this runout is out of allowance, replace drive plate with ring
gear.

SAT573D

2.

When connecting torque converter to transaxle, measure dis-
tance “A” to be certain that they are correctly assembled.

Distance “A”:

15.9 mm (0.626 in) or more

AAT266A

3.

Install torque converter to drive plate.

I

With converter installed, rotate crankshaft several turns to
check that transaxle rotates freely without binding.

SAT558DB

4.

Tighten belts fixing transaxle.

Bolt No.

Tightening torque

N·m (kg-m, ft-lb)

Bolt length “



mm (in)

1

70 - 79 (7.1 - 8.1, 51 - 59)

55 (2.17)

2

70 - 79 (7.1 - 8.1, 51 - 59)

50 (1.97)

3

70 - 79 (7.1 - 8.1, 51 - 59)

65 (2.56)

4

16 - 21 (1.6 - 2.1, 12 - 15)

35 (1.38)

5

16 - 21 (1.6 - 2.1, 12 - 15)

47 (1.85)

REMOVAL AND INSTALLATION

Removal (Cont’d)

AT-284
