Infiniti G20 (P11). Manual - part 59





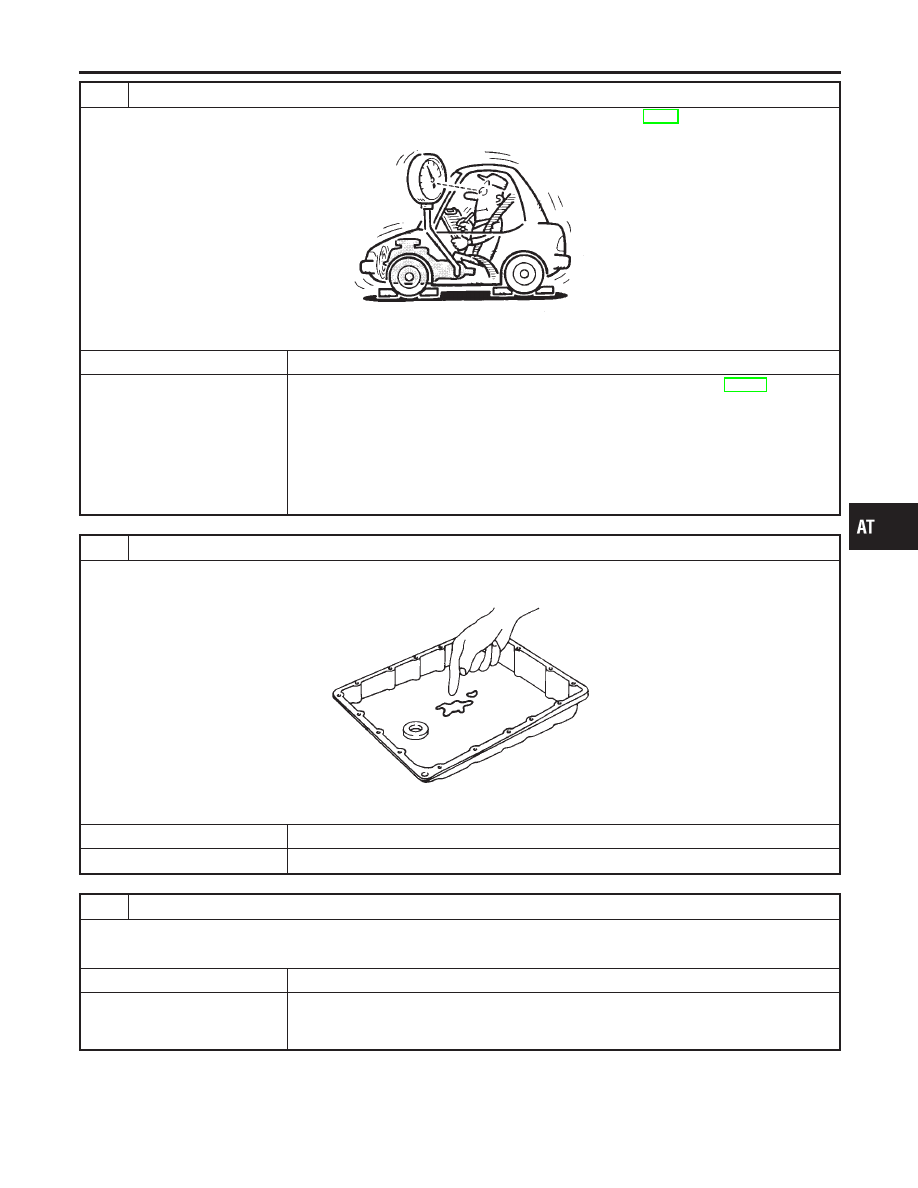

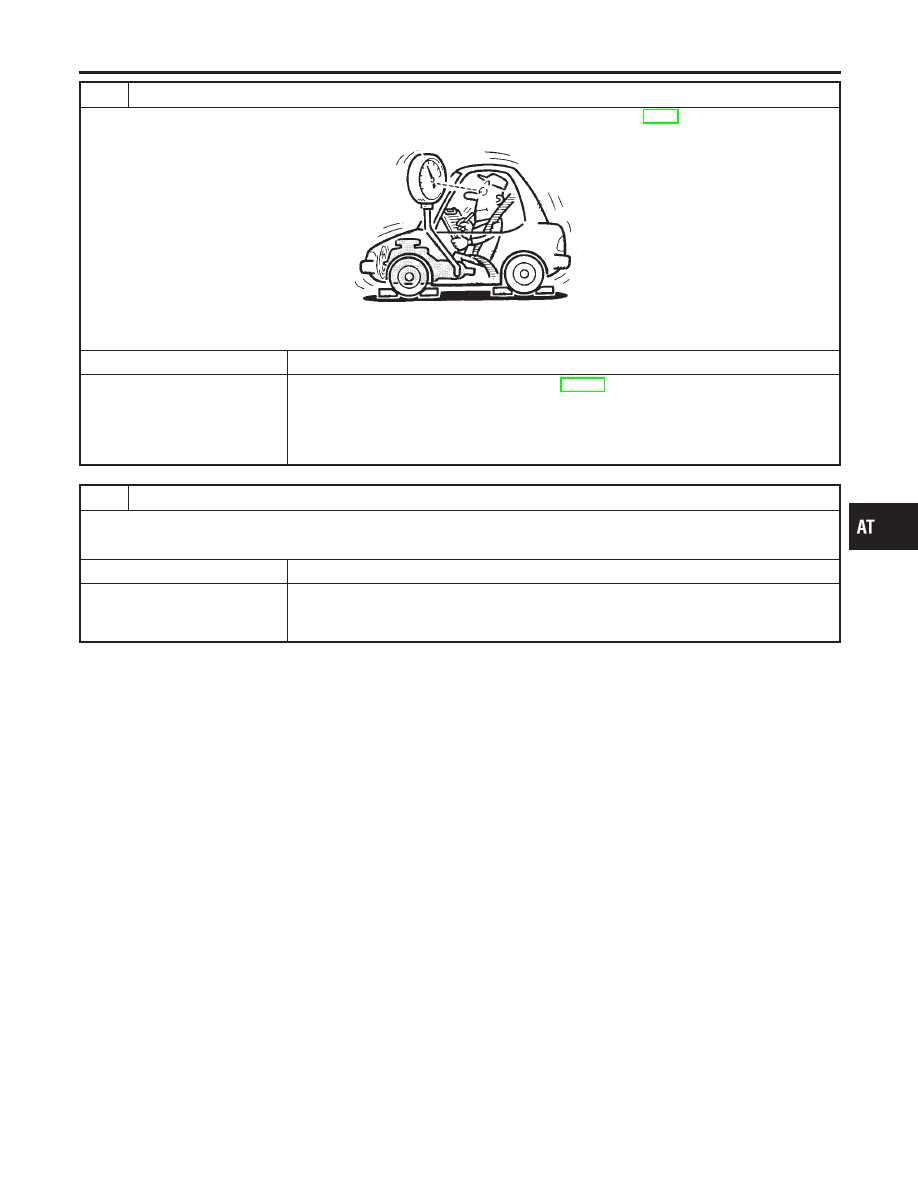

3

CHECK LINE PRESSURE

Check line pressure at idle with selector lever in “D” position. Refer to “Line Pressure Test”, AT-66.

SAT494G

OK or NG

OK

©

GO TO 4.

NG

©

1. Remove control valve assembly. Refer to AT-280.
2. Check the following items:

I

Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot
valve and pilot filter)

I

Line pressure solenoid valve

4

CHECK SYMPTOM

Check again.

OK or NG

OK

©

INSPECTION END

NG

©

1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-

nector.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSES FOR SYMPTOMS

5. Large Shock. “N”

“R” Position (Cont’d)

AT-233

6. Vehicle Does Not Creep Backward In “R”
Position

=NCAT0086

SYMPTOM:
Vehicle does not creep backward when selecting “R” position.

1

CHECK A/T FLUID LEVEL

Check A/T fluid level again.

SAT638A

OK or NG

OK

©

GO TO 2.

NG

©

Refill ATF.

2

CHECK STALL TEST

Check stall revolution with selector lever in “1” and “R” positions.

SAT493G

OK or NG

OK

©

GO TO 3.

OK in “1” position, NG in
“R” position

©

1. Remove control valve assembly. Refer to “ON-VEHICLE SERVICE”, AT-280.
2. Check the following items:

I

Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot
valve and pilot filter)

I

Line pressure solenoid valve

3. Disassemble A/T.
4. Check the following items:

I

Oil pump assembly

I

Torque converter

I

Reverse clutch assembly

I

High clutch assembly

NG in both “1” and “R”
positions

©

GO TO 6.

TROUBLE DIAGNOSES FOR SYMPTOMS

6. Vehicle Does Not Creep Backward In “R” Position

AT-234

3

CHECK LINE PRESSURE

Check line pressure at idle with selector lever in “R” position. Refer to “Line Pressure Test”, AT-66.

SAT494G

OK or NG

OK

©

GO TO 4.

NG

©

1. Remove control valve assembly. Refer to “ON-VEHICLE SERVICE”, AT-280.
2. Check the following items:

I

Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot
valve and pilot filter)

I

Line pressure solenoid valve

3. Disassemble A/T.
4. Check the following item:

I

Oil pump assembly

4

CHECK A/T FLUID CONDITION

1. Remove oil pan.
2. Check A/T fluid condition.

SAT171B

OK or NG

OK

©

GO TO 5.

NG

©

GO TO 6.

5

CHECK SYMPTOM

Check again.

OK or NG

OK

©

INSPECTION END

NG

©

1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-

nector.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSES FOR SYMPTOMS

6. Vehicle Does Not Creep Backward In “R” Position (Cont’d)

AT-235

6

DETECT MALFUNCTIONING ITEM

1. Remove control valve assembly. Refer to “ON-VEHICLE SERVICE”, AT-280.
2. Check the following items:

I

Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot valve and pilot filter)

I

Line pressure solenoid valve

3. Disassemble A/T.
4. Check the following items:

I

Oil pump assembly

I

Torque converter

I

Reverse clutch assembly

I

High clutch assembly

I

Low & reverse brake assembly

I

Low one-way clutch

OK or NG

OK

©

GO TO 5.

NG

©

Repair or replace damaged parts.

TROUBLE DIAGNOSES FOR SYMPTOMS

6. Vehicle Does Not Creep Backward In “R” Position (Cont’d)

AT-236
