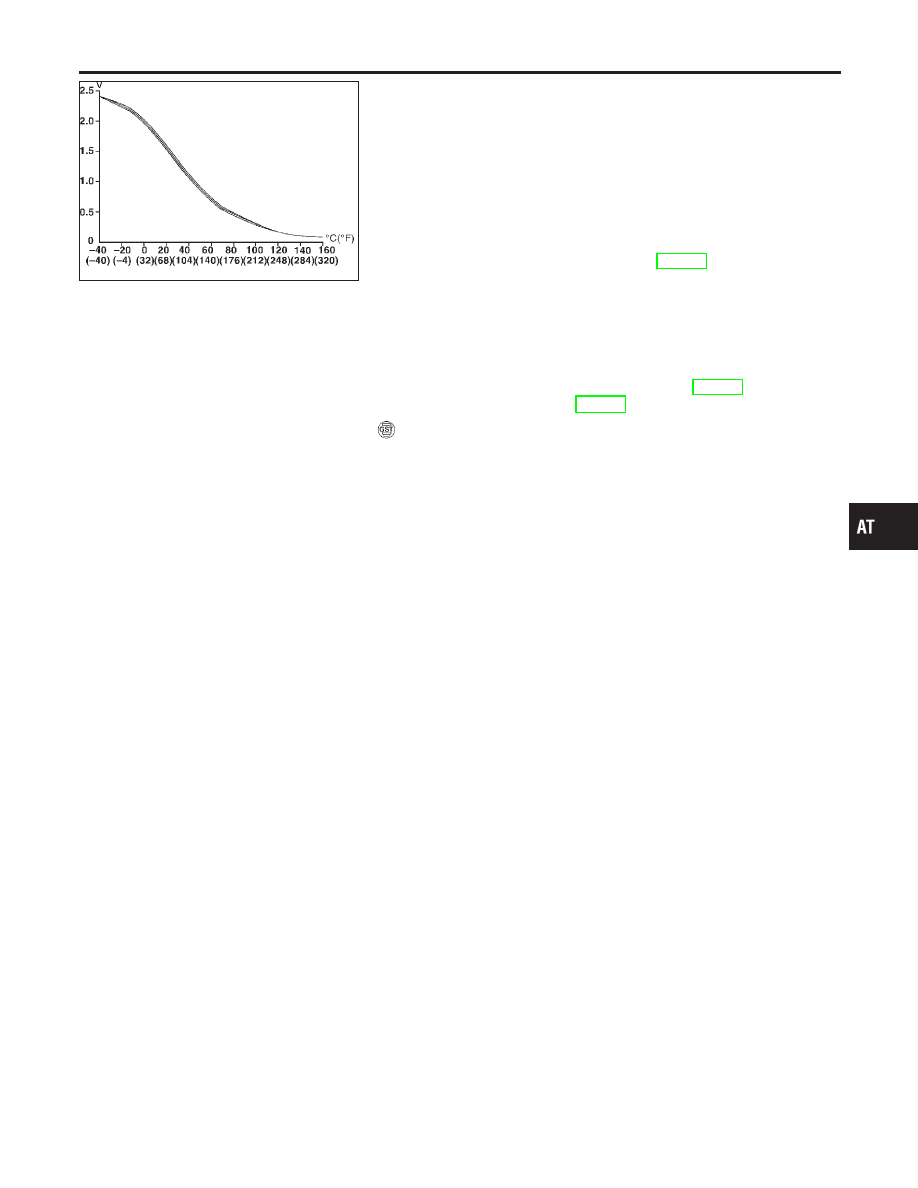

SAT021J

4)

Accelerate vehicle to more than 80 km/h (50 MPH) and main-
tain the following condition continuously until “TESTING” has
turned to “COMPLETE”. (It will take approximately 30 seconds
after “TESTING” shows.)
THROTTLE POSI: 1.0/8 - 2.0/8 (at all times during step 4)
Selector lever: D position (OD “ON”)
TCC S/V DUTY: More than 94%
VHCL/S SE·A/T: Constant speed of more than 80 km/h (50
MPH)

I

Check that “GEAR” shows “4”.

I

For shift schedule, refer to SDS, AT-389.

I

If “TESTING” does not appear on CONSULT-II for a long
time, select “SELF-DIAGNOSIS”. In case a 1st trip DTC
other than P0744 is shown, refer to applicable “TROUBLE
DIAGNOSIS FOR DTC”.

5)

Make sure that “OK” is displayed. (If “NG” is displayed, refer
to “DIAGNOSTIC PROCEDURE”.)
Refer to “DIAGNOSTIC PROCEDURE”, AT-167.
Refer to shift schedule, AT-389.

With GST

Follow the procedure “With CONSULT-II”.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)

Description (Cont’d)

AT-165

Wiring Diagram — AT — TCCSIG

NCAT0208

TAT232

DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)

Wiring Diagram — AT — TCCSIG

AT-166

Diagnostic Procedure

NCAT0059

1

CHECK SHIFT UP (D

3

TO D

4

)

During “Cruise test − Part 1” (AT-76), does A/T shift from D

3

to D

4

at the specified speed?

SAT988H

Yes or No

Yes

©

GO TO 10.

No

©

GO TO 2.

2

CHECK LINE PRESSURE

Perform line pressure test.
Refer to AT-66.

MTBL0388

OK or NG

OK

©

GO TO 3.

NG

©

GO TO 6.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)

Diagnostic Procedure

AT-167

3

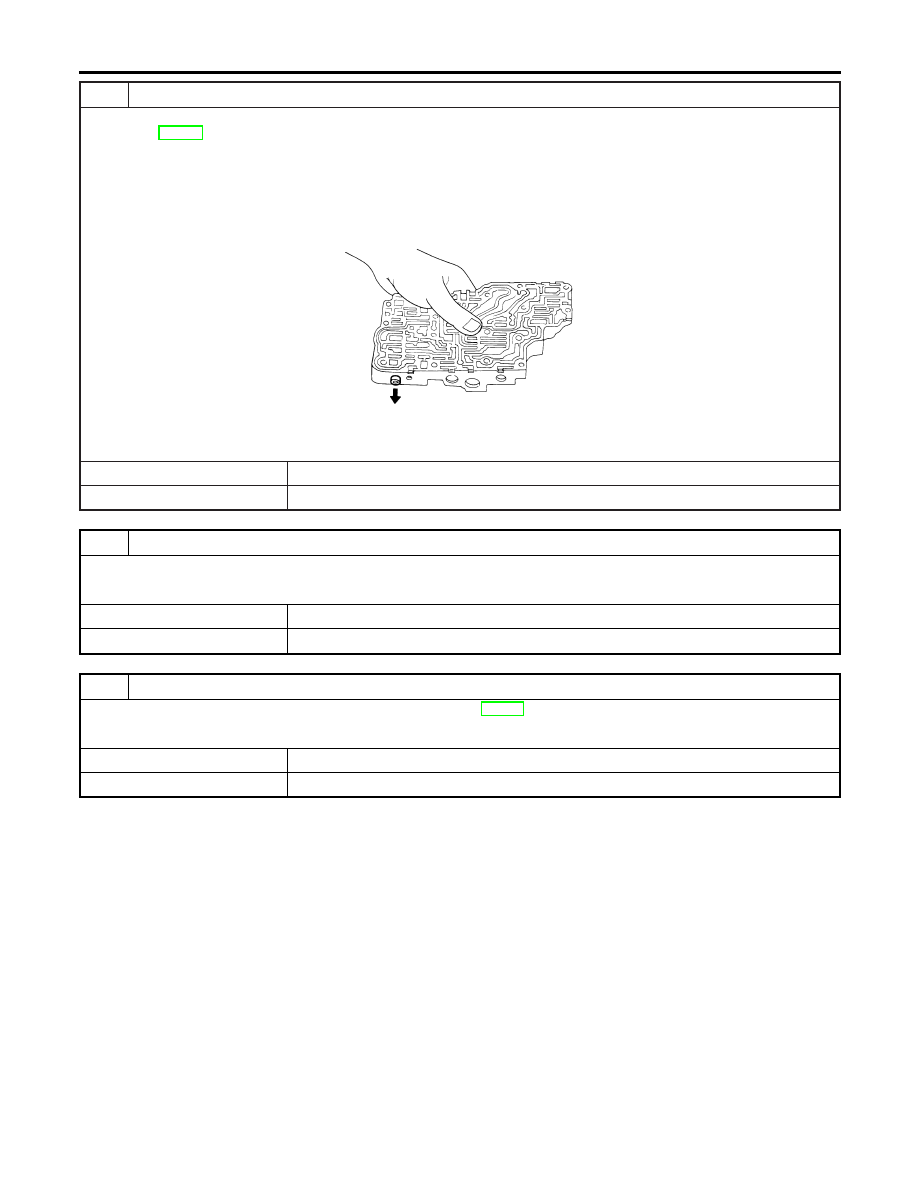

CHECK CONTROL VALVE

1. Disassemble control valve assembly.

Refer to AT-312.

2. Check to ensure that:

I

Valve, sleeve and plug slide along valve bore under their own weight.

I

Valve, sleeve and plug are free from burrs, dents and scratches.

I

Control valve springs are free from damage, deformation and fatigue.

I

Hydraulic line is free from obstacles.

SAT367H

OK or NG

OK

©

GO TO 4.

NG

©

Repair control valve.

4

CHECK SHIFT UP (D

3

TO D

4

)

Does A/T shift from D

3

to D

4

at the specified speed?

Yes or No

Yes

©

GO TO 5.

No

©

Check control valve again. Repair or replace control valve assembly.

5

CHECK DTC

Perform Diagnostic Trouble Code (DTC) confirmation procedure, AT-164.

OK or NG

OK

©

INSPECTION END

NG

©

GO TO 10.. CHECK LOCK-UP CONDITION.

DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)

Diagnostic Procedure (Cont’d)

AT-168
