Infiniti G20 (P11). Manual - part 40





SAT283HB

Description

NCAT0055

The torque converter clutch solenoid valve is activated, with the
gear in “D

4

”, by the TCM in response to signals sent from the

vehicle speed and throttle position sensors. Lock-up piston opera-
tion will then be controlled.
Lock-up operation, however, is prohibited when A/T fluid tempera-
ture is too low.
When the accelerator pedal is depressed (less than 2/8) in lock-up
condition, the engine speed should not change abruptly. If there is
a big jump in engine speed, there is no lock-up.

CONSULT-II REFERENCE VALUE IN DATA MONITOR
MODE

NCAT0055S01

Remarks: Specification data are reference values.

Monitor item

Condition

Specification

Torque converter clutch solenoid valve
duty

Lock-up “OFF”

"

Lock-up “ON”

Approximately 4%

"

Approximately 94%

TCM TERMINALS AND REFERENCE VALUE

NCAT0055S02

Remarks: Specification data are reference values.

Terminal

No.

Wire color

Item

Condition

Judgement

standard

(Approx.)

3

GY/R

Torque converter
clutch solenoid
valve

When A/T performs lock-up.

8 - 15V

When A/T does not perform lock-
up.

0V

ON BOARD DIAGNOSIS LOGIC

NCAT0055S03

Diagnostic trouble code

Malfunction is detected when ...

Check items (Possible cause)

: TCC SOLENOID/CIRC

TCM detects an improper voltage drop
when it tries to operate the solenoid
valve.

I

Harness or connectors
(The solenoid circuit is open or shorted.)

I

T/C clutch solenoid valve

: P0740

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE

Description

AT-157

SAT014K

SEF949Y

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE

NCAT0055S04

NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DURE” has been previously conducted, always turn ignition
switch “OFF” and wait at least 5 seconds before conducting
the next test.
After the repair, perform the following procedure to confirm the
malfunction is eliminated.

With CONSULT-II

1)

Turn ignition switch “ON”.

2)

Select “DATA MONITOR” mode for “ENGINE” with CON-
SULT-II and wait at least 1 second.

With GST

Follow the procedure “With CONSULT-II”.

DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE

Description (Cont’d)

AT-158

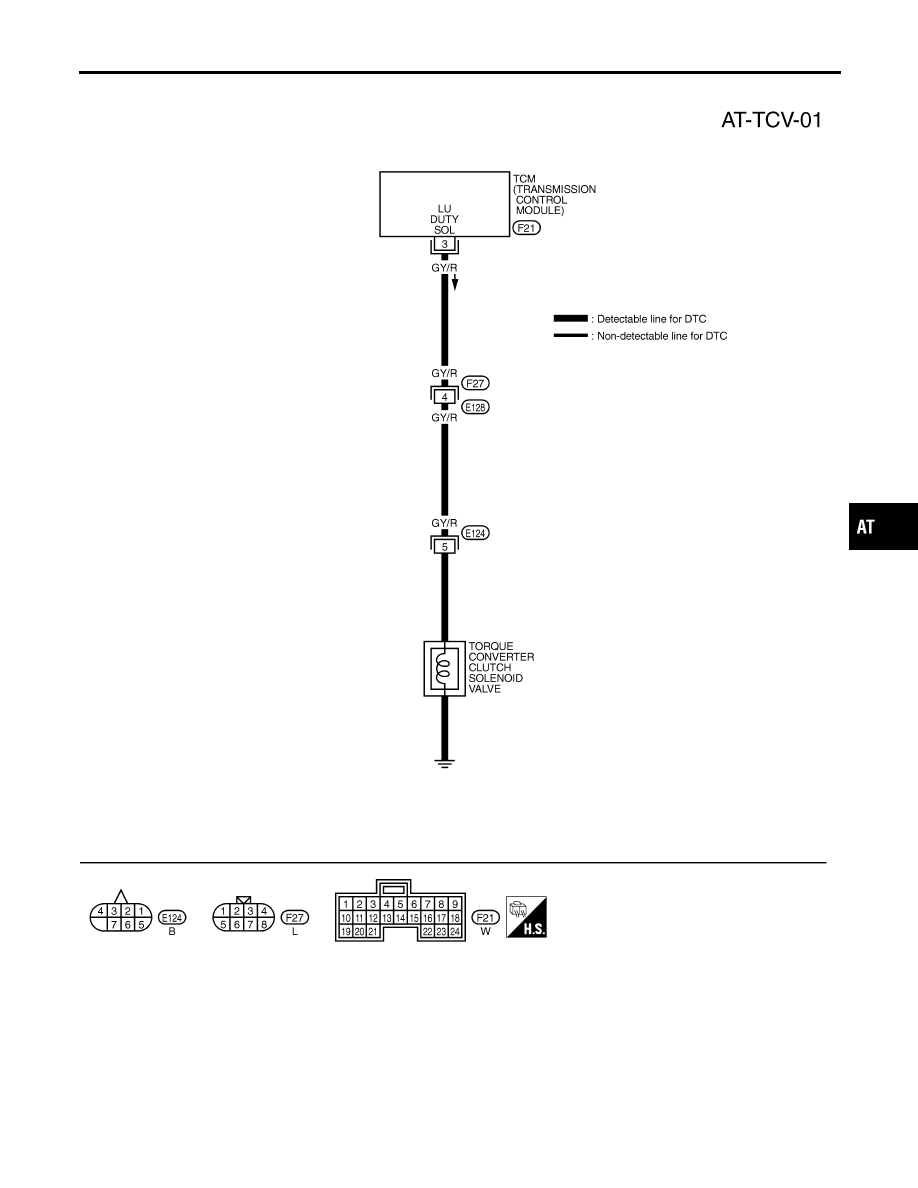

Wiring Diagram — AT — TCV

NCAT0207

TAT231

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE

Wiring Diagram — AT — TCV

AT-159

Diagnostic Procedure

NCAT0056

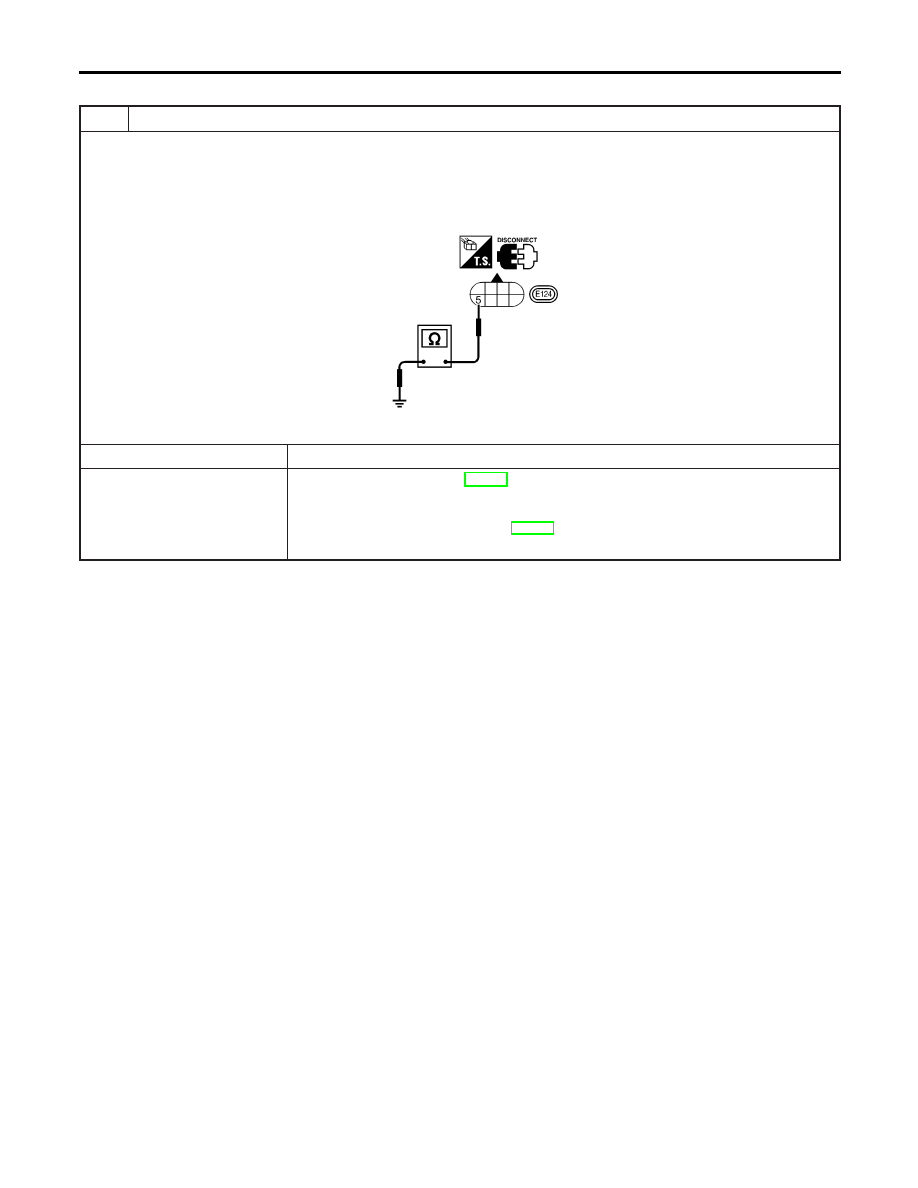

1

CHECK VALVE RESISTANCE

1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 5 and ground.

Resistance:

10 - 20

SAT889J

OK or NG

OK

©

GO TO 2.

NG

©

1. Remove oil pan. Refer to AT-280.
2. Check the following items:

I

Torque converter clutch solenoid valve
Refer to “Component Inspection”, AT-162.

I

Harness of terminal cord assembly for short or open

DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE

Diagnostic Procedure

AT-160
