BODY REPAIR

13



STONE GUARD COAT

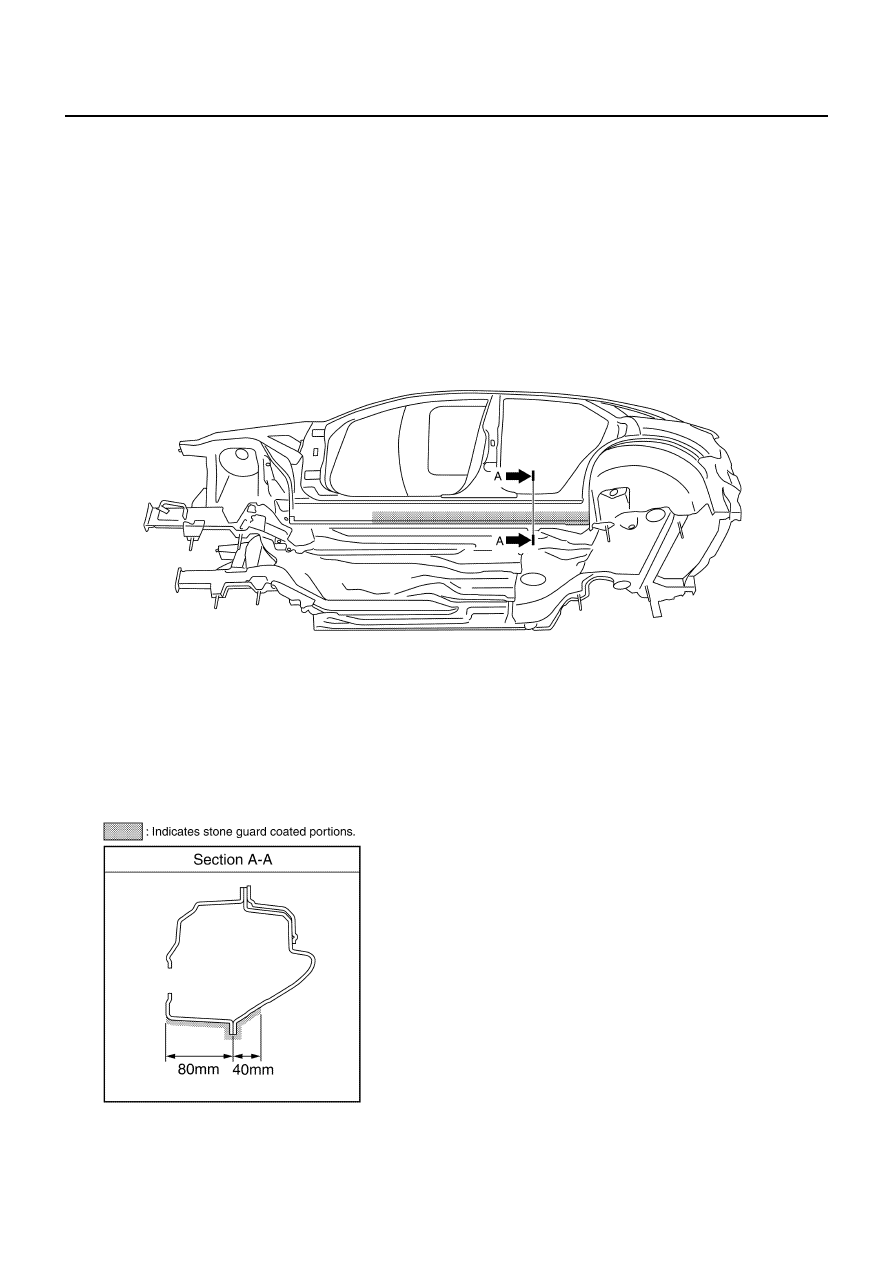

To prevent damage caused by stones, the lower outer body panel (fender, door, etc.) have an additional layer
of Stone Guard Coating over the ED primer coating. When replacing or repairing these panels, apply Stone
Guard coating to the same portions as before. Use a coating which is rust preventive, durable, shock-resistant
and has a long shelf life.

SIIA2253E

14

BODY REPAIR



Body Sealing

BIS002GE

DESCRIPTION

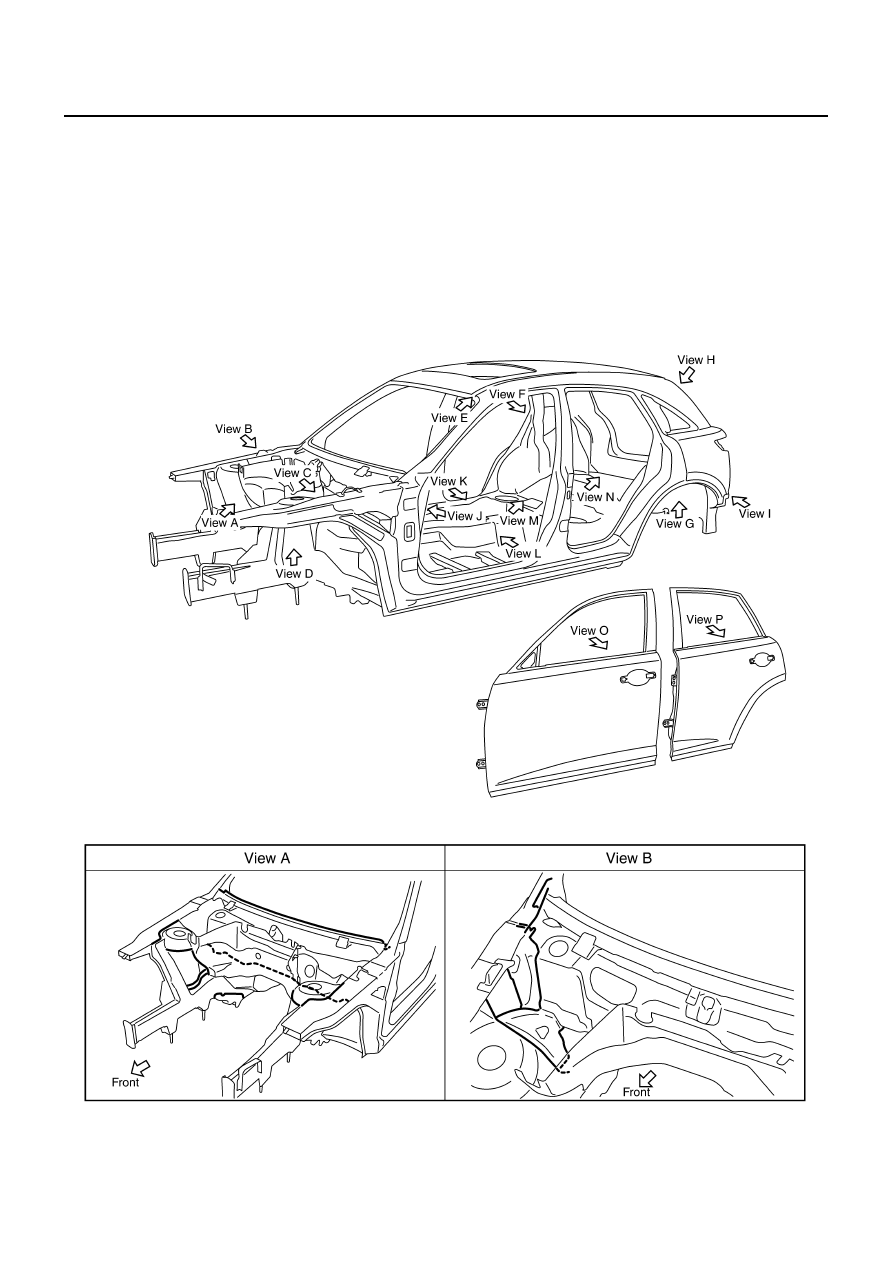

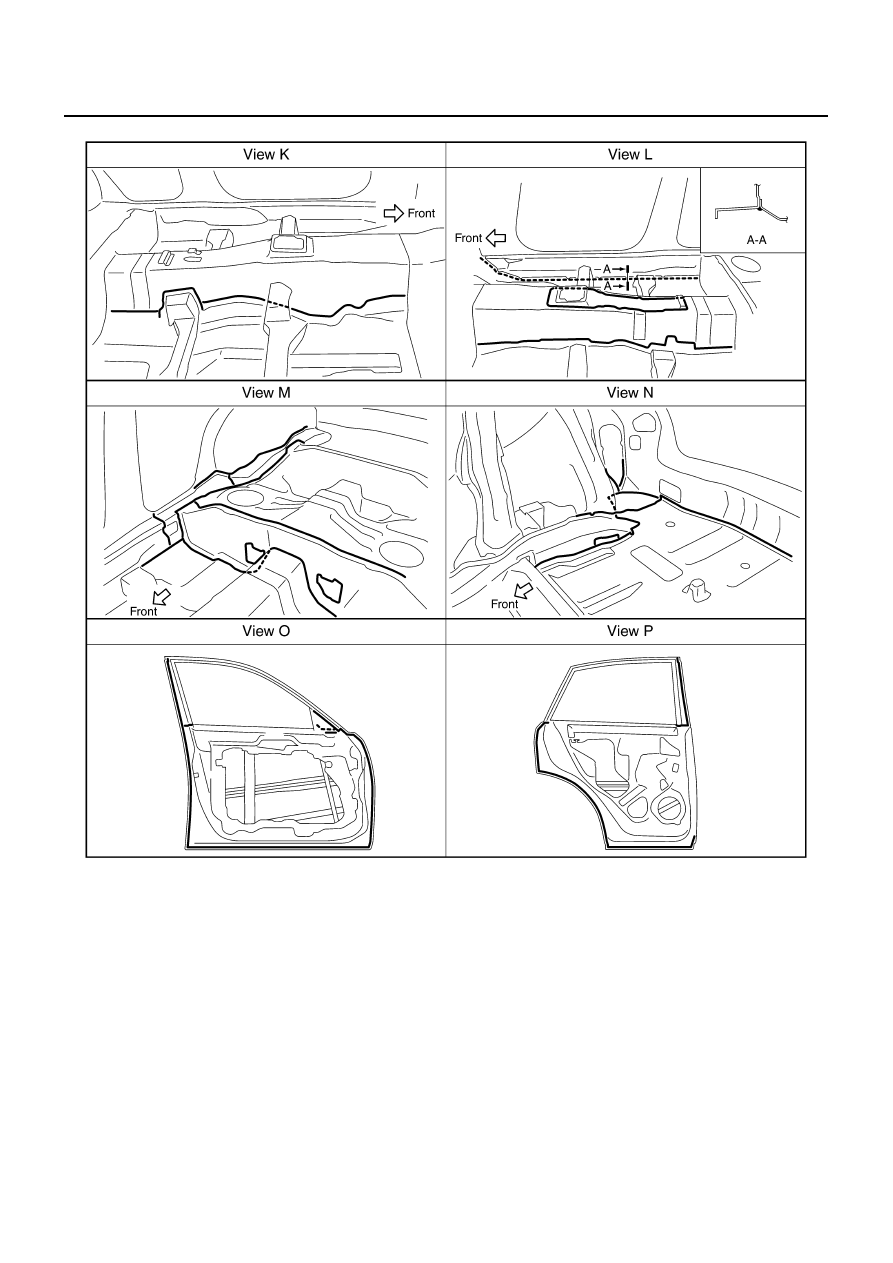

The following figure shows the areas which are sealed at the factory. Sealant which has been applied to these
areas should be smooth and free from cuts or gaps. Care should be taken not to apply an excess amount of
sealant and not to allow other unaffected parts to come into contact with the sealant.

SIIA2254E

BODY REPAIR

15



SIIA2255E

16

BODY REPAIR



SIIA2256E
