POWER SOCKET

1.

Remove A/T console finisher. Refer to

IP-10, "Component Parts

Location"

.

2.

Remove instrument clock finisher. Refer to

IP-10, "Component

Parts Location"

.

3.

Disconnect power socket connector.

4.

Remove inner socket from the ring while pressing the hook on
the ring out from square hole.

5.

Remove ring from ashtray while pressing pawls.

INSTALLATION

Installation is the reverse order of removal.

Removal and Installation of Front Power Socket - 2

INFOID:0000000001328602

REMOVAL

1.

Remove inner socket from the ring. While pressing the hook on
the ring out from square hole.

2.

Remove ring from power socket finisher while pressing pawls.

3.

Disconnect power socket connector.

INSTALLATION

Installation is the reverse order of removal.

Removal and Installation of Rear Power Socket

INFOID:0000000001328603

REMOVAL

1.

Remove console rear finisher. Refer to

IP-16, "Disassembly and

Assembly"

.

2.

Disconnect power socket connector.

3.

Remove inner socket from the ring. While pressing the hook on
the ring out from square hole.

4.

Remove ring from power socket finisher while pressing pawls.

INSTALLATION

Installation is the reverse order of removal.

Removal and Installation of Luggage Room Power Socket

INFOID:0000000001328604

REMOVAL

PKIC9710E

SKIA5096E

SKIA5094E

POWER SOCKET

WW-47

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

WW

N

O

P

1.

Remove inner socket from the ring. While pressing the hook on
the ring out from square hole.

2.

Remove ring from power socket finisher while pressing pawls.

3.

Disconnect power socket connector.

INSTALLATION

Installation is the reverse order of removal.

SKIA5097E

WW-48

< SERVICE INFORMATION >

HORN

HORN

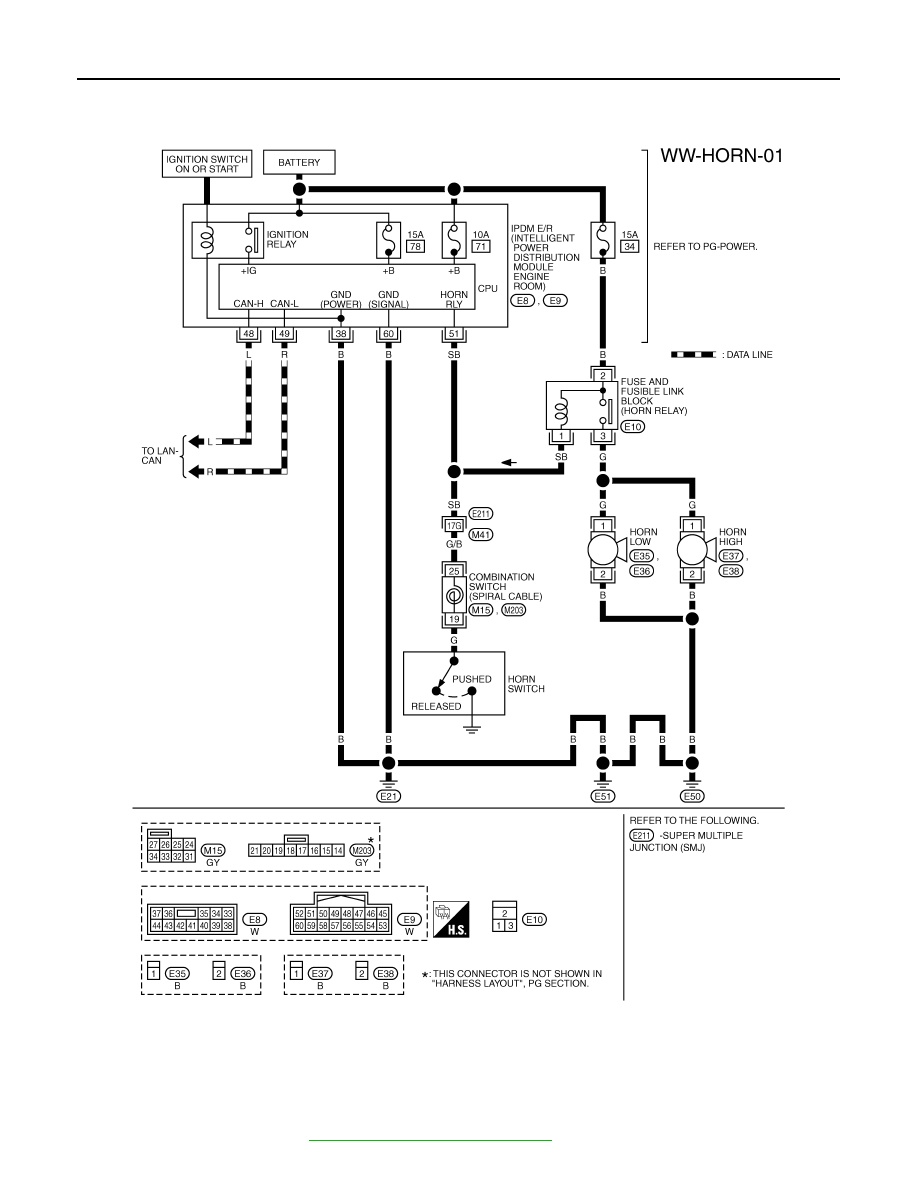

Wiring Diagram - HORN -

INFOID:0000000001328605

Removal and Installation

INFOID:0000000001328606

REMOVAL

1.

Remove front grille. Refer to

EI-22, "Component Parts Location"

.

TKWM4378E

HORN

WW-49

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

WW

N

O

P

2.

Disconnect all horn connectors.

3.

Remove horn mounting bolt and remove horn from vehicle.

INSTALLATION

Installation is the reverse order of removal.
• Tighten horn bolt to specified torque.

SKIA5093E

Horn mounting bolt

: 5.8 N·m (0.59 kg-m, 51 in-lb)
