TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS

WT-29

< SERVICE INFORMATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

YES

>> GO TO 3.

NO

>> Go to the inspection 1. Refer to

WT-28, "Transmitter or Control Unit (BCM)"

.

3.

VEHICLE DRIVING

• Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for 10

minutes. Then check all tire pressures with CONSULT-III “DATA MONITOR ITEM” within 5 minutes.

Does “DATA MONITOR ITEM” displayed tire pressure as normal without any warning lamp?

YES

>> INSPECTION END.

NO

>> Replace malfunctioning transmitter, and perform “Step 3” again.

Transmitter - 2

INFOID:0000000001327591

MALFUNCTION CODE NO. 35, 36, 37 OR 38

1.

CHECK ALL TIRE PRESSURES

• Check all tire pressures. Refer to

WT-35, "Tire"

.

Are there any tires whose pressure is “64 psi” or more?

YES

>> Adjust tire pressure to specified value.

NO

>> GO TO 2.

2.

VEHICLE DRIVING

1.

Perform ID registration of all transmitters.

2.

Drive at a speed of 40 km/h (25 MPH) or more for several minutes without stopping.
Check all tire pressures with CONSULT-III “DATA MONITOR ITEM” within 15 minutes after vehicle speed
become 17 km/h (11 MPH).

>> Replace transmitter with new one if “DATA MONITOR ITEM” displayed 64 psi or more. Then GO

TO 3.

3.

ID REGISTRATION AND VEHICLE DRIVING

1.

Perform ID registration of all transmitters.

2.

Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for
10 minutes. Then check all tire pressures with CONSULT-III “DATA MONITOR ITEM” within 5 minutes.

Does “DATA MONITOR ITEM” display tire pressure as normal without any warning lamp?

YES

>> INSPECTION END

NO

>> Go to the inspection applicable to DTC.

Vehicle Speed Signal

INFOID:0000000001327592

MALFUNCTION CODE NO. 52

1.

CHECK SELF-DIAGNOSIS RESULTS

1.

Select “SELF-DIAG RESULTS” on “SELECT DIAG MODE” screen.

2.

Check display contents in self-diagnostic results.

Is “CAN COMM CIRCUIT” displayed in the self-diagnosis display items?

YES

>> Malfunction in CAN communication system. Go to

LAN-43, "CAN System Specification Chart"

.

NO

>> No malfunction. Check combination meter refer to

DI-5, "System Description"

.

WT-30

< SERVICE INFORMATION >

TROUBLE DIAGNOSIS FOR SYMPTOMS

TROUBLE DIAGNOSIS FOR SYMPTOMS

Low Tire Pressure Warning Lamp Does Not Come On When Ignition Switch Is Turned
On

INFOID:0000000001327593

DIAGNOSTIC PROCEDURE

1.

CHECK SELF-DIAGNOSIS RESULTS

1.

Select “SELF-DIAG RESULTS” on “SELECT DIAG MODE” screen.

2.

Check display contents in self-diagnostic results.

Is “CAN COMM CIRCUIT” displayed in the self-diagnosis display items?

YES

>> Malfunction in CAN communication system. Go to

LAN-43, "CAN System Specification Chart"

.

NO

>> No malfunction. GO TO 2.

2.

CHECK COMBINATION METER

• Check combination meter function.

OK or NG

OK

>> GO TO 3.

NG

>> Check combination meter. Refer to

DI-5, "System Description"

.

3.

CHECK LOW TIRE PRESSURE WARNING LAMP

• Disconnect BCM harness connectors M3 and M4.

Does the warning lamp activate?

YES

>> Replace BCM. Refer to

BCS-13, "Removal and Installation of BCM"

.

NO

>> Check combination meter and repair or replace.

Low Tire Pressure Warning Lamp Stays On When Ignition Switch Is Turned On

INFOID:0000000001327594

DIAGNOSTIC PROCEDURE

1.

CHECK CONNECTOR

1.

Disconnect BCM harness connectors M3 and M4.

2.

Check terminals for damage or loose connections.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace damaged parts.

2.

CHECK POWER SUPPLY CIRCUIT (BATTERY)

Make sure voltage between BCM harness connector M4 and
ground.

OK or NG

OK

>> GO TO 3.

NG

>> Check BCM power supply circuit for open or short.

3.

CHECK POWER SUPPLY CIRCUIT (IGN)

1.

Turn ignition switch ON.

Terminal

Voltage

(+)

(–)

42, 55

Ground

12V

SEIA0435E

TROUBLE DIAGNOSIS FOR SYMPTOMS

WT-31

< SERVICE INFORMATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

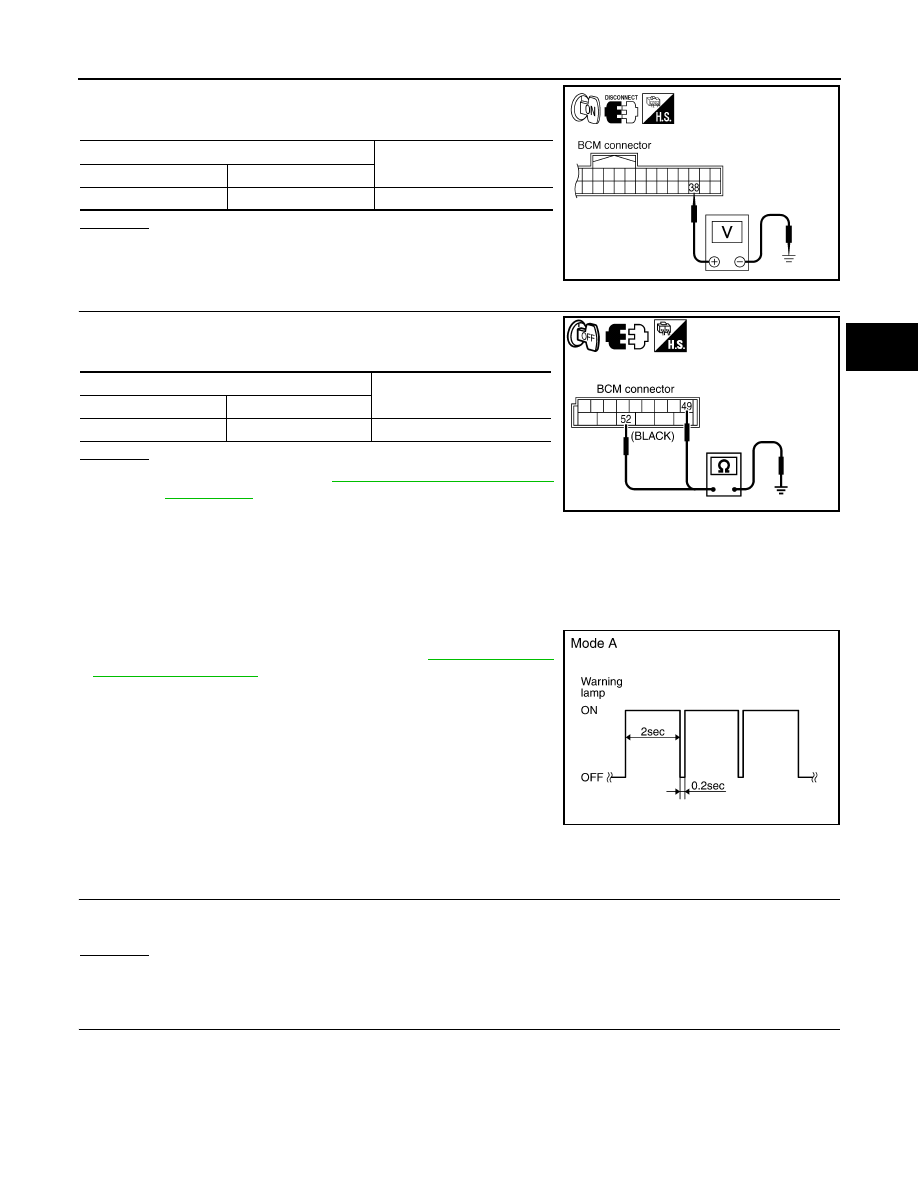

2.

Make sure voltage between BCM harness connector M3 and
ground.

OK or NG

OK

>> GO TO 4.

NG

>> Check BCM power supply circuit for open or short.

4.

CHECK GROUND CIRCUIT

• Check continuity between BCM harness connector M4 and

ground.

OK or NG

OK

>> Replace BCM. Refer to

BCS-13, "Removal and Installa-

tion of BCM"

.

NG

>> Repair or replace BCM ground circuit.

Low Tire Pressure Warning Lamp Blinks When Ignition Switch Is Turned On

INFOID:0000000001327595

NOTE:
If warning lamp blink below, the system is normal.

Blink Mode A

• This mode shows transmitter status is OFF-mode.

Perform transmitter wake up operation. Refer to

WT-20, "Transmit-

ter Wake Up Operation"

.

DIAGNOSTIC PROCEDURE

1.

CHECK CONNECTOR

1.

Disconnect BCM harness connector M3.

2.

Check terminals for damage or loose connections.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace damaged parts.

2.

CHECK TIRE PRESSURE WARNING CHECK SWITCH CIRCUIT

Terminal

Voltage

(+)

(–)

38

Ground

12V

SEIA0436E

Terminal

Continuity

(+)

(–)

49, 52

Ground

Yes

SEIA0610E

SEIA0347E

WT-32

< SERVICE INFORMATION >

TROUBLE DIAGNOSIS FOR SYMPTOMS

• Check continuity between BCM harness connector M3 and

ground.

OK or NG

OK

>> Replace BCM. Refer to

BCS-13, "Removal and Installa-

tion of BCM"

.

NG

>> Repair or replace harness connector.

Run-Flat Tire Warning Lamp Stays On When Ignition Switch Is Turned On

INFOID:0000000001327596

DIAGNOSTIC PROCEDURE

1.

CHECK ALL TIRE PRESSURES

• Check all tire pressures. Refer to

WT-35, "Tire"

.

OK or NG

OK

>> Check combination meter. Refer to

DI-5

.

NG

>> Adjust tire pressure to specified value or change the tires.

Turn Signal Lamp Blinks When Ignition Switch Is Turned On

INFOID:0000000001327597

DIAGNOSTIC PROCEDURE

1.

CHECK TIRE PRESSURE WARNING CHECK SWITCH CIRCUIT

• Check continuity between BCM harness connector M3 and

ground.

OK or NG

OK

>> Check turn signal lamp operation. Refer to

LT-78, "Sys-

tem Description"

.

NG

>> Repair or replace harness connector.

ID Registration Cannot Be Completed

INFOID:0000000001327598

DIAGNOSTIC PROCEDURE

1.

ID REGISTRATION (ALL)

• Perform ID registration of all transmitters.

Can ID registration of all transmitters be completed?

YES

>> INSPECTION END

NO

>> Go to

WT-28

.

Terminal

Continuity

(+)

(–)

15

Ground

No

SEIA0438E

Terminal

Continuity

(+)

(–)

15

Ground

No

SEIA0438E
