REAR DRIVE SHAFT

RAX-15

< SERVICE INFORMATION >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

1.

Insert the amount of grease (NISSAN genuine grease or equiva-
lent) into joint sub-assembly serration hole until grease begins to
ooze from ball groove and serration hole. After insert grease,
use a shop cloth to wipe off old grease that has oozed out.

2.

Wind serrated part of shaft with tape. Install boot band and boot
to shaft. Be careful not to damage boot.
NOTE:
Discard old boot band and boot; replace with each new one.

3.

Remove protective tape wound around serrated part of shaft.

4.

Attach circular clip to shaft. At this time, circular clip must fit
securely into shaft groove. Attach nut to joint sub-assembly.
Use a wooden hammer to press-fit.
NOTE:
Discard old circular clip; replace with new one.

5.

Insert the amount of grease (NISSAN genuine grease or equiva-
lent) listed below into housing from large end of boot.

6.

Install boot securely into grooves (indicated by * marks) shown
in the figure.

CAUTION:

If there is grease on boot mounting surfaces (indicated by *
marks) of shaft and housing, boot may come off. Remove
all grease from surfaces.

7.

Make sure boot installation length “L” is the length indicated
below. Insert a flat-bladed screwdriver or similar tool into smaller
side of boot. Bleed air from boot to prevent boot deformation.

CAUTION:

• Boot may break if boot installation length is less than standard value.
• Be careful that screwdriver tip does not contact inside surface of boot.

SDIA1127E

SFA800

Grease amount

VK45DE

: 140

 160 g (4.93

 5.64 oz)

VQ35DE

: 86

 96 g (3.03

 3.38 oz)

RAC0049D

Boot installation length “L”

L

1 (

VK45DE)

: 141.5 mm (5.57 in)

L

2 (

VQ35DE)

: 97 mm (3.82 in)

JPDIG0020ZZ

RAX-16

< SERVICE INFORMATION >

REAR DRIVE SHAFT

8.

Secure big and small ends of boot with new boot bands as
shown in the figure.
NOTE:
Discard old boot bands; replace with new ones.

9.

After installing joint sub-assembly and shaft, rotate boot to check
whether or not the actual position is correct. If boot position is
not correct, secure boot with new boot bands again.

SFA395

SERVICE DATA AND SPECIFICATIONS (SDS)

RAX-17

< SERVICE INFORMATION >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

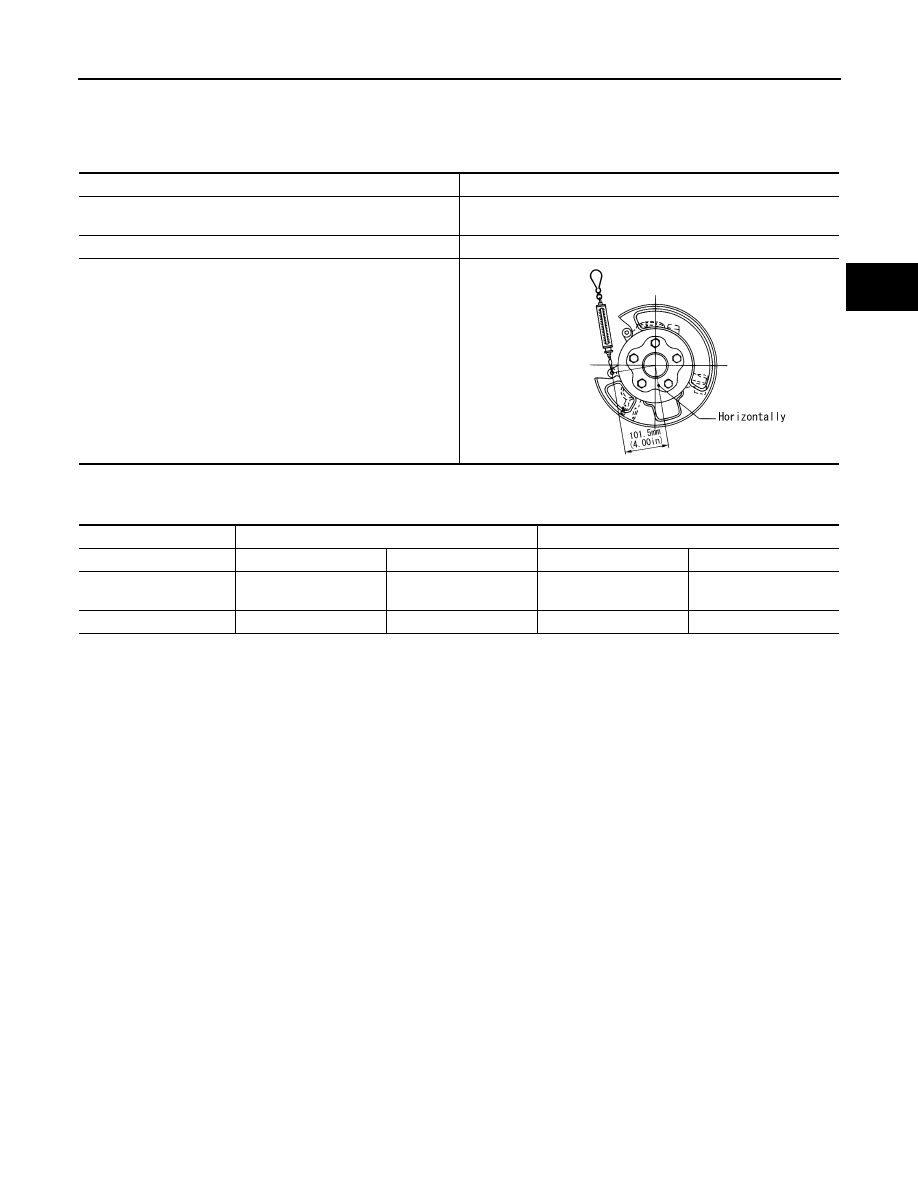

Wheel Bearing

INFOID:0000000001327531

Drive Shaft

INFOID:0000000001327532

Axial end play

0.05 mm (0.002 in) or less

Rotational torque

At a load of 49,033 N (5,000 kg, 11,000 lb)

 Less than 2.7 N·m (0.28 kg-m, 24 in-lb)

Measurement of spring scale

Less than 26.6 N (2.7 kg, 5.95 lb)

Measuring point (Brake caliper installation points)

SDIA0801E

Joint

Wheel side

Final drive side

Engine model

VQ35DE

VK45DE

VQ35DE

VK45DE

Grease quantity

86

 96 g

(3.03

 3.38 oz)

140

 160 g

(4.93

 5.64 oz)

124

 134 g

(4.37

 4.72 oz)

175

 195 g

(6.17

 6.87 oz)

Boots installed length

97 mm (3.82 in)

141.5 mm (5.57 in)

93.9 mm (3.697 in)

147.9 mm (5.82 in)
