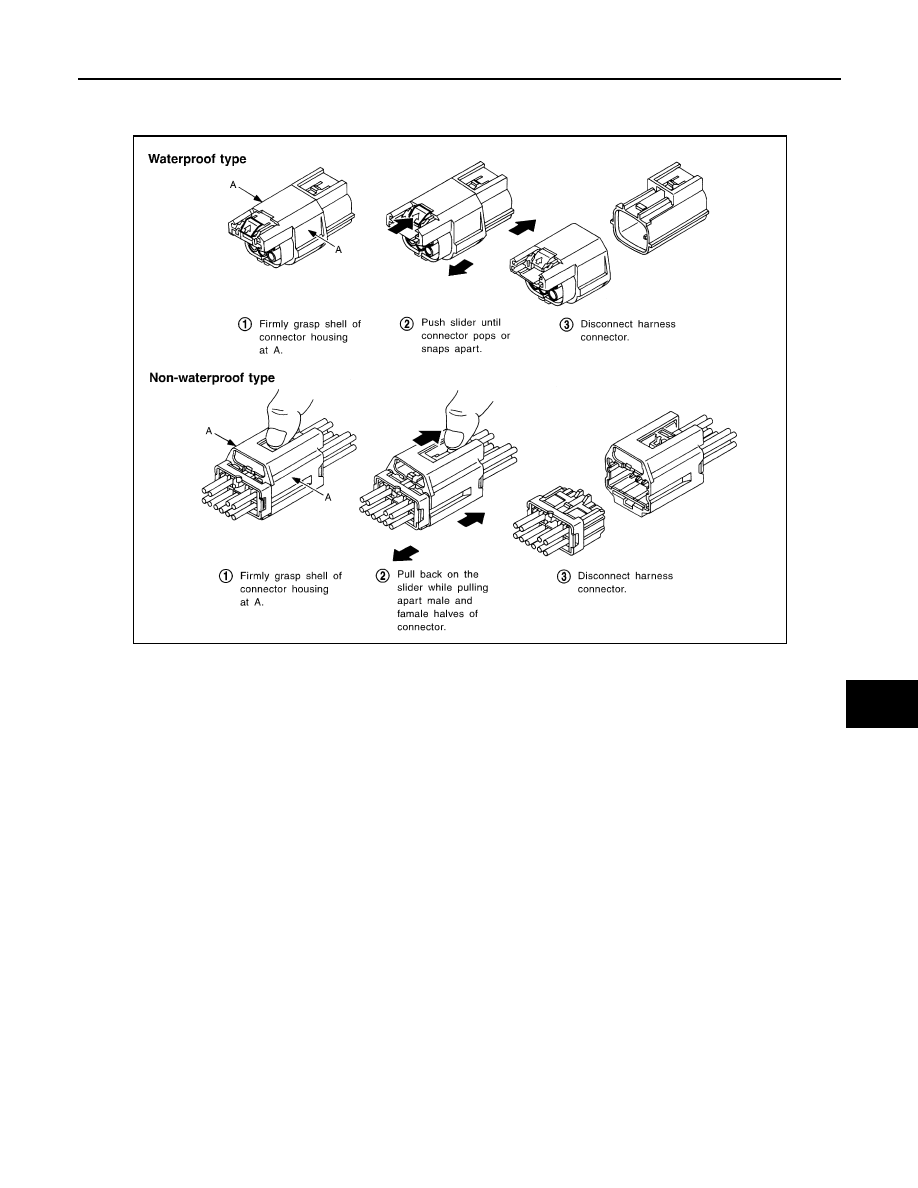

• Never pull the harness or wires when disconnecting the connector.
• Be careful not to damage the connector support bracket when disconnecting the connector.
[Example]

HARNESS CONNECTOR (LEVER LOCKING TYPE)

• Lever locking type harness connectors are used on certain control units and control modules such as ECM,

ABS actuator and electric unit (control unit), etc.

• Lever locking type harness connectors are also used on super multiple junction (SMJ) connectors.
• Always confirm the lever is fully locked in place by moving the lever as far as it will go to ensure full connec-

tion.

CAUTION:

SEL769V

PG-70

< SERVICE INFORMATION >

HARNESS CONNECTOR

Always confirm the lever is fully released (loosened) before attempting to disconnect or connect these
connectors to avoid damage to the connector housing or terminals.

LKIA0670E

1.

Control unit with single lever
A. Fasten
B. Loosen
C. Lever

2.

Control unit with dual levers
A. Levers
B. Fasten
C. Loosen

3.

SMJ connector
A. Lever
B. Fasten
C. Loosen
