Infiniti FX35 / FX45. Manual - part 830





LU-32

< SERVICE INFORMATION >

[VK45DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Standard and Limit

INFOID:0000000001325837

OIL PRESSURE

Unit: kPa (kg/cm

2

, psi)

*: Engine oil temperature at 80

°

C (176

°

F)

ENGINE OIL CAPACITY (APPROXIMATE)

Unit:

 (US qt, Imp qt)

OIL PUMP

Unit: mm (in)

REGULATOR VALVE

Unit: mm (in)

Engine speed

Approximate discharge oil pressure*

Idle speed

More than 98 (1.0, 14)

2,000 rpm

More than 294 (3.0, 43)

Drain and refill

With oil filter change

5.8 (6-1/8, 5-1/8)

Without oil filter change

5.2 (5-1/2, 4-5/8)

Dry engine (engine overhaul)

7.0 (7-3/8, 6-1/8)

Oil pump body to oil pump outer rotor radial clearance

0.114 - 0.200 (0.0045 - 0.0079)

Oil pump inner rotor to oil pump outer rotor tip clearance

Below 0.180 (0.0071)

Oil pump body to oil pump inner rotor axial clearance

0.030 - 0.070 (0.0012 - 0.0028)

Oil pump body to oil pump outer rotor axial clearance

0.030 - 0.090 (0.0012 - 0.0035)

Oil pump inner rotor to oil pump body clearance

0.045 - 0.091 (0.0018 - 0.0036)

Regulator valve to oil pump body clearance

0.040 - 0.097 (0.0016 - 0.0038)

MA-1

MAINTENANCE

C

D

E

F

G

H

I

J

K

M

SECTION

MA

A

B

MA

N

O

P

CONTENTS

MAINTENANCE

SERVICE INFORMATION  ............................

2

PREPARATION ...................................................

2

Special Service Tool  .................................................

2

Commercial Service Tool  ..........................................

2

GENERAL MAINTENANCE  ................................

3

Explanation of General Maintenance  ........................

3

PERIODIC MAINTENANCE  ................................

5

Introduction of Periodic Maintenance ........................

5

Schedule 1  ................................................................

5

Schedule 2  ................................................................

7

RECOMMENDED FLUIDS AND LUBRI-
CANTS .................................................................

9

Fluids and Lubricants  ................................................

9

Engine Oil Recommendation  ....................................

9

Anti-Freeze Coolant Mixture Ratio  ..........................

10

ENGINE MAINTENANCE (VQ35DE ENGINE)

....

11

Checking Drive Belts ...............................................

11

Drive Belts Tension Adjustment  ..............................

11

Changing Engine Coolant  .......................................

12

Checking Fuel Line  .................................................

15

Changing Air Cleaner Filter  .....................................

15

Changing Engine Oil  ...............................................

15

Changing Oil Filter  ..................................................

16

Changing Spark Plugs (Platinum-Tipped Type)  ......

17

Checking EVAP Vapor Line  ....................................

18

ENGINE MAINTENANCE (VK45DE ENGINE)

....

19

Checking Drive Belts ...............................................

19

Tension Adjustment  ................................................

19

Changing Engine Coolant  .......................................

19

Checking Fuel Line ..................................................

22

Changing Air Cleaner Filter  .....................................

22

Changing Engine Oil ................................................

22

Changing Oil Filter ...................................................

23

Changing Spark Plugs (Platinum-Tipped Type)  ......

24

Checking EVAP Vapor Line .....................................

25

CHASSIS AND BODY MAINTENANCE  ...........

26

Checking Exhaust System .......................................

26

Checking A/T Fluid  ..................................................

26

Changing A/T Fluid ..................................................

27

Checking Transfer Fluid  ..........................................

28

Changing Transfer Fluid  ..........................................

28

Checking Propeller Shaft .........................................

29

Checking Differential Gear Oil  .................................

29

Changing Differential Gear Oil .................................

29

Balancing Wheels (Bonding Weight Type)  ..............

30

Tire Rotation  ............................................................

31

Checking Brake Fluid Level and Leaks  ...................

32

Checking Brake Line and Cables  ............................

32

Changing Brake Fluid  ..............................................

32

Checking Disc Brake  ...............................................

32

Checking Steering Gear and Linkage ......................

33

Checking Power Steering Fluid and Line  ................

33

Axle and Suspension Parts  .....................................

34

Drive Shaft ...............................................................

34

Lubricating Locks, Hinges and Hood Latch  .............

35

Checking Seat Belt, Buckles, Retractors, Anchors
and Adjusters ...........................................................

35

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

37

Standard and Limit  ..................................................

37

MA-2

< SERVICE INFORMATION >

PREPARATION

SERVICE INFORMATION

PREPARATION

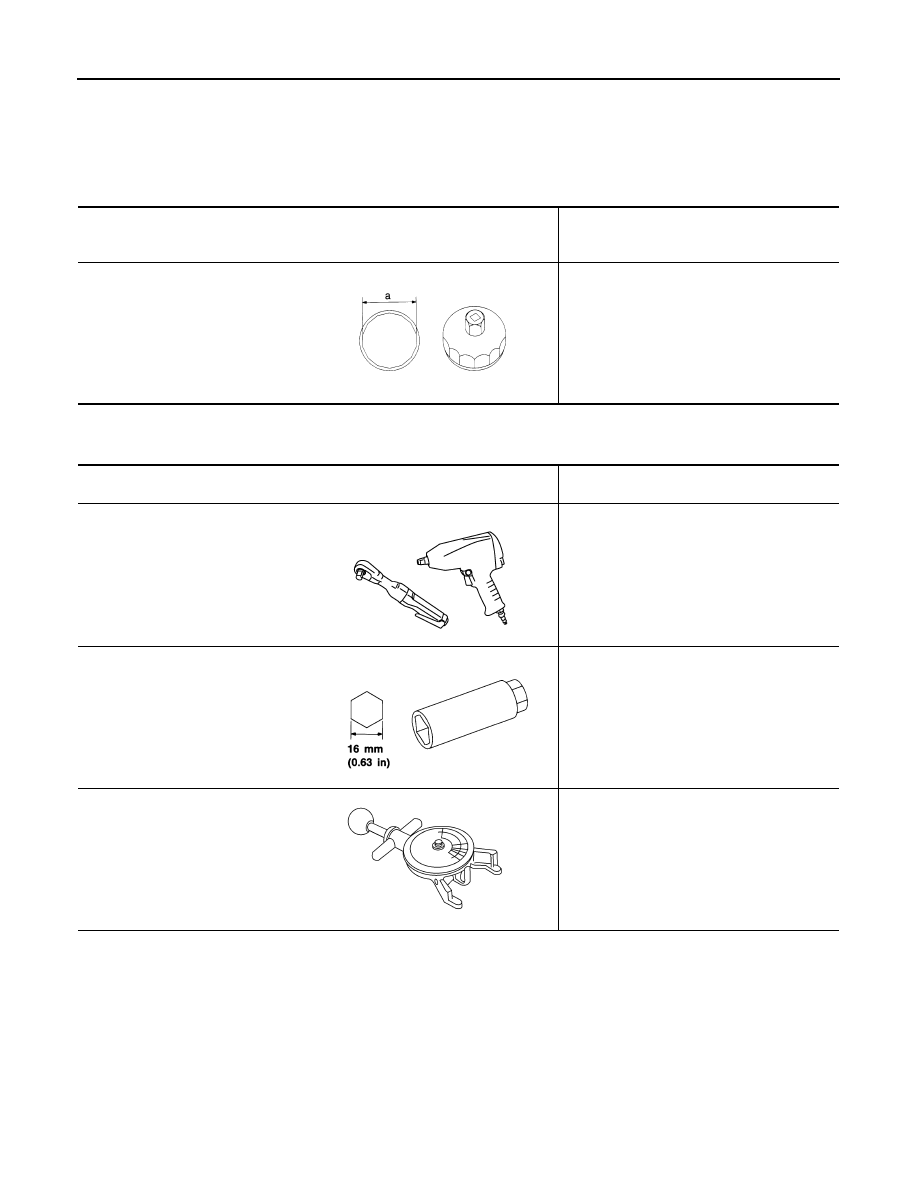

Special Service Tool

INFOID:0000000001328891

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000001328892

Tool number
(Kent-Moore No.)
Tool name

Description

KV10115801
(J38956)
Oil filter wrench

Removing and installing oil filter
a: 64.3 mm (2.531 in)

S-NT375

Tool name
(Kent-Moore No.)

Description

Power tool
(

)

Loosening nuts and bolts

Spark plug wrench
(

)

Removing and installing spark plug

Belt tension gauge
(BT3373-F)

Checking drive belt tension (VQ35DE)

PBIC0190E

S-NT047

AMA126

GENERAL MAINTENANCE

MA-3

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

MA

N

O

P

GENERAL MAINTENANCE

Explanation of General Maintenance

INFOID:0000000001328893

General maintenance includes those items which should be checked during the normal day-to-day operation
of the vehicle. They are essential if the vehicle is to continue operating properly. The owners can perform
checks and inspections themselves or have their INFINITI dealers do them.

OUTSIDE THE VEHICLE

The maintenance items listed here should be performed from time to time, unless otherwise specified.

INSIDE THE VEHICLE

The maintenance items listed here should be checked on a regular basis, such as when performing periodic maintenance, cleaning the vehicle,
etc.

Item

Reference page

Tires

Check the pressure with a gauge, including the spare, at least once a month
and always prior to a long distance trips. Adjust to the specified pressure if nec-
essary. Check carefully for damage, cuts or excessive wear.

Wheel nuts

When checking the tires, make sure no nuts are missing, and check for any
loose nuts. Tighten if necessary.

Windshield

Clean the windshield on a regular basis. Check the windshield at least every six
months for cracks or other damage. Repair as necessary.

Tire rotation

Tires should be rotated every 12,000 km (7,500 miles).

MA-31

Transmitter compo-
nents in tire pressure
monitoring system
(TPMS)

Replace grommet seal, valve core and cap of the transmitter in TPMS every tire
replacement by reaching wear limit of tire.

WT-10

Wheel alignment and
balance

If the vehicle pulls to either side while driving on a straight and level road, or if
you detect uneven or abnormal tire wear, there may be a need for wheel align-
ment. If the steering wheel or seat vibrates at normal highway speeds, wheel
balancing may be needed.

MA-30

FSU-5



Windshield wiper
blades

Check for cracks or wear if they do not wipe properly.

Doors and engine
hood

Check that all doors and the engine hood operate smoothly as well as the trunk
lid and back hatch. Also make sure that all latches lock securely. Lubricate if
necessary. Make sure that the secondary latch keeps the hood from opening
when the primary latch is released.
When driving in areas using road salt or other corrosive materials, check lubri-
cation frequently.

MA-35

Lamps

Make sure that the headlamps, stop lamps, tail lamps, turn signal lamps, and
other lamps are all operating properly and installed securely. Also check head-
lamp aim. Clean the headlamps on a regular basis.

Item

Reference page

Warning lamps and
chimes

Make sure that all warning lamps and chimes are operating properly.

Windshield wiper and
washer

Check that the wipers and washer operate properly and that the wipers do not
streak.

Windshield defroster

Check that the air comes out of the defroster outlets properly and in sufficient
quantity when operating the heater or air conditioner.

Steering wheel

Check that it has the specified play. Be sure to check for changes in the steering
condition, such as excessive play, hard steering or strange noises.
 Free play: Less than 35 mm (1.38 in)

Seats

Check seat position controls such as seat adjusters, seatback recliner, etc. to
make sure they operate smoothly and that all latches lock securely in every po-
sition. Check that the head restrains move up and down smoothly and that the
locks (if equipped) hold securely in all latched positions. Check that the latches
lock securely for folding-down rear seatbacks.

Seat belts

Check that all parts of the seat belt system (e.g. buckles, anchors, adjusters
and retractors) operate properly and smoothly, and are installed securely.
Check the belt webbing for cuts, fraying, wear or damage.

MA-35
