Infiniti FX35 / FX45. Manual - part 800





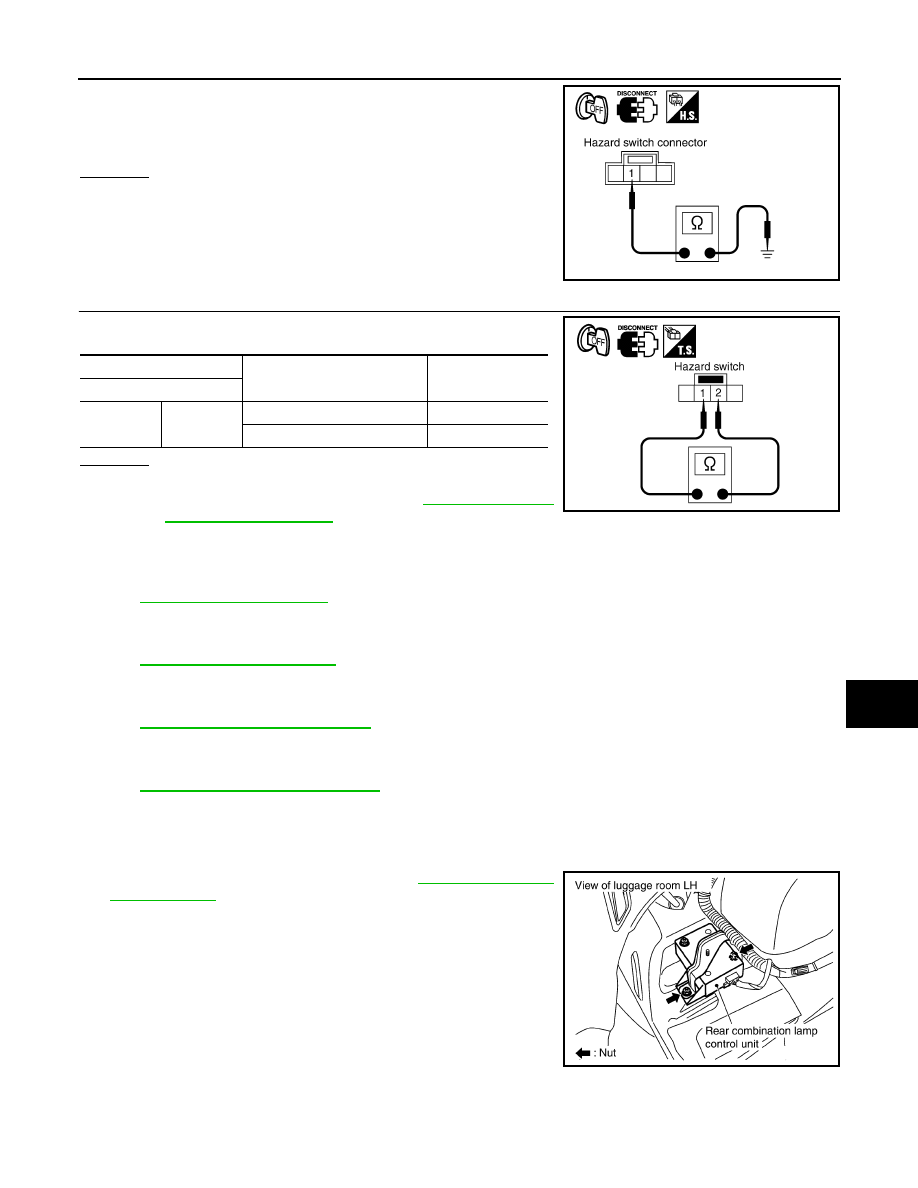

TURN SIGNAL AND HAZARD WARNING LAMPS

LT-95

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

LT

N

O

P

Check continuity hazard switch harness connector M51 terminal 1
and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Repair harness or connector.

4.

CHECK HAZARD SWITCH

Check continuity hazard switch.

OK or NG

OK

>> Replace BCM if turn signal lamps does not work after

setting the connector again. Refer to

BCS-13, "Removal

and Installation of BCM"

.

NG

>> Replace hazard switch.

Bulb Replacement (Front Turn Signal Lamp)

INFOID:0000000001328357

Refer to

LT-28, "Bulb Replacement"

.

Bulb Replacement (Rear Turn Signal Lamp)

INFOID:0000000001328358

Refer to

LT-137, "Bulb Replacement"

.

Removal and Installation of Front Turn Signal Lamp

INFOID:0000000001328359

Refer to

LT-30, "Removal and Installation"

.

Removal and Installation of Rear Turn Signal Lamp

INFOID:0000000001328360

Refer to

LT-137, "Removal and Installation"

.

Removal and Installation of Rear Combination Lamp Control Unit

INFOID:0000000001328361

REMOVAL

1.

Remove luggage side box (LH). Refer to

EI-45, "Component

Parts Location"

.

2.

Remove nuts (2), and remove rear combination lamp control
unit.

INSTALLATION

Installation is the reverse order of removal.

1 – Ground

: Continuity should exist.

SKIA5913E

Terminal

Condition

Continuity

Hazard switch

1

2

Hazard switch is ON

Yes

Hazard switch is OFF

No

PKIA5221E

PKIB3631E

LT-96

< SERVICE INFORMATION >

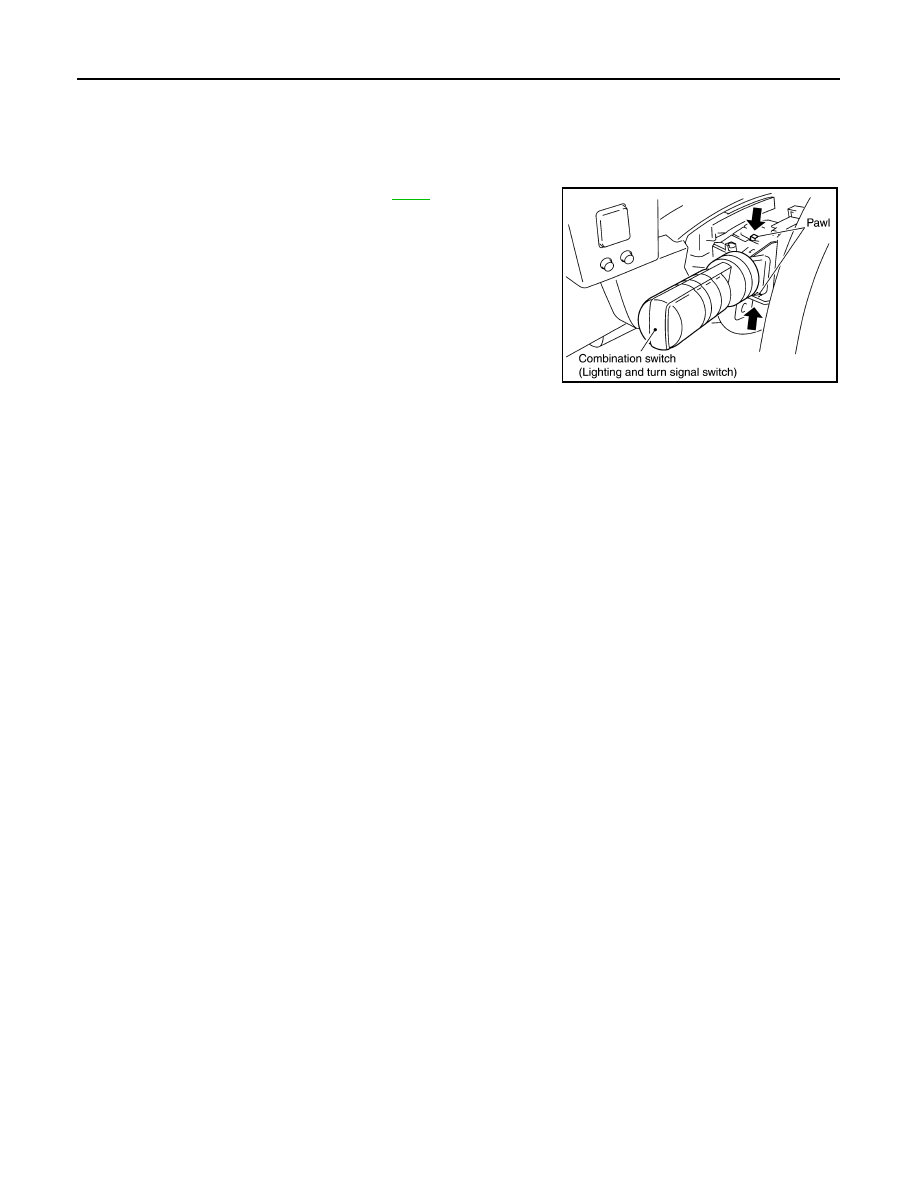

LIGHTING AND TURN SIGNAL SWITCH

LIGHTING AND TURN SIGNAL SWITCH

Removal and Installation

INFOID:0000000001328362

REMOVAL

1.

Remove steering column cover. Refer to

IP-10

.

2.

While pressing pawls in direction as shown in the figure, pull
lighting and turn signal switch toward driver door and disconnect
from the base.

INSTALLATION

Installation is the reverse order of removal.

PKIB3477E

HAZARD SWITCH

LT-97

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

LT

N

O

P

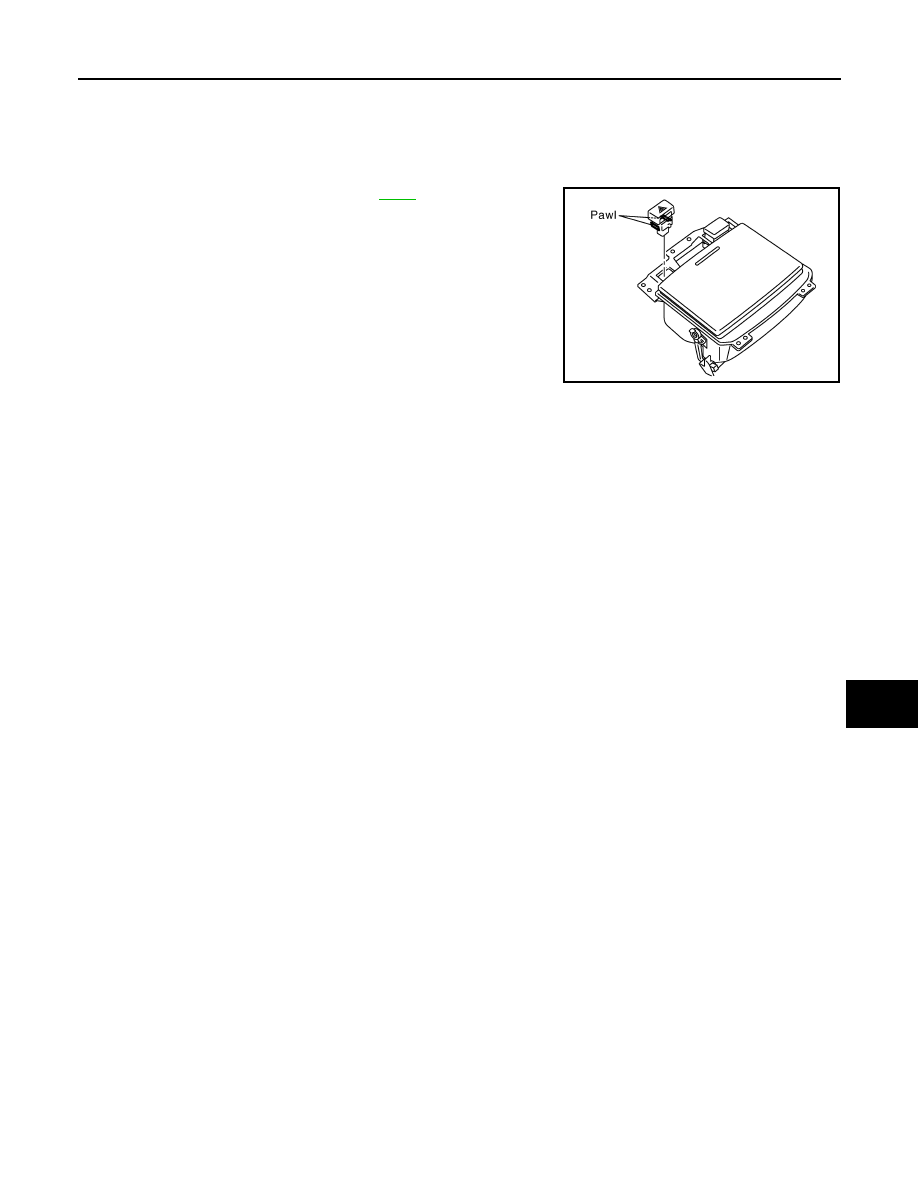

HAZARD SWITCH

Removal and Installation

INFOID:0000000001328363

REMOVAL

1.

Remove A/T console finisher. Refer to

IP-10

.

2.

Disconnect the hazard switch connector.

3.

Remove the drink holder.

4.

Press pawl on reverse side and remove hazard switch.

INSTALLATION

Installation is the reverse order of removal.

PKIC9691E

LT-98

< SERVICE INFORMATION >

COMBINATION SWITCH

COMBINATION SWITCH

Wiring Diagram - COMBSW -

INFOID:0000000001328364

Combination Switch Reading Function

INFOID:0000000001328365

For details, refer to

BCS-4, "System Description"

.

TKWM4309E
