DAYTIME LIGHT SYSTEM

LT-35

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

LT

N

O

P

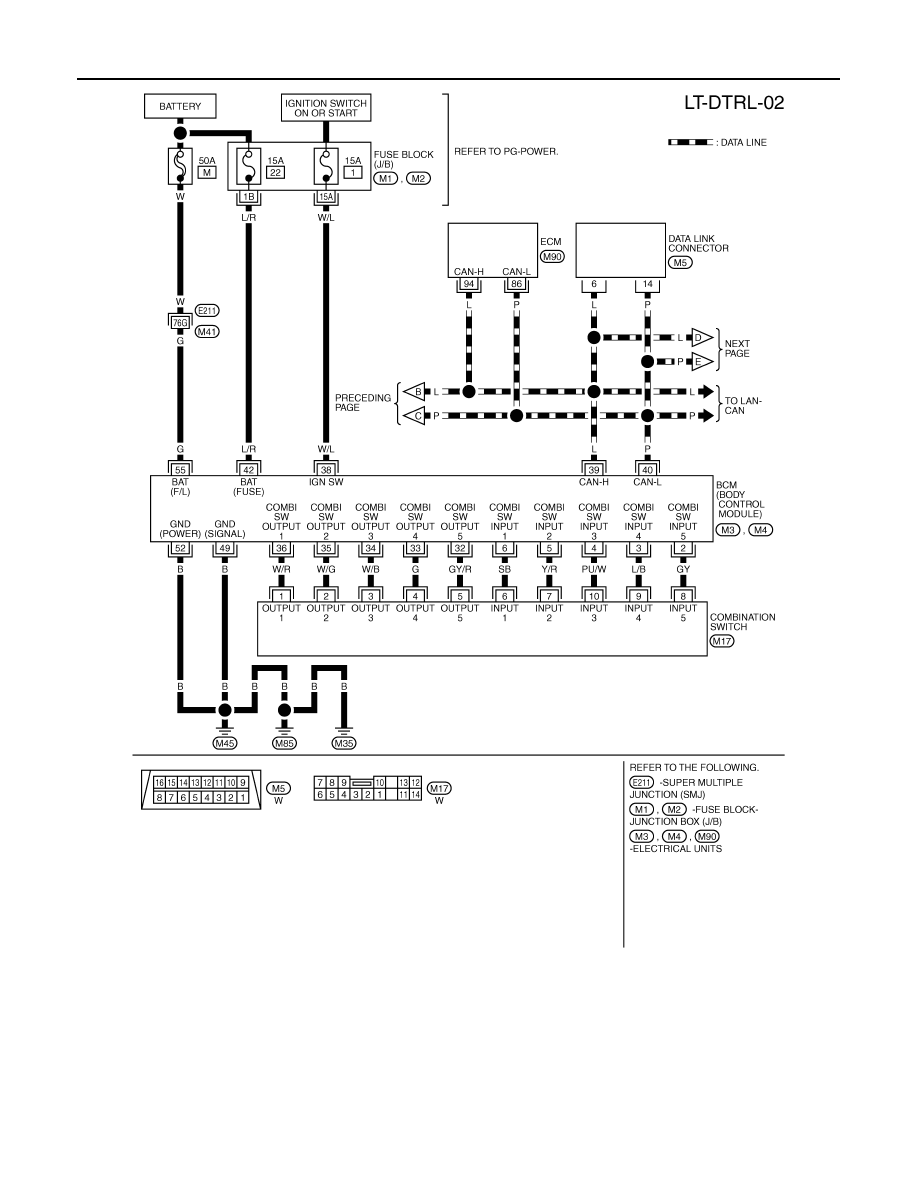

Wiring Diagram - DTRL -

INFOID:0000000001328296

TKWM4294E

LT-36

< SERVICE INFORMATION >

DAYTIME LIGHT SYSTEM

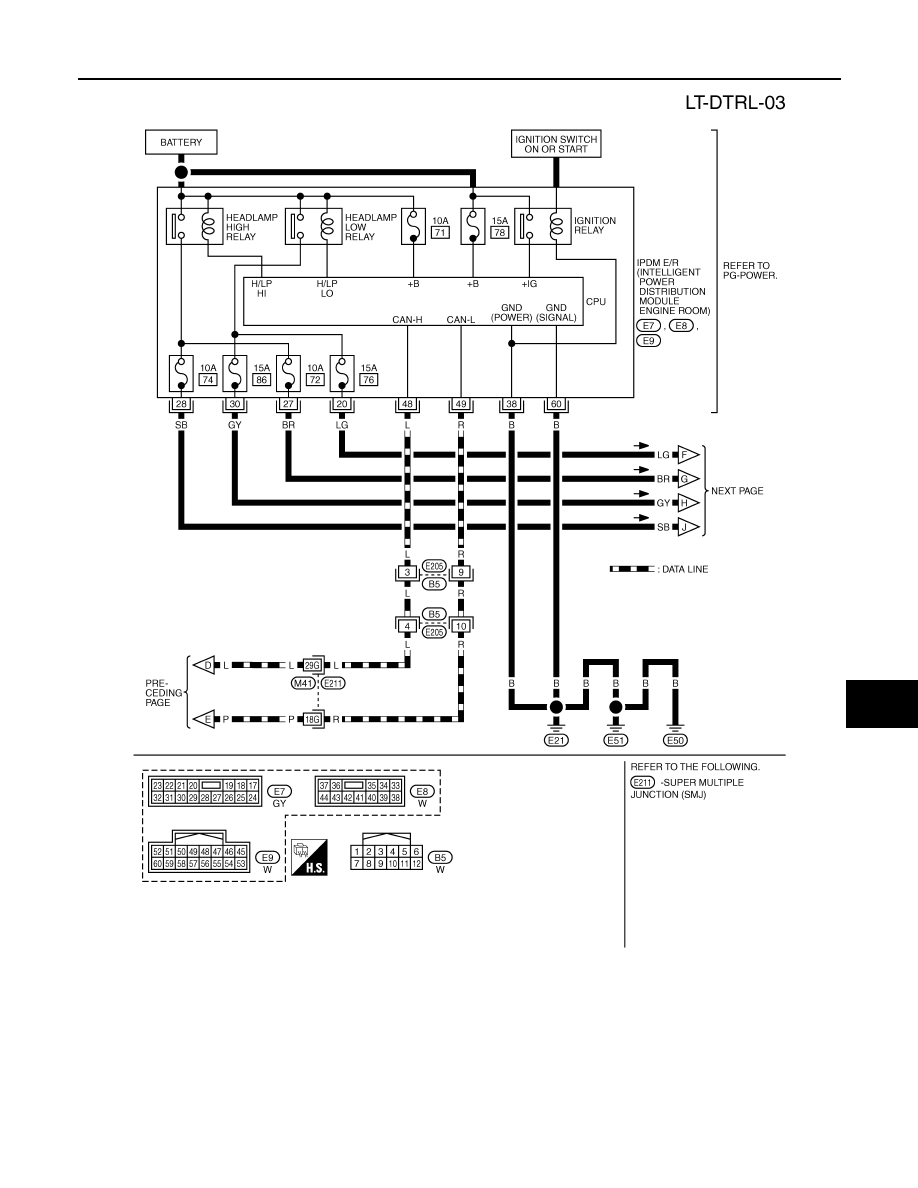

TKWM4295E

DAYTIME LIGHT SYSTEM

LT-37

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

LT

N

O

P

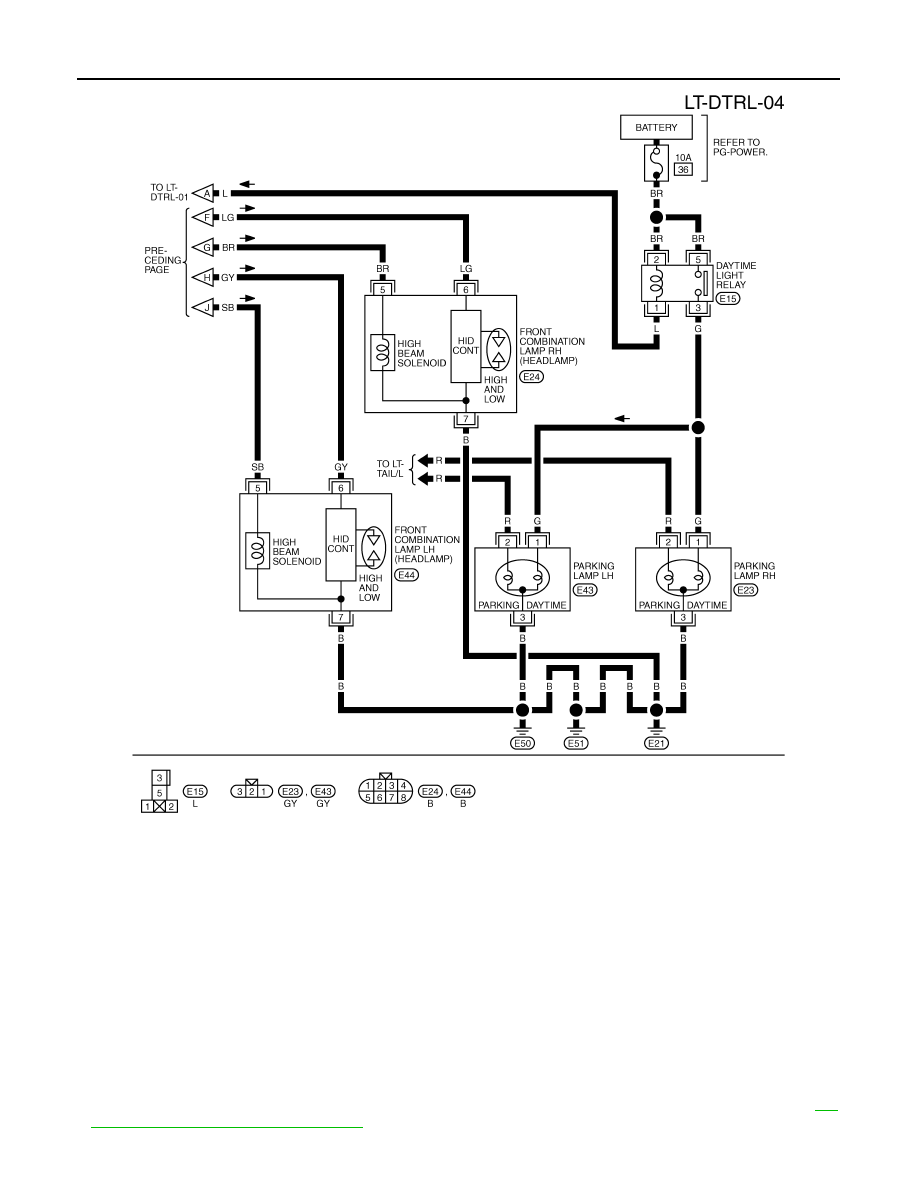

TKWM4296E

LT-38

< SERVICE INFORMATION >

DAYTIME LIGHT SYSTEM

Terminal and Reference Value for BCM

INFOID:0000000001328297

CAUTION:

• Check combination switch system terminal waveform under the loaded condition with lighting

switch, turn signal switch and wiper switch OFF not to be fluctuated by overloaded.

• Turn wiper intermittent dial position to 4 except when checking waveform or voltage of wiper inter-

mittent dial position. Wiper intermittent dial position can be confirmed on CONSULT-III. Refer to

LT-

103, "CONSULT-III Functions (BCM)"

.
