HOW TO USE THIS SECTION

Caution

INFOID:0000000001328628

• This section describes information peculiar to a vehicle, sheets for trouble diagnosis, and inspection proce-

dures.

• For trouble diagnosis procedure

LAN-14, "Trouble Diagnosis Procedure"

.

Abbreviation List

INFOID:0000000001328629

Abbreviations in CAN communication signal chart, and the diagnosis sheet are as per the following list.

Abbreviation

Unit name

SELECT SYSTEM

(CONSULT-III)

CAN DIAG SUPPORT MNTR

(CONSULT-III)

4WD

AWD control unit

ALL MODE AWD/4WD

AWD/4WD

A-BAG

Air bag diagnosis sensor unit

AIR BAG

ABS

ABS actuator and electric unit (control unit)

ABS

VDC/TCS/ABS

ADP

Driver seat control unit

AUTO DRIVE POS.

BCM

BCM

BCM

BCM/SEC

DISP

Display control unit

DISPLAY

DLC

Data link connector

ECM

ECM

ENGINE

ECM

ICC

ICC unit

ICC

ICC

ICC/e4WD

I-KEY

Intelligent Key unit

INTELLIGENT KEY

I-KEY

IPDM-E

IPDM E/R

IPDM E/R

IPDM E/R

LANE

LDW camera unit

LDW

LASER

ICC sensor

ICC SENSOR

M&A

Unified meter and A/C amp.

METER/M&A

METER/M&A

STRG

Steering angle sensor

STRG

TCM

TCM

TRANSMISSION

TCM

LAN-38

< SERVICE INFORMATION >

[CAN]

PRECAUTIONS

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001612909

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SUPPLEMENTAL RESTRAINT SYS-
TEM” and “SEAT BELTS” of this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SUPPLEMENTAL RESTRAINT SYSTEM”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution for Trouble Diagnosis

INFOID:0000000001328632

CAUTION:

• Never apply 7.0 V or more to the measurement terminal.
• Use a tester with open terminal voltage of 7.0 V or less.
• Turn the ignition switch OFF and disconnect the battery cable from the negative terminal when

checking the harness.

Precaution for Harness Repair

INFOID:0000000001328633

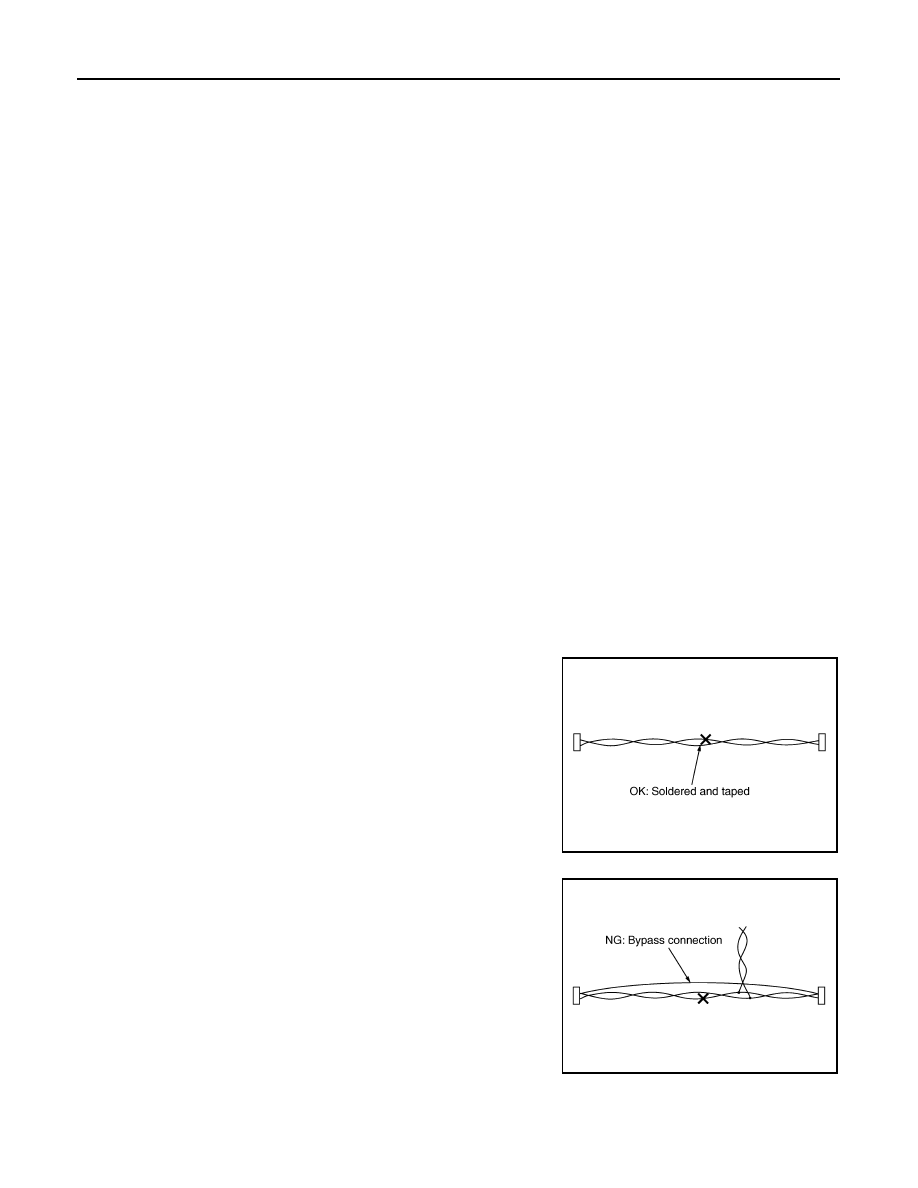

• Solder the repaired area and wrap tape around the soldered area.

NOTE:
A fray of twisted lines must be within 110 mm (4.33 in).

• Bypass connection is never allowed at the repaired area.

NOTE:
Bypass connection may cause CAN communication error. The
spliced wire becomes separated and the characteristics of twisted
line are lost.

• Replace the applicable harness as an assembly if error is detected on the shield lines of CAN communica-

tion line.

SKIB8766E

SKIB8767E

TROUBLE DIAGNOSIS

LAN-39

< SERVICE INFORMATION >

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

N

O

P

TROUBLE DIAGNOSIS

CAN Diagnostic Support Monitor

INFOID:0000000001328634

Use “CAN DIAG SUPPORT MNTR” for detecting the root cause.

MONITOR ITEM LIST (CONSULT-III)

ECM

0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF

ON)

*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.

AWD Control Unit

NOTE:
Replace the unit when “NG” is indicated on the “INITIAL DIAG”.

ICC Unit

NOTE:
Replace the unit when “NG” is indicated on the “INITIAL DIAG”.

ITEM

CAN DIAG SUP-

PORT MNTR

Description

Normal

Error

PRSNT

PAST

PRSNT

PAST

ECM

TRANSMIT DIAG

Signal transmission status

OK

OK

or

1 – 39

*

UNKWN

0

VDC/TCS/ABS

Signal receiving status from the ABS actu-
ator and electric unit (control unit)

METER/M&A

Signal receiving status from the unified
meter and A/C amp.

BCM/SEC

Signal receiving status from the BCM

ICC

Signal receiving status from the ICC unit

HVAC

Not used even though indicated

TCM

Signal receiving status from the TCM

OK

OK

or

1 – 39

*

UNKWN

0

EPS

Not used even though indicated

IPDM E/R

Signal receiving status from the IPDM E/R

OK

OK

or

1 – 39

*

UNKWN

0

e4WD

Not used even though indicated

AWD/4WD

Signal receiving status from the AWD con-
trol unit

OK

OK

or

1 – 39

*

UNKWN

0

ITEM

CAN DIAG SUP-

PORT MNTR

Description

Normal

Error

PRSNT

4WD

INITIAL DIAG

Status of CAN controller

OK

NG

TRANSMIT DIAG

Signal transmission status

UNKWN

VDC/TCS/ABS

Signal receiving status from the ABS actuator and electric unit
(control unit)

ECM

Signal receiving status from the ECM

TCM

Not used even though indicated

METER/M&A

Signal receiving status from the unified meter and A/C amp.

OK

UNKWN

LAN-40

< SERVICE INFORMATION >

[CAN]

TROUBLE DIAGNOSIS

TCM

NOTE:
Replace the unit when “NG” is indicated on the “INITIAL DIAG”.

BCM

NOTE:
Replace the unit when “NG” is indicated on the “INITIAL DIAG”.

Intelligent Key Unit

ITEM

CAN DIAG SUP-

PORT MNTR

Description

Normal

Error

PRSNT

ICC

INITIAL DIAG

Status of CAN controller

OK

NG

TRANSMIT DIAG

Signal transmission status

UNKWN

ECM

Signal receiving status from the ECM

VDC/TCS/ABS

Signal receiving status from the ABS actuator and electric unit
(control unit)

TCM

Signal receiving status from the TCM

METER/M&A

Not used even though indicated

LANE KEEP

ECM(l)

ICC SENSOR

Signal receiving status from the ICC sensor

OK

UNKWN

STRG

Not used even though indicated

METER/M&A(l)

ERROR(l)

LANE DETEC-
TOR

TCM(l)

BCM/SEC

Signal receiving status from the BCM

OK

UNKWN

ITEM

CAN DIAG SUP-

PORT MNTR

Description

Normal

Error

PRSNT

TCM

INITIAL DIAG

Status of CAN controller

OK

NG

TRANSMIT DIAG

Signal transmission status

UNKWN

ECM

Signal receiving status from the ECM

VDC/TCS/ABS

Signal receiving status from the ABS actuator and electric unit
(control unit)

METER/M&A

Signal receiving status from the unified meter and A/C amp.

ICC/e4WD

Signal receiving status from the ICC unit

AWD/4WD

Signal receiving status from the AWD control unit

ITEM

CAN DIAG SUP-

PORT MNTR

Description

Normal

Error

PRSNT

BCM

INITIAL DIAG

Status of CAN controller

OK

NG

TRANSMIT DIAG

Signal transmission status

UNKWN

ECM

Signal receiving status from the ECM

IPDM E/R

Signal receiving status from the IPDM E/R

METER/M&A

Signal receiving status from the unified meter and A/C amp.

I-KEY

Not used even though indicated
