PRECAUTIONS

LAN-3

< SERVICE INFORMATION >

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

N

O

P

SERVICE INFORMATION

PRECAUTIONS

Precaution for Trouble Diagnosis

INFOID:0000000001451944

CAUTION:

• Never apply 7.0 V or more to the measurement terminal.
• Use a tester with open terminal voltage of 7.0 V or less.
• Turn the ignition switch OFF and disconnect the battery cable from the negative terminal when

checking the harness.

Precaution for Harness Repair

INFOID:0000000001451945

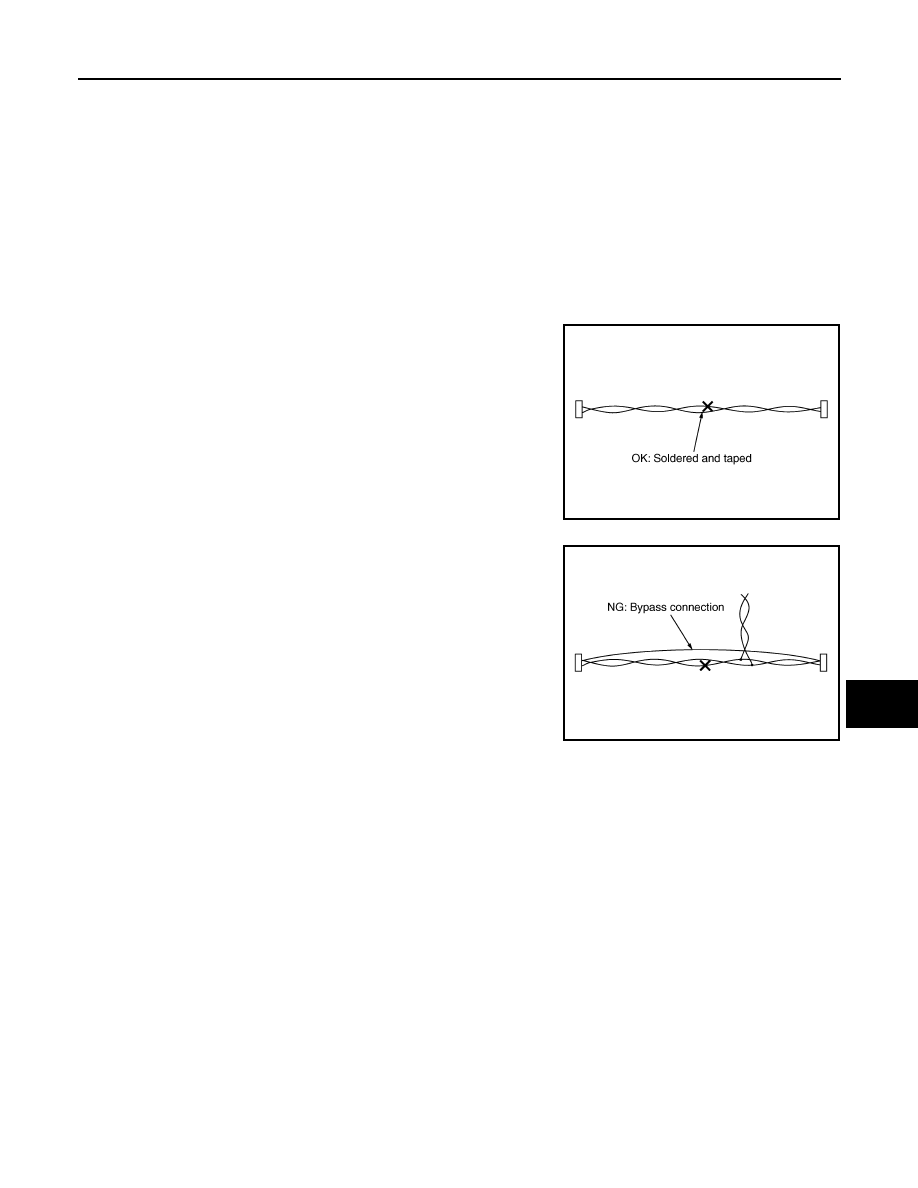

• Solder the repaired area and wrap tape around the soldered area.

NOTE:
A fray of twisted lines must be within 110 mm (4.33 in).

• Bypass connection is never allowed at the repaired area.

NOTE:
Bypass connection may cause CAN communication error. The
spliced wire becomes separated and the characteristics of twisted
line are lost.

• Replace the applicable harness as an assembly if error is detected on the shield lines of CAN communica-

tion line.

SKIB8766E

SKIB8767E

LAN-4

< SERVICE INFORMATION >

[CAN FUNDAMENTAL]

SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

CAN Communication System

INFOID:0000000001451946

• CAN communication is a multiplex communication system. This enables the system to transmit and receive

large quantities of data at high speed by connecting control units with two communication lines (CAN-H and
CAN-L).

• Control units on the CAN network transmit signals using the CAN communication control circuit. They

receive only necessary signals from other control units to operate various functions.

• CAN communication lines adopt twisted-pair line style (two lines twisted) for noise immunity.

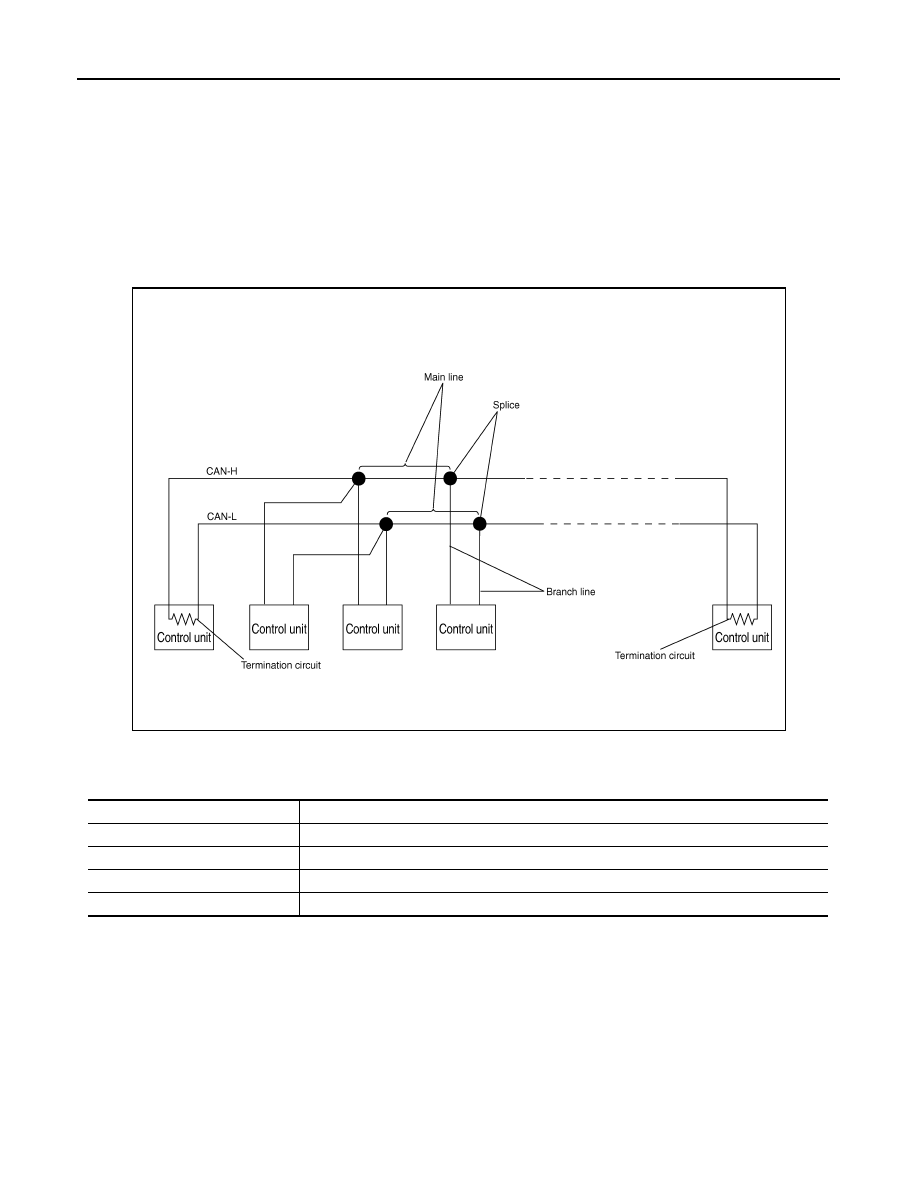

SYSTEM DIAGRAM

Each control unit passes an electric current to the termination circuits when transmitting CAN communication
signal. The termination circuits produce an electrical potential difference between CAN-H and CAN-L. CAN
communication system transmits and receives CAN communication signals by the potential difference.

SKIB8887E

Component

Description

Main line

CAN communication line between splices

Branch line

CAN communication line between splice and a control unit

Splice

A point connecting a branch line with a main line

Termination circuit

Refer to "CAN COMMUNICATION CONTROL CIRCUIT".
