DOOR MIRROR

Trouble Diagnosis

INFOID:0000000001328023

A trouble diagnosis of a automatic drive positioner interlocking door mirror is refer to

SE-12

.

TIWM1861E

DOOR MIRROR

GW-87

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

GW

N

O

P

Removal and Installation

INFOID:0000000001328024

CAUTION:

Be careful not to damage the mirror body.

REMOVAL

1.

Remove the front door finisher. Refer to

EI-36

.

2.

Remove the corner cover inner.

3.

Remove the door mirror harness connector.

4.

Remove the door mirror mounting nuts, and remove the door mirror assembly.

INSTALLATION

Install in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000001328025

DISASSEMBLY

1.

Place the mirror body with mirror glass facing upward.

2.

Put strip of protection tape on mirror body.

3.

As shown in the figure insert a small flat-bladed screwdriver into
the recess between mirror base (mirror holder) and mirror holder
bracket and push up pawls to remove mirror holder lower half
side.

NOTE:
When pushing up pawls do not attempt to use 1 recess only, be sure
to push up with both recesses.
Insert screwdriver into recesses, and push up while rotating (twist) to
make work easier.

4.

Remove terminals of mirror heater attachment.

PIIA4738E

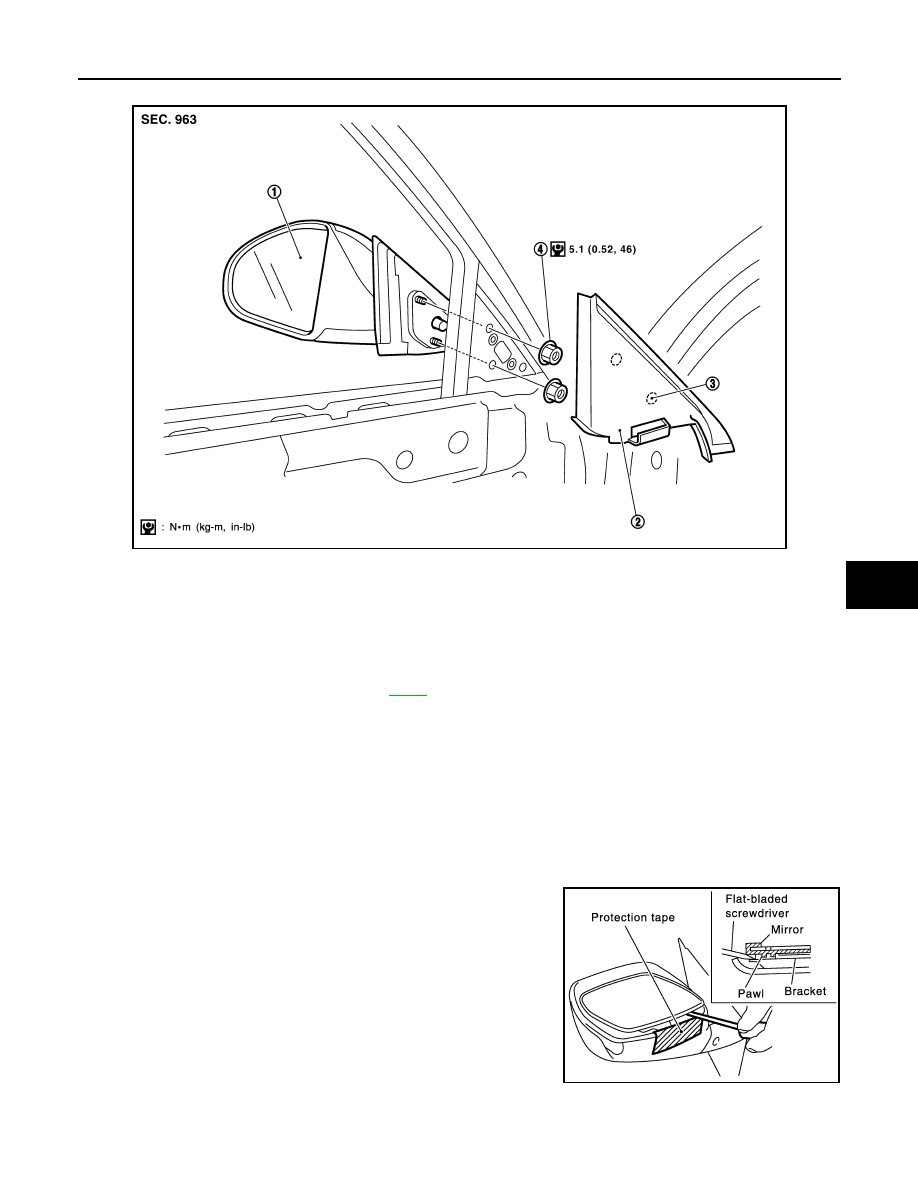

1.

Door mirror assembly

2.

Corner cover inner

3.

Clip (C101)

4.

Nut

PIIA4002E
