SIDE WINDOW GLASS

SIDE WINDOW GLASS

Removal and Installation

INFOID:0000000001327989

REMOVAL

1.

Remove the roof rear garnish. Refer to

EI-45, "Component Parts Location"

.

2.

Remove the luggage side finisher. Refer to

EI-45, "Component Parts Location"

.

3.

Remove the rear pillar upper garnish. Refer to

EI-45, "Component Parts Location"

.

4.

Apply a protective tape around the side window glass to protect the painted surface from damage.

5.

Remove side window glass using piano wire or power cutting tool and an inflatable pump bag.

WARNING:

Always wear safety glasses and heavy gloves to help prevent glass splinters from entering your
eyes or cutting your hands when cutting the glass from the vehicle.

CAUTION:

• Be careful not to scratch the glass when removing.
• Never set or stand the glass on its edge. Small chips may develop into cracks.

INSTALLATION

• Use a genuine Nissan Urethane Adhesive Kit (if available) or equivalent and follow the instructions furnished

with it.

PIIA9192E

1.

Side window glass molding (upper)

2.

Side window glass

3.

Clip

4.

Side window glass molding (lower)

5.

Fastener

6.

Adhesive

7.

Body side outer panel

8.

Side window glass molding (pillar)

9.

Dam rubber

SIDE WINDOW GLASS

GW-49

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

GW

N

O

P

• While the urethane adhesive is curing, open all door windows. This will prevent the glass from being forced

out by passenger room air pressure when all doors are closed.

• The molding must be installed securely so that it is in position and leaves no clearance.
• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (approximately 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.
• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Never let

them in contact with the skin and eyes.

• Use in an open, well ventilated location. Never breathe the vapors. They may be harmful if inhaled.

Move immediately to an area with fresh air if affected by vapor inhalation.

• Driving the vehicle before the urethane adhesive has completely cured may affect the performance

of the side window in case of an accident.

CAUTION:

• Never use an adhesive which is past its usable term. Shelf life of this product is limited to six months

after the date of manufacture. Adhere carefully to the expiration or manufacture date printed on the
box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.
• Never leave primers or adhesive cartridge unattended with their caps open or off.
• The vehicle should not be driven for at least 24 hours or until the urethane adhesive has completely

cured. Curing time varies depending on temperature and humidities. The curing time will increase
under lower temperature and lower humidity.

Repairing Water Leakage for side window glass

Leakage can be repaired without removing glass.
Determine the extent of leakage if water is leaking between the urethane adhesive material and body or glass.
This can be done by applying water to the side window area while pushing glass outward.
Apply primer (if necessary) and then urethane adhesive to the leakage point to stop the leakage.

GW-50

< SERVICE INFORMATION >

FRONT DOOR GLASS AND REGULATOR

FRONT DOOR GLASS AND REGULATOR

Removal and Installation

INFOID:0000000001327990

DOOR GLASS

Removal

1.

Remove the front door finisher. Refer to

EI-36

.

2.

Remove speaker unit. Refer to

AV-43, "Removal and Installation for Front Door Speaker"

.

3.

Operate the power window main switch to raise or lower the
door window until the glass mounting bolts can be seen.

4.

Remove the glass mounting bolts.

5.

Remove the module stop bolts.

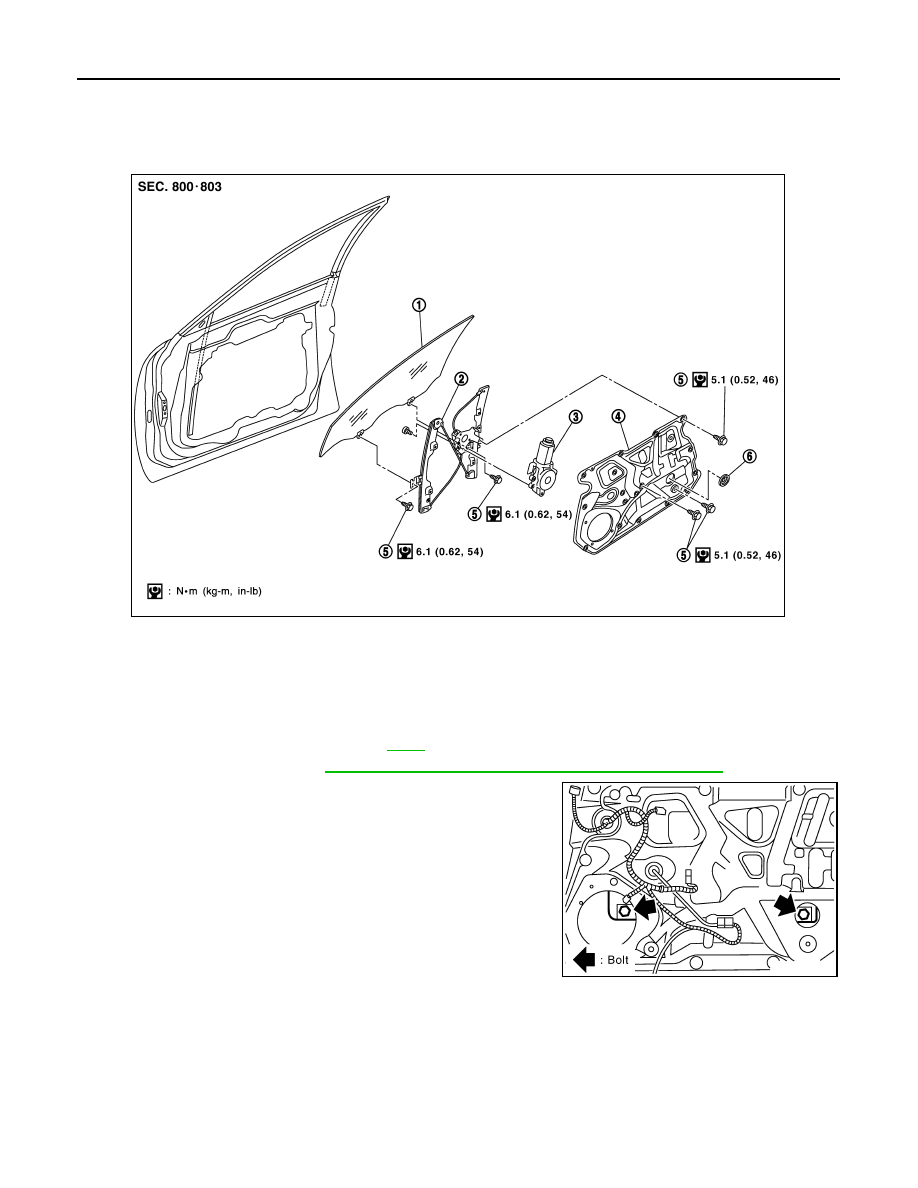

1.    Door glass

2.

Regulator assembly

3.

Power window motor

4.

Module assembly

5.

Bolt

6.

Hole cover

PIIA4728E

PIIA4729E

FRONT DOOR GLASS AND REGULATOR

GW-51

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

GW

N

O

P

6.

While holding the door glass, raise it at the rear end to pull the
glass out of the sash toward the outside of the door.

Installation

Install in the reverse order of removal.

REGULATOR ASSEMBLY

Removal

1.

Remove the front door finisher. Refer to

EI-36

.

2.

Remove speaker unit. Refer to

AV-43, "Removal and Installation for Front Door Speaker"

.

3.

Operate the power window main switch to raise/lower the door
window until the glass mounting bolts can be seen.

4.

Remove the glass mounting bolts.

5.

Remove the module stop bolts.

6.

Raise up the door glass and hold with a suction lifter.

7.

Remove the mounting bolts, and remove the module assembly.

8.

Disconnect the harness connector for the module assembly, and
unclip the harness from the back.

Installation

Install in the reverse order of removal.

PIIA4004E

PIIA4729E

PIIB1811E

SIIA0287E
