Infiniti FX35 / FX45. Manual - part 707





FFD-38

< SERVICE INFORMATION >

FRONT FINAL DRIVE ASSEMBLY

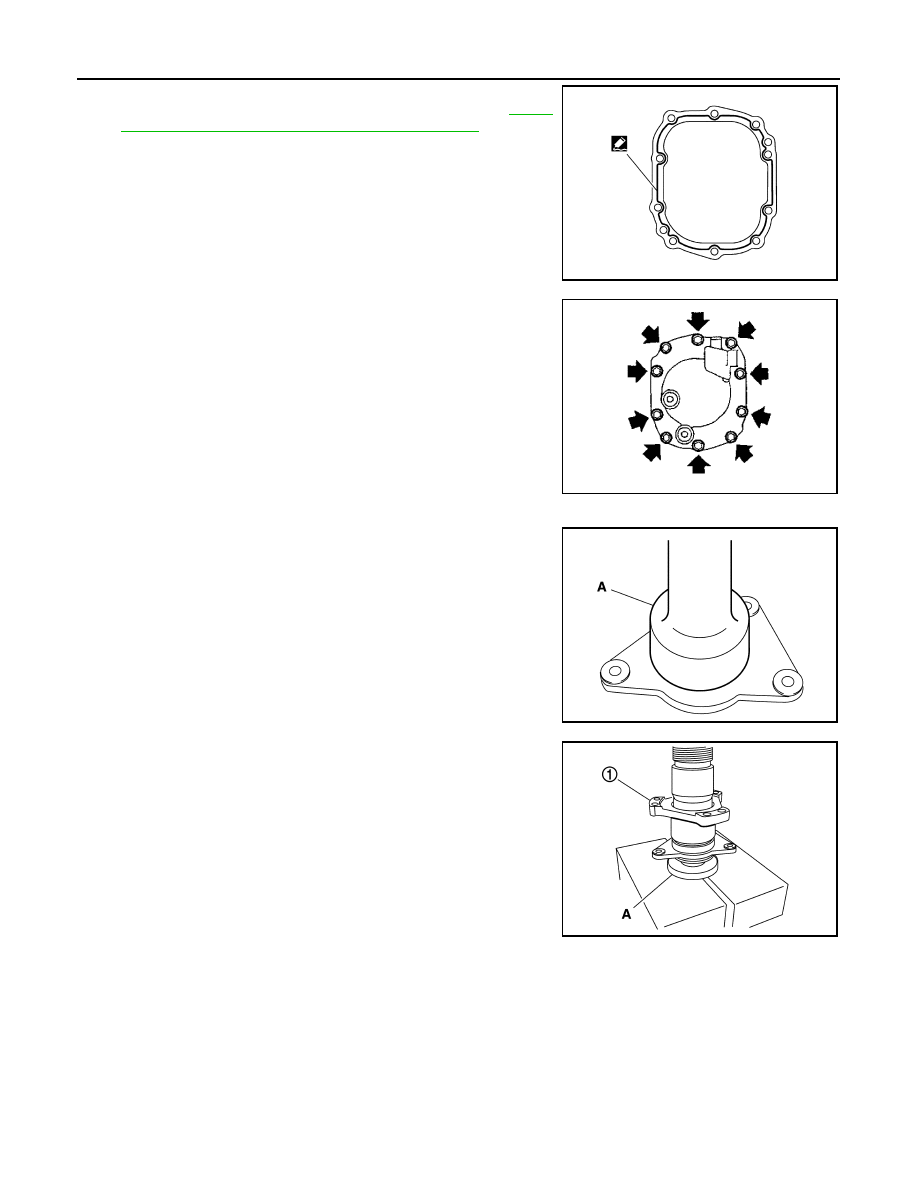

23. Apply sealant to mating surface of carrier cover.

• Use Genuine Silicone RTV or equivalent. Refer to

GI-44,

"Recommended Chemical Product and Sealant"

.

CAUTION:

Remove old sealant adhering to mounting surfaces. Also
remove any moisture, oil, or foreign material adhering to
application and mounting surfaces.

24. Install carrier cover on gear carrier and tighten mounting bolts

with the specified torque. Refer to "COMPONENTS (VQ35DE
MODELS)", "COMPONENTS (VK45DE MODELS)".

Side Shaft Assembly

1.

Using the drift, install side shaft oil seal.

CAUTION:

• Never reuse oil seal.
• When installing, never incline oil seal.
• Apply multi-purpose grease onto oil seal lips, and gear oil

onto the circumference of oil seal.

2.

Install dust sealed.

3.

Support side shaft bearing with the drift, then press side shaft (1)
into the side shaft bearing using a press.

4.

Apply multi-purpose grease to O-ring, and install it to extension
tube retainer.

CAUTION:

Never reuse O-ring.

PDIA0742E

SDIA1648E

Tool number

A: KV38100200 (

)

PDIA0814J

Tool number

A: ST30032000 (J-26010-01)

PDIA0815J

SERVICE DATA AND SPECIFICATIONS (SDS)

FFD-39

< SERVICE INFORMATION >

C

E

F

G

H

I

J

K

L

M

A

B

FFD

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000001327488

Inspection and Adjustment

INFOID:0000000001327489

DRIVE GEAR RUNOUT

Unit: mm (in)

DIFFERENTIAL SIDE GEAR CLEARANCE

Unit: mm (in)

PRELOAD TORQUE

Unit: N·m (kg-m, in-lb)

BACKLASH

Unit: mm (in)

COMPANION FLANGE RUNOUT

Unit: mm (in)

SELECTIVE PARTS

Side Gear Thrust Washer

Applied model

VQ35DE

VK45DE

Final drive model

F160A

Gear ratio

3.692

Number of teeth (Drive gear/Drive pinion)

48/13

Oil capacity (Approx.)

 (US pt, lmp pt)

0.65 (1-3/8, 1-1/8)

Number of pinion gears

2

Drive pinion adjustment spacer type

Solid

Item

Runout limit

Drive gear back face

 0.05 (0.0020)

Item

Specification

Side gear backlash (Clearance between side gear and differential
case)

0.2 (0.008) or less

(Each gear should rotate smoothly without excessive resistance

during differential motion.)

Item

Specification

Pinion bearing (P

1

)

0.78 - 1.57 (0.08 - 0.16, 7 - 13)

Side bearing (P

2

)

0.78 - 1.08 (0.08 - 0.11, 7 - 9)

Side bearing to pinion bearing (Total preload)
(Total preload = P

1

 + P

2

)

1.56 - 2.65 (0.16 - 0.27, 14 - 23)

Item

Specification

Drive gear to drive pinion gear

0.10 - 0.15 (0.0039 - 0.0059)

Item

Runout limit

Companion flange face

0.18 (0.0071)

Inner side of the companion flange

0.13 (0.0051)

FFD-40

< SERVICE INFORMATION >

SERVICE DATA AND SPECIFICATIONS (SDS)

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Pinion Height Adjusting Washer

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Drive Pinion Bearing Adjusting Washer

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Drive Pinion Adjusting Washer

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Side Bearing Adjusting Shim

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Side Bearing Adjusting Washer

Thickness

Part number*

Thickness

Part number*

0.68 (0.0268)
0.71 (0.0280)
0.74 (0.0291)
0.77 (0.0303)
0.80 (0.0315)
0.83 (0.0327)

38424 W1010

38424 W1011

38424 W1012
38424 W1013
38424 W1014
38424 W1015

0.86 (0.0339)
0.89 (0.0350)
0.92 (0.0362)
0.95 (0.0374)
0.98 (0.0386)
1.01 (0.0398)

38424 W1016
38424 W1017
38424 W1018
38424 W1019
38424 W1020
38424 W1021

Thickness

Part number*

Thickness

Part number*

3.09 (0.1217)
3.12 (0.1228)
3.15 (0.1240)
3.18 (0.1252)
3.21 (0.1264)
3.24 (0.1276)
3.27 (0.1287)
3.30 (0.1299)

3.33 (0.1311)

3.36 (0.1323)

38154 U1500
38154 U1501
38154 U1502
38154 U1503
38154 U1504
38154 U1505
38154 U1506
38154 U1507
38154 U1508
38154 U1509

3.39 (0.1335)
3.42 (0.1346)
3.45 (0.1358)
3.48 (0.1370)
3.51 (0.1382)
3.54 (0.1394)
3.57 (0.1406)
3.60 (0.1417)
3.63 (0.1429)
3.66 (0.1441)

38154 U1510

38154 U1511

38154U1512

38154 U1513
38154 U1514
38154 U1515
38154 U1516
38154 U1517
38154 U1518
38154 U1519

Thickness

Part number*

Thickness

Part number*

3.81 (0.1500)
3.83 (0.1508)
3.85 (0.1516)
3.87 (0.1524)
3.89 (0.1531)
3.91 (0.1539)
3.93 (0.1547)
3.95 (0.1555)

38125 61001
38126 61001
38127 61001
38128 61001
39129 61001
38130 61001
38131 61001
38132 61001

3.97 (0.1563)
3.99 (0.1571)
4.01 (0.1579)
4.03 (0.1587)
4.05 (0.1594)
4.07 (0.1602)
4.09 (0.1610)

38133 61001
38134 61001
38135 61001
38136 61001
38137 61001
38138 61001
38139 61001

Thickness

Part number*

Thickness

Part number*

5.19 (0.2043)
5.49 (0.2161)
5.79 (0.2280)

38151 AR000
38151 AR001
38151 AR002

6.09 (0.2398)
6.39 (0.2516)

38151 AR003
38151 AR004

Thickness

Part number*

Thickness

Part number*

0.20 (0.0079)
0.25 (0.0098)

0.30 (0.0118)

38453 AR000
38453 AR001
38453 AR002

0.40 (0.0157)
0.50 (0.0197)

38453 AR003
38453 AR004

SERVICE DATA AND SPECIFICATIONS (SDS)

FFD-41

< SERVICE INFORMATION >

C

E

F

G

H

I

J

K

L

M

A

B

FFD

N

O

P

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Thickness

Part number*

Thickness

Part number*

0.10 (0.0039)
0.12 (0.0047)
0.15 (0.0059)
0.17 (0.0067)
0.20 (0.0079)

38453 AR010

38453 AR011

38453 AR012
38453 AR013
38453 AR014

0.25 (0.0098)

0.30 (0.0118)

0.40 (0.0157)
0.50 (0.0197)

38453 AR015
38453 AR016
38453 AR017
38453 AR018
