EX-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

EX

A

EX

N

O

P

CONTENTS

EXHAUST SYSTEM

SERVICE INFORMATION  ............................

2

PREPARATION ...................................................

2

Commercial Service Tool  ..........................................

2

EXHAUST SYSTEM ...........................................

3

Checking Exhaust System ........................................

3

Component ...............................................................

3

Removal and Installation  ..........................................

4

EX-2

< SERVICE INFORMATION >

PREPARATION

SERVICE INFORMATION

PREPARATION

Commercial Service Tool

INFOID:0000000001327113

Tool name

Description

Power tool

Loosening nuts and bolts

PBIC0190E

EXHAUST SYSTEM

EX-3

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

EXHAUST SYSTEM

Checking Exhaust System

INFOID:0000000001327114

Check exhaust pipes, muffler and mounting for improper attachment,
leaks, cracks, damage or deterioration.
• If anything is found, repair or replace damaged parts.

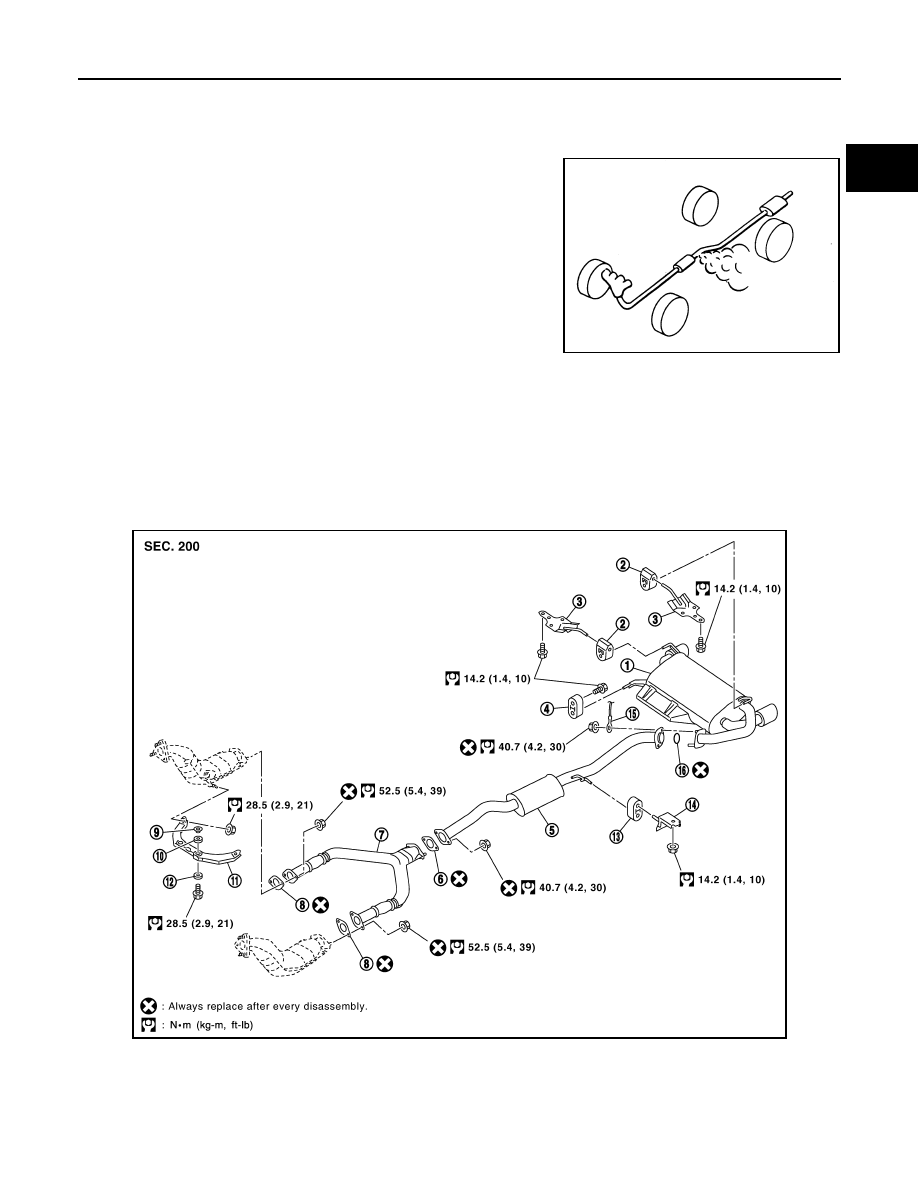

Component

INFOID:0000000001327115

CAUTION:

• Be sure to use genuine exhaust system parts or equivalents which are specially designed for heat

resistance, corrosion resistance, and shape.

• Perform the operation with the exhaust system fully cooled down because the system will be hot

just after engine stops.

• Be careful not to cut your hand on the heat insulator edge.

VQ35DE

SMA211A

PBIC1583E

1.

Main muffler

2.

Mounting rubber

3.

Main muffler mounting bracket

4.

Mounting rubber

5.

Center muffler

6.

Gasket

7.

Exhaust front tube

8.

Gasket

9.

Collar

10. Grommet

11. Exhaust mounting bracket

12. Grommet

EX-4

< SERVICE INFORMATION >

EXHAUST SYSTEM

VK45DE

Removal and Installation

INFOID:0000000001327116

REMOVAL

• Disconnect each joint and mounting using power tool.
• When removing main muffler, remove main muffler mounting bracket bolts.
• Remove exhaust mounting bracket as follows:
1.

Remove engine rear undercover.

2.

Remove front cross bar.

FSU-5, "On-Vehicle Inspection and Service"

.

3.

Remove exhaust mounting bracket.

INSTALLATION

Note the following, and install in the reverse order of removal.

13. Mounting rubber

14. Bracket

15. Ground cable

16. Ring gasket

PBIC1775E

1.

Main muffler

2.

Mounting rubber

3.

Main muffler mounting bracket

4.

Mounting rubber

5.

Center muffler

6.

Dynamic damper

7.

Gasket

8.

Exhaust front tube

9.

Gasket

10. Mounting bracket

11. Exhaust mounting bracket

12. Collar

13. Grommet

14. Grommet

15. Mounting rubber

16. Bracket

17. Ground cable

18. Ring gasket
