• When handling new O-rings, be careful of the following caution.

CAUTION:

• Handle O-ring with bare hands. Do not wear gloves.
• Lubricate O-ring with new engine oil.
• Do not clean O-ring with solvent.
• Make sure that O-ring and its mating part are free of foreign material.
• When installing O-ring, be careful not to scratch it with tool or fingernails. Also be careful not

to twist or stretch O-ring. If O-ring was stretched while it was being attached, do not insert it
quickly into fuel tube.

• Insert new O-ring straight into fuel tube. Do not decenter or twist it.

• Insert fuel feed damper straight into fuel tube (RH).
• Tighten mounting bolts evenly in turn.
• After tightening mounting bolts, make sure that there is no gap between flange and fuel tube (RH).

2.

Install new O-rings to fuel injector paying attention to the following caution.

CAUTION:

• Upper and lower O-ring are different. Be careful not to confuse them.

• Handle O-ring with bare hands. Never wear gloves.
• Lubricate O-ring with new engine oil.
• Do not clean O-ring with solvent.
• Make sure that O-ring and its mating part are free of foreign material.
• When installing O-ring, be careful not to scratch it with tool or fingernails. Also be careful not to

twist or stretch O-ring. If O-ring was stretched while it was being attached, do not insert it
quickly into fuel tube.

• Insert O-ring straight into fuel injector. Do not decenter or twist it.

3.

Install fuel injector to fuel tube as follows:

a.

Insert clip into clip mounting groove on fuel injector.

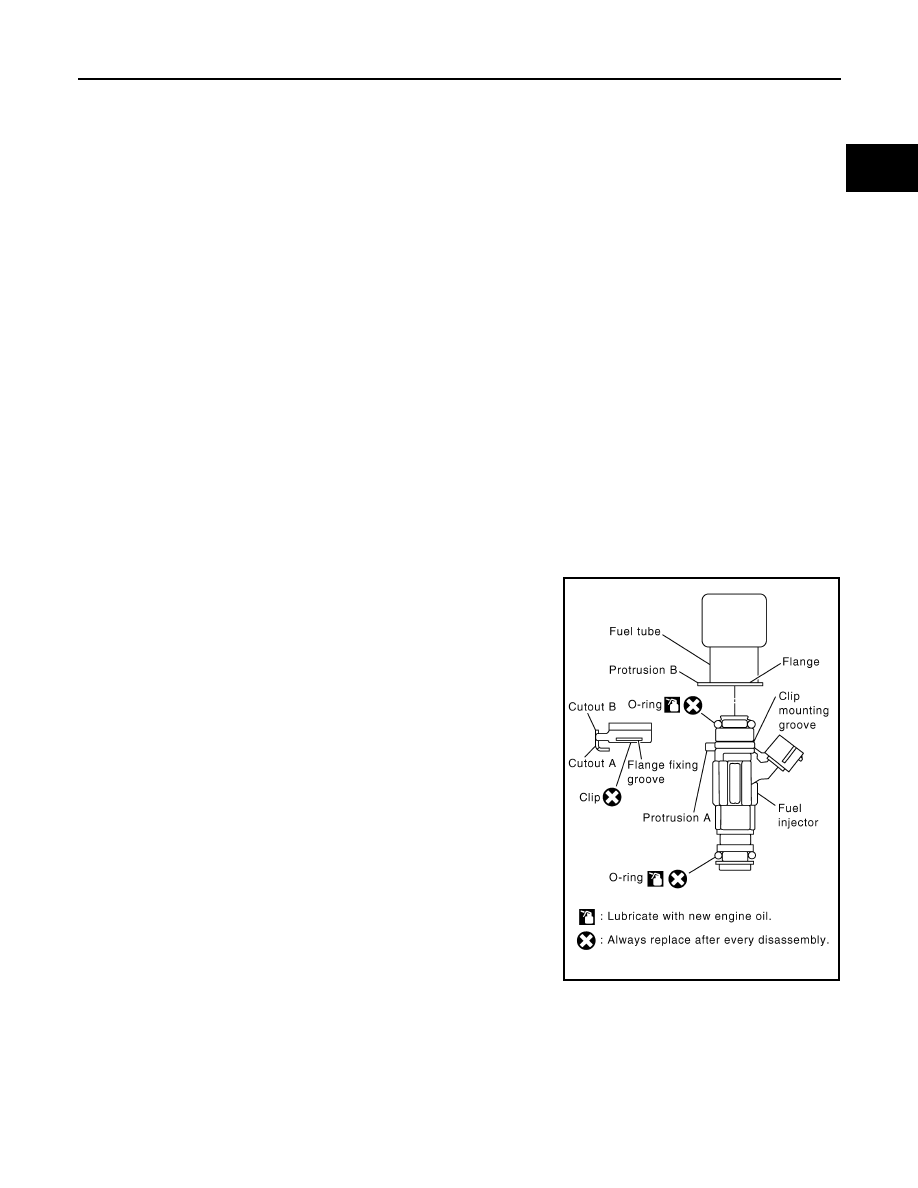

• Insert clip so that “protrusion A” of fuel injector matches “cut-

out A” of clip.

CAUTION:

• Do not reuse clip. Replace it with a new one.
• Be careful to keep clip from interfering with O-ring. If

interference occurs, replace O-ring.

b.

Insert fuel injector into fuel tube with clip attached.
• Insert it while matching it to the axial center.
• Insert fuel injector so that “protrusion B” of fuel tube matches

“cutout B” of clip.

• Make sure that fuel tube flange is securely fixed in flange fixing

groove on clip.

c.

Make sure that installation is complete by checking that fuel
injector does not rotate or come off.
• Make sure that protrusions of fuel injectors are aligned with

cutouts of clips after installation.

4.

Install spacers on intake manifold (lower).

5.

Install fuel tube and fuel injector assembly to intake manifold (lower).

CAUTION:

Be careful not to let tip of injector nozzle come in contact with other parts.

Fuel tube side

: Black

Nozzle side

: Green

PBIC2545E

EM-194

< SERVICE INFORMATION >

[VK45DE]

FUEL INJECTOR AND FUEL TUBE

• Tighten mounting bolts in two steps in numerical order as

shown in the figure.

6.

Connect fuel feed hose on engine side as follows: (Unless otherwise indicated, the installation to the
engine side and centralized under-floor piping side is exactly alike.)

a.

Make sure no foreign substances are deposited in and around fuel tube and quick connector, and no dam-
age on them.

b.

Thinly apply new engine oil around fuel tube from tip end to spool end.

c.

Align center to insert quick connector straightly into fuel tube.
Engine side:
• Insert fuel tube into quick connector until top spool is com-

pletely inside quick connector, and 2nd level spool exposes
right below quick connector.

CAUTION:

• Hold “A” position as shown in the figure when inserting

fuel tube into quick connector.

• Carefully align center to avoid inclined insertion to pre-

vent damage to O-ring inside quick connector.

• Insert until you hear a “click” sound and actually feel the

engagement.

• To avoid misidentification of engagement with a similar sound, be sure to perform the next step.
Centralized under-floor piping side:
• Visually confirm that the two retainer tabs are connected to the connector.

CAUTION:

• Carefully align center to avoid inclined insertion to prevent damage to O-ring inside quick con-

nector.

• Insert until you hear a “click” sound and actually feel the engagement.
• To avoid misidentification of engagement with a similar sound, be sure to perform the next step.

d.

Pull quick connector by hand holding position. Make sure it is completely engaged (connected) so that it
does not come out from fuel tube.

e.

Install quick connector cap on quick connector connection.

CAUTION:

If cap cannot be installed smoothly, quick connector may
have not been installed correctly. Check connection again.

f.

Install fuel feed hose to hose clamps.

7.

Install in the reverse order of removal after this step.

INSPECTION AFTER INSTALLATION

Check on Fuel Leakage

1.

Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.
NOTE:
Use mirrors for checking at points out of clear sight.

A

: Right bank

B

: Left bank

: Engine front

 1st step

: 10.1 N·m (1.0 kg-m, 7 ft-lb)

 2nd step

: 23.5 N·m (2.4 kg-m, 17 ft-lb)

PBIC3303E

KBIA0272E

SBIA0354E

FUEL INJECTOR AND FUEL TUBE

EM-195

< SERVICE INFORMATION >

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

2.

Start engine. With engine speed increased, check again for fuel leakage at connection points.

CAUTION:

Do not touch engine immediately after stopped, as engine becomes extremely hot.

EM-196

< SERVICE INFORMATION >

[VK45DE]

ROCKER COVER

ROCKER COVER

Component

INFOID:0000000001325786

Removal and Installation

INFOID:0000000001325787

REMOVAL

1.

Remove engine cover with power tool. Refer to

EM-169, "Component"

.

2.

Release the fuel pressure. Refer to

EC-665, "Fuel Pressure Check"

.

3.

Refer to the following for incidental works related to left bank.

a.

Remove air duct (inlet), air cleaner case and mass air flow sensor assembly, air duct and resonator
assembly. Refer to

EM-173, "Component"

.

b.

Move harness on upper rocker cover and its peripheral aside.

c.

Remove harness brackets from camshaft bracket (No. 6). Refer to

EM-211, "Component"

.

d.

Remove electric throttle control actuator. Refer to

EM-175, "Component"

.

e.

Remove ignition coil. Refer to

EM-187, "Component"

.

f.

Remove PCV hose from PCV valve.

4.

Refer to the following for incidental works related to right bank.

a.

Move harness on upper rocker cover and its peripheral aside.

b.

Remove ignition coil

EM-187, "Component"

.

c.

Remove PCV hose from PCV valve.

5.

Remove PCV valves and O-rings from rocker covers (right and left bank), if necessary.

6.

Remove oil filler cap and oil catcher from rocker cover (right bank), if necessary.

1.

Rocker cover (left bank)

2.

PCV valve

3.

O-ring

4.

Rocker cover gasket (left bank)

5.

Rocker cover (right bank)

6.

PCV valve

7.

O-ring

8.

Oil filler cap

9.

Oil catcher

10.

Rocker cover gasket (right bank)

PBIC2353E
