EI-36

< SERVICE INFORMATION >

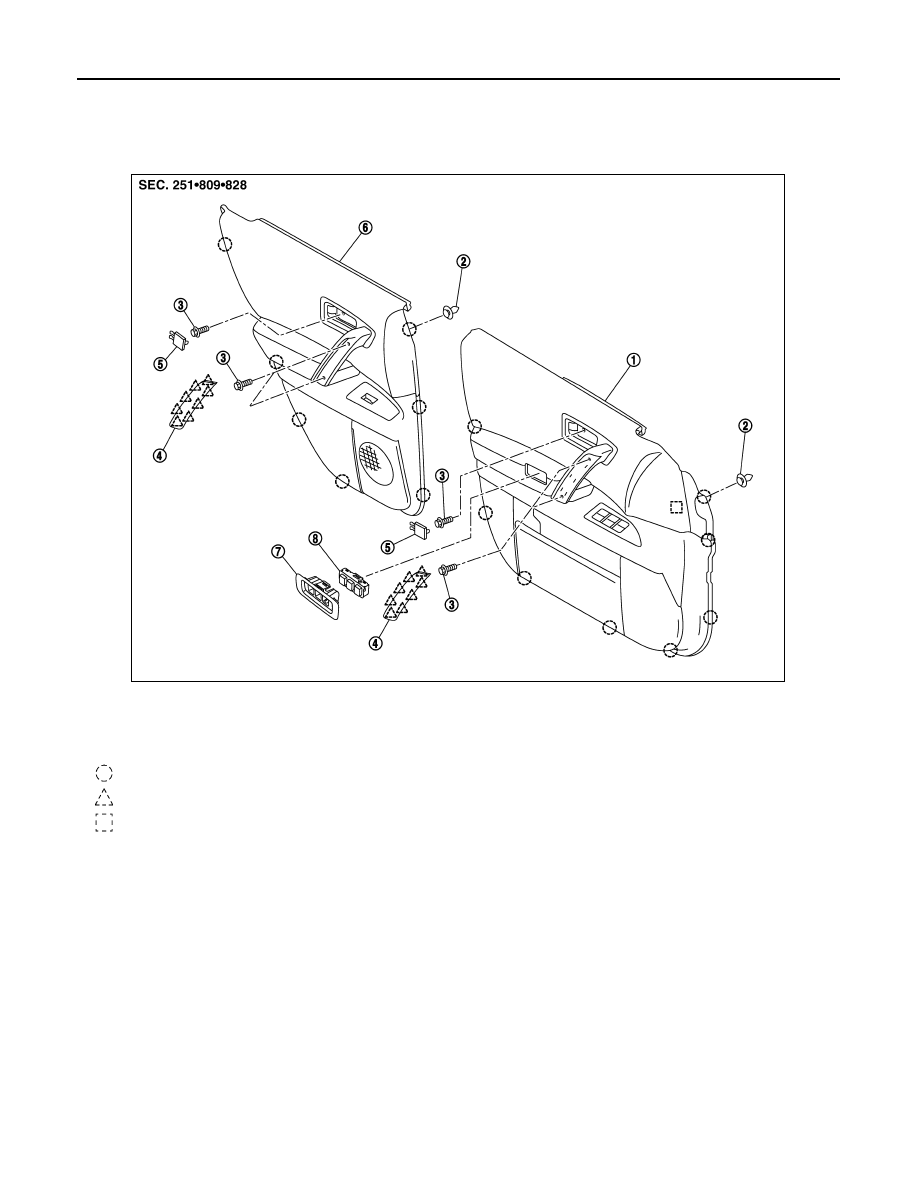

DOOR FINISHER

DOOR FINISHER

Component Parts Location

INFOID:0000000001328074

Removal and Installation

INFOID:0000000001529409

DOOR FINISHER (FRONT AND REAR)

Removal

1.

Remove door finisher cap of inside handle portion and remove bolt.

2.

Remove door grip cap and remove bolts of door grip portion.

1.

Door finisher (front)

2.

Clip (C101)

3.

Bolt

4.

Door grip cap

5.

Door finisher cap

6.

Door finisher (rear)

7.

Seat memory switch finisher

8.

Seat memory switch

: Clip

: Pawl

: Metal clip

PIIB8502E

DOOR FINISHER

EI-37

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

EI

N

O

P

3.

Insert screw driver rolled with cloth between panel on vehicle
and clips (as indicated with arrow), and remove finisher.

4.

Pull up door finisher, and remove electrical parts connectors.

5.

Remove lock knob cable, inside handle cable and illumination
harness connector (front door only) from backside of inside han-
dle assembly.

6.

Remove the following parts after removing door finisher.
• Inside handle
• Seat memory switch and seat memory switch finisher
• Power window switch
• Step lamp

Installation

Install in the reverse order of removal.

CAUTION:

To install finisher, check if all clips are matched over holes of panel on vehicle, then push it.

SIIA0810E

PIIA4959E

EI-38

< SERVICE INFORMATION >

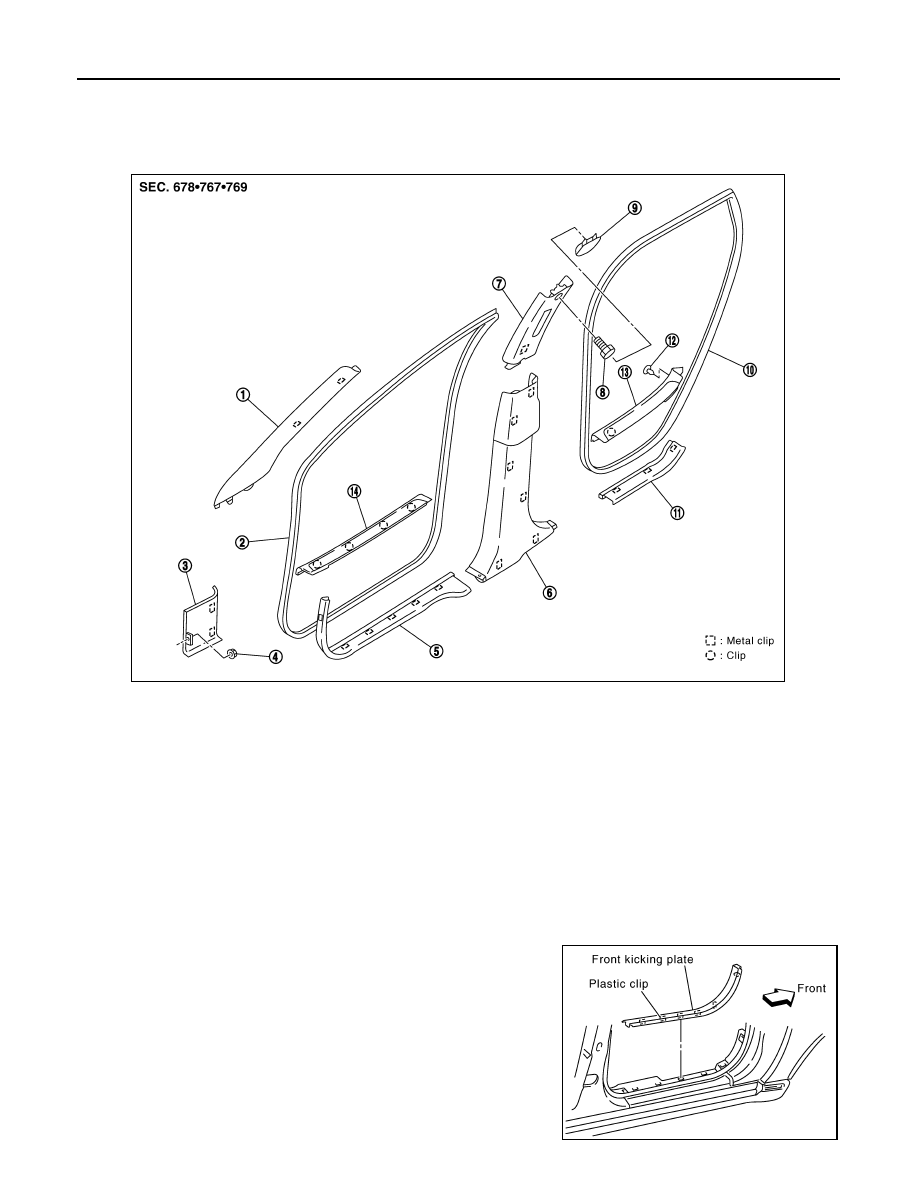

BODY SIDE TRIM

BODY SIDE TRIM

Component Parts Location

INFOID:0000000001328075

Removal and Installation

INFOID:0000000001529410

CAUTION:

Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.

CENTER PILLAR LOWER GARNISH

Removal

1.

Remove front and rear kicking plate.

2.

Remove front and rear body side welt.

1.

Front pillar garnish

2.

Front body side welt

3.

Dash side finisher

4.

Nut

5.

Front kicking plate

6.

Center pillar lower garnish

7.

Center pillar upper garnish

8.

Bolt

9.

Center pillar upper cap

10. Rear body side welt

11. Rear kicking plate

12. Clip (C203)

13. Center mudguard finisher (rear)

14. Center mudguard finisher (front)

PIIA4340E

PIIA4344E

BODY SIDE TRIM

EI-39

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

EI

N

O

P

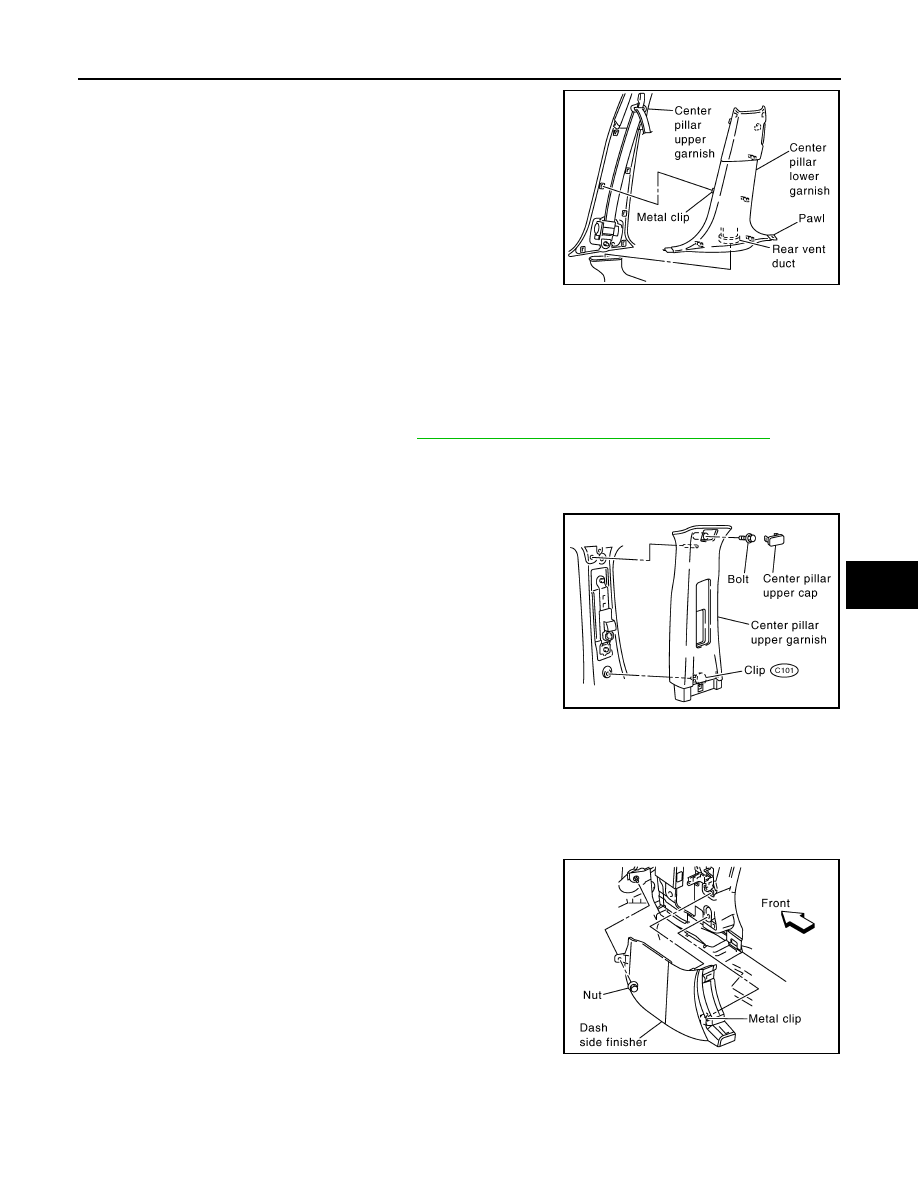

3.

Remove center pillar lower garnish.

NOTE:
Insert screwdriver rolled with cloth between panel on vehicle and
clips, then disconnect clips.

Installation

Install in the reverse order of removal.
NOTE:
To install, check if all clips are matched over holes of panel on vehicle, then push on.

CENTER PILLAR UPPER GARNISH

Removal

1.

Remove seat belt shoulder anchor. Refer to

SB-3, "Removal and Installation of Front Seat Belt"

.

2.

Remove front and rear kicking plate.

3.

Remove front and rear body side welt.

4.

Remove center pillar lower garnish.

5.

Remove center pillar upper cap and bolt.

6.

Remove center pillar upper garnish.

Installation

Install in the reverse order of removal.

DASH SIDE FINISHER

Removal

1.

Remove front kicking plate.

2.

Remove front body side welt.

3.

Remove nut.

4.

Remove dash side finisher.

NOTE:
Insert screwdriver rolled with cloth between panel on vehicle and
clips, then disconnect clips.

Installation

Install in the reverse order of removal.
NOTE:
To install, check if all clips are matched over holes of panel on vehicle, then push on.

PIIA4341E

PIIA4342E

PIIA4343E
