Infiniti FX35 / FX45. Manual - part 615





EI-24

< SERVICE INFORMATION >

FENDER PROTECTOR

FENDER PROTECTOR

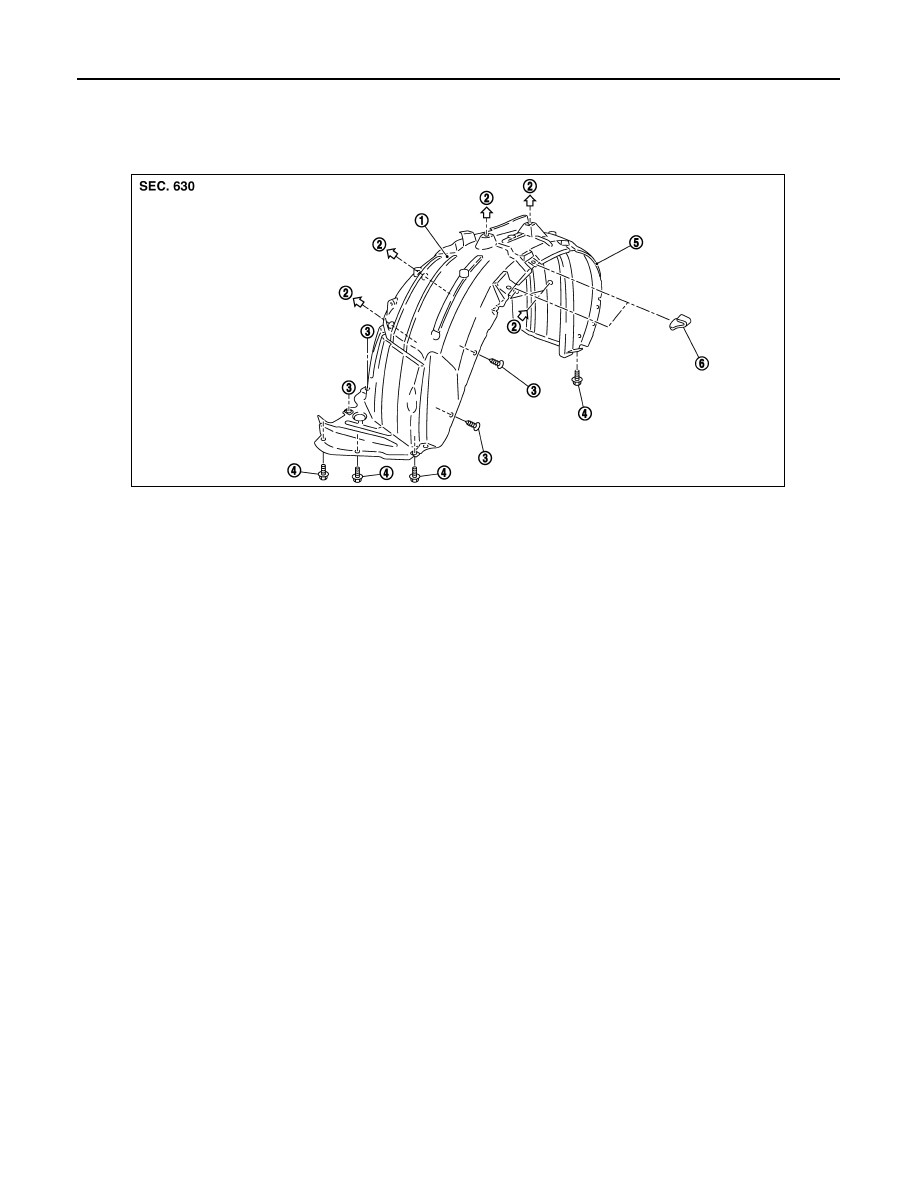

Component Parts Location

INFOID:0000000001328064

Removal and Installation

INFOID:0000000001529399

REMOVAL

1.

Remove bolts of fender protector front.

2.

Remove clips of fender protector front.

3.

Remove fender protector front.

4.

Remove bolt of fender protector rear.

5.

Remove clips of fender protector rear.

6.

Remove fender protector rear.

INSTALLATION

Install in the reverse order of removal.

1.

Fender protector front

2.

Clip (C103)

3.

Screw

4.

Bolt

5.

Fender protector rear

6.

Clip

PIIA4326E

DOOR OUTSIDE MOLDING

EI-25

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

EI

N

O

P

DOOR OUTSIDE MOLDING

Component Parts Location

INFOID:0000000001328065

Removal and Installation

INFOID:0000000001529400

FRONT DOOR OUTSIDE MOLDING

Removal

1.

Open windows fully.

2.

Remove door mirror. Refer to

GW-87, "Removal and Installation"

.

3.

Disconnect pawl on rear edge of molding.

4.

Lift up to upper side, and remove molding.

Installation

Install in the reverse order of removal.

REAR DOOR OUTSIDE MOLDING

Removal

1.

Open windows fully.

2.

Disconnect pawl on front edge and rear edge of molding.

3.

Lift up to upper side, and remove molding.

Installation

Install in the reverse order of removal.

CAUTION:

• Be careful not to apply excessive force when removing because it is easy deform parts.
• After removal, visually inspect molding, and it is deformed, replace it with new molding.

1.

Rear door outside molding

2.

Rear door panel

3.

Front door panel

4.

Front door outside molding

PIIA4949E

EI-26

< SERVICE INFORMATION >

DOOR OUTSIDE LOWER MOLDING

DOOR OUTSIDE LOWER MOLDING

Component Parts Location

INFOID:0000000001328066

Removal and Installation

INFOID:0000000001529401

FRONT AND REAR DOOR OUTSIDE LOWER MOLDING

Removal

Remove clips, then remove door outside lower molding with double-faced adhesive tape.

Installation

1.

Clean adhesive portion of front and rear door with white gasoline.

2.

Strip pattern from the new door outside lower molding and paste on door.

CAUTION:

• Do not let air between contact surfaces when installing.
• To secure contact, do not wash vehicle within 24 hours after installation.

1.

Rear door outside lower molding

2.

Front door outside lower molding

3.

Clip (with lower molding)

4.

Grommet

5.

Door panel

6.

Double-faced adhesive tape

PIIA4348E

DOOR PARTING SEAL

EI-27

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

EI

N

O

P

DOOR PARTING SEAL

Component Parts Location

INFOID:0000000001328067

Removal and Installation

INFOID:0000000001529402

REMOVAL

1.

Remove rear door outside lower molding. Refer to

EI-26, "Removal and Installation"

.

2.

Open front door and rear door fully.

3.

Remove double-faced adhesive tapes and rear door parting seal (front).

4.

Remove clip and double-faced adhesive tapes, and then remove front door parting seal (lower).

5.

Remove clip and double-faced adhesive tapes, and then remove rear door parting seal (lower).

INSTALLATION

1.

Clean adhesive portion of rear door with white gasoline.

2.

Strip pattern from the new rear door parting seal and paste on rear door panel.

1.

Front door parting seal (lower)

2.

Rear door parting seal (lower)

3.

Rear door parting seal (front)

4.

Front door panel

5.

Rear door panel

6.

Rear door outside lower molding

: Clip

PIIB8501E
