Infiniti FX35 / FX45. Manual - part 593





DTC P2A00, P2A03 A/F SENSOR 1

EC-1133

< SERVICE INFORMATION >

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

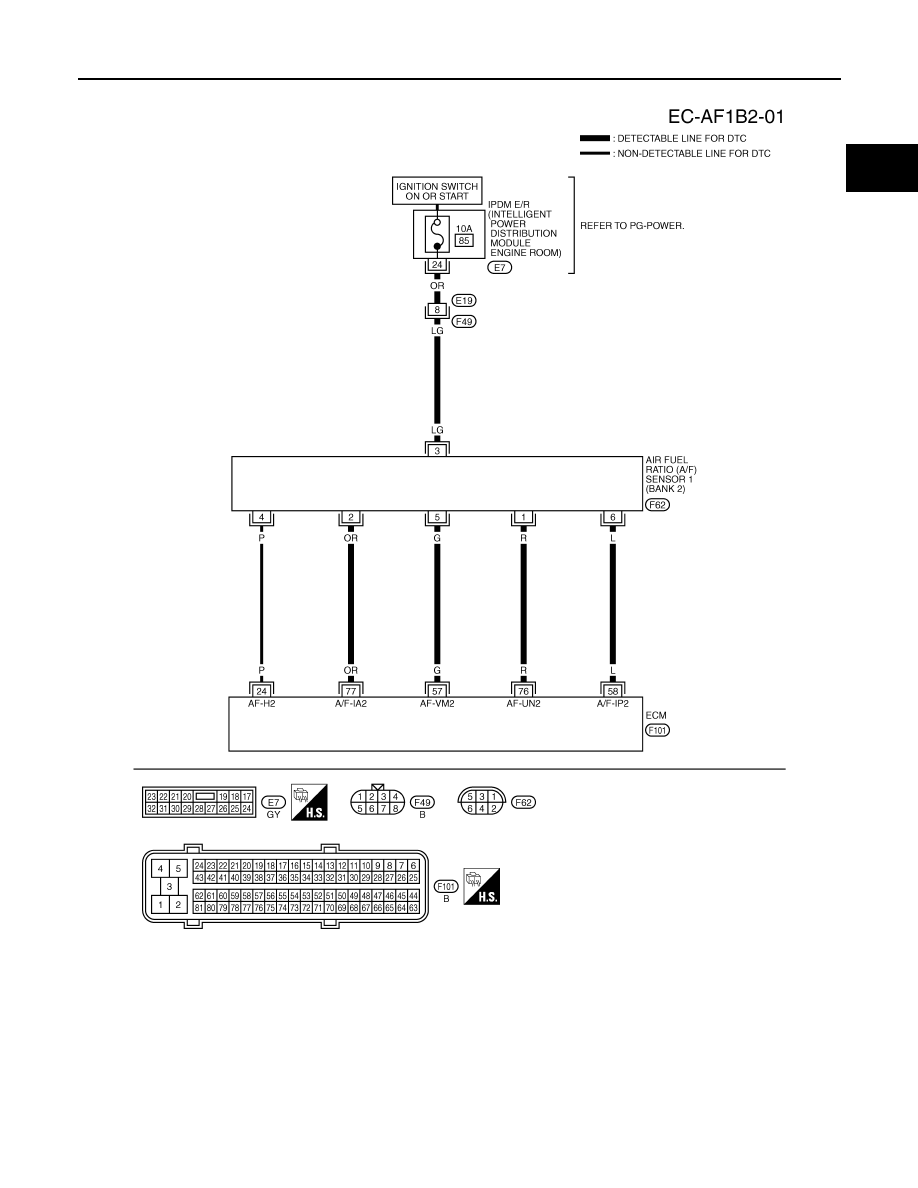

BANK 2

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TBWM1374E

EC-1134

< SERVICE INFORMATION >

[VK45DE]

DTC P2A00, P2A03 A/F SENSOR 1

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

Diagnosis Procedure

INFOID:0000000001327037

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten three ground screws on the body.
Refer to

EC-723, "Ground Inspection"

.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

2.

RETIGHTEN AIR FUEL RATIO (A/F) SENSOR 1

1.

Loosen and retighten the air fuel ratio (A/F) sensor 1.

TER-

MI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

24

P

A/F sensor 1 heater
(Bank 2)

[Engine is running]
• Warm-up condition
• Idle speed

Approximately 5V

57

G

A/F sensor 1 (Bank 2)

[Engine is running]
• Warm-up condition
• Idle speed

Approximately 2.6V

58

L

Approximately 2.3V

76

R

Approximately 3.1V

77

OR

Approximately 2.3V

PBIB1584E

PBIB2195E

1.

A/F sensor 1 (Bank 1)

2.

Heated oxygen sensor 2 (Bank 1)

3.

Heated oxygen sensor 2 (Bank 1)
harness connector

4.

Heated oxygen sensor 2 (Bank 2)
harness connector

5.

Heated oxygen sensor 2 (Bank 2)

6.

A/F sensor 1 (Bank 2)

PBIB3239E

DTC P2A00, P2A03 A/F SENSOR 1

EC-1135

< SERVICE INFORMATION >

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

>> GO TO 3.

3.

CHECK FOR INTAKE AIR LEAK

1.

Start engine and run it at idle.

2.

Listen for an intake air leak after the mass air flow sensor.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace.

4.

CLEAR THE SELF-LEARNING DATA

 With CONSULT-III

1.

Start engine and warm it up to normal operating temperature.

2.

Select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CONSULT-III.

3.

Clear the self-learning control coefficient by touching “CLEAR”.

4.

Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0171, P0172, P0174 or P0175 detected?
Is it difficult to start engine?

 Without CONSULT-III

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF.

3.

Disconnect mass air flow sensor (1) harness connector.

4.

Restart engine and let it idle for at least 5 seconds.

5.

Stop engine and reconnect mass air flow sensor harness con-
nector.

6.

Make sure DTC P0102 is displayed.

7.

Erase the DTC memory. Refer to

EC-633, "Emission-related

Diagnostic Information"

.

8.

Make sure DTC P0000 is displayed.

9.

Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0171, P0172, P0174 or P0175 detected?
Is it difficult to start engine?

Yes or No

Yes

>> Perform trouble diagnosis for DTC P0171, P0174 or P0172, P0175. Refer to

EC-861

 or

EC-871

.

No

>> GO TO 5.

5.

CHECK HARNESS CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect A/F sensor 1 harness connector.

3.

Check harness connector for water.

Tightening torque: 50 N-m (5.1 kg-m, 37 ft-lb)

PBIB3230E

: Vehicle front

1.

A/F sensor 1 (Bank 2)
harness connector

2.

A/F sensor 1 (Bank 1)
harness connector

Water should not exit.

PBIB3246E

EC-1136

< SERVICE INFORMATION >

[VK45DE]

DTC P2A00, P2A03 A/F SENSOR 1

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace harness connector.

6.

CHECK A/F SENSOR 1 POWER SUPPLY CIRCUIT

1.

Turn ignition switch ON.

2.

Check voltage between A/F sensor 1 terminal 3 and ground with
CONSULT-III or tester.

OK or NG

OK

>> GO TO 8.

NG

>> GO TO 7.

7.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors E19, F49
• IPDM E/R connector E7
• 10A fuse
• Harness for open or short between A/F sensor 1 and fuse

>> Repair or replace harness or connectors.

8.

CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between A/F sensor 1 terminal and ECM terminal as follows.
Refer to Wiring Diagram.

4.

Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.

Voltage: Battery voltage

PBIB1683E

A/F sensor 1 terminal

ECM terminal

Bank 1

1

16

2

75

5

35

6

56

Bank 2

1

76

2

77

5

57

6

58

Continuity should exist.

Bank 1

Bank 2

A/F sensor 1 terminal

ECM terminal

A/F sensor 1 terminal

ECM terminal

1

16

1

76

2

75

2

77

5

35

5

57

6

56

6

58
