DTC P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID

VALVE

EC-945

< SERVICE INFORMATION >

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Component Inspection

INFOID:0000000001326780

EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

 With CONSULT-III

Check air passage continuity of EVAP canister purge volume control
solenoid valve under the following conditions.

 Without CONSULT-III

Check air passage continuity of EVAP canister purge volume control
solenoid valve under the following conditions.

Removal and Installation

INFOID:0000000001326781

EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Refer to

EM-175

.

Condition

(PURG VOL CONT/V value)

Air passage continuity

between A and B

100%

Yes

0%

No

PBIB0149E

Condition

Air passage continuity

between A and B

12V direct current supply between
terminals 1 and 2

Yes

No supply

No

PBIB0150E

EC-946

< SERVICE INFORMATION >

[VK45DE]

DTC P0447 EVAP CANISTER VENT CONTROL VALVE

DTC P0447 EVAP CANISTER VENT CONTROL VALVE

Component Description

INFOID:0000000001326782

The EVAP canister vent control valve is located on the EVAP canis-
ter and is used to seal the canister vent.
This solenoid valve responds to signals from the ECM. When the
ECM sends an ON signal, the coil in the solenoid valve is energized.
A plunger will then move to seal the canister vent. The ability to seal
the vent is necessary for the on board diagnosis of other evaporative
emission control system components.
This solenoid valve is used only for diagnosis, and usually remains
opened.
When the vent is closed, under normal purge conditions, the evapo-
rative emission control system is depressurized and allows “EVAP
Control System” diagnosis.

CONSULT-III Reference Value in Data Monitor Mode

INFOID:0000000001326783

Specification data are reference values.

On Board Diagnosis Logic

INFOID:0000000001326784

DTC Confirmation Procedure

INFOID:0000000001326785

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm battery voltage is more than 11V at idle.
1.

Start engine and wait at least 8 seconds.

2.

Check 1st trip DTC.

3.

If 1st trip DTC is detected, go to

EC-948, "Diagnosis Procedure"

.

PBIB1263E

PBIB1522E

MONITOR ITEM

CONDITION

SPECIFICATION

VENT CONT/V

• Ignition switch: ON

OFF

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0447
0447

EVAP canister vent con-
trol valve circuit open

An improper voltage signal is sent to ECM
through EVAP canister vent control valve.

• Harness or connectors

(The valve circuit is open or shorted.)

• EVAP canister vent control valve

DTC P0447 EVAP CANISTER VENT CONTROL VALVE

EC-947

< SERVICE INFORMATION >

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Wiring Diagram

INFOID:0000000001326786

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TBWM1339E

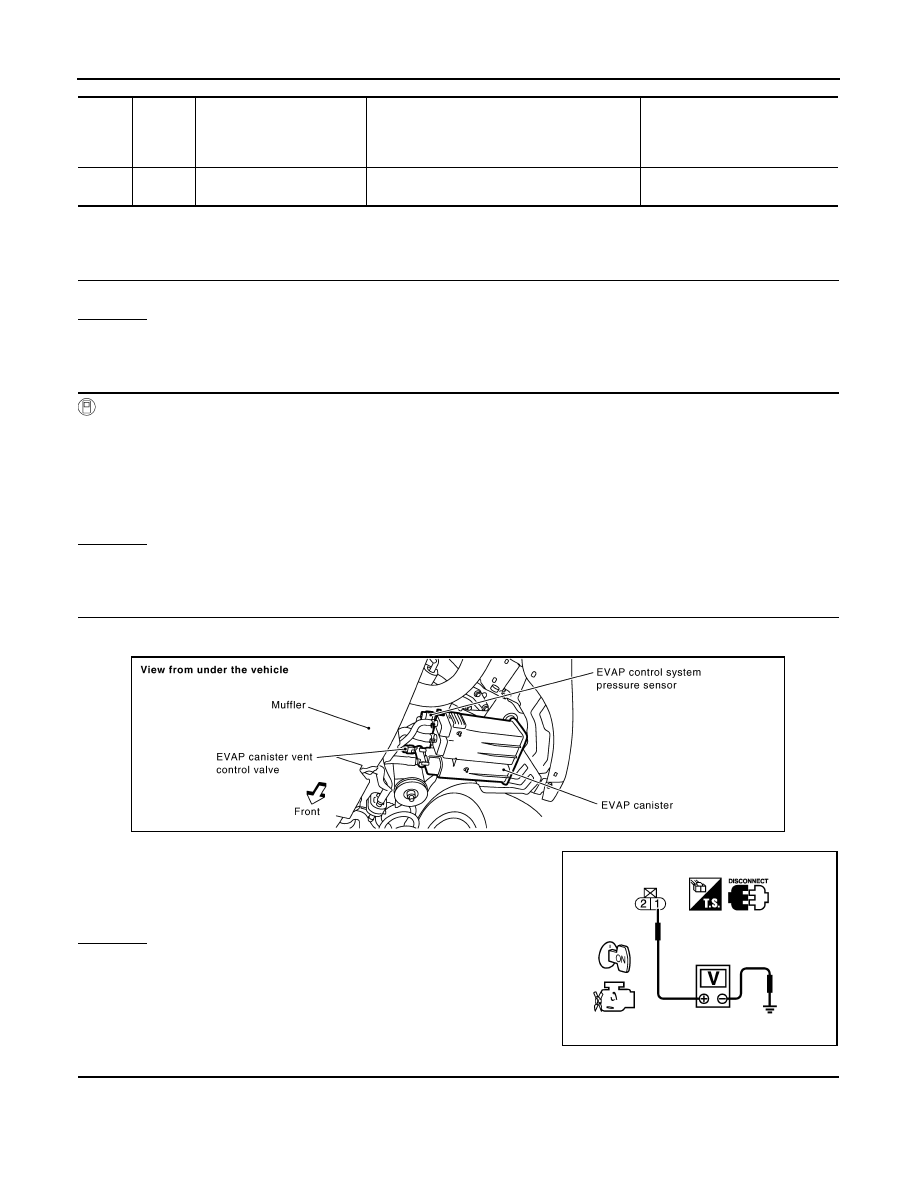

EC-948

< SERVICE INFORMATION >

[VK45DE]

DTC P0447 EVAP CANISTER VENT CONTROL VALVE

Diagnosis Procedure

INFOID:0000000001326787

1.

INSPECTION START

Do you have CONSULT-III?
Yes or No

Yes

>> GO TO 2.

No

>> GO TO 3.

2.

CHECK EVAP CANISTER VENT CONTROL VALVE CIRCUIT

 With CONSULT-III

1.

Turn ignition switch OFF and then turn ON.

2.

Select “VENT CONTROL/V” in “ACTIVE TEST” mode with CONSULT-III.

3.

Touch “ON/OFF” on CONSULT-III screen.

4.

Check for operating sound of the valve.

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 3.

3.

CHECK EVAP CANISTER VENT CONTROL VALVE POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect EVAP canister vent control valve harness connector.

3.

Turn ignition switch ON.

4.

Check voltage between EVAP canister vent control valve termi-
nal 1 and ground with CONSULT-III or tester.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors E211, M41
• Harness connectors M11, B1

TER-

MI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

117

R/Y

EVAP canister vent control
valve

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

Clicking noise should be heard.

Voltage: Battery voltage

PBIB1522E

PBIB0152E
