DTC P0138, P0158 HO2S2

EC-845

< SERVICE INFORMATION >

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

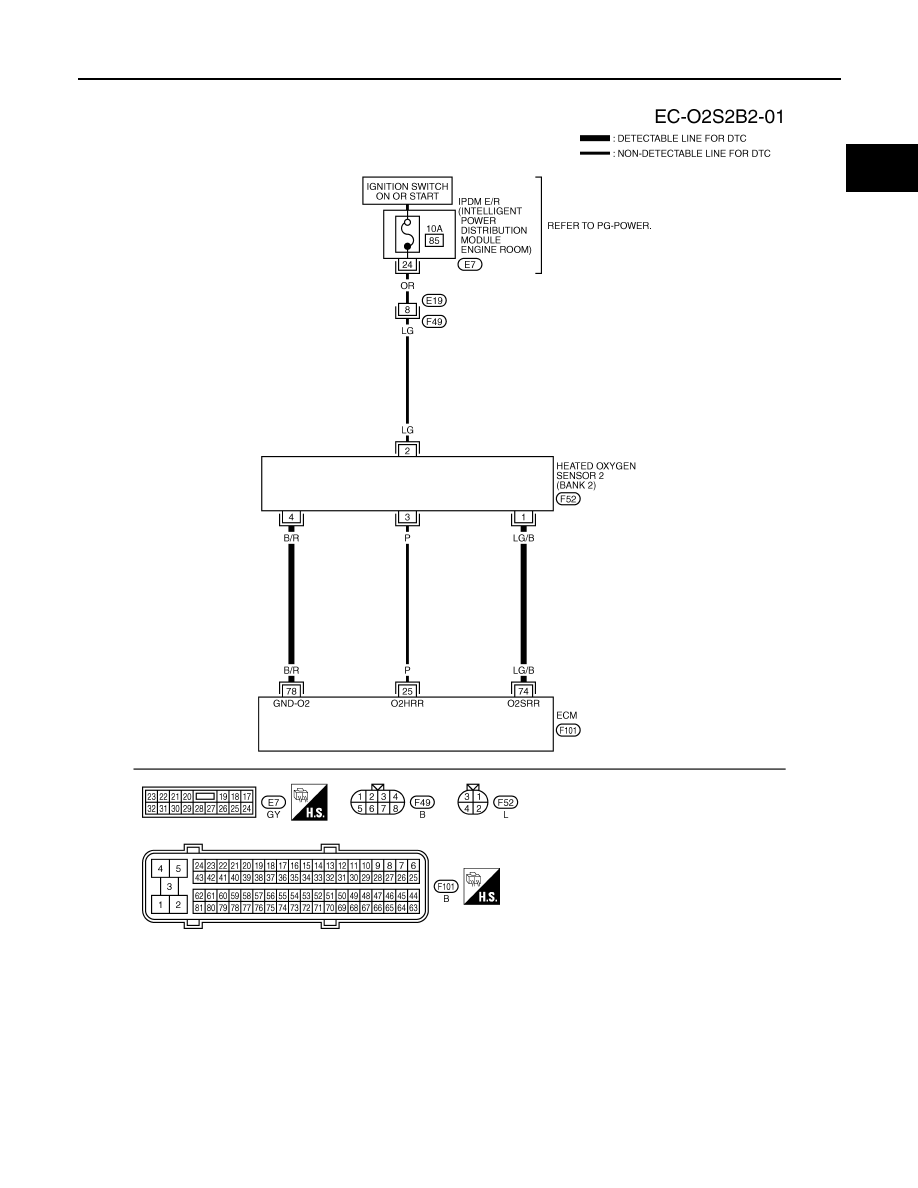

BANK 2

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TBWM1331E

EC-846

< SERVICE INFORMATION >

[VK45DE]

DTC P0138, P0158 HO2S2

Diagnosis Procedure

INFOID:0000000001326686

PROCEDURE FOR MALFUNCTION A

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten three ground screws on the body.
Refer to

EC-723, "Ground Inspection"

.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

2.

CHECK HO2S2 GROUND CIRCUIT FOR OPEN AND SHORT

TER-

MI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

25

P

Heated oxygen sensor 2
heater (Bank 2)

[Engine is running]
• Engine speed: Below 3,600 rpm after the fol-

lowing conditions are met

- Engine: After warming up
- Keeping the engine speed between 3,500

and 4,000 rpm for 1 minute and at idle for 1
minute under no load

0 - 1.0V

[Ignition switch: ON]
• Engine stopped
[Engine is running]
• Engine speed: Above 3,600 rpm

BATTERY VOLTAGE
(11 - 14V)

74

LG/B

Heated oxygen sensor 2
(Bank 2)

[Engine is running]
• Revving engine from idle to 3,000 rpm quick-

ly after the following conditions are met

- Engine: After warming up
- After keeping the engine speed between

3,500 and 4,000 rpm for 1 minute and at idle
for 1 minute under no load

0 - Approximately 1.0V

78

B/R

Sensor ground
(Heated oxygen sensor 2)

[Engine is running]
• Warm-up condition
• Idle speed

Approximately 0V

PBIB2195E

DTC P0138, P0158 HO2S2

EC-847

< SERVICE INFORMATION >

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

1.

Disconnect heated oxygen sensor 2 harness connector.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between HO2S2 terminal 4 and ECM terminal 78.
Refer to Wiring Diagram.

4.

Also check harness for short to ground or short to power.

OK or NG

OK

>> GO TO 3.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

3.

CHECK HO2S2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check harness continuity between ECM terminal and HO2S2 terminal as follows.
Refer to Wiring Diagram.

2.

Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.

3.

Also check harness for short to power.

OK or NG

OK

>> GO TO 4.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK HO2S2 CONNECTOR FOR WATER

Check connectors for water.

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace harness or connectors.

5.

CHECK HEATED OXYGEN SENSOR 2

Continuity should exist.

PBIB1534E

DTC

Terminals

Bank

ECM

Sensor

P0138

55

1

1

P0158

74

1

2

Continuity should exist.

DTC

Terminals

Bank

ECM

Sensor

P0138

55

1

1

P0158

74

1

2

Continuity should not exist.

Water should not exist.

EC-848

< SERVICE INFORMATION >

[VK45DE]

DTC P0138, P0158 HO2S2

Refer to

EC-850, "Component Inspection"

.

OK or NG

OK

>> GO TO 6.

NG

>> Replace malfunctioning heated oxygen sensor 2.

6.

CHECK INTERMITTENT INCIDENT

Refer to

EC-717

.

>> INSPECTION END

PROCEDURE FOR MALFUNCTION B

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten three ground screws on the body.
Refer to

EC-723, "Ground Inspection"

.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

2.

CLEAR THE SELF-LEARNING DATA

 With CONSULT-III

1.

Start engine and warm it up to normal operating temperature.

2.

Select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CONSULT-III.

3.

Clear the self-learning control coefficient by touching “CLEAR”.

4.

Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0172 or P0175 detected?
Is it difficult to start engine?

 Without CONSULT-III

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF.

3.

Disconnect mass air flow sensor (1) harness connector, and
restart and run engine for at least 5 seconds at idle speed.

4.

Stop engine and reconnect mass air flow sensor harness con-
nector.

5.

Make sure DTC P0102 is displayed.

6.

Erase the DTC memory. Refer to

EC-633, "Emission-related

Diagnostic Information"

.

7.

Make sure DTC P0000 is displayed.

8.

Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0172 or P0175 detected?
Is it difficult to start engine?

Yes or No

Yes

>> Perform trouble diagnosis for DTC P0172, P0175. Refer to

EC-871

.

No

>> GO TO 3.

3.

CHECK HO2S2 GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

PBIB2195E

PBIB3230E
