DTC P0133, P0153 A/F SENSOR 1

EC-829

< SERVICE INFORMATION >

[VK45DE]

Turn ignition switch ON.

Check voltage between A/F sensor 1 terminal 3 and ground with
CONSULT-III or tester.

OK or NG

>> GO TO 8.

>> GO TO 7.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors E19, F49
• IPDM E/R connector E7
• 10A fuse
• Harness for open or short between A/F sensor 1 and fuse

>> Repair or replace harness or connectors.

CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

Turn ignition switch OFF.

Disconnect ECM harness connector.

Check harness continuity between A/F sensor 1 terminal and ECM terminal as follows.
Refer to Wiring Diagram.

Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.

: Vehicle front

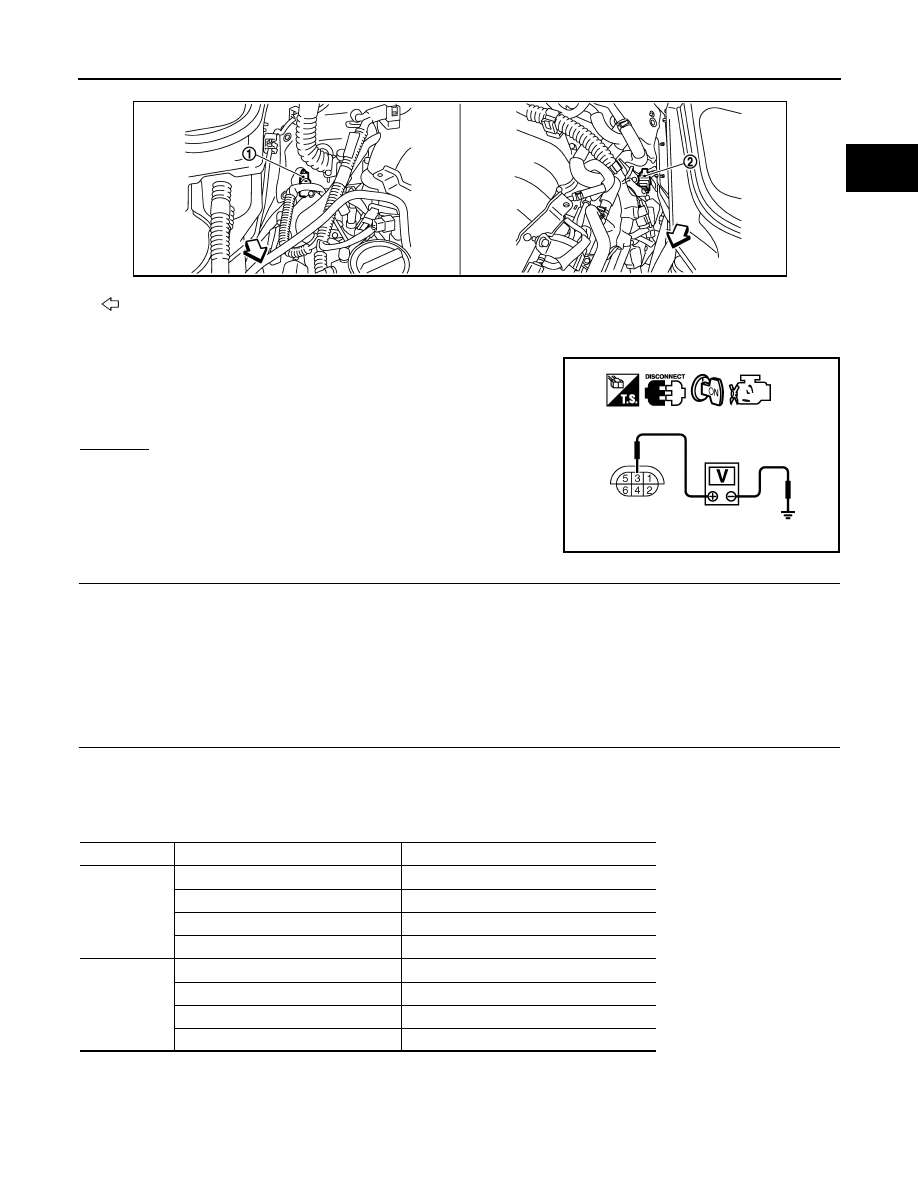

A/F sensor 1 (Bank 2) harness con-
nector

A/F sensor 1 (Bank 1) harness con-
nector

Voltage: Battery voltage

PBIB3246E

PBIB1683E

A/F sensor 1 terminal

ECM terminal

Bank 1

Bank 2

Continuity should exist.

EC-830

< SERVICE INFORMATION >

[VK45DE]

DTC P0133, P0153 A/F SENSOR 1

Also check harness for short to power.

OK or NG

>> GO TO 9.

>> Repair open circuit or short to ground or short to power in harness or connectors.

CHECK AIR FUEL RATIO (A/F) SENSOR 1 HEATER

Refer to

EC-744, "Component Inspection"

OK or NG

>> GO TO 10.

>> GO TO 13.

10.

CHECK MASS AIR FLOW SENSOR

Refer to

EC-773, "Component Inspection"

OK or NG

>> GO TO 11.

>> Replace mass air flow sensor.

11.

CHECK PCV VALVE

Refer to

EC-629, "Component Inspection"

OK or NG

>> GO TO 12.

>> Repair or replace PCV valve.

12.

CHECK INTERMITTENT INCIDENT

Perform

EC-717

OK or NG

>> GO TO 13.

>> Repair or replace.

13.

REPLACE AIR FUEL RATIO (A/F) SENSOR 1

Replace malfunctioning air fuel ratio (A/F) sensor 1.

CAUTION:

• Discard any A/F sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a

hard surface such as a concrete floor; use a new one.

• Before installing new A/F sensor, clean exhaust system threads using Oxygen Sensor Thread

Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.

>> INSPECTION END

Removal and Installation

INFOID:0000000001326670

AIR FUEL RATIO (A/F) SENSOR 1

Refer to

EM-179

Bank 1

Bank 2

A/F sensor 1 terminal

ECM terminal

A/F sensor 1 terminal

ECM terminal

Continuity should not exist.

DTC P0137, P0157 HO2S2

EC-831

< SERVICE INFORMATION >

[VK45DE]

DTC P0137, P0157 HO2S2

Component Description

INFOID:0000000001326671

The heated oxygen sensor 2, after three way catalyst (manifold),
monitors the oxygen level in the exhaust gas on each bank.
Even if switching characteristics of the air fuel ratio (A/F) sensor 1
are shifted, the air-fuel ratio is controlled to stoichiometric, by the sig-
nal from the heated oxygen sensor 2.
This sensor is made of ceramic zirconia. The zirconia generates volt-
age from approximately 1V in richer conditions to 0V in leaner condi-
tions.
Under normal conditions the heated oxygen sensor 2 is not used for
engine control operation.

CONSULT-III Reference Value in Data Monitor Mode

INFOID:0000000001326672

Specification data are reference values.

On Board Diagnosis Logic

INFOID:0000000001326673

The heated oxygen sensor 2 has a much longer switching time
between rich and lean than the A/F sensor 1. The oxygen storage
capacity of the three way catalyst (manifold) causes the longer
switching time. To judge the malfunctions of heated oxygen sensor
2, ECM monitors whether the maximum voltage of the sensor is suf-
ficiently high during the various driving condition such as fuel-cut.

DTC Confirmation Procedure

INFOID:0000000001326674

NOTE:
If DTC confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

SEF327R

MONITOR ITEM

CONDITION

SPECIFICATION

HO2S2 (B1)
HO2S2 (B2)

• Revving engine from idle to 3,000 rpm quickly after the following conditions

are met.

- Engine: After warming up
- Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and at

idle for 1 minute under no load

0 - 0.3V

←→

Approx. 0.6 -

1.0V

HO2S2 MNTR (B1)
HO2S2 MNTR (B2)

• Revving engine from idle to 3,000 rpm quickly after the following conditions

are met.

- Engine: After warming up
- Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and at

idle for 1 minute under no load

LEAN

←→

RICH

PBIB2030E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1147
1147
(Bank 1)

Heated oxygen sensor 2
circuit low voltage

The maximum voltage from the sensor is not
reached to the specified voltage.

• Harness or connectors

(The sensor circuit is open or shorted)

• Heated oxygen sensor 2
• Fuel pressure
• Fuel injector
• Intake air leaks

P1167
1167
(Bank 2)

EC-832

< SERVICE INFORMATION >

[VK45DE]

DTC P0137, P0157 HO2S2

WITH CONSULT-III

TESTING CONDITION:
For better results, perform “DTC WORK SUPPORT” at a temperature of 0 to 30

C (32 to 86

F).

Turn ignition switch ON and select “COOLAN TEMP/S” in “DATA MONITOR” mode with CONSULT-III.

Start engine and warm it up to the normal operating temperature.

Turn ignition switch OFF and wait at least 10 seconds.

Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.

Let engine idle for 1 minute.

Make sure that “COOLAN TEMP/S” indicates more than 70

C (158

F).

If not, warm up engine and go to next step when “COOLAN TEMP/S” indication reaches to 70

C (158

F).

Open engine hood.

Select “HO2S2 (B1) P1147” (for DTC P0137) or “HO2S2 (B2) P1167” (for DTC P0157) of “HO2S2” in
“DTC WORK SUPPORT” mode with CONSULT-III.

Start engine and follow the instruction of CONSULT-III.
NOTE:
It will take at most 10 minutes until “COMPLETED” is displayed.

10. Make sure that “OK” is displayed after touching “SELF-DIAG RESULTS”.

If “NG” is displayed, refer to

EC-836, "Diagnosis Procedure"

If “CAN NOT BE DIAGNOSED” is displayed, perform the following.

Turn ignition switch OFF and leave the vehicle in a cool place (soak the vehicle).

Return to step 1.

Overall Function Check

INFOID:0000000001326675

Use this procedure to check the overall function of the heated oxygen sensor 2 circuit. During this check, a 1st
trip DTC might not be confirmed.

WITH GST

Start engine and warm it up to the normal operating temperature.

Turn ignition switch OFF and wait at least 10 seconds.

Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.

Let engine idle for 1 minute.

Set voltmeter probes between ECM terminal 55 [HO2S2 (B1) signal] or 74 [HO2S2 (B2) signal] and
ground.

Check the voltage when revving up to 4,000 rpm under no load
at least 10 times.
(Depress and release accelerator pedal as soon as possible.)
The voltage should be above 0.78V at least once during this
procedure.
If the voltage can be confirmed in step 6, step 7 is not nec-
essary.

Keep vehicle at idling for 10 minutes, then check the voltage. Or
check the voltage when coasting from 80 km/h (50 MPH) in D
position.
The voltage should be above 0.78V at least once during this
procedure.

If NG, go to

EC-836, "Diagnosis Procedure"

PBIB2024E
