DTC P0011, P0021 IVT CONTROL

EC-729

< SERVICE INFORMATION >

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

• If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at

least 10 seconds before conducting the next test.

TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10V and 16V at
idle.

PROCEDURE FOR MALFUNCTION A

 With CONSULT-III

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-III.

3.

Maintain the following conditions for at least 10 consecutive seconds.

4.

Maintain the following conditions for at least 20 consecutive seconds.

5.

Check 1st trip DTC.

6.

If 1st trip DTC is detected, go to

EC-733, "Diagnosis Procedure"

.

 With GST

Follow the procedure “With CONSULT-III” above.

PROCEDURE FOR MALFUNCTION B

 With CONSULT-III

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-III.

3.

Maintain the following conditions for at least 10 consecutive seconds.

4.

Check 1st trip DTC.

5.

If 1st trip DTC is detected, go to

EC-733, "Diagnosis Procedure"

.

 With GST

Follow the procedure “With CONSULT-III” above.

ENG SPEED

More than 2,000 rpm (A constant rotation is maintained.)

COOLAN TEMP/S

More than 70

°

C (158

°

F)

Selector lever

1st or 2nd position

Driving location uphill

Driving vehicle uphill
(Increased engine load will help maintain the driving conditions
required for this test.)

ENG SPEED

Idle

COOLAN TEMP/S

More than 70

°

C (158

°

F)

Selector lever

P or N position

ENG SPEED

1,700 - 3,175 rpm (A constant rotation is maintained.)

COOLAN TEMP/S

70 - 105

°

C (158 - 221

°

F)

Selector lever

1st or 2nd position

Driving location uphill

Driving vehicle uphill
(Increased engine load will help maintain the driving conditions
required for this test.)

EC-730

< SERVICE INFORMATION >

[VK45DE]

DTC P0011, P0021 IVT CONTROL

Wiring Diagram

INFOID:0000000001326558

BANK 1

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.

CAUTION:

TBWM1323E

DTC P0011, P0021 IVT CONTROL

EC-731

< SERVICE INFORMATION >

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

TER-

MI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

10

OR

Intake valve timing control
solenoid valve (Bank 1)

[Engine is running]
• Warm-up condition
• Idle speed

BATTERY VOLTAGE
(11 - 14V)

[Engine is running]
• Warm-up condition
• Engine speed: 2,000rpm

7 - 12V

72

BR

Intake valve timing control
position sensor (Bank 1)

[Engine is running]
• Warm-up condition
• Idle speed

0 - 1.0V

[Engine is running]
• Engine speed: 2,000rpm

0 - 1.0V

111

W/B

ECM relay
(Self shut-off)

[Engine is running]
[Ignition switch: OFF]
• For a few seconds after turning ignition

switch OFF

0 - 1.5V

[Ignition switch: OFF]
• More than a few seconds after turning igni-

tion switch OFF

BATTERY VOLTAGE
(11 - 14V)

119

120

R
R/B

Power supply for ECM

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

PBIB1790E

PBIB2046E

EC-732

< SERVICE INFORMATION >

[VK45DE]

DTC P0011, P0021 IVT CONTROL

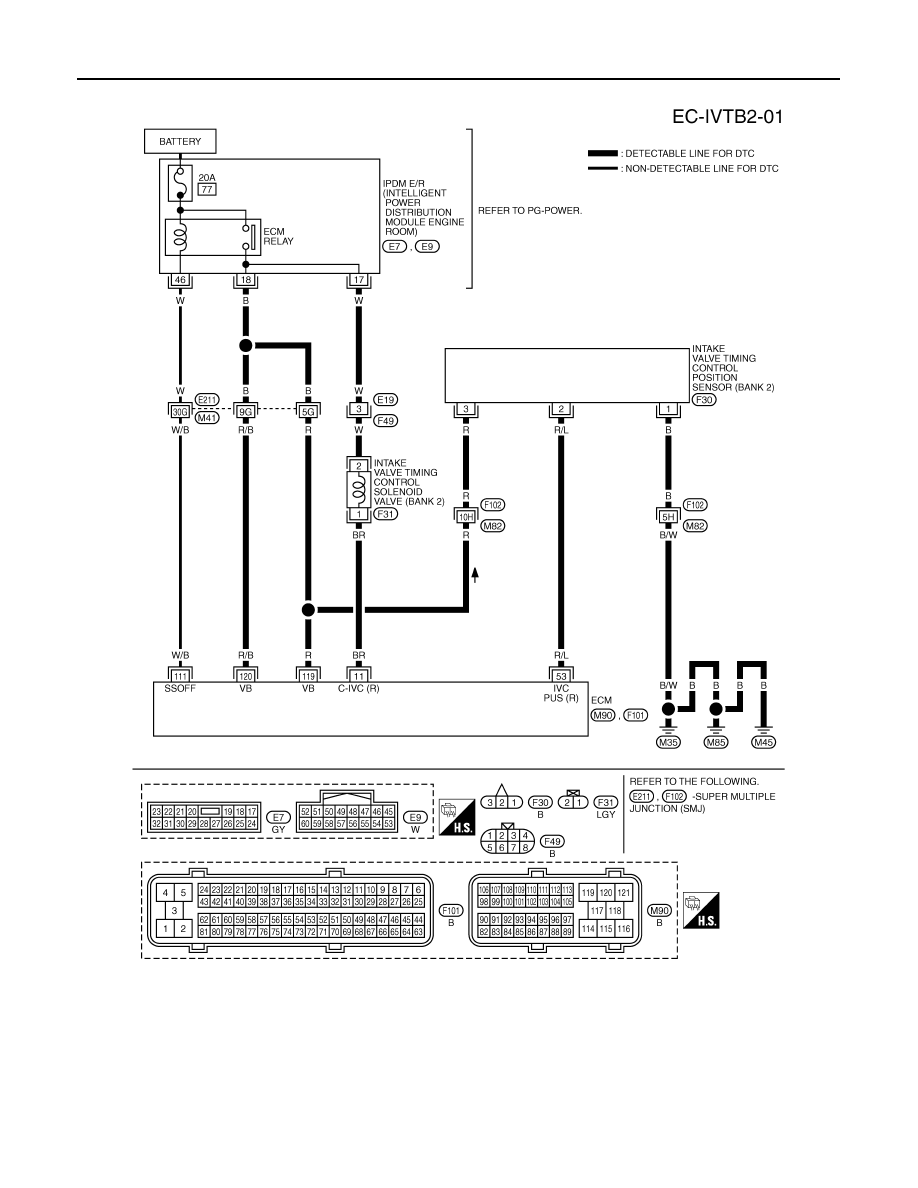

BANK 2

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TBWM1324E
