SNOW MODE SWITCH

EC-589

< SERVICE INFORMATION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 9.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

7.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten ground screw on the body.
Refer to

EC-723, "Ground Inspection"

.

OK or NG

OK

>> GO TO 8.

NG

>> Repair or replace ground connections.

8.

CHECK SNOW MODE INDICATOR LAMP GROUND CIRCUIT FOR OPEN AND SHORT

1.

Check harness continuity between snow mode switch terminal 2 and ground.
Refer to Wiring Diagram.

2.

Also check harness for short to power.

OK or NG

OK

>> GO TO 9.

NG

>> Repair open circuit or short to power in harness or connectors.

9.

CHECK SNOW MODE SWITCH

Refer to

EC-1185, "Component Inspection"

.

OK or NG

OK

>> GO TO 10.

NG

>> Replace snow mode switch.

10.

CHECK INTERMITTENT INCIDENT

Refer to

EC-717

.

>> INSPECTION END

Component Inspection

INFOID:0000000001326468

SNOW MODE SWITCH

Continuity should exist.

PBIB2625E

Continuity should exist.

EC-590

< SERVICE INFORMATION >

[VQ35DE]

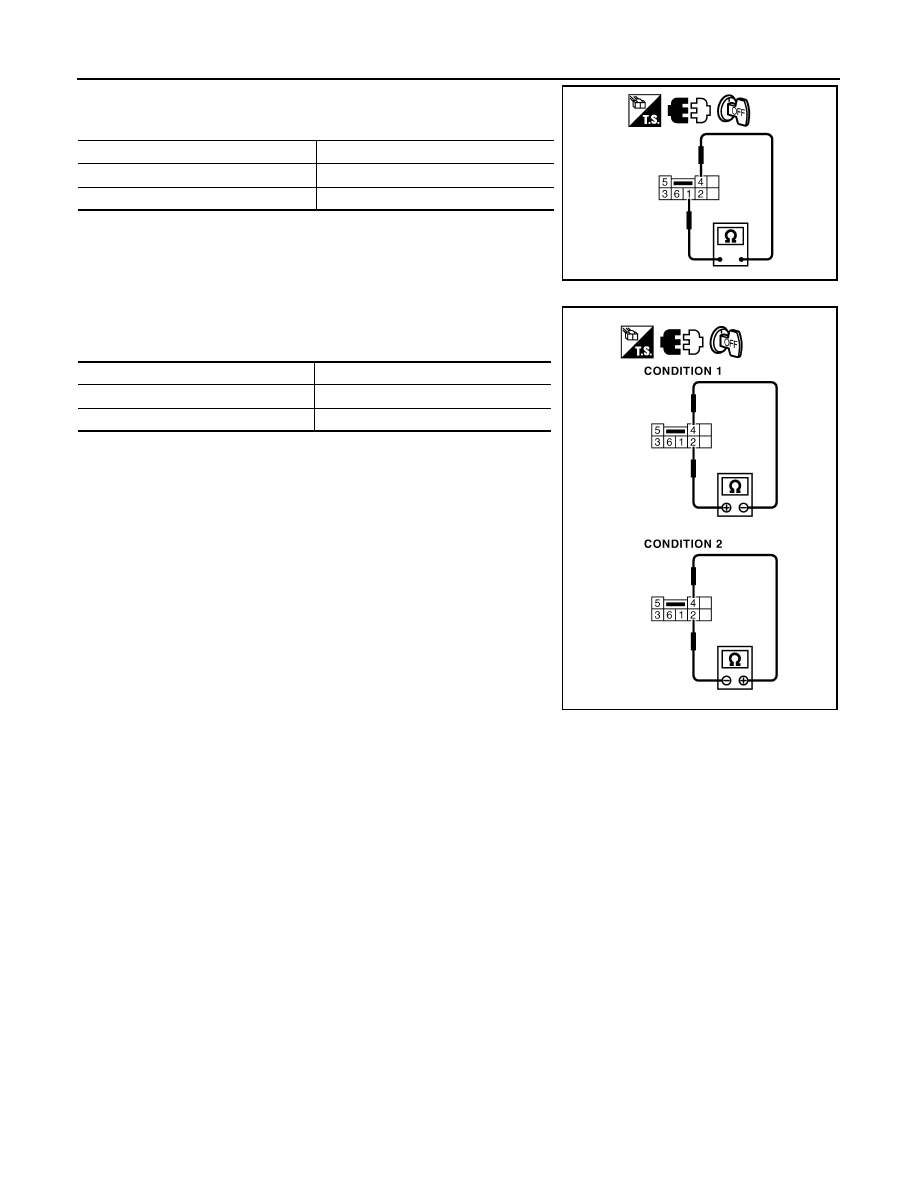

SNOW MODE SWITCH

1.

Check continuity between snow mode switch terminals 1 and 4
under the following conditions.

If NG, replace snow mode switch.
If OK, go to following step.

2.

Check continuity between snow mode switch terminals 2 and 4
under the following conditions.

If NG, replace snow mode switch.

CONDITION

CONTINUITY

Snow mode switch: ON

Should exist.

Snow mode switch: OFF

Should not exist.

PBIB2563E

CONDITION

CONTINUITY

1

Should exist.

2

Should not exist.

PBIB2564E

MIL AND DATA LINK CONNECTOR

EC-591

< SERVICE INFORMATION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

MIL AND DATA LINK CONNECTOR

Wiring Diagram

INFOID:0000000001326469

TBWM1413E

EC-592

< SERVICE INFORMATION >

[VQ35DE]

MIL AND DATA LINK CONNECTOR

TBWM1414E
