Infiniti FX35 / FX45. Manual - part 406





DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR

EC-385

< SERVICE INFORMATION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

2.

Check voltage between EVAP control system pressure sensor
terminal 3 and ground with CONSULT-III or tester.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors M81, B201
• Harness connectors M82, F102
• Harness for open or short between EVAP control system pressure sensor and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between EVAP control system pressure sensor terminal 1 and ECM terminal
67.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 6.

6.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors M81, B201
• Harness connectors M82, F102
• Harness for open or short between EVAP control system pressure sensor and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

7.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND

SHORT

1.

Check harness continuity between ECM terminal 32 and EVAP control system pressure sensor terminal
2.
Refer to Wiring Diagram.

2.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 9.

NG

>> GO TO 8.

8.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors M81, B201
• Harness connectors M82, F102

Voltage: Approximately 5V

PBIB0138E

Continuity should exist.

Continuity should exist.

EC-386

< SERVICE INFORMATION >

[VQ35DE]

DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR

• Harness for open or short between EVAP control system pressure sensor and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

9.

CHECK RUBBER TUBE

1.

Disconnect rubber tube connected to EVAP canister vent control valve.

2.

Check the rubber tube for clogging, vent and kinked.

OK or NG

OK

>> GO TO 10.

NG

>> Clean the rubber tube using an air blower, repair or replace rubber tube.

10.

CHECK EVAP CANISTER VENT CONTROL VALVE

Refer to

EC-364, "Component Inspection"

.

OK or NG

OK

>> GO TO 11.

NG

>> Replace EVAP canister vent control valve.

11.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

Refer to

EC-387, "Component Inspection"

.

OK or NG

OK

>> GO TO 12.

NG

>> Replace EVAP control system pressure sensor.

12.

CHECK IF EVAP CANISTER SATURATED WITH WATER

1.

Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor
attached.

2.

Does water drain from the EVAP canister?

Yes or No

Yes

>> GO TO 13.

No

>> GO TO 15.

13.

CHECK EVAP CANISTER

Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor
attached.
The weight should be less than 2.1 kg (4.6 lb).

OK or NG

OK

>> GO TO 15.

NG

>> GO TO 14.

14.

DETECT MALFUNCTIONING PART

Check the following.
• EVAP canister for damage
• EVAP hose between EVAP canister and vehicle frame for clogging or poor connection

>> Repair hose or replace EVAP canister.

15.

CHECK INTERMITTENT INCIDENT

Refer to

EC-139

.

>> INSPECTION END

PBIB1031E

DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR

EC-387

< SERVICE INFORMATION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Component Inspection

INFOID:0000000001326218

EVAP CONTROL SYSTEM PRESSURE SENSOR

1.

Remove EVAP control system pressure sensor with its harness connector connected from EVAP canister.
Always replace O-ring with a new one.

2.

Install a vacuum pump to EVAP control system pressure sensor.

3.

Turn ignition switch ON and check output voltage between ECM
terminal 32 and ground under the following conditions.

CAUTION:

• Always calibrate the vacuum pump gauge when using it.
• Do not apply below -93.3 kPa (-700 mmHg, -27.56 inHg) or

pressure over 101.3 kPa (760 mmHg, 29.92 inHg).

4.

If NG, replace EVAP control system pressure sensor.

Applied vacuum kPa

(mmHg, inHg)

Voltage V

Not applied

1.8 - 4.8

-26.7 (-200, -7.87)

2.1 to 2.5V lower than above value

PBIB1173E

EC-388

< SERVICE INFORMATION >

[VQ35DE]

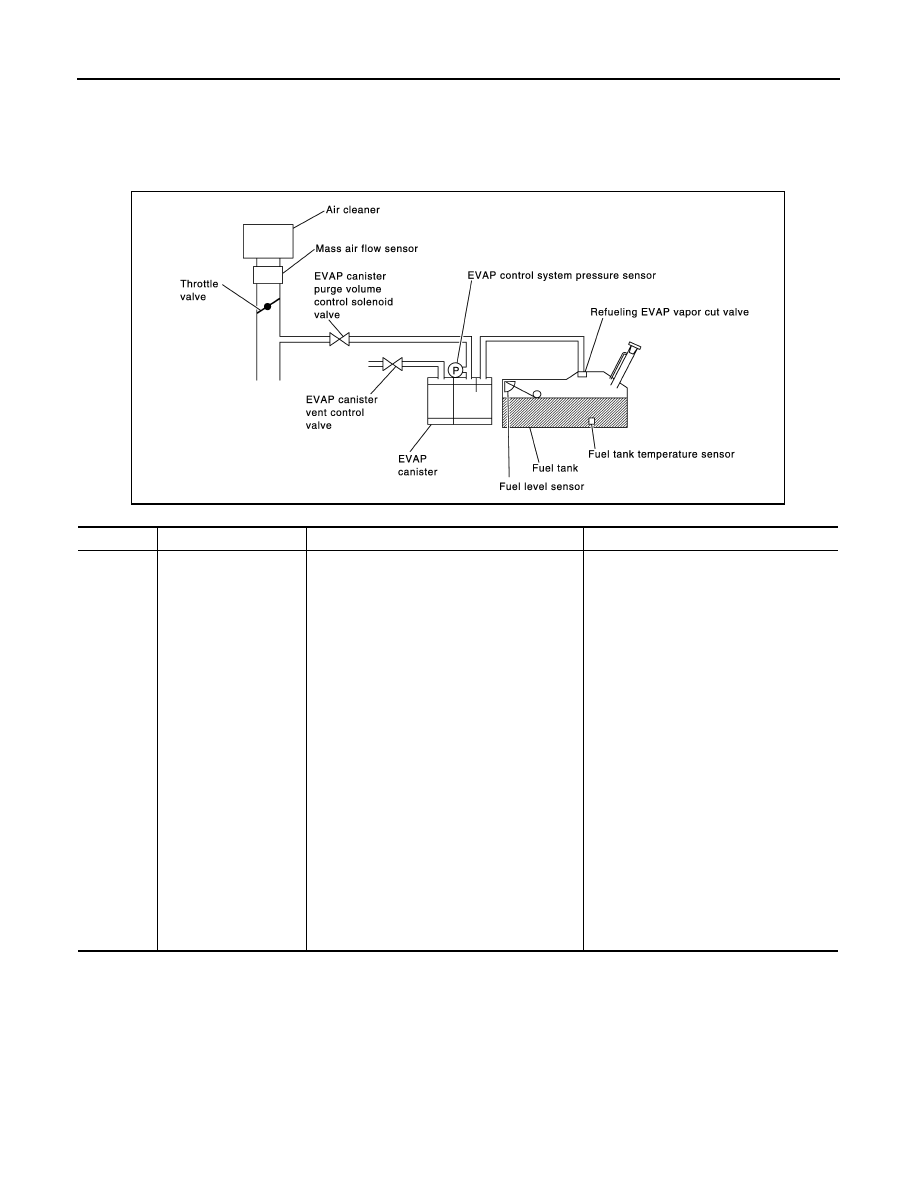

DTC P0455 EVAP CONTROL SYSTEM

DTC P0455 EVAP CONTROL SYSTEM

On Board Diagnosis Logic

INFOID:0000000001326219

This diagnosis detects a very large leak (fuel filler cap fell off etc.) in EVAP system between the fuel tank and
EVAP canister purge volume control solenoid valve.

CAUTION:

• Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the

MIL may come on.

• If the fuel filler cap is not tightened properly, the MIL may come on.
• Use only a genuine NISSAN rubber tube as a replacement.

DTC Confirmation Procedure

INFOID:0000000001326220

CAUTION:

Never remove fuel filler cap during the DTC Confirmation Procedure.
NOTE:

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0455
0455

EVAP control system
gross leak detected

EVAP control system has a very large leak such
as fuel filler cap fell off, EVAP control system
does not operate properly.

• Fuel filler cap remains open or fails to

close.

• Incorrect fuel tank vacuum relief valve
• Incorrect fuel filler cap used
• Foreign matter caught in fuel filler cap.
• Leak is in line between intake manifold

and EVAP canister purge volume control
solenoid valve.

• Foreign matter caught in EVAP canister

vent control valve.

• EVAP canister or fuel tank leaks
• EVAP purge line (pipe and rubber tube)

leaks

• EVAP purge line rubber tube bent.
• Loose or disconnected rubber tube
• EVAP canister vent control valve and the

circuit

• EVAP canister purge volume control so-

lenoid valve and the circuit

• Fuel tank temperature sensor
• O-ring of EVAP canister vent control

valve is missing or damaged.

• EVAP control system pressure sensor
• Refueling EVAP vapor cut valve
• ORVR system leaks

PBIB1026E
