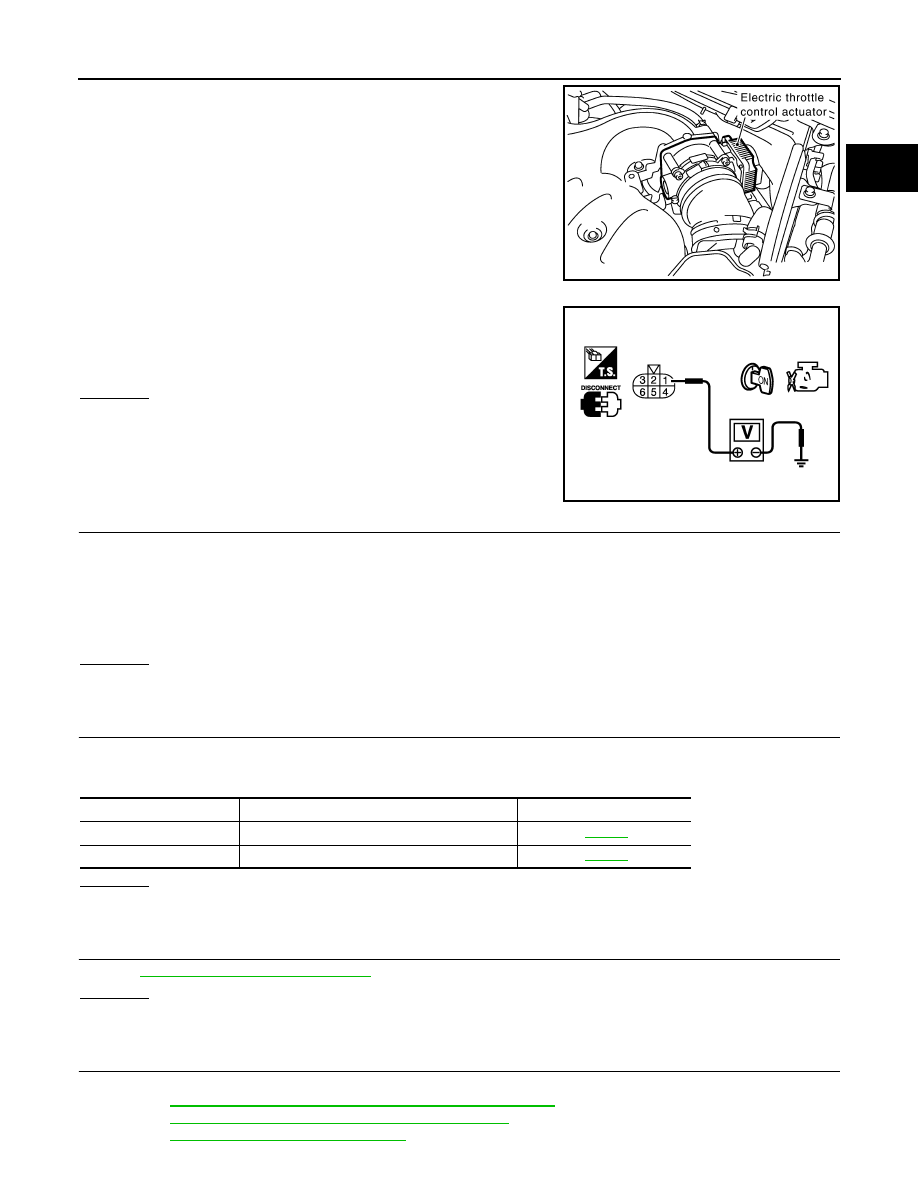

DTC P0222, P0223 TP SENSOR EC-305 < SERVICE INFORMATION > [VQ35DE] C D E F G H I J K L M A EC N P O 1. Disconnect electric throttle control actuator harness connector. 2. Turn ignition switch ON. 3. Check voltage between electric throttle control actuator terminal OK or NG OK >> GO TO 7. NG >> GO TO 3. 3. CHECK THROTTLE POSITION SENSOR 1 POWER SUPPLY CIRCUIT-II 1. Turn ignition switch OFF. 2. Disconnect ECM harness connector. 3. Check harness continuity between electric throttle control actuator terminal 1 and ECM terminal 47. OK or NG OK >> GO TO 4. NG >> Repair open circuit. 4. CHECK THROTTLE POSITION SENSOR 1 POWER SUPPLY CIRCUIT-III Check the following. OK or NG OK >> GO TO 5. NG >> Repair short to ground or short to power in harness or connectors. 5. CHECK APP SENSOR EC-517, "Component Inspection" OK or NG OK >> GO TO 11. NG >> GO TO 6. 6. REPLACE ACCELERATOR PEDAL ASSEMBLY 1. Replace accelerator pedal assembly. 2. EC-85, "Accelerator Pedal Released Position Learning" 3. EC-85, "Throttle Valve Closed Position Learning" . 4. EC-85, "Idle Air Volume Learning" PBIB1557E Voltage: Approximately 5V PBIB0082E Continuity should exist. ECM terminal Sensor terminal Reference Wiring Diagram 47 Electric throttle control actuator terminal 1 91 APP sensor terminal 4 |
